ST1000SPEX2L

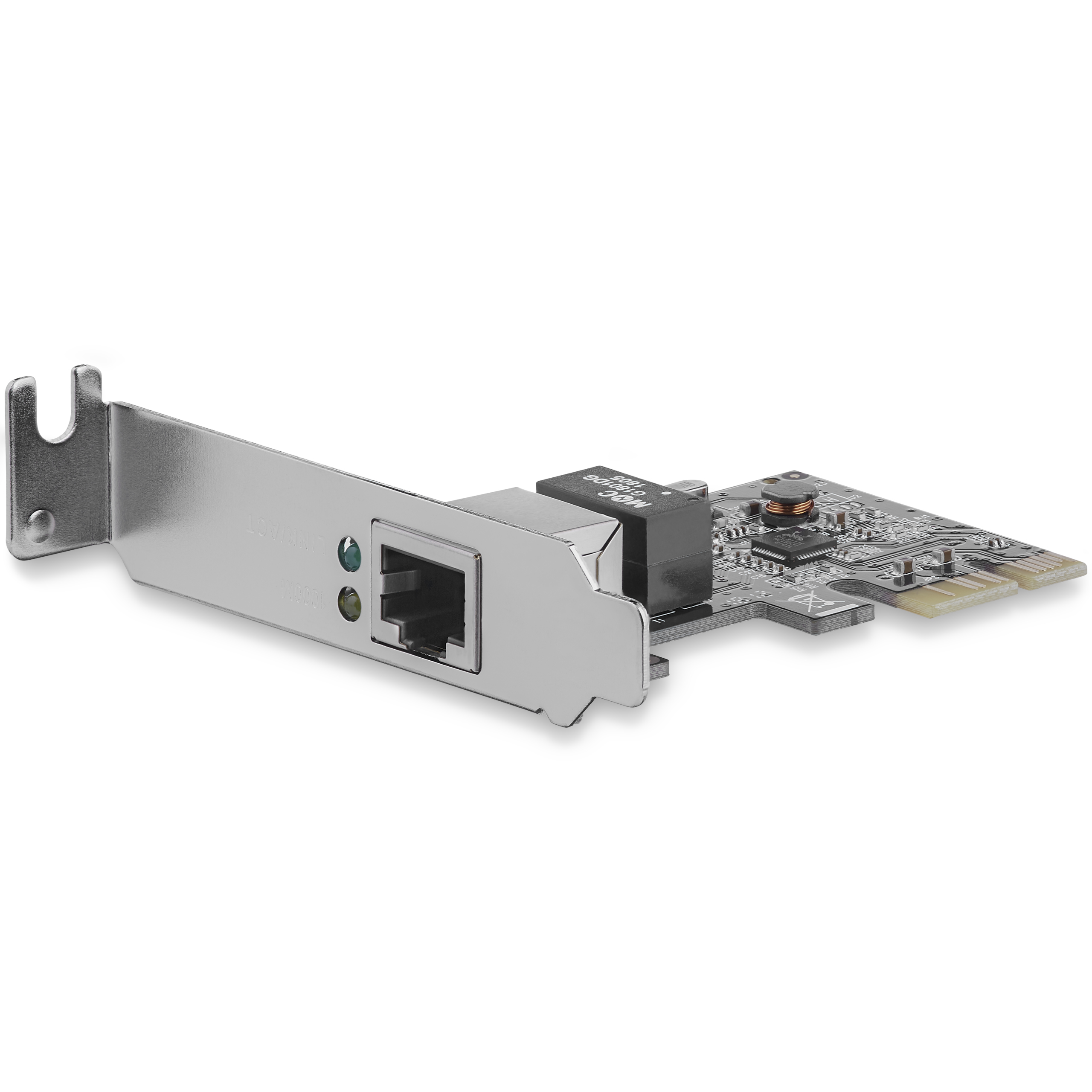

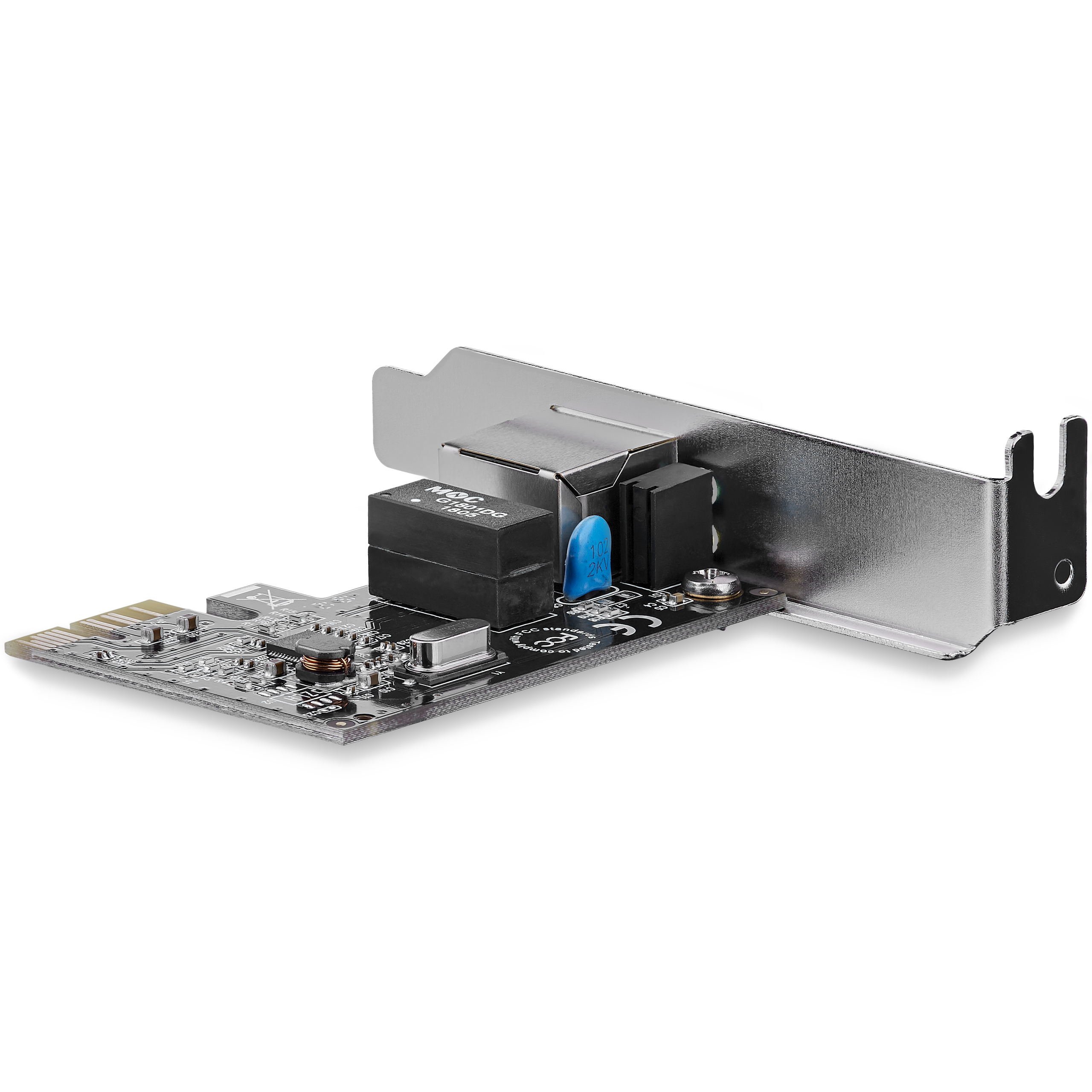

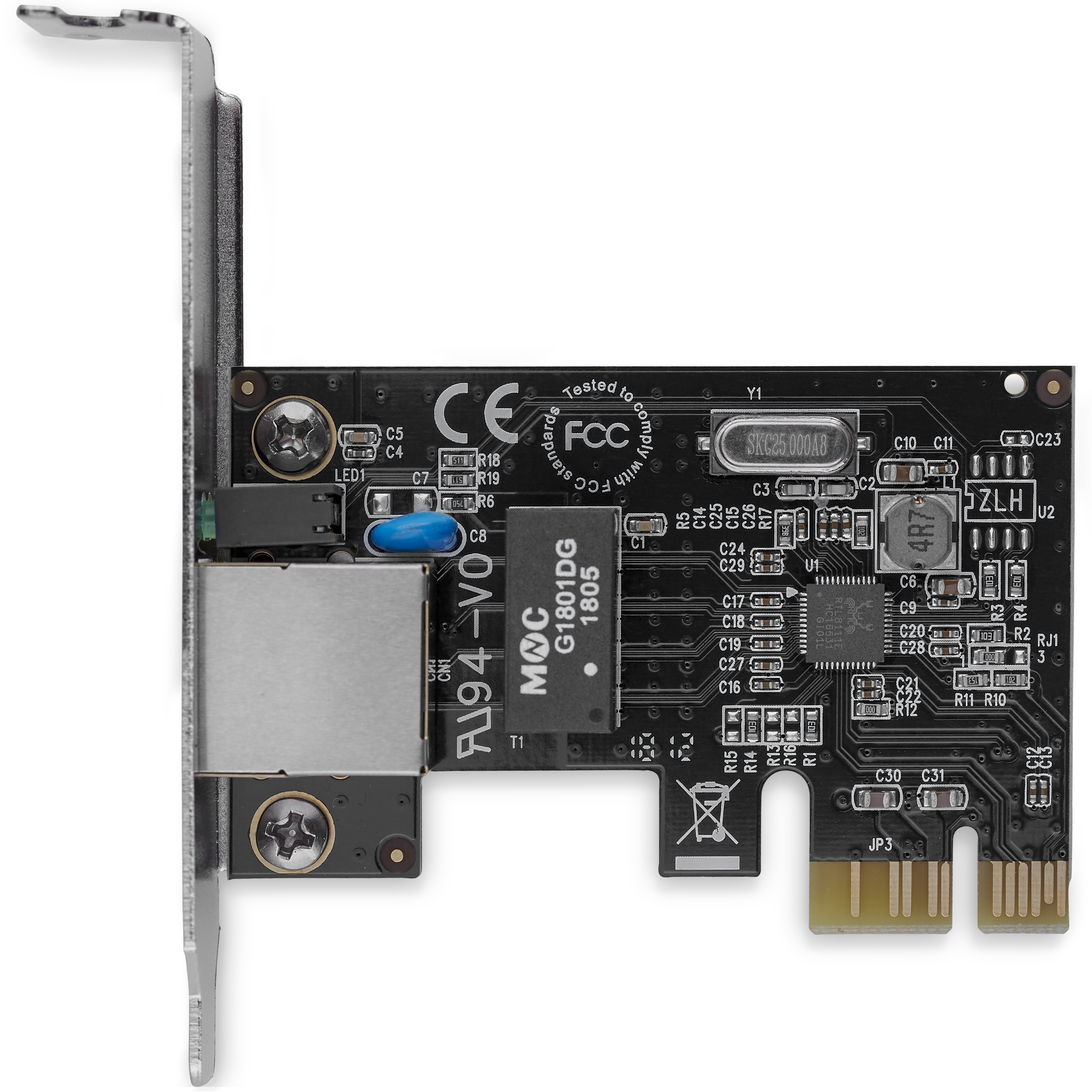

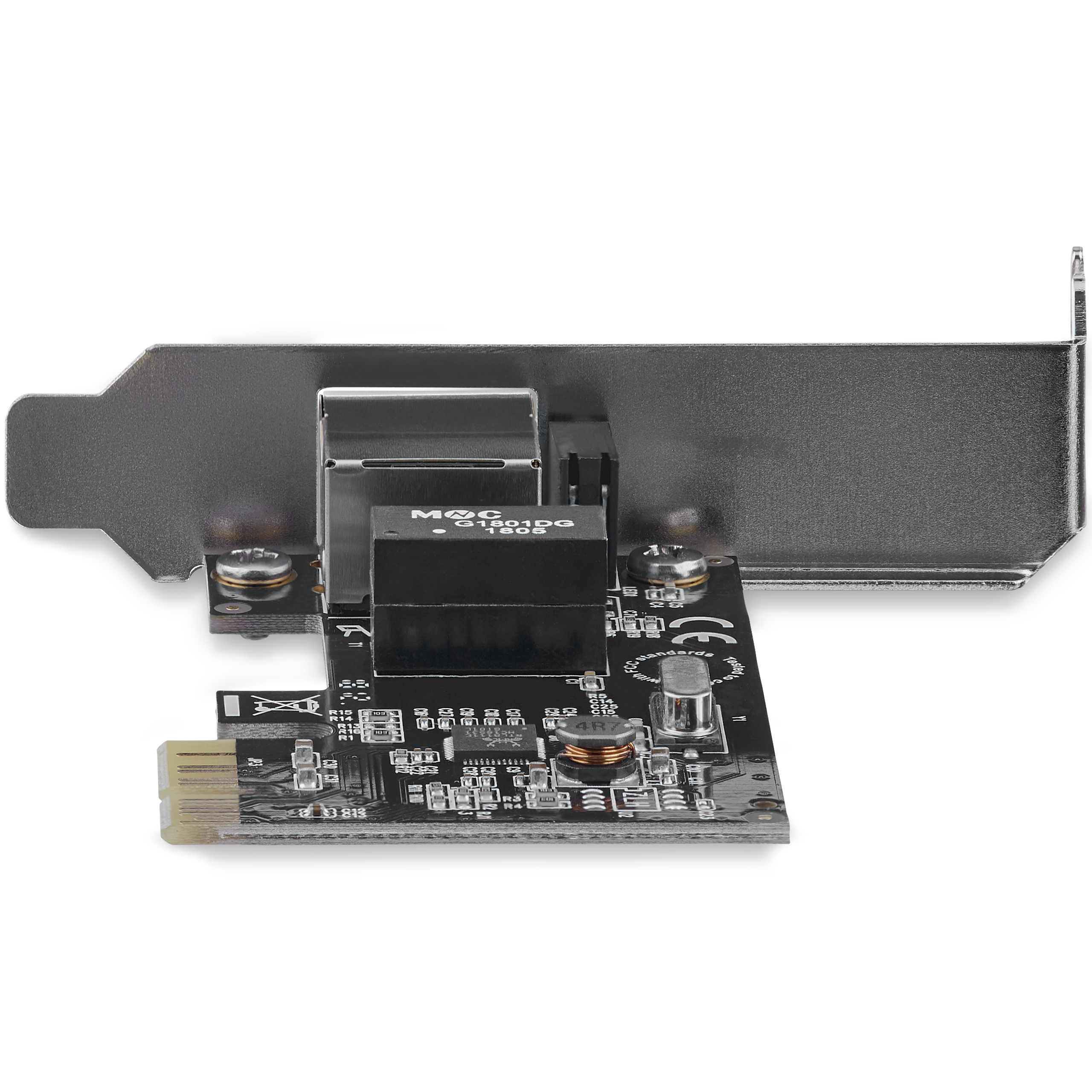

1-Port PCIe Gigabit Network Card - Low Profile
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 1-Port PCIe Gigabit Network Card - Low Profile Product Number ST1000SPEX2L UPC 065030852265 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family PCIe Gigabit NIC - Realtek Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Ultra-Short) PCIe Gigabit NIC- LP Product Title (Short) 1 Port PCIe Gigabit NIC Card Low Profile Product Title (Medium) x Product Title (Standard) 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile Product Title (Long) 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile Product Title (AMZ) 1 Port PCIe Network Card - Low Profile - RJ45 Port - Realtek RTL8111H Chipset - Ethernet Network Card - NIC Server Adapter Network Card (ST1000SPEX2L) Title Ingram (Part 1) 1Port Low Profile PCI Express Title Ingram (Part 2) Gigabit Server Adapter LAN Card Website Product Headline Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot Bullet 1 A single 10/100/1000Mbps compatible RJ45 Ethernet port Bullet 2 Gigabit detection and Link/Activity LED indicators Bullet 3 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards Bullet 4 Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control Bullet 5 Jumbo frame support Bullets (Compact) Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot - 1 Port PCI Express Gigabit NIC Server Adapter Network Card - Low Profile PCI Express Gigabit LAN Card - PCI Express Gigabit Server Adapter - PCIe Network Card Bullets (Consolidated) Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot - 1 Port PCI Express Gigabit NIC Server Adapter Network Card - Low Profile PCI Express Gigabit LAN Card - PCIe Gigabit Server Adapter - PCIe Network Card Marketing Copy Marketing Copy (No HTML) Applications - Upgrade from 10/100 Ethernet capability to Gigabit capability
- Add an Ethernet port to a workstation or server computer, for redundancy or bridging
- Add networking capabilities to an old system with no Ethernet port
Website Search Keyword PCE-1G-01-LP Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
System and Cable Requirements Available PCI Express expansion card slot Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH15BL
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
- WIRC5ECMR
- WIRC6CMRBL
Related Products - ST1000SPEXD3
- EC1000S
- ST1000SPEX2
- ST1000BT32
- USB31000S
Constrained SKU Alternatives (Limited Stock) ST1000SPEX2 Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 10% ~ 90% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 65.900 Product Width (mm) 42.300 Product Height (mm) 80.000 Product Weight (g) 30.000 Storage Temperature 0°C to 100°C (32°F to 212°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 1000 Mbps OS Compatibility - Mac OS X Mavericks (10.9)
- Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

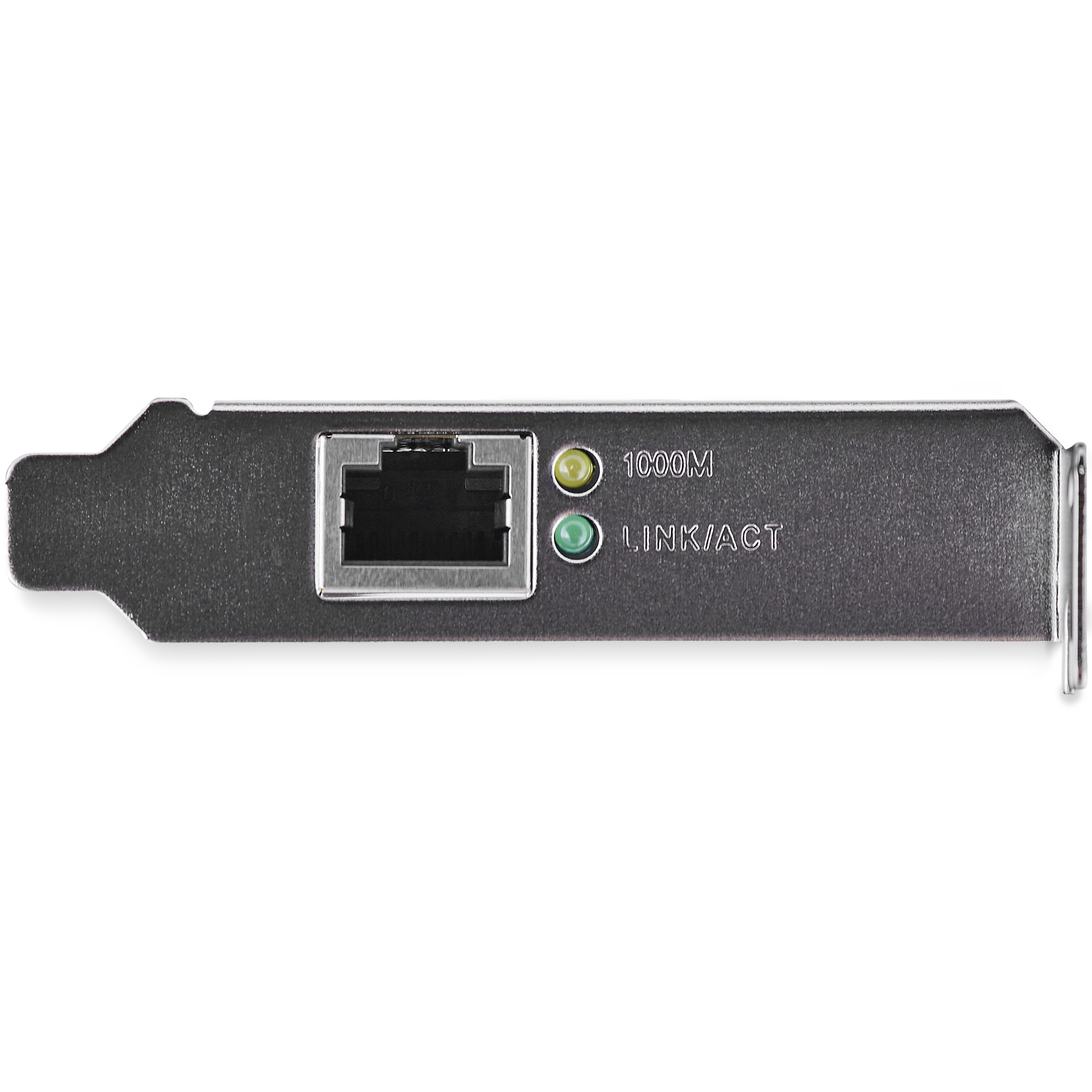

Supported Protocols CSMA/CD Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID Realtek - RTL8111 Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Gigabit Detect (Yellow)
- 1 - Link/Activity (Green)
Carton Depth (mm) 480 Carton Height (mm) 317 Carton Quantity 50 Carton Weight Gross (g) 5244 Included in Package - 1 - Gigabit Ethernet PCI Express Card
- 1 - Standard Profile Bracket
- 1 - Instruction Manual
Included In Package for Label - 1 - Gigabit Ethernet PCI Express Card
- 1 - Standard Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 92 Packaging Description 1 Port PCIe Gigabit Network Card - Low Profile Packaging Description India 1-Port PCIe Gigabit Network Card - Low Profile Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
