ST1000SPEX4
Gigabit Ethernet PCI Express Network Adapter
Add four Gigabit network interfaces to a Desktop PC or Server with an available PCI Express x4 slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Gigabit Ethernet PCI Express Network Adapter Product Number ST1000SPEX4 UPC 065030839457 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 4 Port PCIe Gigabit Network Adapter Card Product Title (Standard) 4 Port PCIe Gigabit Ethernet NIC Network Adapter Product Title (Long) 4 Port PCI Express Gigabit Ethernet NIC Network Adapter Card Product Title (AMZ) 4 Port PCI Express Gigabit Ethernet NIC Network Adapter Card (ST1000SPEX4) Title Ingram (Part 1) 4 Port PCI Express Gigabit Ether Title Ingram (Part 2) net NIC Network Adapter Card Website Product Headline Add four Gigabit network interfaces to a Desktop PC or Server with an available PCI Express x4 slot Bullet 1 Auto-sensing, self-configuring 10/100/1000 Mbps performance Bullet 2 Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P Layer 2 Priority Encoding Bullet 3 Crossover Detection & Auto-Correction (Auto MDIX) Bullet 4 Fully Compliant with IEEE 802.3 IEEE 802.3u and IEEE 802.3ab Bullet 5 Four independent 10/100/1000 RJ45 Ethernet ports Marketing Copy Applications - Specially designed for any slot-constrained desktop PC clients, servers, and workstations with a PCI Express slot.
- Idea for VM environments with multiple Operating requiring shared or dedicated NICs
- Provide redundant connectivity to ensure an uninterrupted network connection
Website Search Keyword - 10/100/1000 network adapter
- Ethernet network adapter card
- gigabit lan adapter card
- gigabit network adapter
- pci express network adapter card
- pcie ethernet network adapter card
- Quad NIC
- Four NIC
- 4 NIC
- 1000BASE-TX
- 1000BASE-T
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- C6PATCH6BK
- M45PATCH10BK
- M45PATCH10BL
- M45PATCH6BK
- M45PATCH6BL
Related Products - EC1000BT
- PEX100S
- ST1000BT32
- ST1000SPEX
- ST1000SPEXDP
- PEX1000MMSC
Replacement Product ST1000SPEX43 Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 140 Product Width (mm) 102 Product Height (mm) 18 Product Weight (g) 250 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000Mbps MTBF (hours) 117,500 Hours OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 8
- Windows 7
Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile Chipset ID Realtek - RTL8111C Industry Standards Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 4 - Green - Link LED
- 4 - Yellow - Activity LED

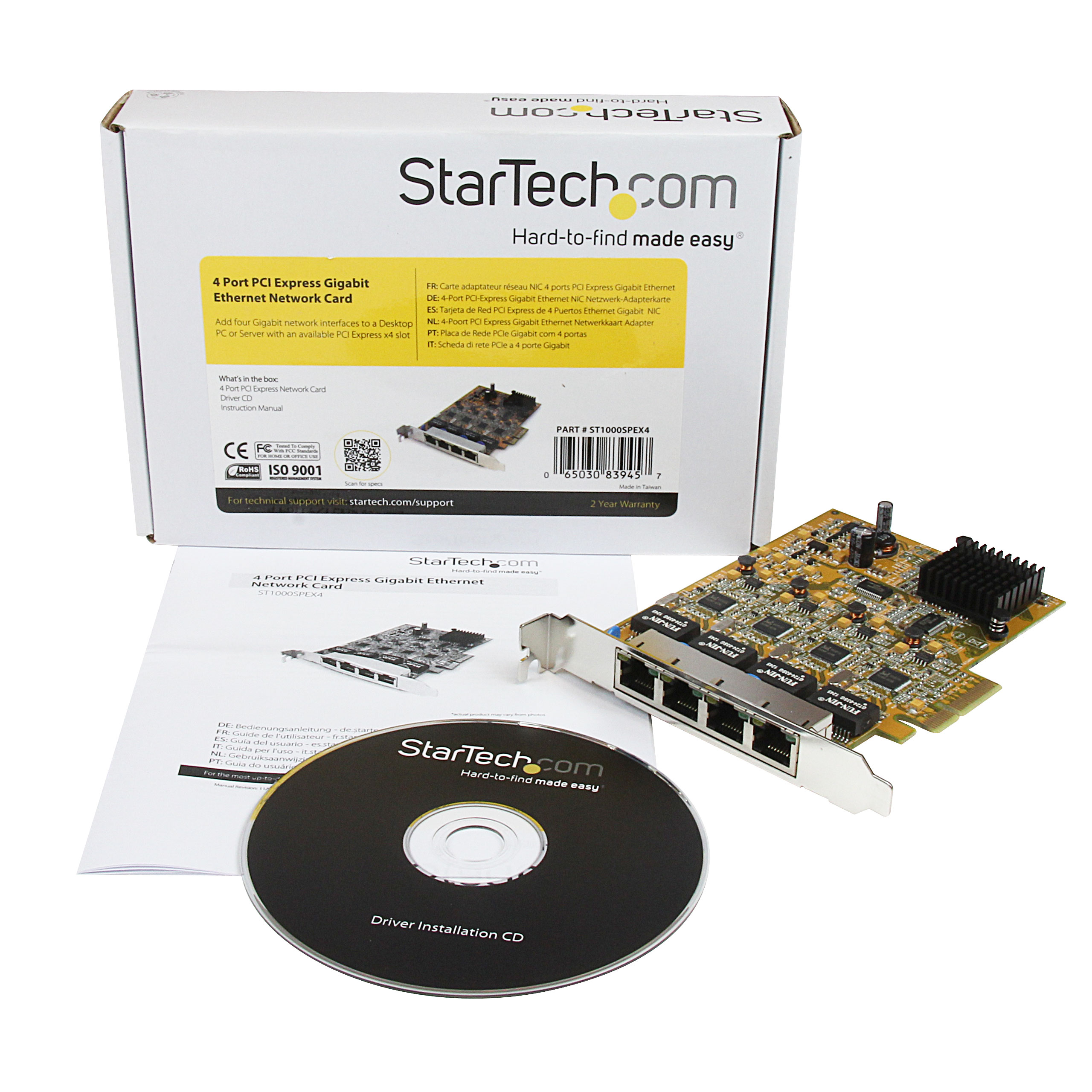

Carton Depth (mm) 507 Carton Height (mm) 482 Carton Quantity 50 Carton Weight Gross (g) 13200 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - 4 Port PCI Express Network Card
Package Depth (mm) 44 Package Height (mm) 163 Package Width (mm) 230 Package Weight (g) 240 Packaging Description 4 Port PCIe Gigabit Network Card Packaging Description India 4 Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
