Main Image
ST1000SPEX42

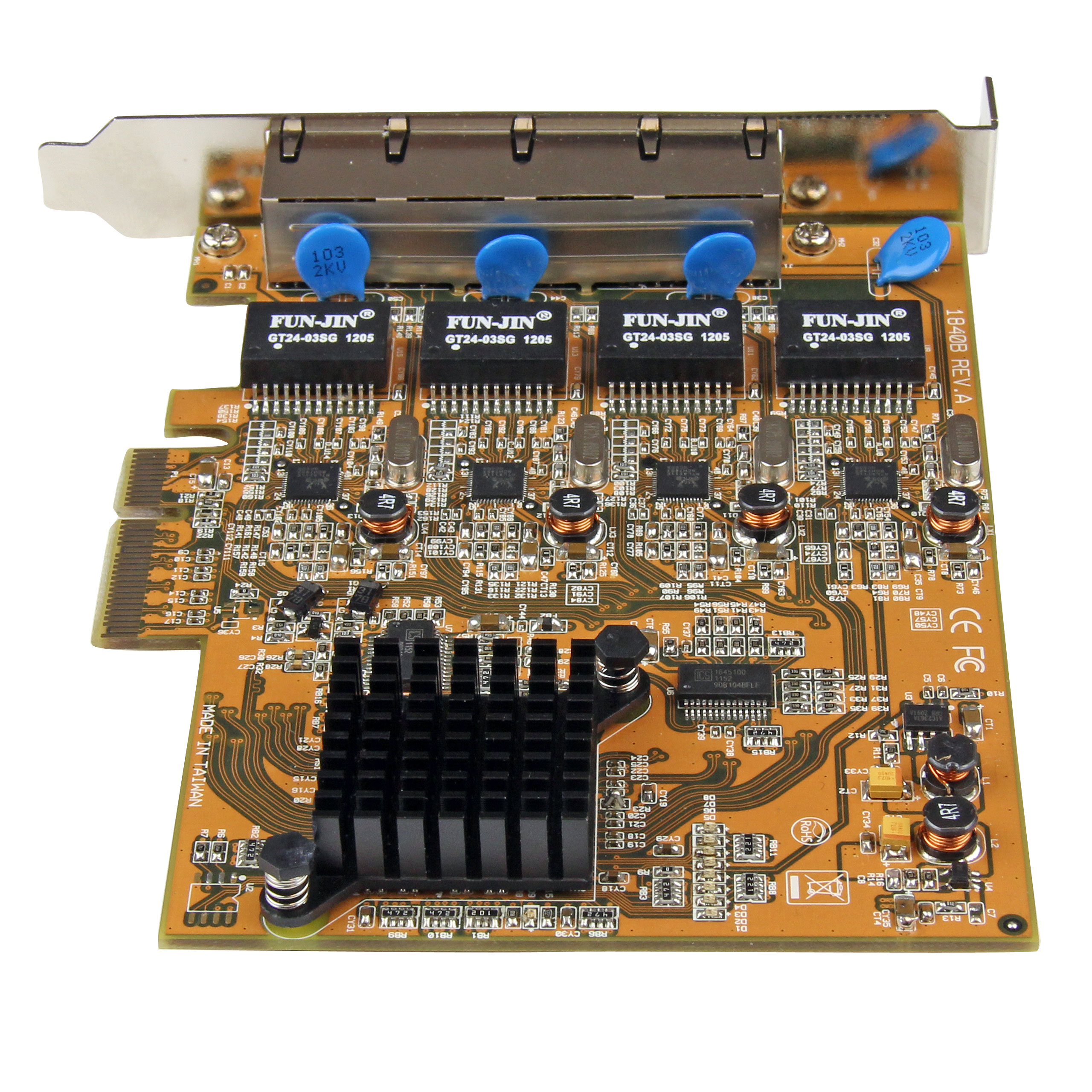

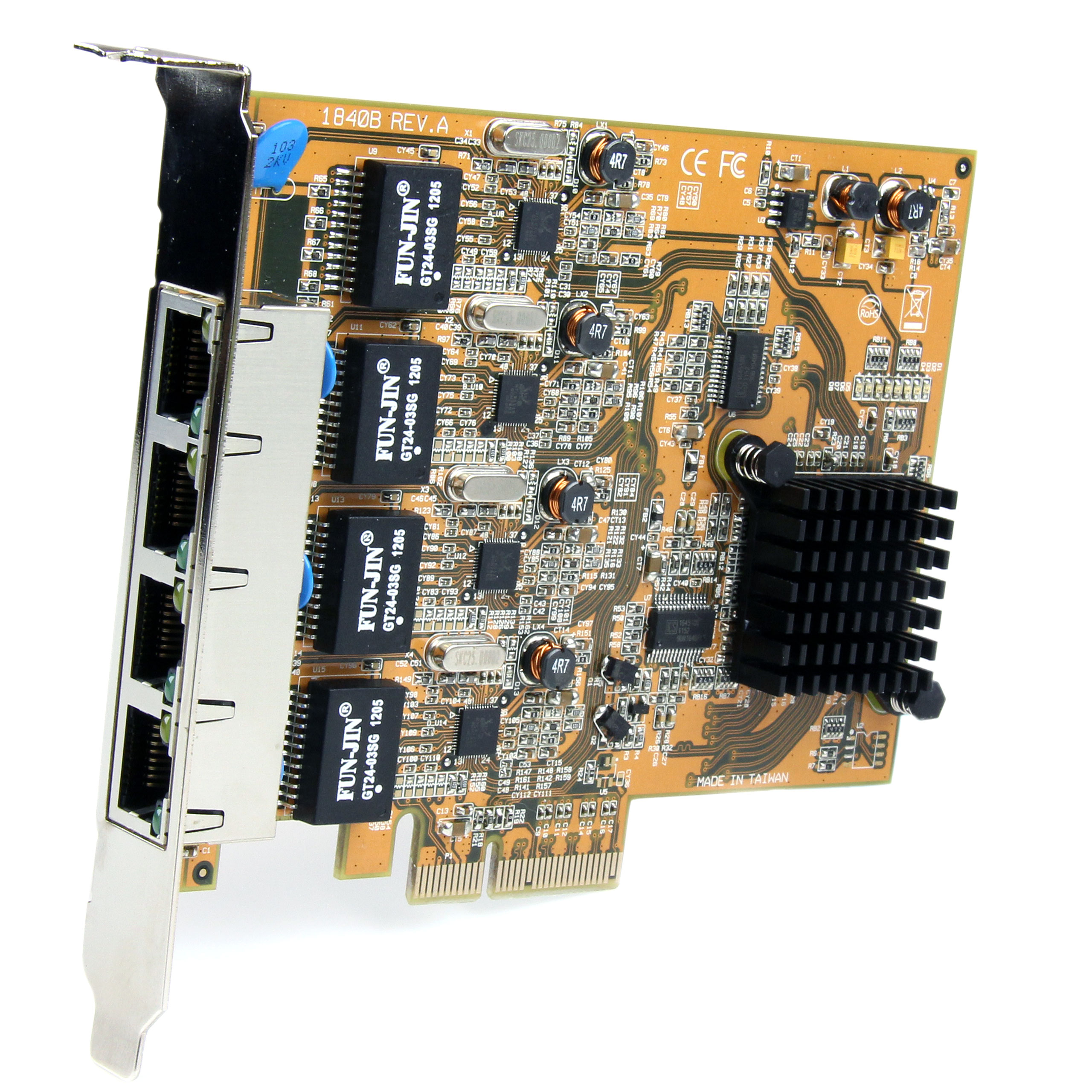

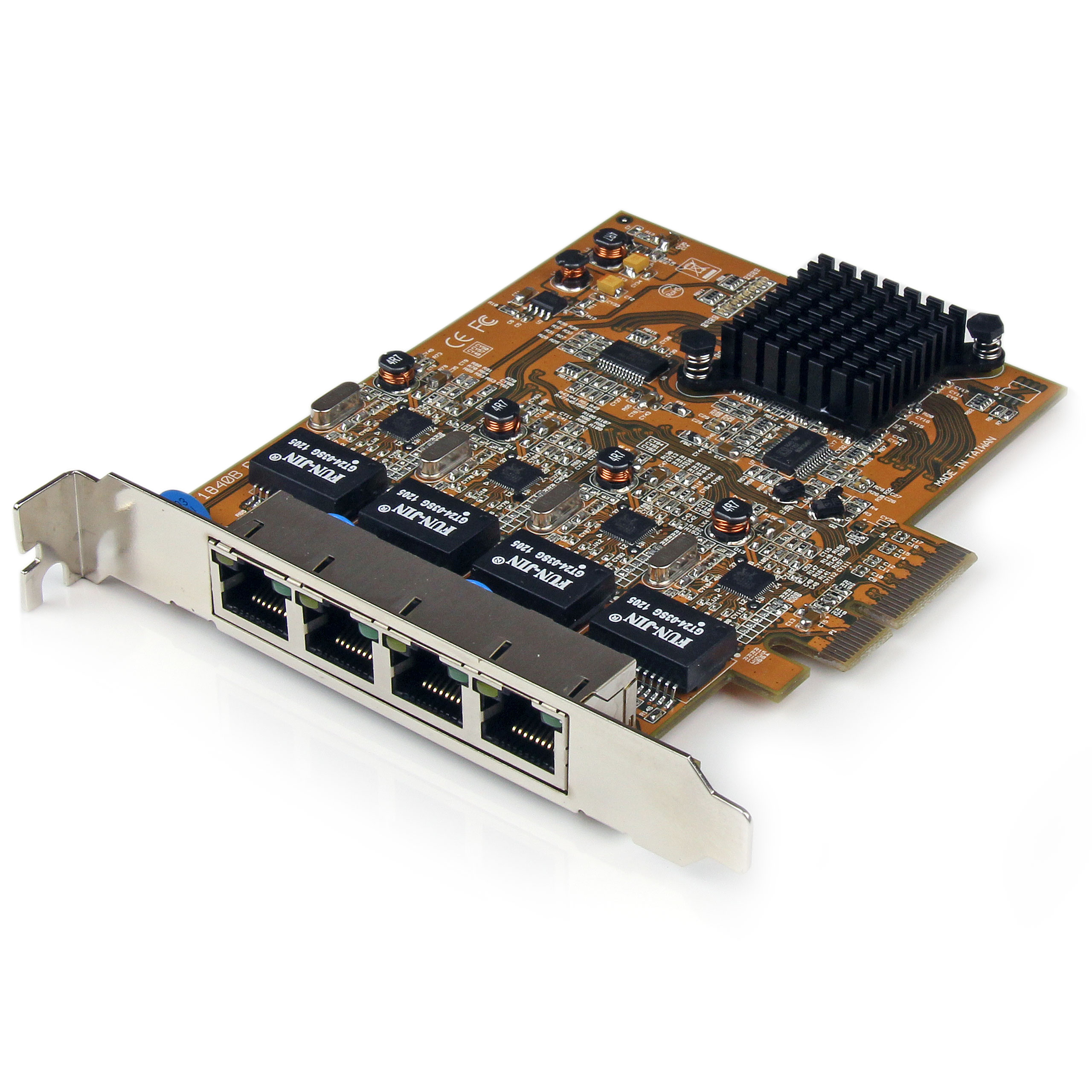

4 Port PCI Express Gigabit Network Card - REV E
Add four Gigabit network interfaces to a Desktop PC or Server with an available PCI Express x4 slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port PCI Express Gigabit Network Card - REV E Product Number ST1000SPEX42 UPC 065030849562 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 4 Port PCIe Gigabit Network Adapter Card Product Title (Medium) x Product Title (Standard) 4 Port PCIe Gigabit Ethernet NIC Network Adapter Card Product Title (Long) 4 Port PCI Express Gigabit Ethernet NIC Network Adapter Card Product Title (AMZ) 4 Port PCI Express PCIe Gigabit Ethernet NIC Network Adapter Card (ST1000SPEX42) Title Ingram (Part 1) 4 Port PCI Express Gigabit Title Ingram (Part 2) Ethernet Network Adapter Card Website Product Headline Add four Gigabit network interfaces to a Desktop PC or Server with an available PCI Express x4 slot Bullet 1 Four independent 10/100/1000 RJ45 Ethernet ports Bullet 2 Jumbo Frame support up to 9k Bullet 3 Fully Compliant with IEEE 802.3 IEEE 802.3u and IEEE 802.3ab Bullet 4 Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P Layer 2 Priority Encoding Bullet 5 Crossover Detection & Auto-Correction (Auto MDIX) Bullets (Consolidated) Add 4 Gigabit Ethernet Ports to your PC through a single PCI Express x4 slot - 4 Port PCIe Gigabit Network Card - Quad Port PCI Express Gigabit Network Adapter - Gigabit NIC - PCIe 10/100/1000 Network Card Marketing Copy Applications - Specially designed for desktop PC clients, servers, and workstations with few PCI Express slots available
- Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
- Provide redundant connectivity to ensure an uninterrupted network connection
Website Search Keyword - 10/100/1000 network adapter
- Ethernet network adapter card
- gigabit lan adapter card
- gigabit network adapter
- pci express network adapter card
- pcie ethernet network adapter card
- Quad NIC
- Four NIC
- 4 NIC
- 1000BASE-TX
- 1000BASE-T
- RTL8111E
- ST1000SPEX4
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements Available PCI Express x4 slot Accessory Products - RJ45PATCH10
- RJ45PATCH25
- M45PATCH25BK
- M45PATCH10BK
- C6PATCH25BL
- C6PATCH25BK
Related Products - ST1000SPEX4
- ST1000SPEX
- PEX100S
- ST1000SPEXDP
Replacement Product ST1000SPEX43 Power Consumption (In Watts) PCIe: +3.3V @ 1A maximum Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 128.000 Product Width (mm) 102.000 Product Height (mm) 16.000 Product Weight (g) 100.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000Mbps OS Compatibility - Linux
- Windows 8
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows 11

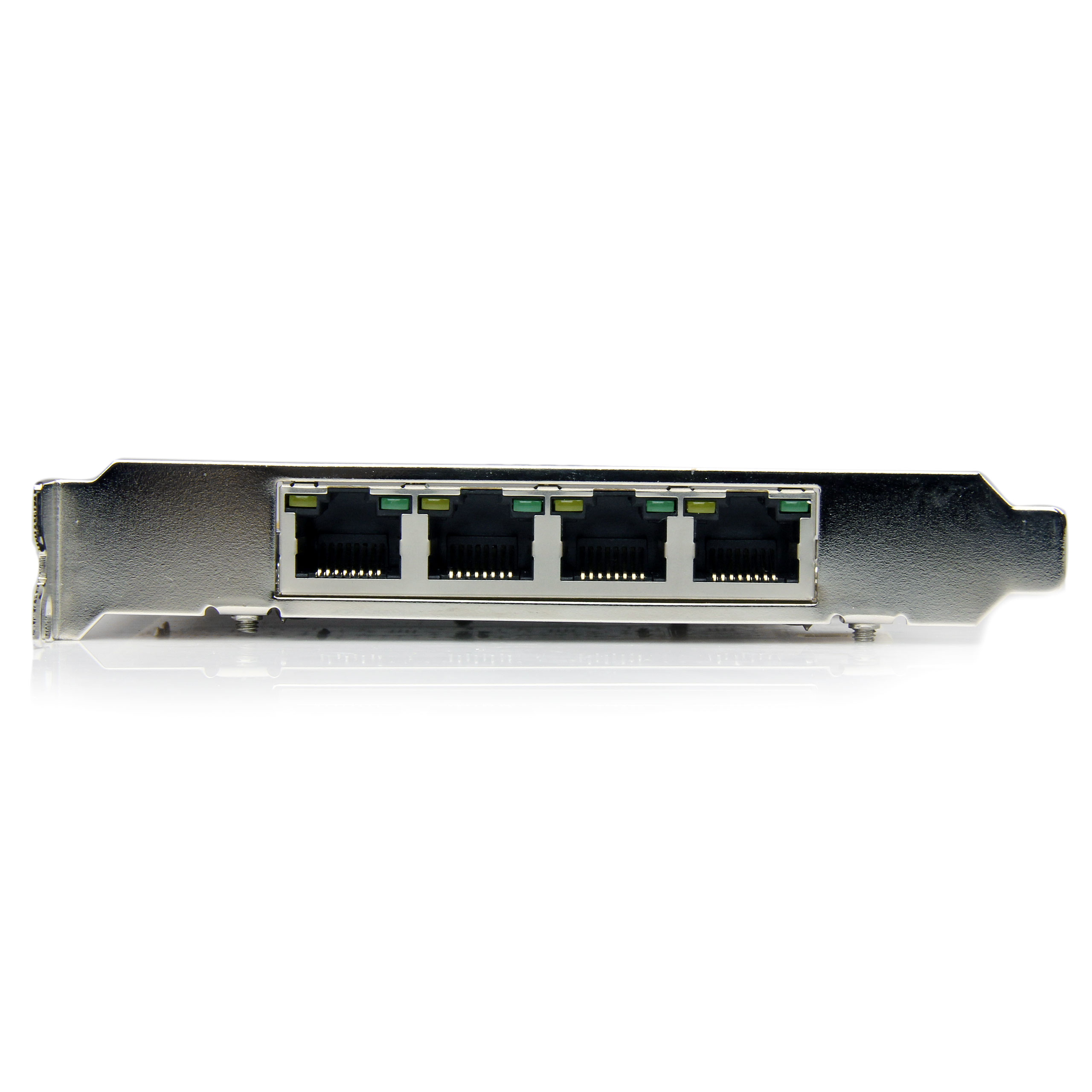

Bus Type PCI Express Card Type Standard Profile Chipset ID Industry Standards Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 4 - Green - Link LED
- 4 - Yellow - Activity LED

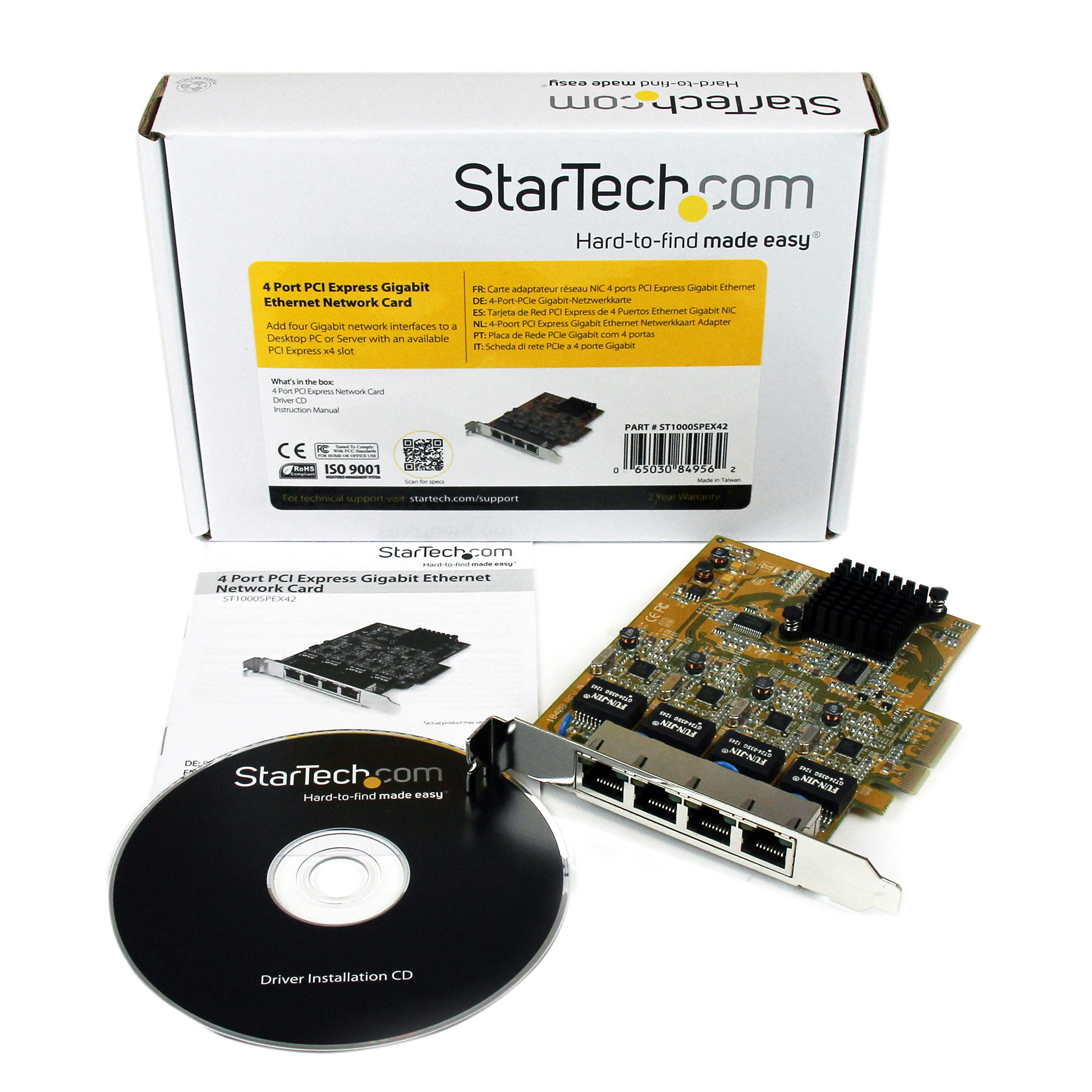

Carton Depth (mm) 425 Carton Height (mm) 330 Carton Quantity 45 Carton Weight Gross (g) 10690 Included in Package - 1 - 4 Port PCI Express Network Card
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 210 Package Height (mm) 38 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 212 Packaging Description 4 Port PCIe Gigabit Network Card Packaging Description India 4 Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-25 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
