Main Image
ST1000SPEX43

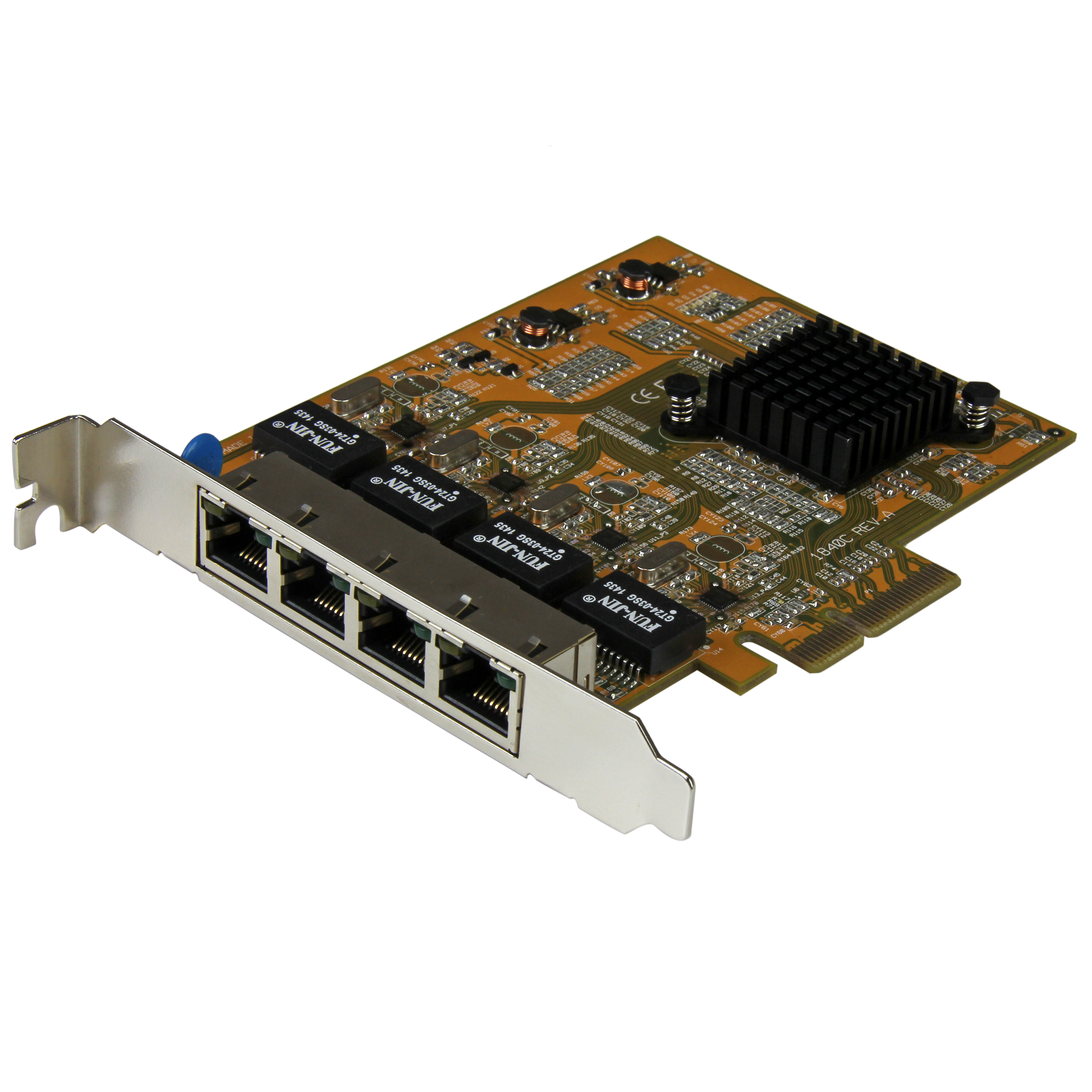

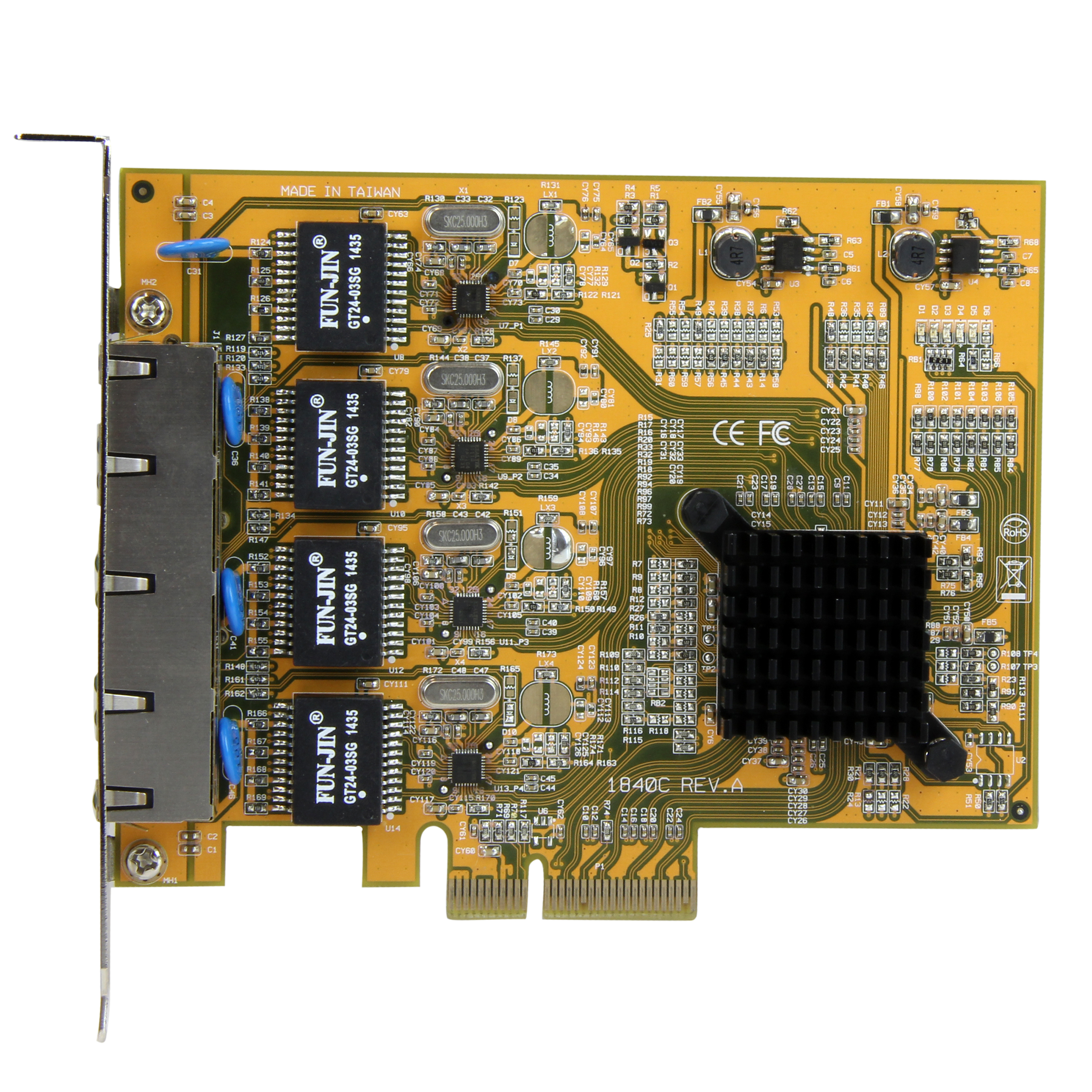

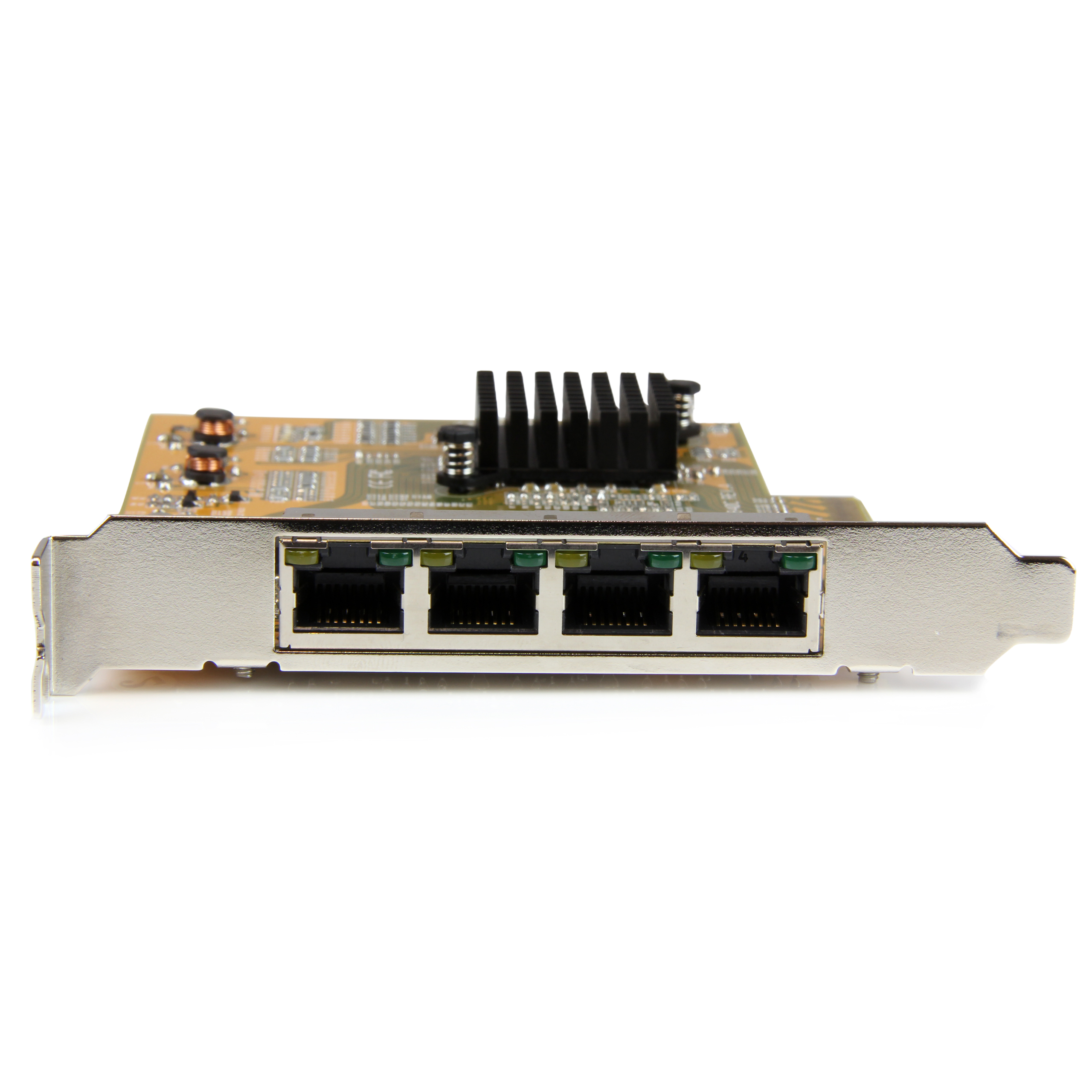

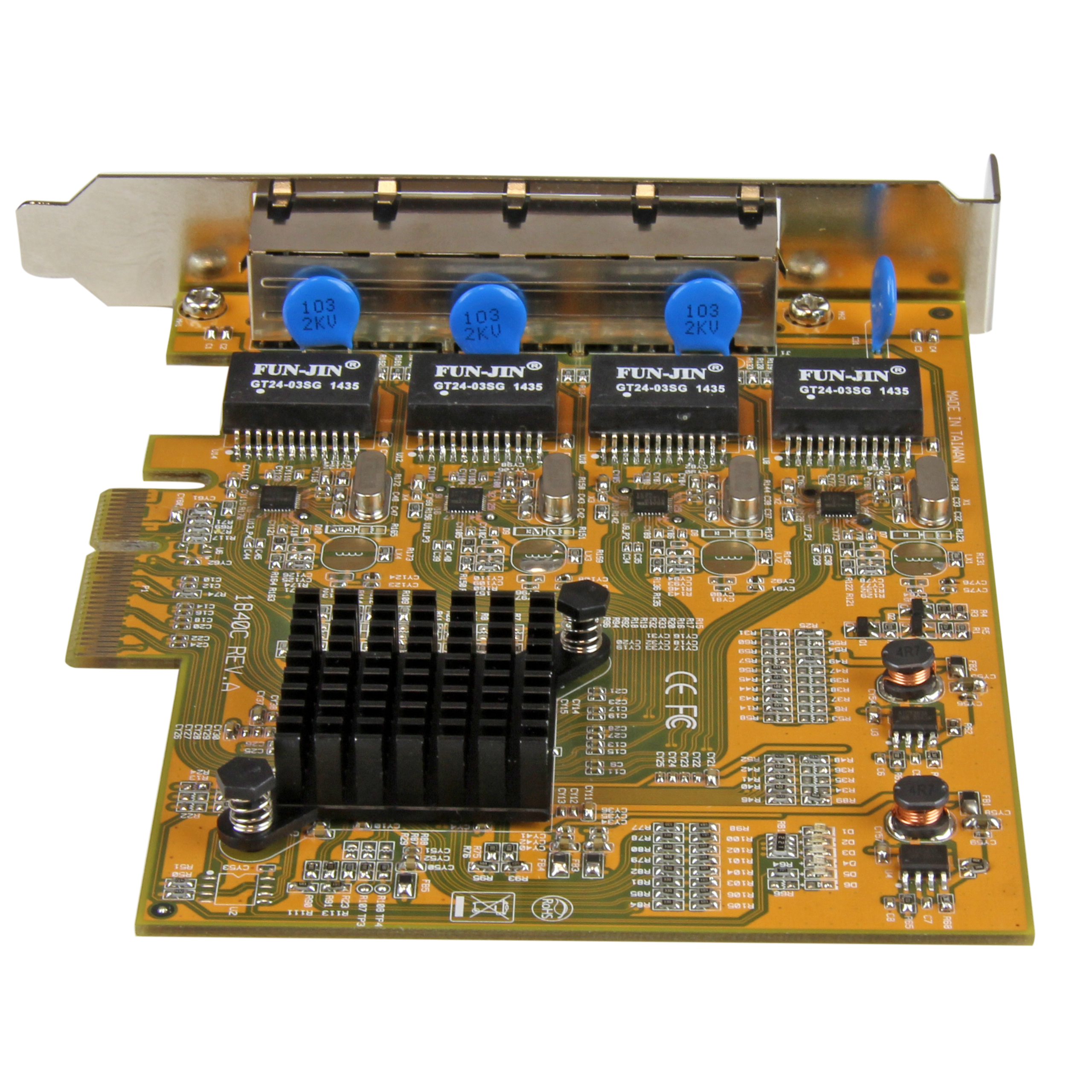

Quad-Port PCIe Gigabit Network Interface Card
Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Quad-Port PCIe Gigabit Network Interface Card Product Number ST1000SPEX43 UPC 065030862448 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family PCIe Gigabit NIC - Realtek Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 4-Port PCIe Gb NIC Product Title (Short) 4-Port PCIe Gigabit Network Adapter Card Product Title (Medium) 4-Port PCIe Gigabit Network Adapter Card Product Title (Standard) 4-Port PCI Express Gigabit Network Adapter Card, Quad-Port PCIe Gigabit NIC, TAA Product Title (Long) 4-Port PCIe Gigabit Network Adapter Card - TAA Product Title (AMZ) 4 Port PCIe Network Card - Standard Profile - RJ45 Port - Realtek RTL8111H Chipset - Ethernet Network Card - NIC Server Adapter Network Card , TAA (ST1000SPEX43) Title Ingram (Part 1) Quad-Port PCIe Gigabit Network Title Ingram (Part 2) Interface Card (NIC) Website Product Headline Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot Bullet 1 Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers Bullet 2 Realtek RTL8111H chipset for reliable performance Bullet 3 Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab networks Bullet 4 Crossover detection and auto-correction (Auto-MDIX) Bullet 5 Up to 9K jumbo frame support Bullets (Compact) Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot - 4-Port PCI Express Gigabit network adapter card - Quad-port Gigabit NIC - Network card w/ 4x 10/100/1000 RJ45 ports - Full-Duplex Flow Control support Bullets (Consolidated) Add four Gigabit Ethernet ports to a client or server or workstation through one PCI Express slot - 4-Port PCI Express Gigabit network adapter card/Quad-port Gigabit NIC - PCIe 10/100/1000 Network Card - Cost-effective network connectivity with 4x 10/100/1000 RJ45 ports on one adapter card - Full-Duplex Flow Control support - Wake-on-LAN and remote wake-up support - Compliant with IEEE 802.3/ IEEE 802.3u/ IEEE 802.3ab - Supports Auto-Negotiation w/ Next Page Capacity - 9K Jumbo Frame support Marketing Copy Marketing Copy (No HTML) Applications - Provides simultaneous access to multiple networks for desktop PC clients, servers, and workstations that have a limited number of PCI Express slots available
- Maximizes the number of RJ45 ports within a system or high-end workstations and servers
- Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
- Provides redundant connectivity to ensure an uninterrupted network connection
Website Search Keyword - ST1000SPEX4
- 10/100/1000 network adapter
- Ethernet network adapter card
- gigabit lan adapter card
- gigabit network adapter
- pci express network adapter card
- pcie ethernet network adapter card
- Quad NIC
- Four NIC
- 4 NIC
- 1000BASE-TX
- 1000BASE-T
- RTL8111E
- PCIe Gigabit network adapter
- PCIe Gigabit network adapter card
- PCIe Gigabit network card
- PCIe Gigabit adapter card
- Gb NIC
- ST1000SPEX42
Required Regulatory Compliance Marks - Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
System and Cable Requirements Available PCI Express x4 or higher (x8, x16) slot Accessory Products - RJ45PATCH10
- RJ45PATCH25
- M45PATCH25BK
- M45PATCH10BK
- C6PATCH25BL
- C6PATCH25BK
Related Products - ST1000SPEX4
- ST1000SPEX
- ST1000SPEXDP
- PEX100S
- ST4000SPEXI
Constrained SKU Alternatives (Limited Stock) ST4000SPEXI Color Yellow Humidity 5% ~ 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 138.000 Product Width (mm) 120.000 Product Height (mm) 18.000 Product Weight (g) 92 Storage Temperature -40°C to 75°C (-40°F to 167°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2000Mbps (Full Duplex) OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Linux
- Windows Server 2012
- Windows Server 2003
- Windows Server 2016
- Windows Server 2019
- Windows 11
Promiscuous Mode Yes Bus Type PCI Express Card Type Standard Profile Chipset ID Realtek - RTL8111H Industry Standards Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 4 - Link
- 4 - Activity

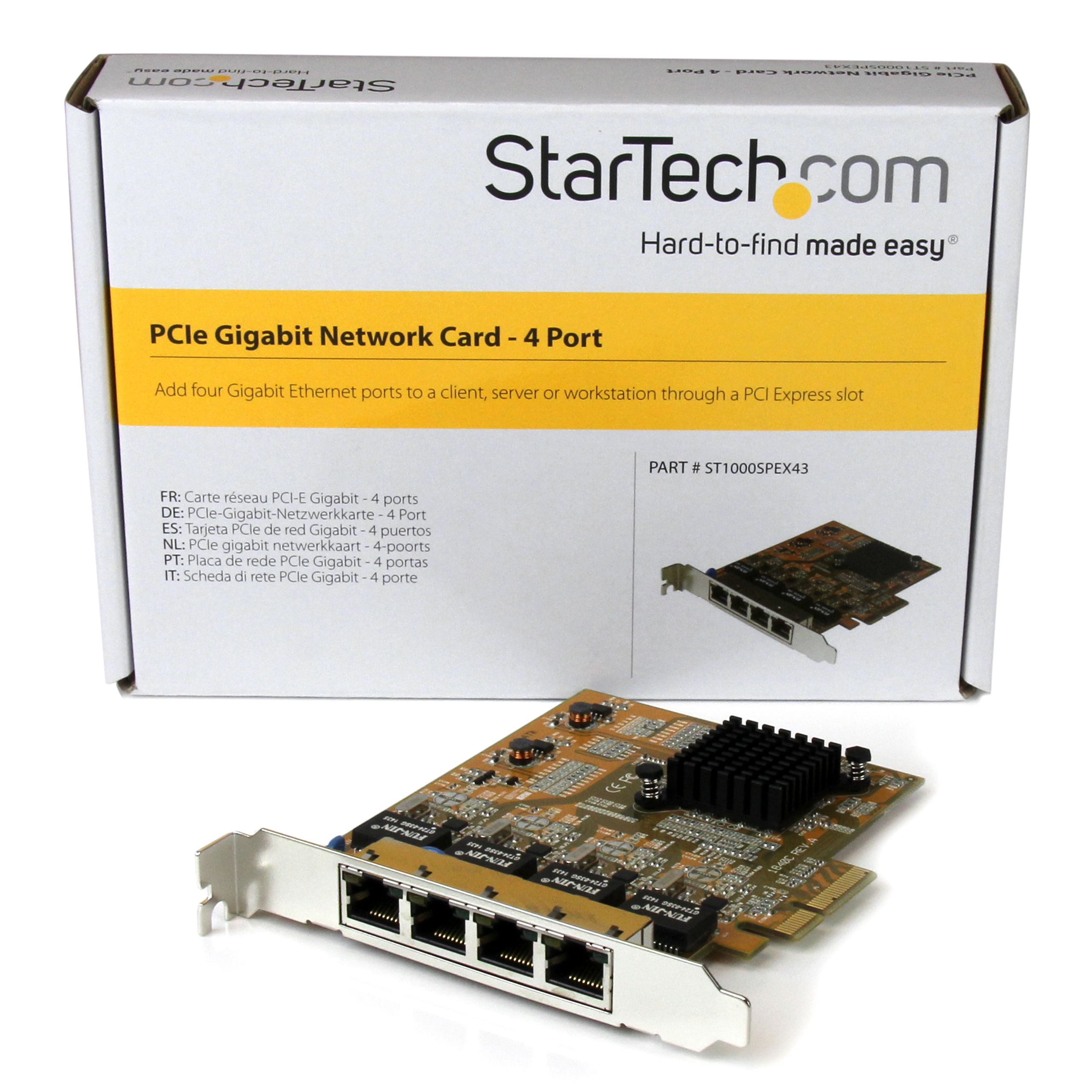

Carton Depth (mm) 446 Carton Height (mm) 338 Carton Quantity 50 Carton Weight Gross (g) 10234 Included in Package 1 - PCIe Gigabit network card - 4 port Included In Package for Label 1 - PCIe Gigabit Network Card - 4 Port Package Depth (mm) 145 Package Height (mm) 41 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 188 Packaging Description PCIe Gigabit network card - 4 port Packaging Description India PCIe Gigabit network card - 4 port Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-04-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-07-24 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
