ST1000SPEXD2
LP Dual Port PCIe Gb Ethernet Network Adapter Card
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name LP Dual Port PCIe Gb Ethernet Network Adapter Card Product Number ST1000SPEXD2 UPC 065030845403 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) LP Dual Port Gigabit Network Card 2 Port Product Title (Standard) Low Profile Dual Port Gigabit Network Server Adapter NIC Card 2 Port Product Title (Long) Low Profile Dual Port Gigabit Network Server Adapter NIC Card Title Ingram (Part 1) LP Dual Port Gigabit Network Ser Title Ingram (Part 2) ver Adapter NIC Card 2 Port Website Product Headline Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot Bullet 1 Two 10/100/1000Mbps compatible RJ-45 Ethernet ports Bullet 2 Jumbo Frame support Bullet 3 On-chip 48 KB Big Transmit/Receive Buffer Support Bullet 4 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control Bullet 5 Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload Marketing Copy Applications - Add 2 Ethernet ports to a workstation or server computer from a single PCIe slot
- Connect to 2 separate networks simultaneously
- Install dual networking capabilities into a small form factor or other space-constrained computer system
Website Search Keyword - Ethernet network adapter card
- gigabit network adapter
- 10/100/100 network adapter
- pci express network adapter card
- gigabit lan adapter card
- pcie ethernet network adapter card
- ST1000BT32
- jumbo frames
- ST1000SPEXDP
Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH15BL
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
Related Products - PEX100S
- ST1000BT32
- EC1000BT
- ST1000SPEX
Replacement Product ST1000SPEXD4 Humidity 10% ~ 90% RH (non-condensing) Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 110 Product Width (mm) 74 Product Weight (g) 200 Storage Temperature -20°C to 75°C (-4°F to 167°F) TAA Compliant No Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000 Mbps (uni-directional), 2000 Mbps (bi-directional) OS Compatibility - Mac OS X Mavericks (10.9)
- Linux
- Windows 7
- Windows Server 2012
- Windows 8

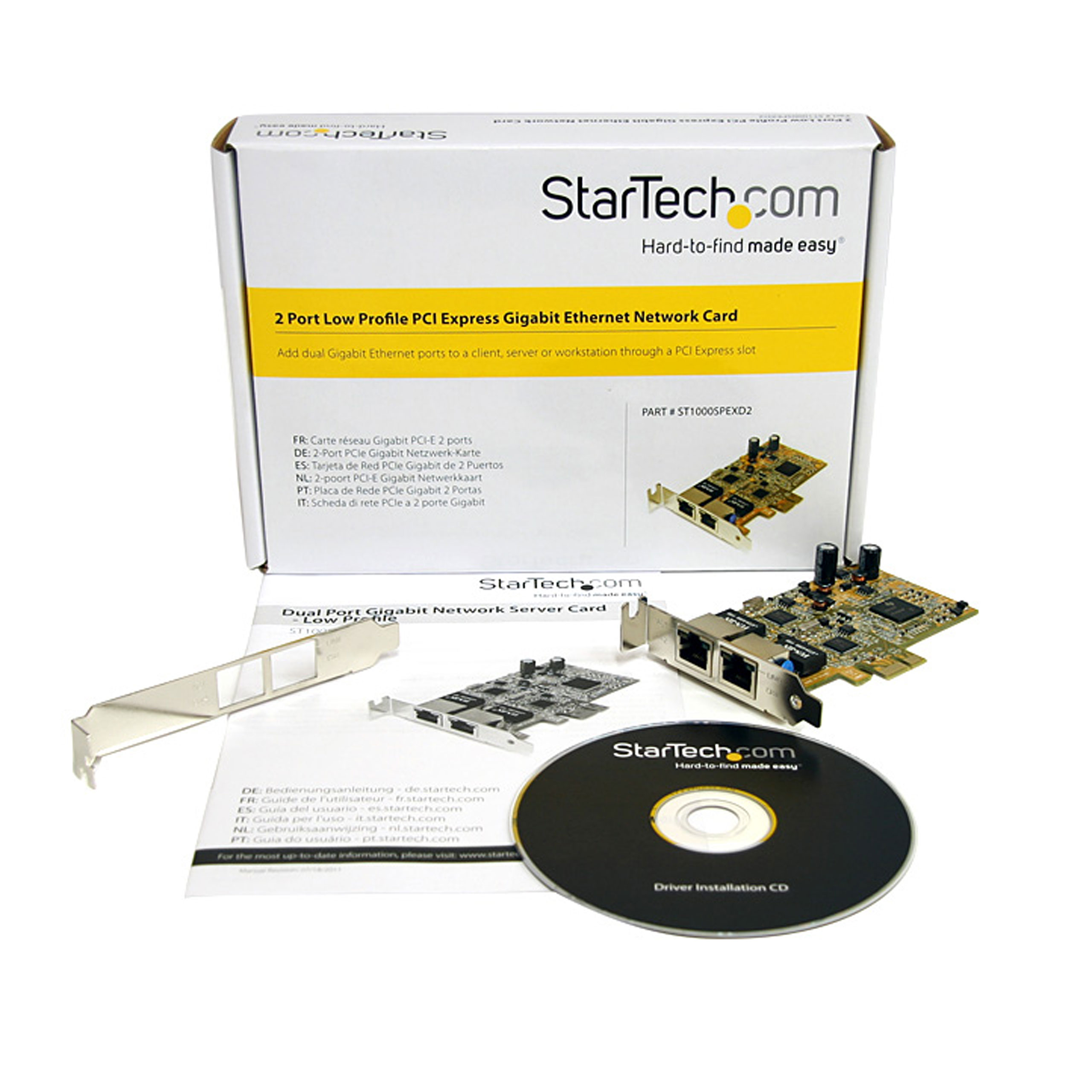

Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID Realtek - RTL8111C Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators 2 - Link and Active LED's Carton Depth (mm) 410 Carton Height (mm) 520 Carton Quantity 50 Carton Weight Gross (g) 14000 Included in Package - 1 - PCIe Network Adapter
- 1 - Instruction Manual
- 1 - Full Profile Bracket
- 1 - Driver CD
Package Depth (mm) 150 Package Height (mm) 40 Package Width (mm) 220 Package Weight (g) 250 Packaging Description 2 Port PCIe Gigabit Network Card Packaging Description India 2 Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
