ST1000SPEXD3
2 Port 1 Gbps PCIe Ethernet Network Adapter
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port 1 Gbps PCIe Ethernet Network Adapter Product Number ST1000SPEXD3 UPC 065030850865 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 2Pt PCIe Gigabit NIC Product Title (Short) 2 Port Gigabit PCI Express Network Card Product Title (Standard) Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC Product Title (Long) Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC Product Title (AMZ) Dual Port Gigabit PCI Express Server Network Adapter Card - 1 Gbps PCIe NIC - Dual Port Server Adapter - 2 Port Ethernet Card (ST1000SPEXD3) Title Ingram (Part 1) 2 Port 1 Gbps PCIe Ethernet Title Ingram (Part 2) Network Adapter - Dual NIC Website Product Headline Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot Bullet 1 Two 10/100/1000Mbps compatible RJ-45 Ethernet ports Bullet 2 Jumbo Frame support up to 9k bytes Bullet 3 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control Bullet 4 Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload Bullet 5 Wake-on-LAN / Remote Wake-up support Bullets (Consolidated) Add dual Gigabit Ethernet ports to a client - server or workstation through a PCI Express slot - Dual Port Server Adapter - 1 Gbps Dual Port Network Card/PCIe Gigabit NIC/2 Port Ethernet Card/Comparable C3N37AA/PCIe Dual NIC Card/Dual-Homed NIC/10/100/1000 - PCI Express Network Card Marketing Copy Applications - Provide redundant connectivity to ensure an uninterrupted network connection
- Ideal for VM environments with multiple operating systems, requiring shared or dedicated NICs
- Specially designed for desktop PC clients, servers, and workstations with few PCI Express slots available
- Configure a dual-homed proxy or gateway system for an added layer of security
Website Search Keyword - Dual NIC
- 2 Port NIC
- Dual Port Network Card
- Dual Port NIC
- Dual Network Card
- 2 Port Network Card
System and Cable Requirements Available PCI Express slot Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH15BL
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
Related Products - PEX100S
- ST1000BT32
- EC1000BT
- ST1000SPEX
- ST1000SPEX42
- ST1000SPEXD2
- EC2000S
- ST2000PEXPSE
Replacement Product ST1000SPEXD4 Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 92 Product Width (mm) 16 Product Height (mm) 68 Product Weight (g) 54 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Auto MDIX Yes Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2000 Mbps (full-duplex), 1000 Mbps (half-duplex) OS Compatibility - Windows 8
- Windows Server 2012
- Mac OS X Mavericks (10.9)
- Linux
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows 11
Supported Protocols IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Industry Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- PCI Express Base Specification 2.0

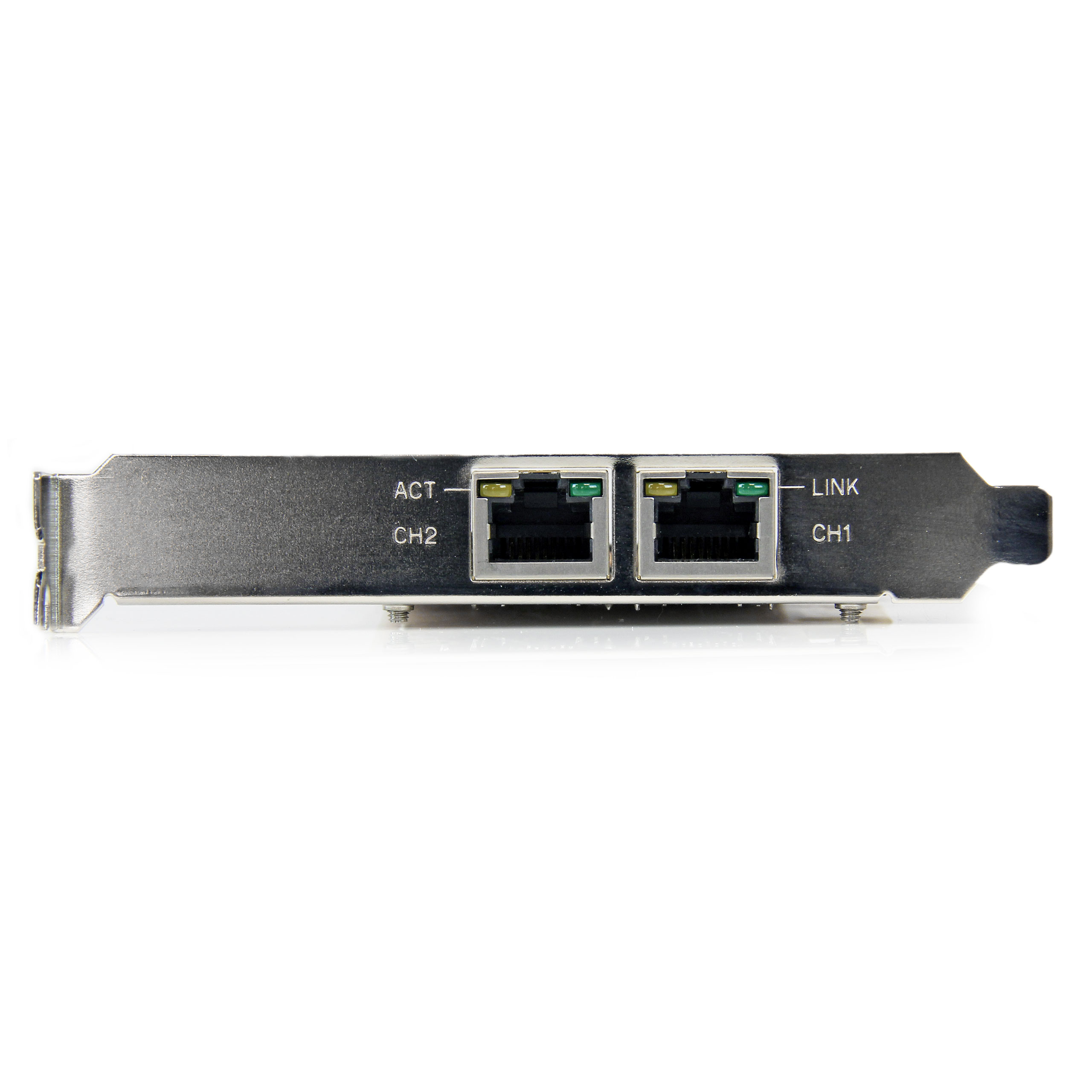

Interface/Bridge RJ45 (Gigabit Ethernet) IO Card Port Style Integrated on Card LED Indicators - 2 - Yellow - Gigabit Mode
- 2 - Green - Link/Activity

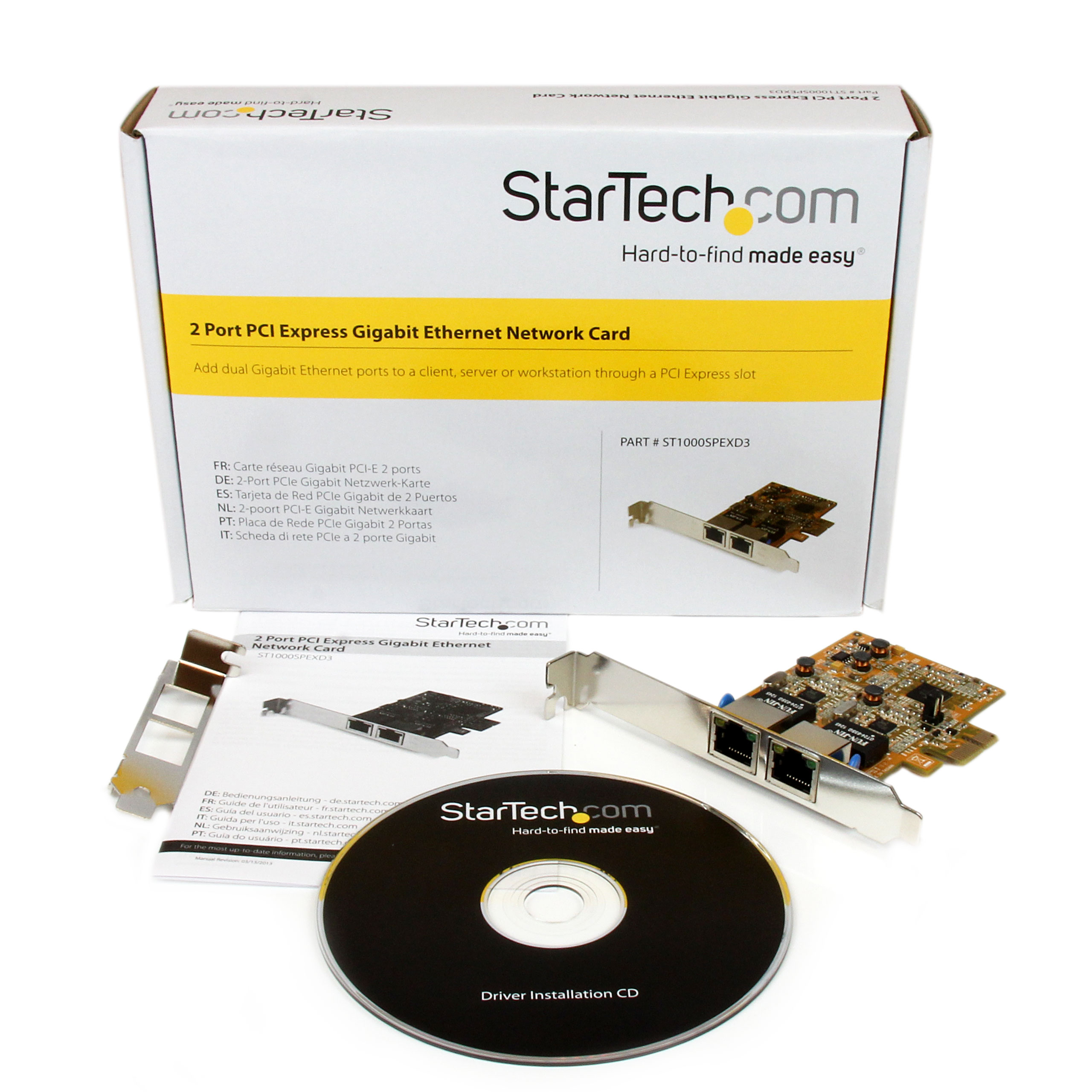

Carton Depth (mm) 400 Carton Height (mm) 510 Carton Quantity 50 Carton Weight Gross (g) 10900 Included in Package - 1 - PCIe Network Card
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 160 Package Height (mm) 40 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 190 Packaging Description 2 Port PCIe Gigabit Network Card Packaging Description India 2 Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-03-06 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
