ST1000SPEXD4T

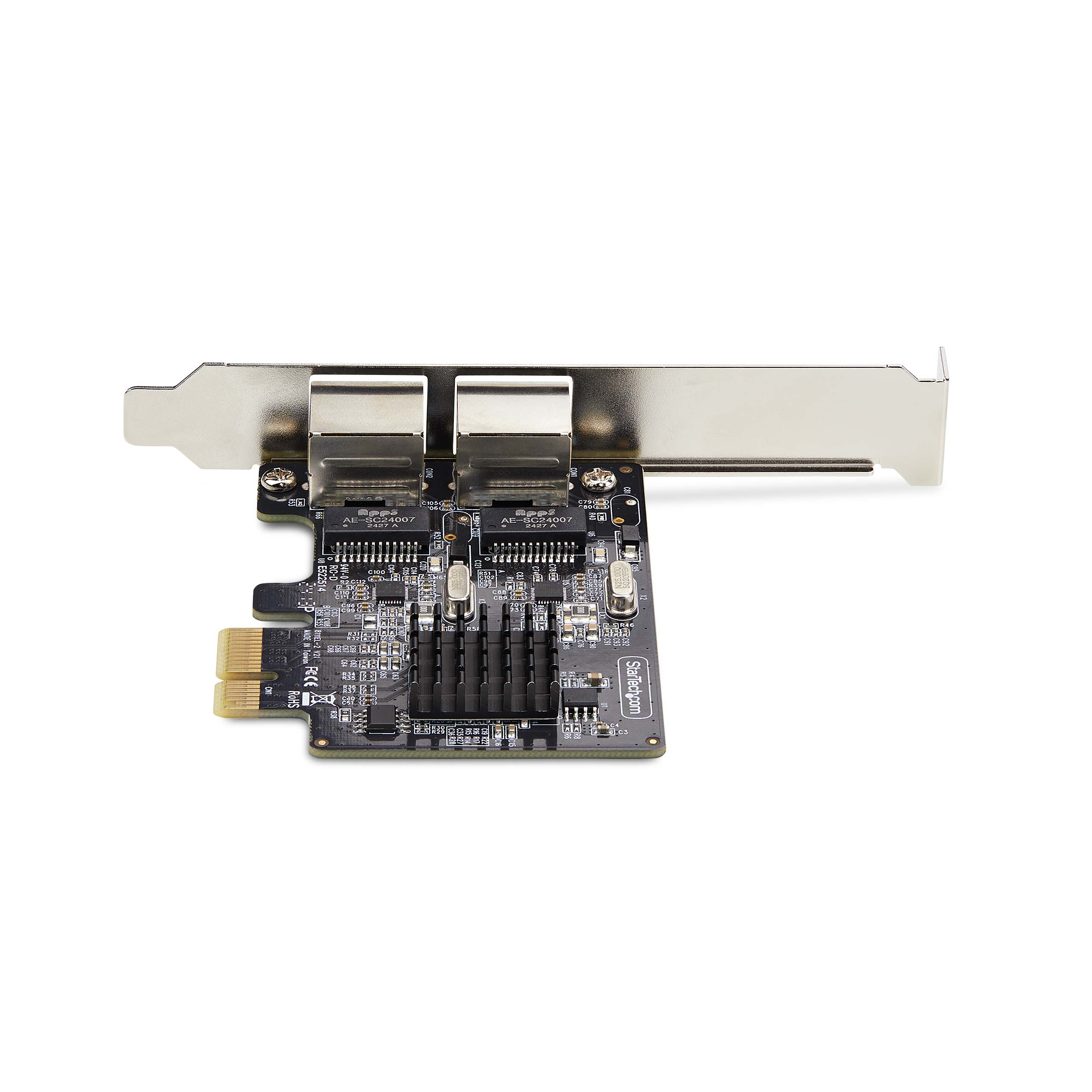

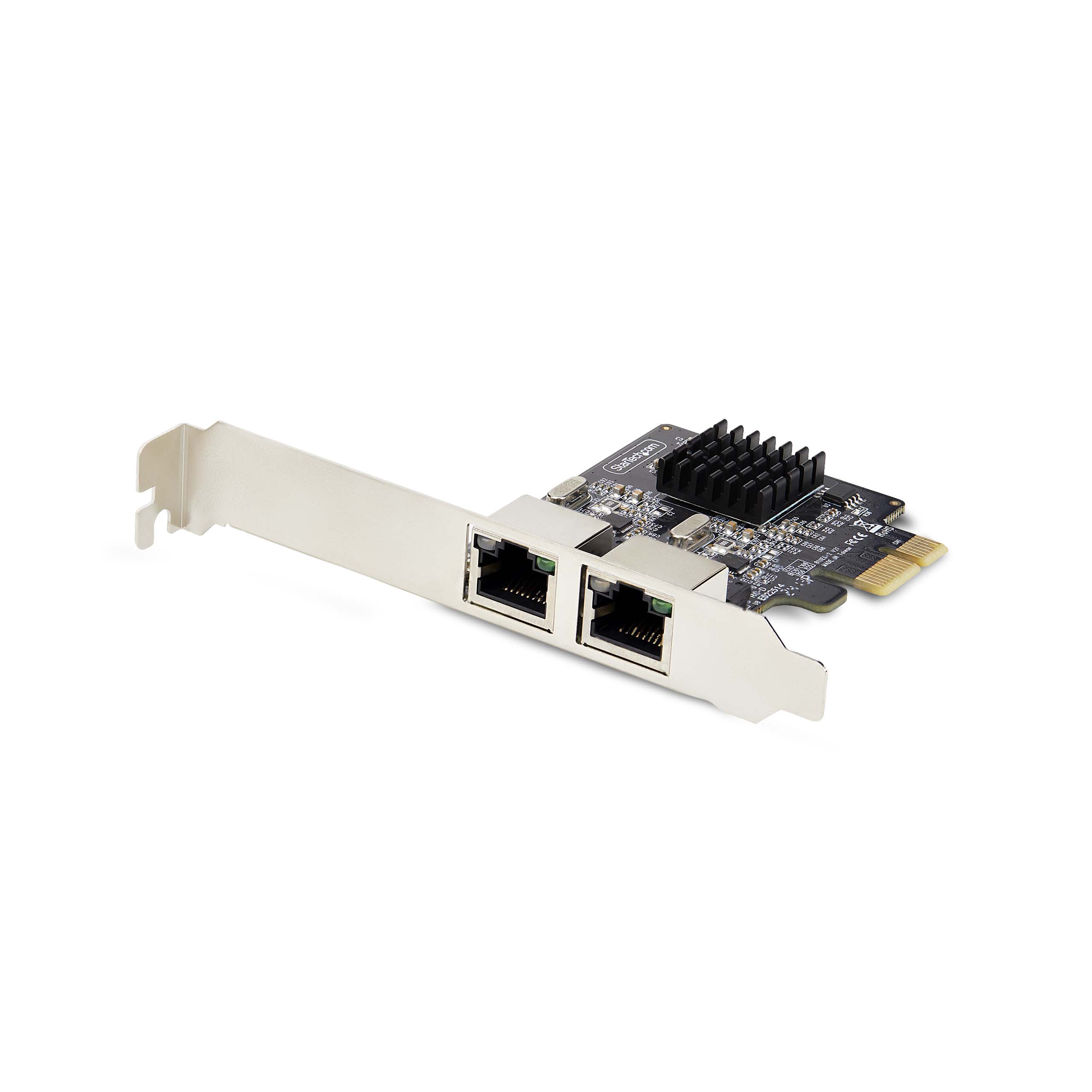

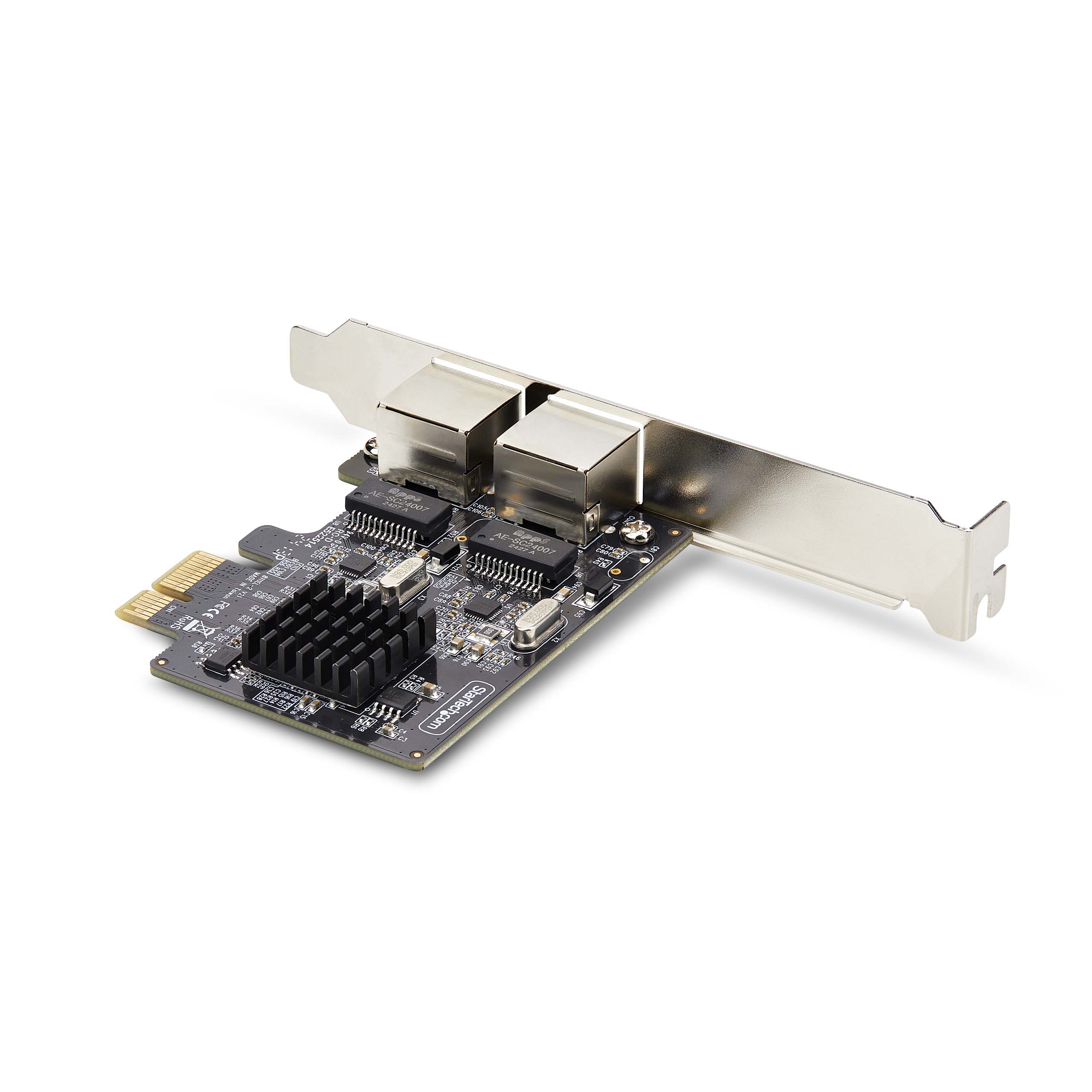

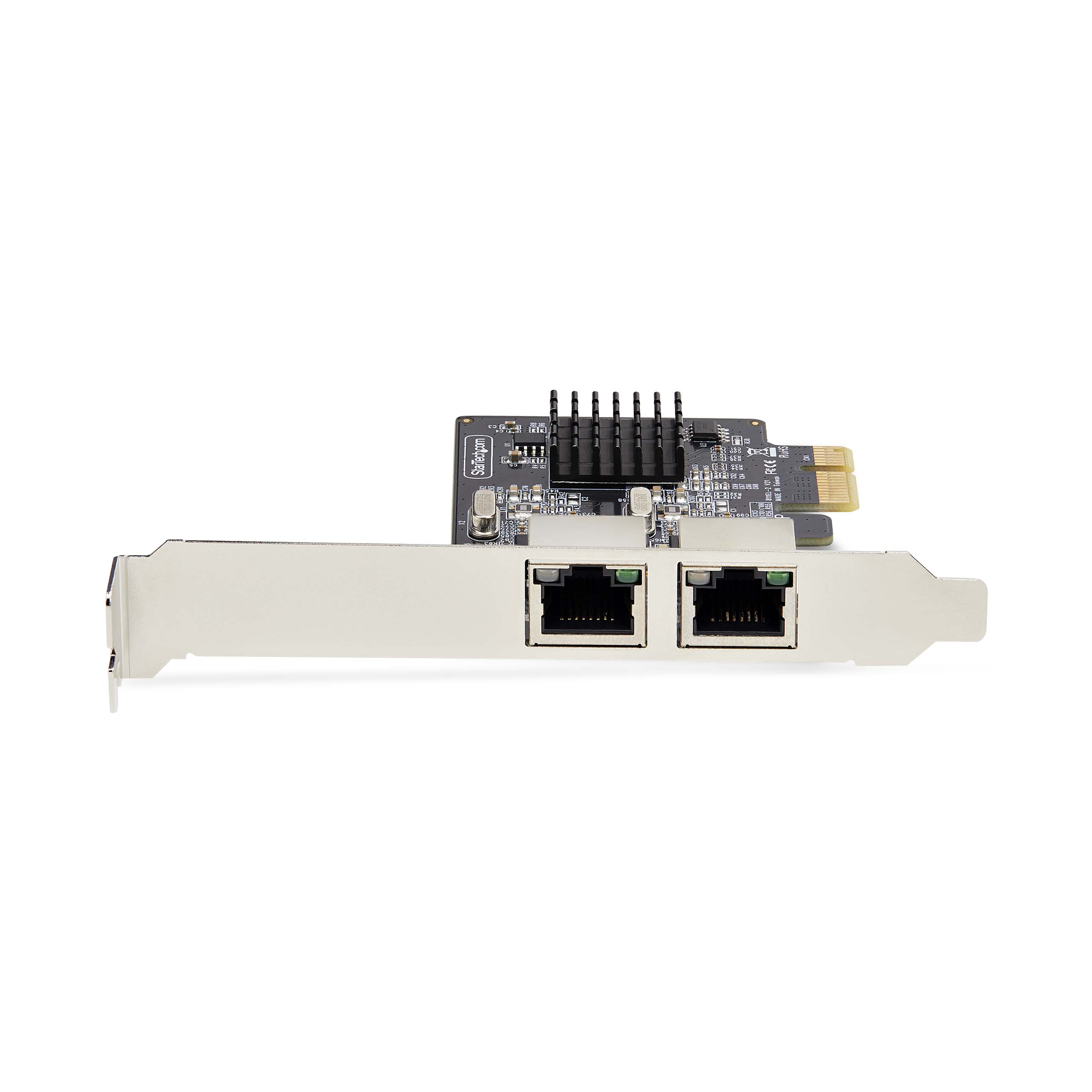

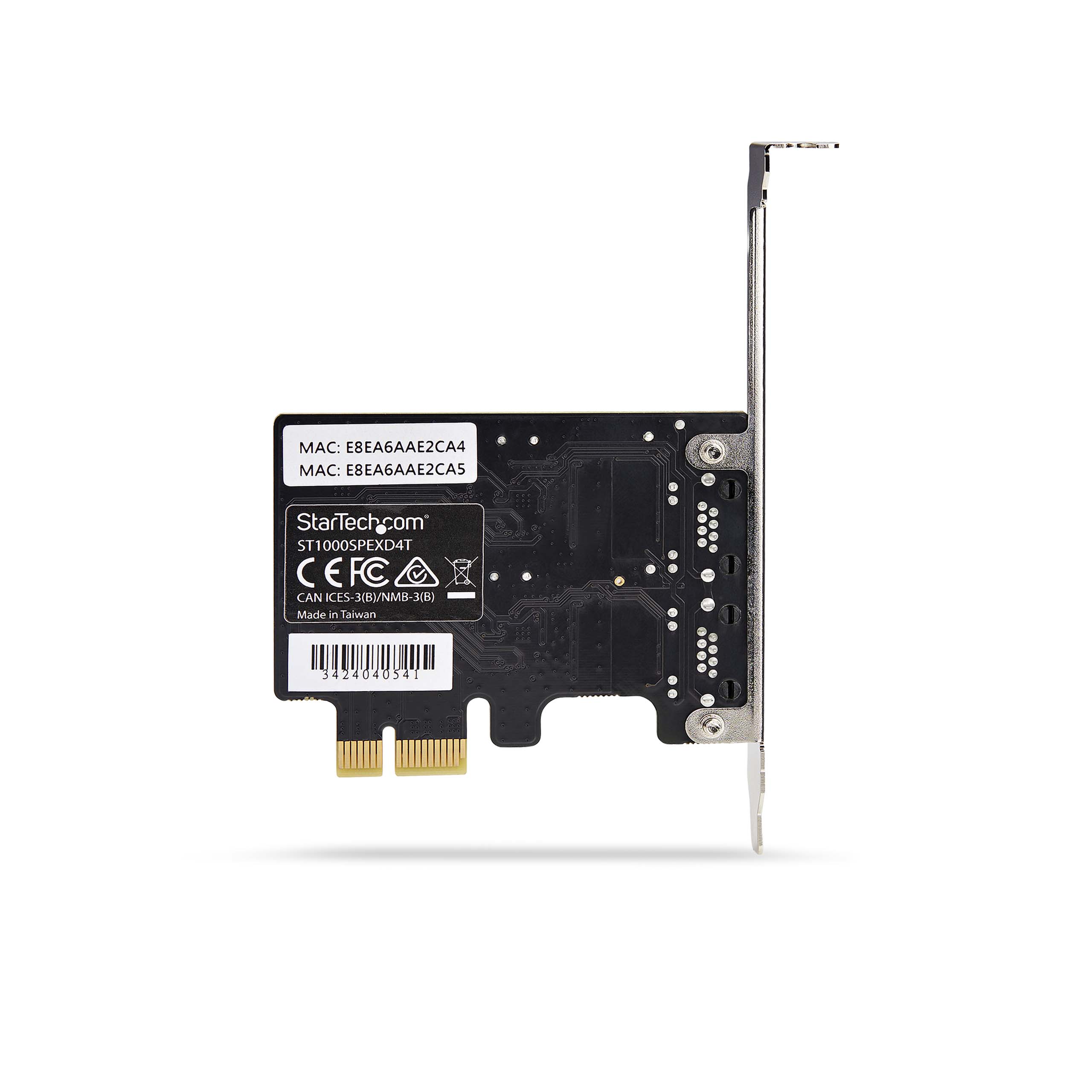

2-Port PCIe Gigabit Ethernet Network Card - Realtek, TAA

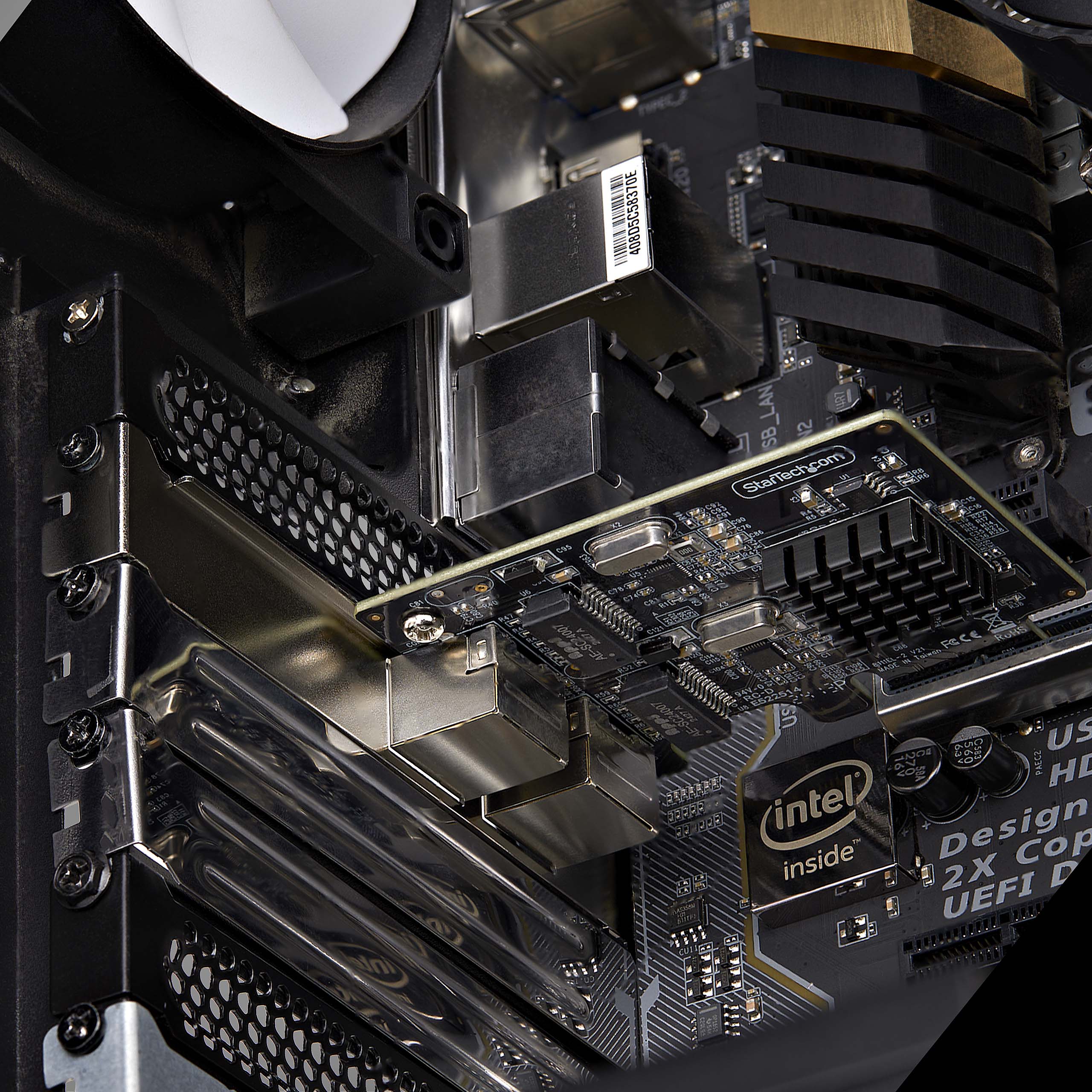

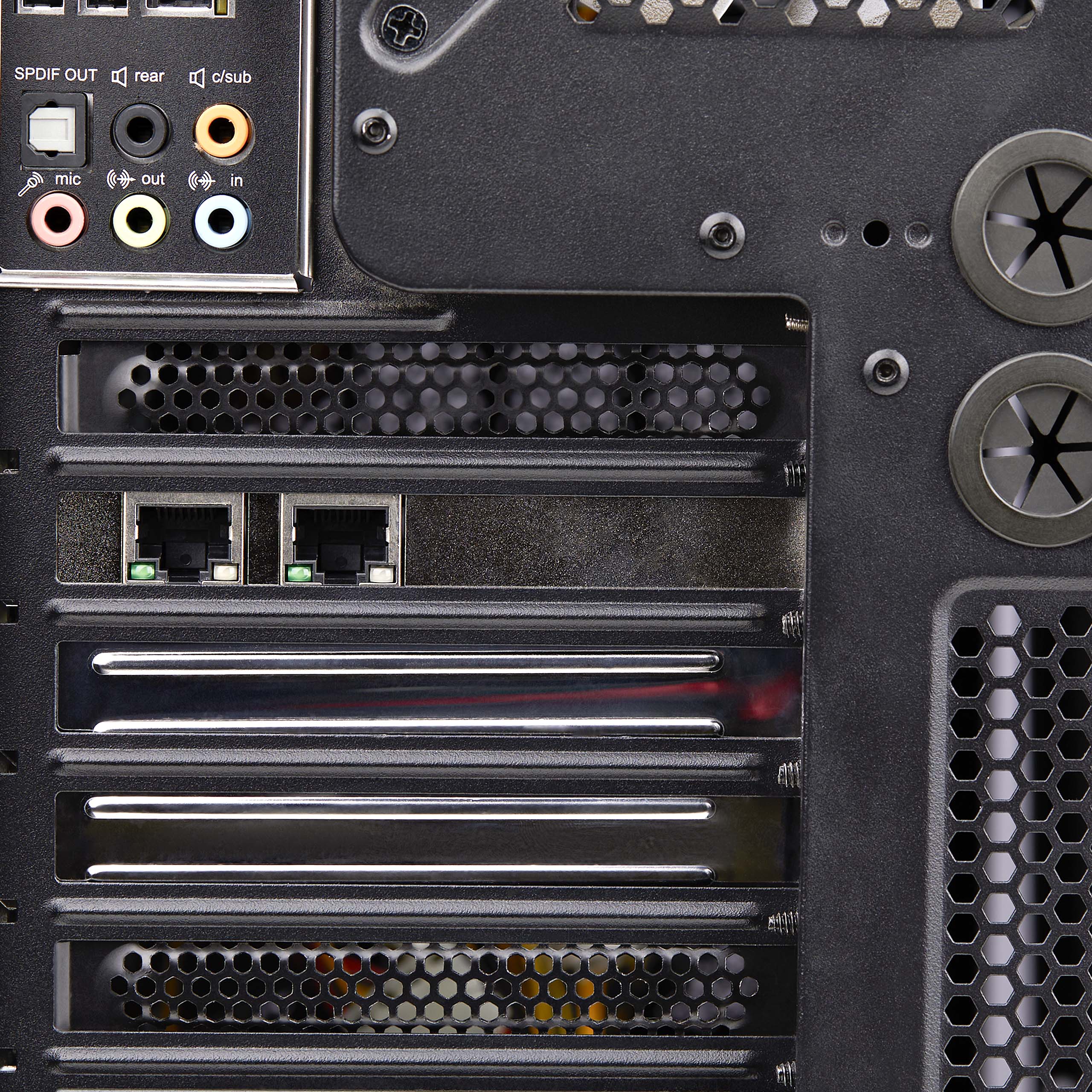

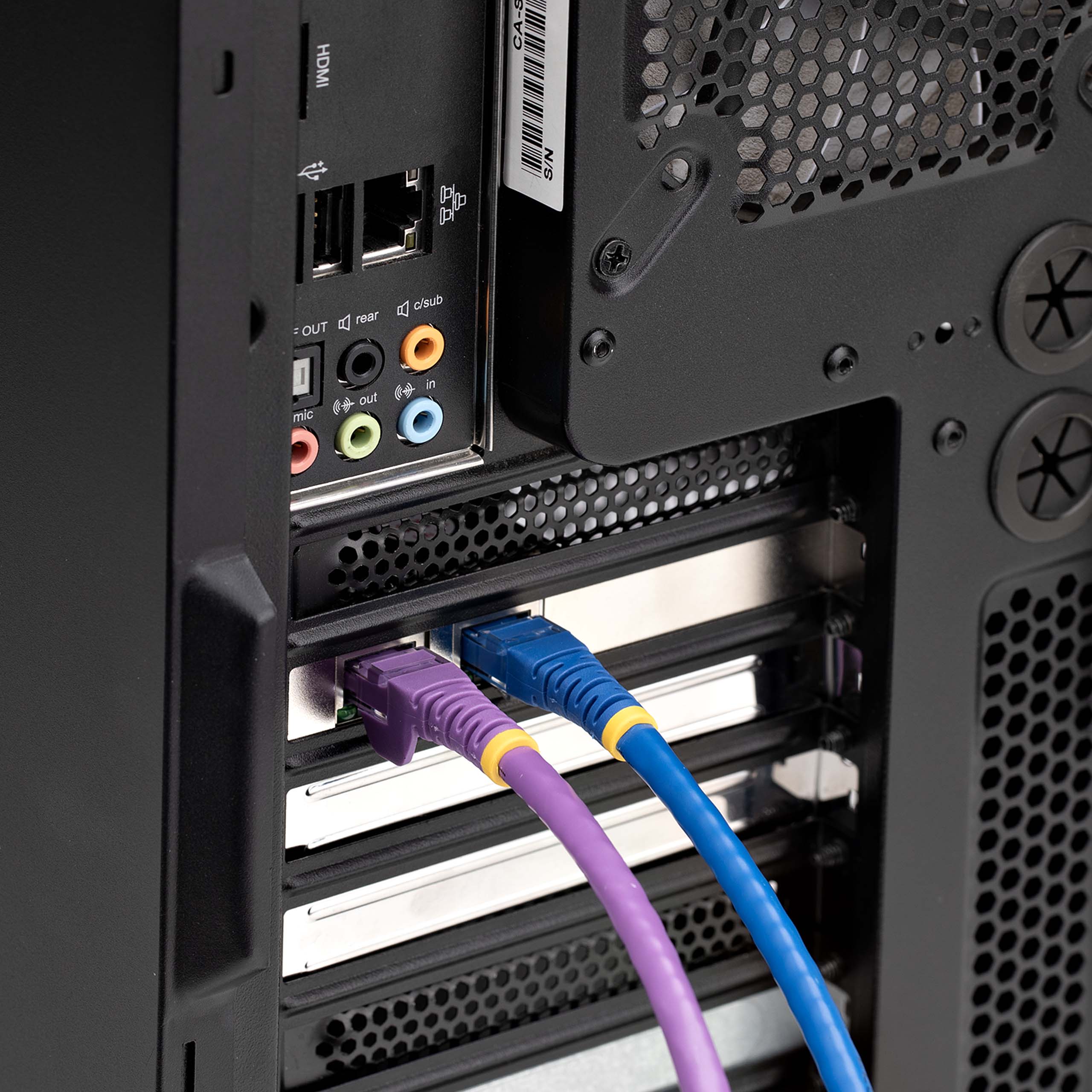

Add two 10/100/1000Mbps Ethernet ports to any PC through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2-Port PCIe Gigabit Ethernet Network Card - Realtek, TAA Product Number ST1000SPEXD4T UPC 065030911047 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 2-Port Network Card Product Title (Short) 2-Port Gigabit PCIe Network Card, TAA Product Title (Medium) 2-Port Gigabit PCIe Network Adapter Card, PCI Express NIC, TAA Compliant Product Title (Standard) 2-Port Gigabit PCIe Network Adapter Card, 10/100/1000Mbps PCI Express NIC, Dual Realtek RTL8111H, TAA Compliant Product Title (Long) 2-Port Gigabit PCIe Network Adapter Card, 10/100/1000Mbps PCI Express NIC, Dual Realtek RTL8111H, Works with Windows and Linux, TAA Compliant Product Title (AMZ) 2-Port Gigabit PCIe Network Adapter Card, PCI Express LAN Card, NIC, 2x Realtek RTL8111H, TAA Compliant Title Ingram (Part 1) 2-Port Gigabit Network Card - Title Ingram (Part 2) TAA-Compliant NIC, Windows/Linux Website Product Headline Add two 10/100/1000Mbps Ethernet ports to any PC through a PCI Express slot Bullet 1 TAA-COMPLIANT GIGABIT ETHERNET CARD: Network Card with dual Realtek RTL8111H chips adds two gigabit Ethernet interfaces to a desktop/server; Features link speed/activity LED indicators allowing users to visually diagnose issues and confirm network speeds Bullet 2 PLUG & PLAY COMPATIBILITY: 2-Port Network Interface Card drivers auto-install in most major operating systems including Windows, Windows Server, and Linux; Works with Intel and AMD hardware platforms that have a PCI Express x1, x2, x4, x8, or x16 slot Bullet 3 PERFORMANCE & MANAGEMENT: 10/100/1000Mbps PCIe Network Adapter Card features independent Ethernet controllers that support 9K jumbo frames to reduce packet overhead, Wake-on-LAN (WoL) for remote system booting, and VLANs for efficient network management Bullet 4 UNIVERSAL FIT: PCI Express NIC comes with a pre-installed standard-profile bracket for full-sized desktops and servers, and it includes a low-profile bracket for compatibility with small form-factor computers Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2-port network card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) TAA-Compliant Gigabit Network Card with 2x Realtek RTL8111H chips adds 2x 1Gbps Ethernet interfaces to a desktop/server; Features speed/activity LED indicators; WoL/VLAN/9K Jumbo Frame support; Full-profile bracket installed; Low-profile bracket incl Bullets (Consolidated) - TAA-Compliant Gigabit NIC with independent Realtek RTL8111H chips per port adds 2x 1Gbps ports to a desktop/server; Features link speed/activity LED indicators - 10/100/1000Mbps Network Adapter Card supports 9K jumbo frames/Wake-on-LAN (WoL)/VLANs for efficient network management - PCI Express NIC features pre-installed full-profile bracket with low-profile bracket included - Works with Windows/Windows Server/Linux and Intel/AMD hardware platforms that have a PCIe x1/x4/x8/x16 slot Marketing Copy Marketing Copy (No HTML) Applications Add two gigabit Ethernet ports to a workstation or server computer, for redundancy or bridging Website Search Keyword - network adapter card
- ethernet card
- network interface card
- nic
- network card
- gigabit network card
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - C6PATCH6BK
- C6PATCH10BL
- M45PATCH6BK
- M45PATCH6BL
- WIRC5ECMR
Related Products - ST1000SPEX2T
- ST1000SPEX2LT
Power Source Bus Powered Color Black Humidity 10% ~ 80% (non-condensing) Operating Temperature 5°C to 70°C (41°F to 158°F) Product Length (mm) 75.000 Product Width (mm) 120.000 Product Height (mm) 18.000 Product Weight (g) 42.000 Storage Temperature 0°C to 80°C (32°F to 176°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Jumbo Frame Support 9K max. Maximum Data Transfer Rate 1000Mbps OS Compatibility - Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Linux

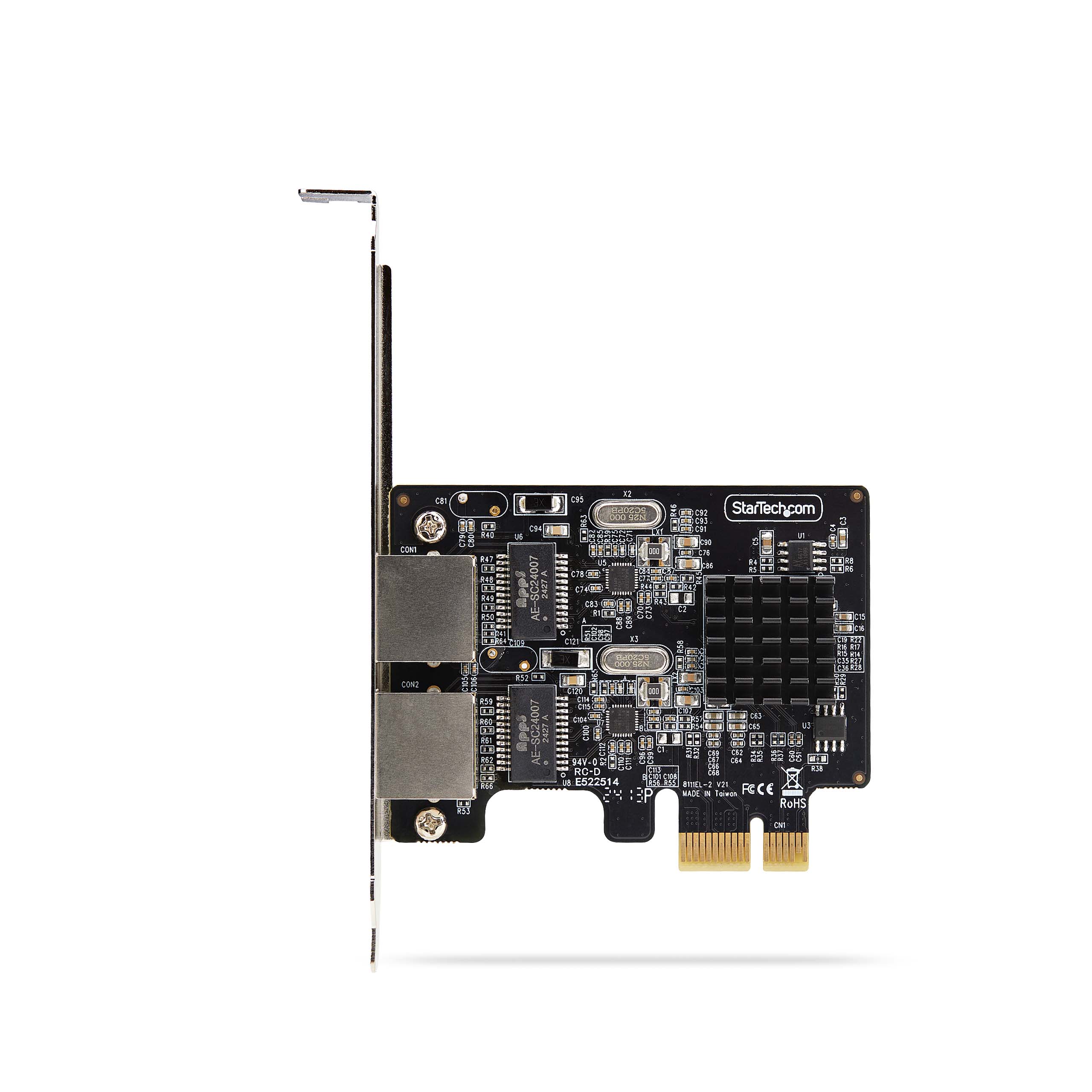

Promiscuous Mode Yes PXE No Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID - Realtek - RTL8111H
- ASMedia - ASM1182
Industry Standards IO Card Port Style Integrated on Card LED Indicators Carton Depth (mm) 685 Carton Height (mm) 306 Carton Quantity 75 Carton Weight Gross (g) 9340 Included in Package - 1 - PCIe Card

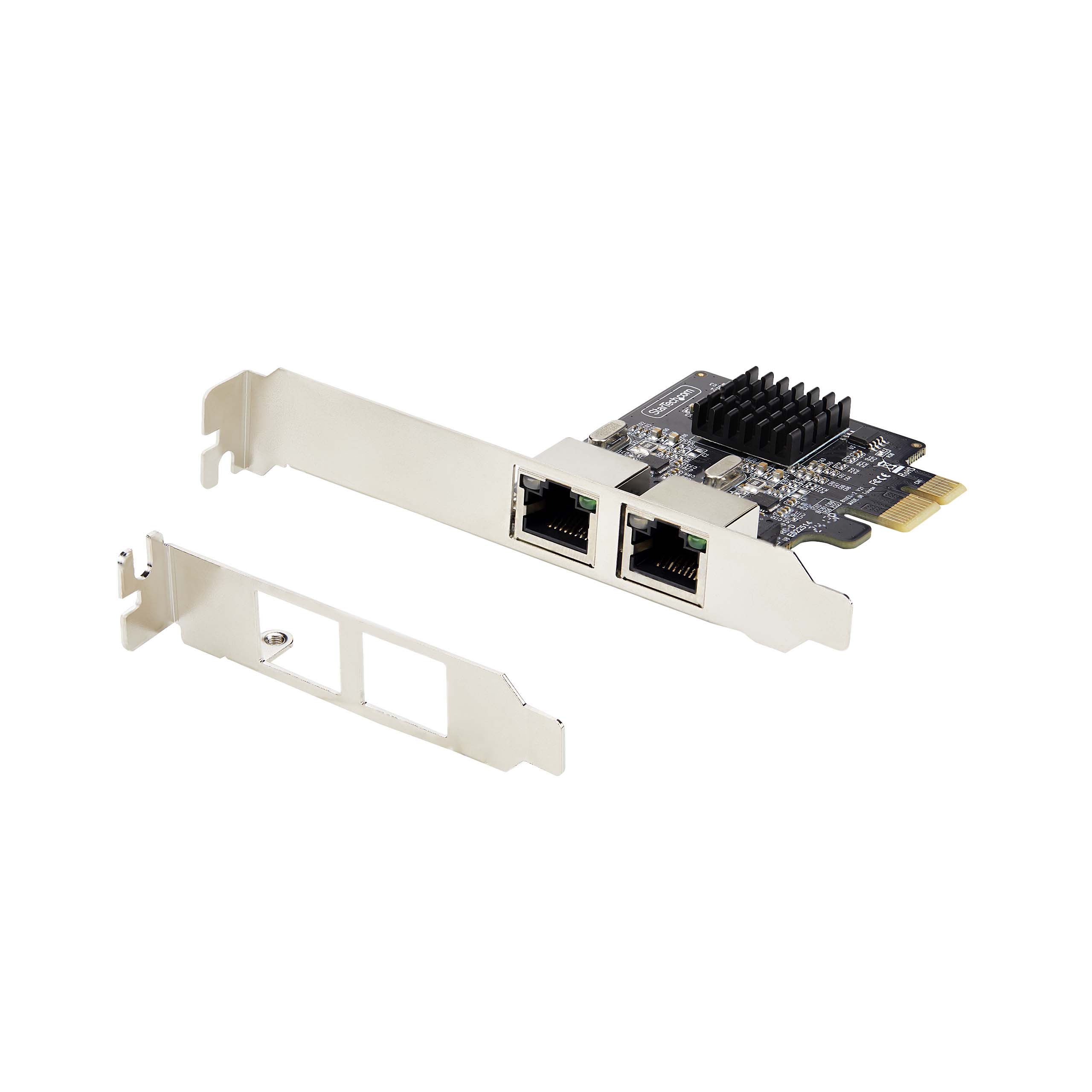

- 1 - Low Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Weight (g) 111.2 Packaging Description 2-Port PCI Express Gigabit Ethernet Network Card Packaging Description India 2-Port PCI Express Gigabit Ethernet Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Host Connector 1 PCI Express x1 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-05-31 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC Comparable SKU 2 Comment N/A Digital Content Due Date 2024-08-12 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-04-26 Target Production Release 2024-05-31 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Video Not Required
