ST1000SPEXDP
PCI Express Dual Port Gigabit NIC
Add dual Gigabit Ethernet ports to any client, server or workstation through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express Dual Port Gigabit NIC Product Number ST1000SPEXDP UPC 065030833837 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) Dual Port Gb Network Server Adapter Card Product Title (Standard) Dual Port Gigabit Network Server Adapter NIC Card 2 Port Product Title (Long) Dual Port Gigabit Network Server Adapter NIC Card 2 Port Title Ingram (Part 1) Dual Port Gigabit Network Server Title Ingram (Part 2) Adapter NIC Card 2 Port Website Product Headline Add dual Gigabit Ethernet ports to any client, server or workstation through a PCI Express expansion slot Bullet 1 Two 10/100/1000Mbps compatible RJ-45 Ethernet ports Bullet 2 Jumbo Frame support Bullet 3 On-chip 48KB Big Transmit/Receive Buffer Support Bullet 4 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control Bullet 5 Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload Marketing Copy Applications - Add 2 Ethernet ports to a workstation or server computer from a single PCIe slot
- Connect to 2 separate networks simultaneously
- Install dual networking capabilities into a small form factor or other space-constrained computer system
Website Search Keyword - Ethernet network adapter card
- gigabit network adapter
- 10/100/100 network adapter
- pci express network adapter card
- gigabit lan adapter card
- pcie ethernet network adapter card
- ST1000BT32
Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH15BL
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
Related Products - PEX100S
- ST1000BT32
- EC1000BT
- ST1000SPEX
Replacement Product ST1000SPEXD4 Operating Temperature 0 to 55°C (32 to 131°F), 10% to 90% relative humidity (non-condensing) Product Length (mm) 110 Product Width (mm) 74 Product Weight (g) 200 Storage Temperature -40 to 75°C (-40 to 167°F), 5% to 95% relative humidity (non-condensing) TAA Compliant No Buffer Size 48 KB Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 1000 Mbps (uni-directional), 2000 Mbps (bi-directional) OS Compatibility - Windows Vista
- Mac OS X
- Linux
- Windows 7
- Windows 2008
- Windows 8

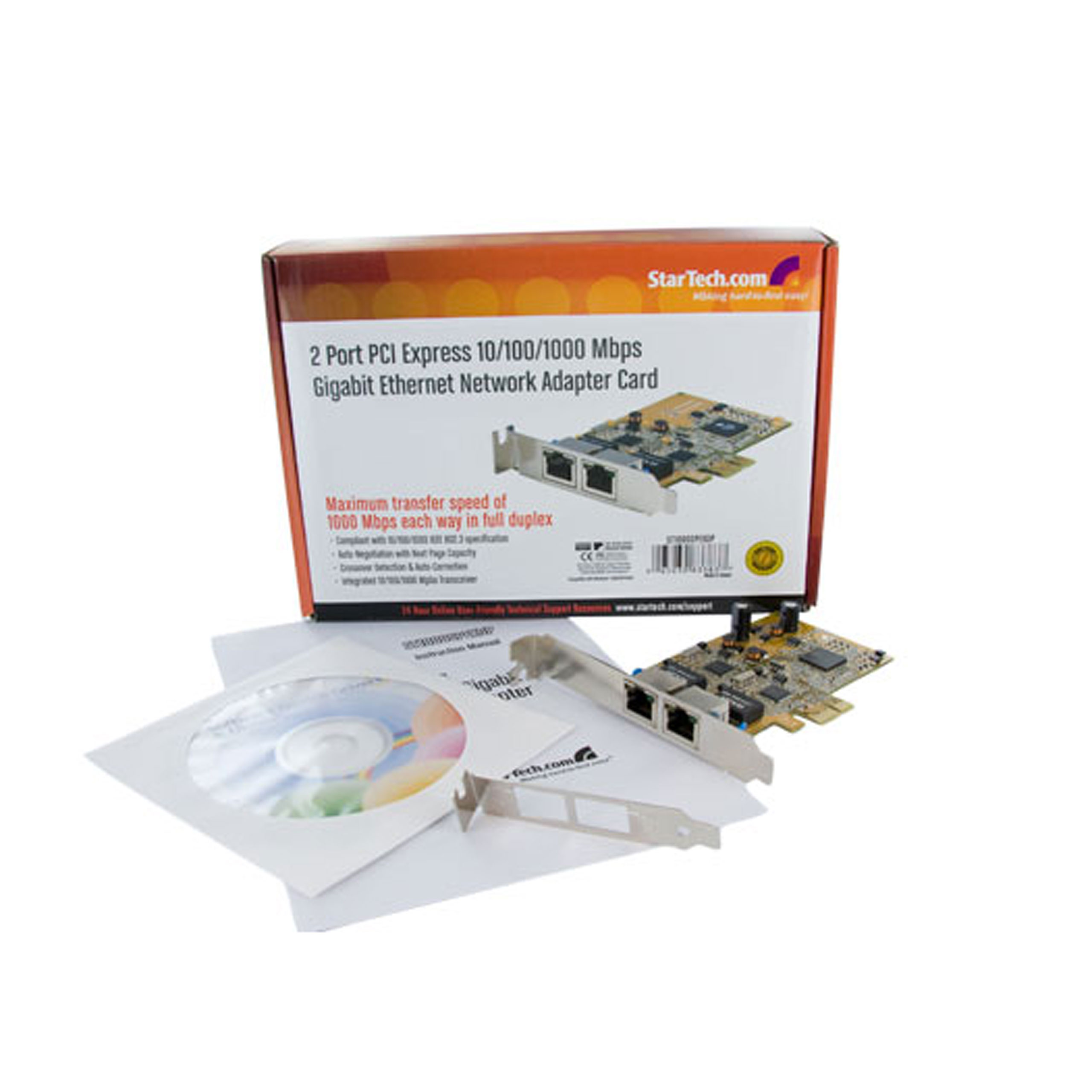

Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8111C Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators 2 - Link and Active LED's Carton Depth (mm) 400 Carton Height (mm) 270 Carton Quantity 50 Carton Weight Gross (g) 12500 Included in Package - 1 - 2 Port PCI Express Network Card
- 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - Driver CD
Package Depth (mm) 150 Package Height (mm) 40 Package Width (mm) 220 Package Weight (g) 250 Packaging Description 2 Port PCIe Gigabit Network Card Packaging Description India 2 Port PCIe Gigabit Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
