ST1000SPEXI

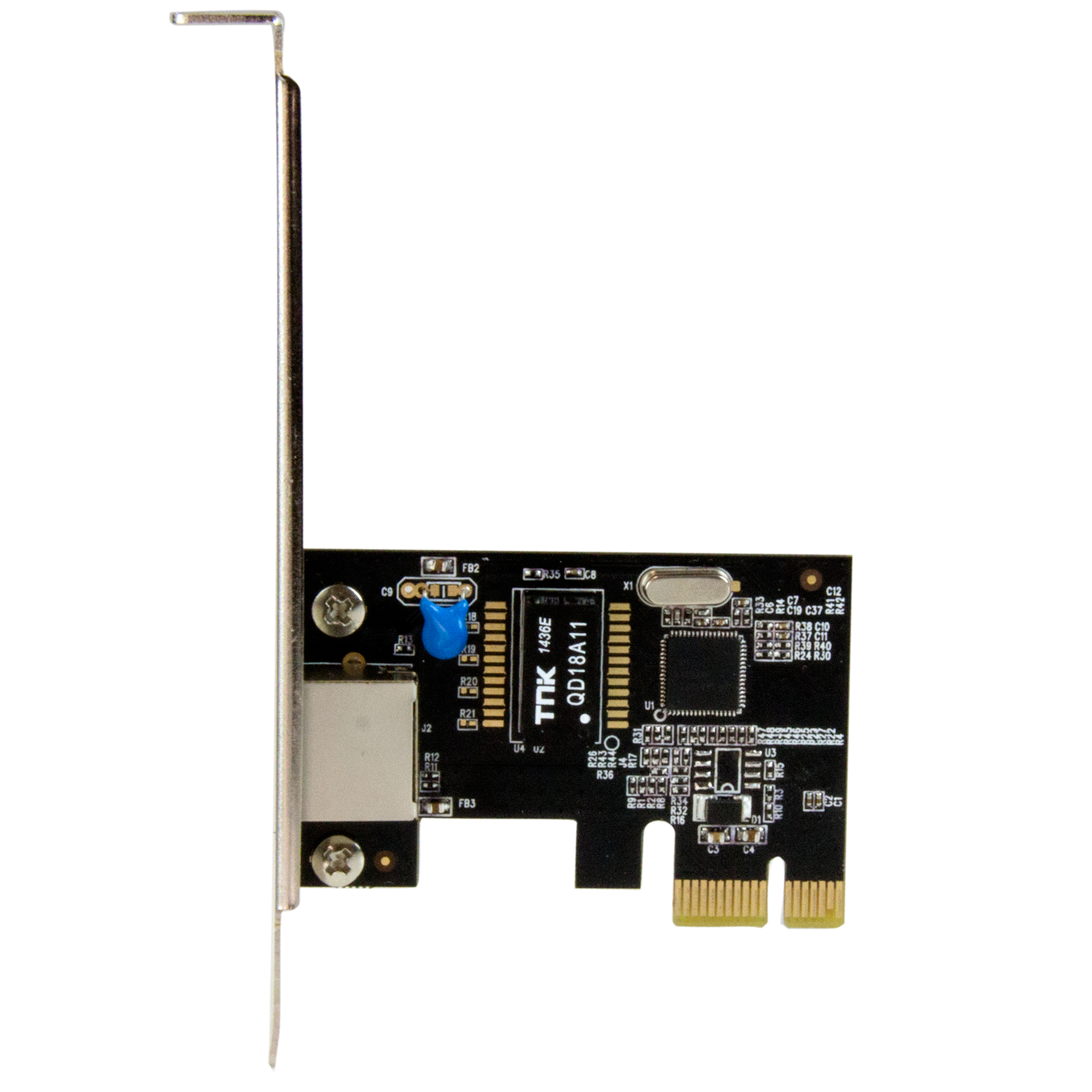

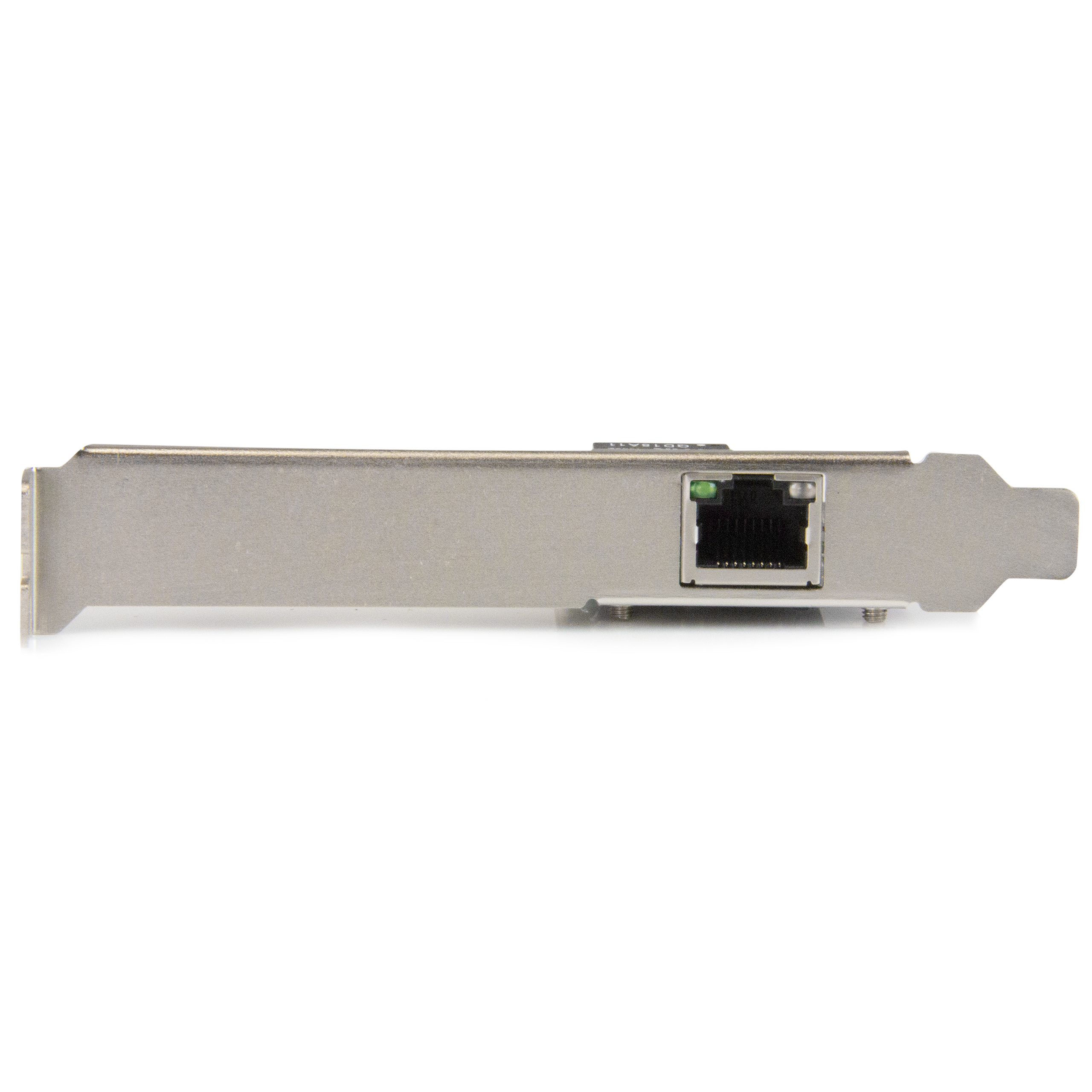

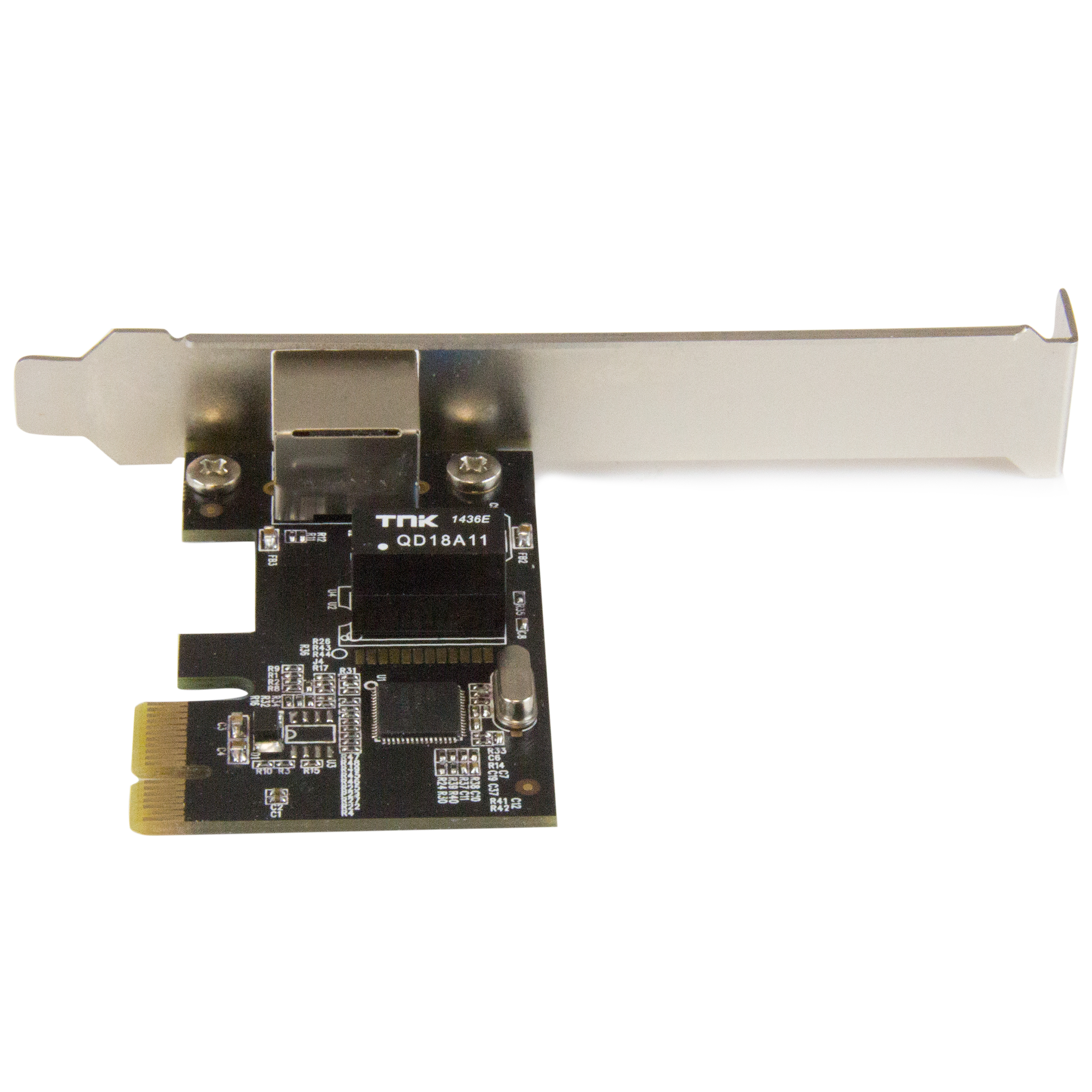

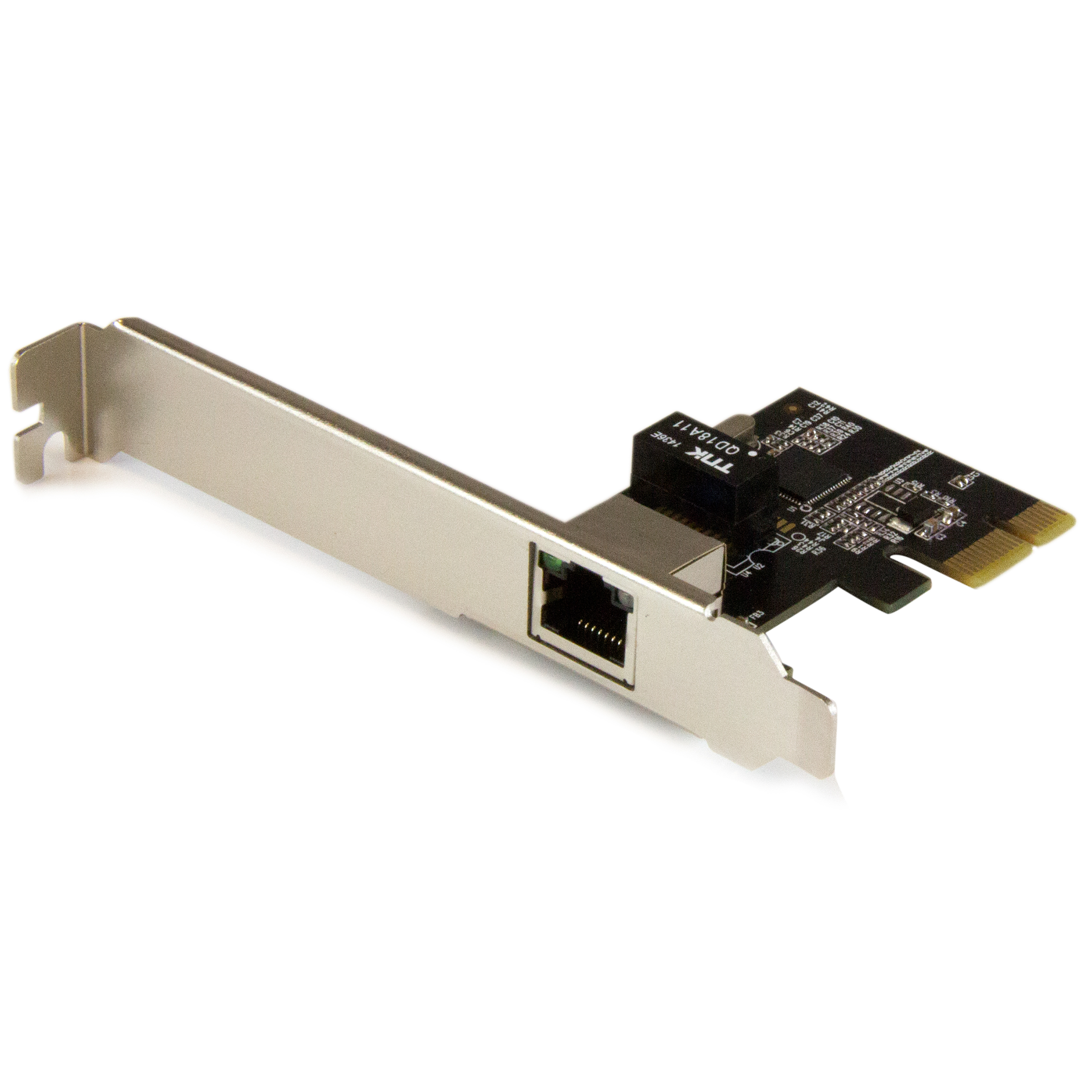

One Port Gigabit Ethernet NIC w Intel Chip PCIe
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name One Port Gigabit Ethernet NIC w Intel Chip PCIe Product Number ST1000SPEXI UPC 065030861038 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family PCIe Gigabit NIC - Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 1-Port Gigabit NIC Product Title (Short) 1-Port Gigabit Ethernet Network Card Product Title (Medium) 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC Product Title (Standard) 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card w/ Intel Chip Product Title (Long) 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC Product Title (AMZ) 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) Title Ingram (Part 1) 1-Port Gigabit Network Adapter Title Ingram (Part 2) Card w/ Intel I210-AT Chip - PCIe Website Product Headline Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot Bullet 1 Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot Bullet 2 Intel I210-AT chipset Bullet 3 PXE network boot Bullet 4 Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Bullet 5 Auto MDIX support Bullets (Compact) Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot - Single port PCIe network adapter card with Intel I210-AT chipset - PCI Express Gigabit network card - Provides fully compliant 10/100/1000 RJ-45 Ethernet port Bullets (Consolidated) Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot - Single Port PCIe network adapter card with Intel I210-AT Chipset - PCI Express Gigabit network card/PCI Express Gigabit LAN card/PCI Express Gigabit server adapter/Gigabit Network Card/PCIe Gigabit NIC - Provides fully compliant 10/100/1000 RJ-45 Ethernet port through single PCIe slot - PXE network boot support - Supports Audio-Video Bridging - Wake-on-LAN - Auto MDIX support - 9K jumbo frame support Marketing Copy Applications - Upgrades to servers or workstations in need of enhanced performance, advanced features and greater reliability
- Upgrade a 10/100 Ethernet port on your computer to GbE network capability
- Add GbE networking capabilities to an old system that doesn't have an Ethernet port
- Add an additional Ethernet port to a workstation or server computer for redundancy
Website Search Keyword - one port server adapter
- 1 port PCI Express network card
- 1 port PCI e network adapter
- 1 port gigabit network card
- Intel NIC
- 1 port NIC
- single port NIC
- 1 port server adapter
- NIC
- one port NIC
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. System and Cable Requirements Available PCI Express expansion card slot Accessory Products - C6PATCH6BK
- C6PATCH10BL
- C6PATCH15BL
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
- WIRC5ECMR
- WIRC6CMRBL
Related Products - ST1000SPEX2
- ST1000SPEX2L
- ST4000SPEXI
Constrained SKU Alternatives (Limited Stock) ST1000SPEX2 Input Voltage 12V DC Output Voltage (V) 12V DC Power Consumption (In Watts) Max 0.8W Color Black Humidity 20% ~ 80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 120.000 Product Width (mm) 66.000 Product Height (mm) 18.000 Product Weight (g) 38.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 2000 Mbps (full-duplex) OS Compatibility - Windows Server 2012
- Windows 7
- Linux
- Windows 8
- Windows Server 2008 R2
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Promiscuous Mode Yes Supported Protocols IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - I210-AT Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- IEEE 802.1Q VLAN Tagging
- IEEE 802.3x Full Duplex Flow Control
LED Indicators - 1 - 100/1000 Mbps Indicator
- 1 - Link/Activity
Carton Depth (mm) 306 Carton Height (mm) 368 Carton Quantity 80 Carton Weight Gross (g) 8928 Included in Package - 1 - 1 Port Network Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Included In Package for Label - 1 - 1 Port Network Card
- 1 - Low Profile Bracket
- 1 - Instruction Manual
Package Depth (mm) 143 Package Height (mm) 30 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 98 Packaging Description 1 port PCIe Gigabit network card - Intel chip Packaging Description India 1-Port PCIe Gigabit network card - Intel chip Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-06-23 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-06-05 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
