Main Image
ST100S
10/100-Mbps PCI Ethernet Network Card
Add a 10/100Mbps Ethernet port to a desktop computer through a PCI slot
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100-Mbps PCI Ethernet Network Card Product Number ST100S UPC 065030780155 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 10/100 PCI Ethernet Network Adapter Card Product Title (Medium) x Product Title (Standard) StarTech.com Ethernet network adapter card - PCI - EN, Fast EN - 10Base-T, 100Base-TX Product Title (Long) 1 Port PCI 10/100 Mbps Ethernet Network Adapter Card Product Title (AMZ) 1 Port PCI Network Card - 10/100Mbps RJ45 Port - Auto Negotiation - Ethernet Card (ST100S) Title Ingram (Part 1) 1 Port PCI 10/100 Mbps Ethernet Title Ingram (Part 2) Network Adapter Card Website Product Headline Add a 10/100Mbps Ethernet port to a desktop computer through a PCI slot Bullet 1 Single 10/100Mbps RJ45 Ethernet port Bullet 2 Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards Bullet 3 Full and Half duplex mode support Bullet 4 Link speed and duplex mode auto-negotiation Bullet 5 Link/Activity and 10/100Mbps LED indicators Bullets (Compact) Add a 10/100Mbps Ethernet port to a desktop computer through a PCI slot - PCI Ethernet adapter - PCI Ethernet card - PCI Ethernet NIC -10/100 adapter card Bullets (Consolidated) Add a 10/100Mbps Ethernet port to a desktop computer through a PCI slot - Dual RJ45 Ethernet ports in an ExpressCard/34 adapter - Microsoft® NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support - Supports Full and Half duplex operating modes - USB 3.0 Ethernet adapter - USB to Ethernet adapter - PCI Ethernet adapter Marketing Copy Applications - Replacement Ethernet card for a home or office desktop computer
- Adding Ethernet network connectivity for broadband Internet access to an old desktop computer
- Adding a second or redundant network connection for a workstation or server
Website Search Keyword Vista Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes IRQ and I/O Address assigned by system Accessory Products - M45PATCH3BL
- M45PATCH6BL
Related Products - 10PACK100BT
- ST100SLP
- ST100SW
- M45PATCH10BL
- RJ45PATCH10
- DS5105
- DS8105
Input Voltage 3.3V / 5V DC Output Voltage (V) 3.3V DC Power Consumption (In Watts) ≤1.5W Humidity 10~90% RH Non-condensing Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 120.000 Product Width (mm) 32.000 Product Height (mm) 120.000 Product Weight (g) 40.000 TAA Compliant No Compatible Networks 10/100 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 200 Mbits/Sec OS Compatibility - Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8100C Industry Standards IEEE 802.3/802.3u Interface/Bridge RJ45 (10/100 Ethernet) LED Indicators - 1 - 10/100Mbps selection
- 1 - Network link/activity

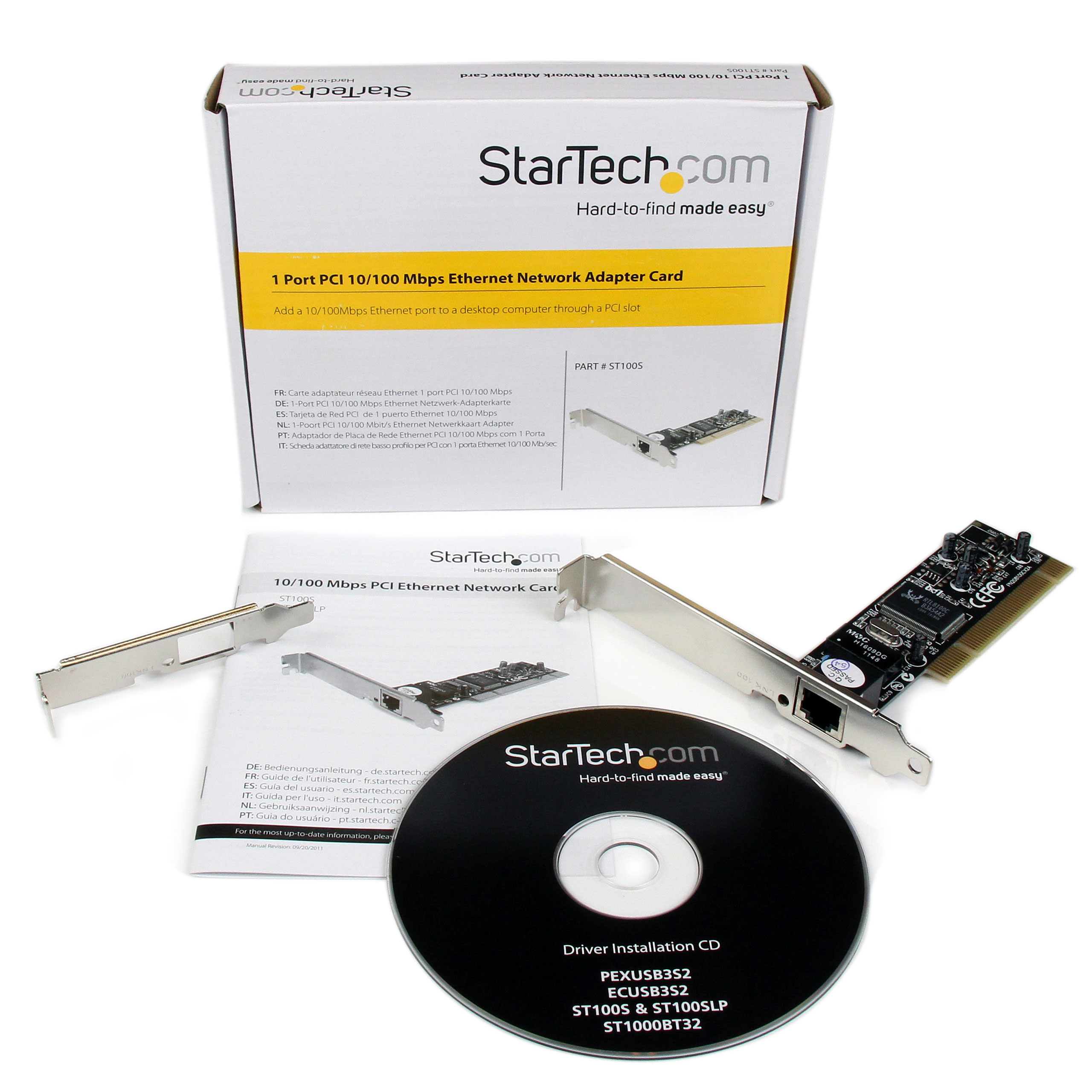

Carton Depth (mm) 303 Carton Height (mm) 362 Carton Quantity 80 Carton Weight Gross (g) 11110 Included in Package - 1 - PCI Ethernet Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 170 Package Height (mm) 29 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 133 Packaging Description 10/100 PCI Ethernet Network Crad Packaging Description India 10/100 PCI Ethernet Network Crad Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,CL,CO,EU,HK,JP,PE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
