Main Image
ST100SLP
Low Profile PCI 10/100 Ethernet Card
Add a 10/100Mbps Ethernet port to any low profile PC through a PCI slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Low Profile PCI 10/100 Ethernet Card Product Number ST100SLP UPC 065030793599 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) LP PCI 10/100 Network Adapter Card Product Title (Medium) x Product Title (Standard) StarTech.com Ethernet network adapter card - PCI low profile - EN, Fast EN - 10Base-T, 100Base-TX Product Title (Long) 1 Port Low Profile PCI 10/100 Mbps Ethernet Network Adapter Card Product Title (AMZ) 1 Port Low Profile PCI 10/100 Mbps Ethernet Network Adapter Card (ST100SLP) Title Ingram (Part 1) 1 Port Low Profile PCI 10/100 Mb Title Ingram (Part 2) ps Ethernet Network Adapter Card Website Product Headline Add a 10/100Mbps Ethernet port to any low profile PC through a PCI slot Bullet 1 A single 10/100 Mbps compatible RJ45 Ethernet port Bullet 2 Network Link/Activity and 10/100 Mbps LED indicators Bullet 3 Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x Bullet 4 Full and half duplex support Bullet 5 Crossover Detection & Auto-Correction (Auto MDI/MDI-X) Bullets (Compact) Add a 10/100Mbps Ethernet port to any low profile PC through a PCI slot - PCI Ethernet adapter - PCI Ethernet card - PCI Ethernet NIC -10/100 adapter card Bullets (Consolidated) Add a 10/100Mbps Ethernet port to any low profile PC through a PCI slot - PCI Ethernet Adapter - PCI Ethernet Card - PCI Ethernet NIC -10/100 Adapter Card - 10/100BASE-TX Fast Ethernet Low Profile PCI Network Interface Adapter Card (NIC) Marketing Copy Applications - Replace a failed Ethernet port in a small form factor computer
- Add networking capabilities to an old system with no Ethernet port
- Add an additional Ethernet port to a desktop or workstation computer for redundancy
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Recycling - Waste - Japan - Paper Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
Special Notes IRQ Line and I/O Address Assigned by system Accessory Products - M45PATCH3BL
- M45PATCH6BL
Related Products ST100S Humidity 10~90% RH Non-condensing Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 120.000 Product Width (mm) 20.000 Product Height (mm) 80.000 Product Weight (g) 42.000 TAA Compliant No Compatible Networks 10/100 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 200 Mbits/Sec OS Compatibility - Linux
- UNIX
- Mac OS X
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2019
- Windows 11
Bus Type PCI / PCI-X (5 / 3.3V) Card Type Low Profile (SP bracket incl.) Chipset ID Realtek - RTL8100C Industry Standards IEEE 802.3/802.3u Interface/Bridge RJ45 (10/100 Ethernet) LED Indicators - 1 - 10/100Mbps selection
- 1 - Network link/activity

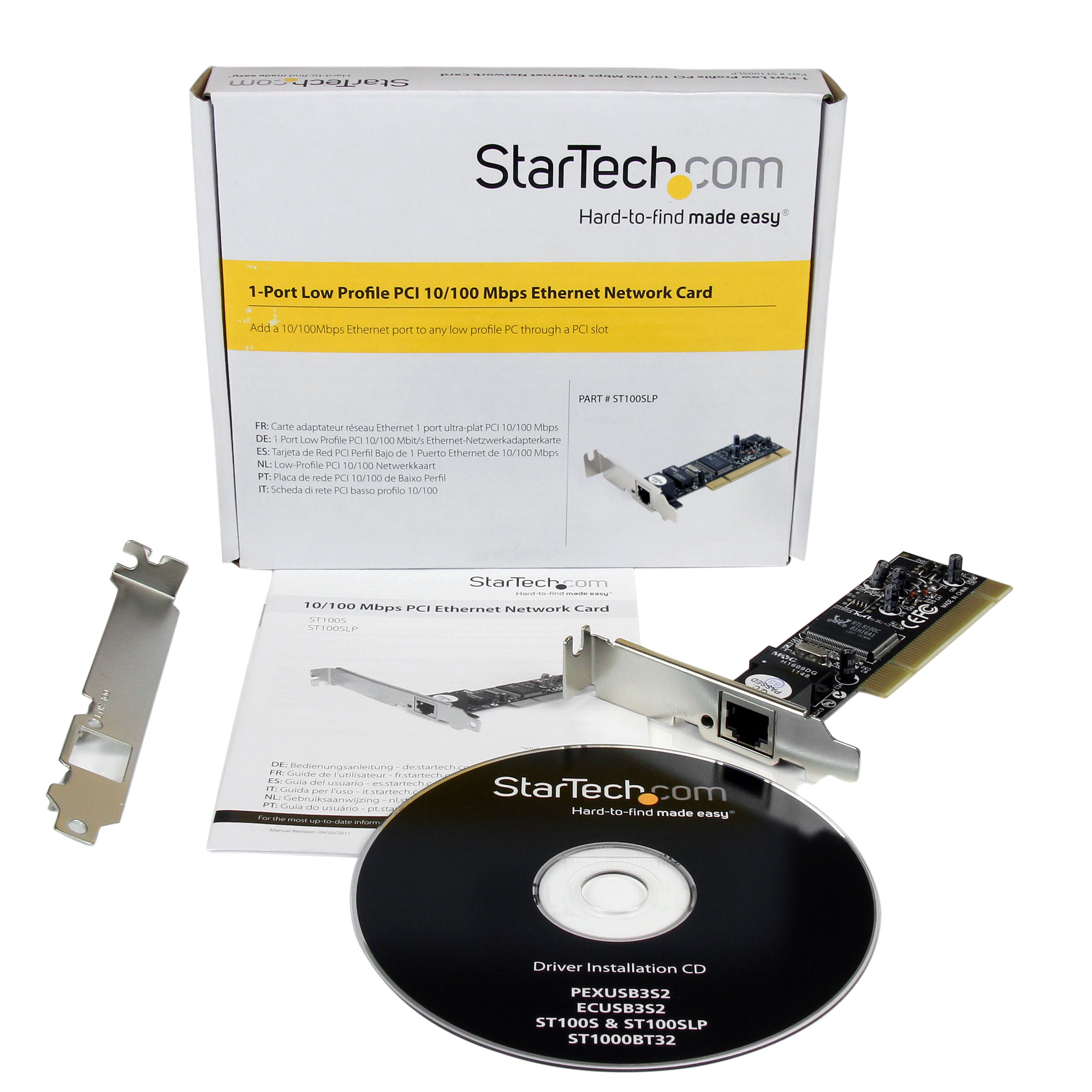

Carton Depth (mm) 363 Carton Height (mm) 305 Carton Quantity 80 Carton Weight Gross (g) 11604 Included in Package - 1 - Low Profile 10/100 Mbps Ethernet PCI Card
- 1 - Instruction Manual
- 1 - Driver CD
- 1 - Full Profile bracket
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 132 Packaging Description Low Profile PCI 10/100 Network Card Packaging Description India Low Profile PCI 10/100 Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI / PCI-X Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,EU,JP,NZ,PE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
