ST100SW
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 1 Port PCI Fast Ethernet Network Adapter Card Product Number ST100SW UPC 065030782272 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Product Title (Short) 1 Port PCI Ethernet Network Adapter Card Product Title (Standard) StarTech.com 1 Port PCI 10/100 Mbps Ethernet Network Adapter Card w/ ACPI Wake Port - Network adapter - PCI - EN, Fast EN - 10Base-T, 100Base-TX Product Title (Long) 1 Port PCI 10/100 Mbps Ethernet Network Adapter Card w/ ACPI Wake Port Title Ingram (Part 1) 1 Port PCI Ethernet Network Adap Title Ingram (Part 2) ter Card w/ ACPI Wake Port Bullet 1 Supports 32-bit PCI Bus Master for high performance and low processor utilization. Bullet 2 Complies with industry standards: IEEE 802.3 CSMA/CD, 100BaseTX and 10BaseT standard. Bullet 3 Full duplex design to double the performance to 20Mbps/200Mbps. Bullet 4 One STP connector for 100Mbps or 10Mbps network speed. Bullet 5 Supports Auto-negotiation function. Marketing Copy Accessory Products - M45PATCH3BL
- M45PATCH6BL
Related Products - ST100SLP
- 10PACK100BT
- M45PATCH10BL
- RJ45PATCH10
- DS5105
- DS8105
Operating Temperature 0 ~ 55 TAA Compliant No Compatible Networks 10/100 Mbps Full Duplex Support Yes General Specifications - Connectors: (1) RJ-45
- Standards: IEEE 802.3/802.3u
- Data Transmission Rate: 10Mbps or 20Mbps, 100Mbps or 200Mbps
- Bus Type: PCI
- IRQ: Assigned by system
- I/O Address: Assigned by system
- Drivers: ODI driver for NetWare 3.x/4.x, NDIS driver for LAN Manager, Windows 95, Windows 98, Windows NT, Packet Driver for TCP/IP software
- Temperature: 0 to 55 degrees C
- Humidity: 10 to 90% non-condensing
- Certification: FCC Class B, CE Mark
- Dimensions: 120 x 63 mm
- Weight: 60 g
- Chipset: Realtek RTL8139D
Maximum Data Transfer Rate 200 Mbits/Sec OS Compatibility - Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Linux
- Windows Vista
Wake-On-LAN (WOL) Yes Bus Type PCI / PCI-X (5 / 3.3V) Card Type Standard Profile (LP bracket incl.) Industry Standards - IEEE 802.11b
- IEEE 802.11u
LED Indicators - 1 - 10/100Mbps selection
- 1 - Network link/activity

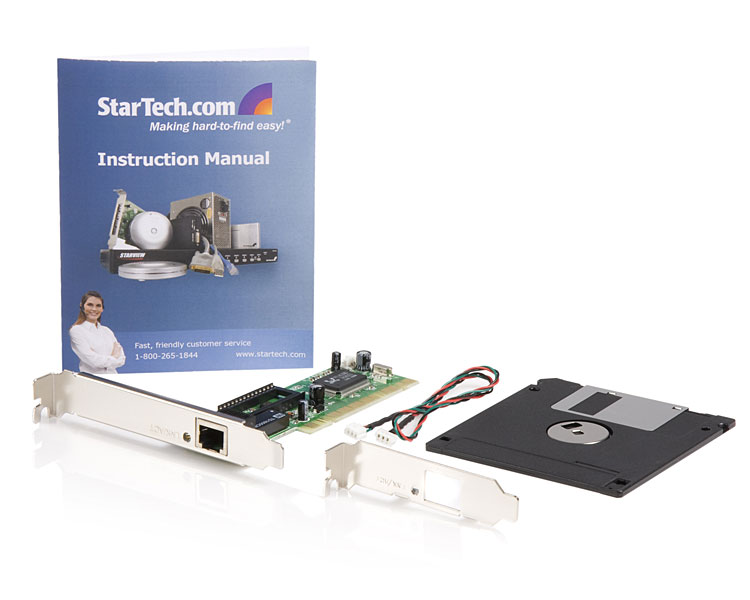

Carton Depth (mm) 470 Carton Height (mm) 330 Carton Quantity 40 Carton Weight Gross (g) 7200 Included in Package - 1 - DRIVER DISK
- 1 - INSTRUCTION MANUAL
- 1 - I/O CARD
Package Depth (mm) 28 Package Height (mm) 163 Package Width (mm) 230 Package Weight (g) 150 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
