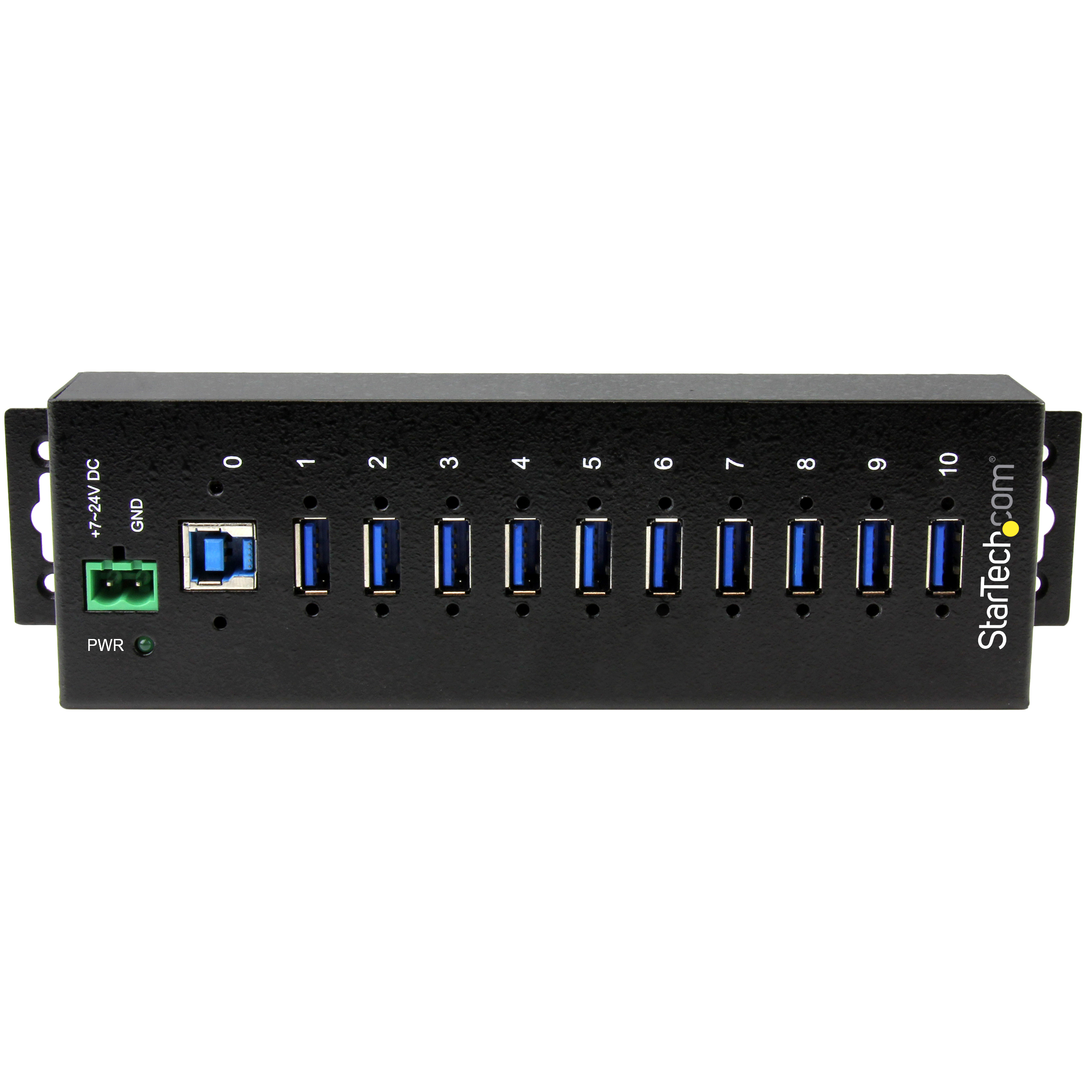

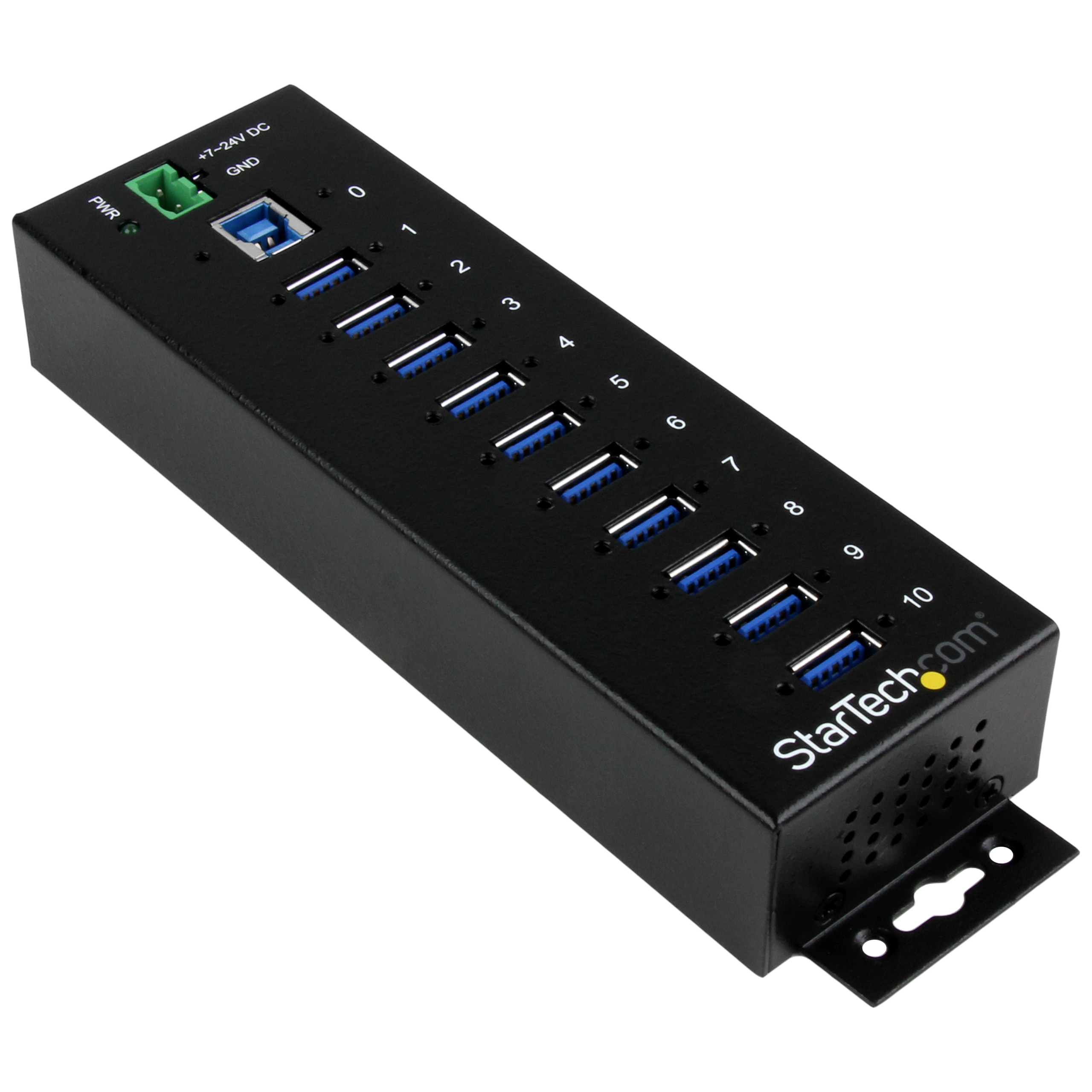

ST1030USBM
10-Port Industrial USB 5Gbps Hub - ESD Protection
Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 10-Port Industrial USB 5Gbps Hub - ESD Protection Product Number ST1030USBM UPC 065030863001 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Industrial USB Hubs - 5Gbps - 10-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 10 Port USB 3.0 Hub Product Title (Short) 10 Port Industrial USB 3.0 Hub - Metal Product Title (Medium) 10 Port Industrial USB 3.0 Hub - ESD and Surge Protection - Mountable Housing Product Title (Standard) 10 Port Industrial USB 3.0 Hub, ESD and Surge Protection, DIN Rail or Surface-Mountable Metal Housing, TAA Product Title (Long) 10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub Product Title (AMZ) 10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST1030USBM) Title Ingram (Part 1) Rugged Metal 10Port USB 3.0 Hub Title Ingram (Part 2) - DIN Rail and Wall-mountable Website Product Headline Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps Bullet 1 POWERED HUB: Operates with 7 ~ 24VDC input using the included terminal block or an optional 65W external power adapter (not included); Note: If power adapter is required, please consider our HB30A10AME; Supports USB Battery Charging Specification 1.2 Bullet 2 PROTECT YOUR DEVICES: This USB hub protects your connected devices with 15kV Air and 8kV contact ESD protection; It provides a surge protection of 350W on the downstream and upstream USB ports Bullet 3 VERSATILE INSTALLATION OPTIONS: Built-in mounting brackets and included DIN mount rails to securely mount the USB 5Gbps hub to most surfaces such as a wall, under a desk or in a rack Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB hub is backed for 2-Years, including free lifetime 24 by 5 multi-lingual technical assistance Bullet 5 MAXIMIZE USB PERFORMANCE: This 10-port USB 3.0 (5Gbps) hub adds ten independent USB ports to your server room or industrial environment Bullets (Compact) Add ten USB 3.0 (5Gbps) ports with this DIN rail or surface-mountable metal hub - 10 Port Hub with 15kV ESD & 350W Surge Protection - Wide-range 7-24V DC terminal block power input - Extended operating temperature range - Ideal for harsh environments Bullets (Consolidated) Protects your connected devices with 15kV Air and 8kV Contact ESD protection - Surge protection of 350W on the downstream and upstream USB ports - Mount industrial USB hub where required with built-in mounting brackets or included DIN rails - Offers flexible, wide-range power inputs with a 7-24V DC terminal block - USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 50W total Marketing Copy Marketing Copy (No HTML) This 10 port USB 3.2 Gen 1 hub is designed to meet the advanced requirements of connecting a high number of devices in industrial settings. This rugged USB 3.2 Gen 1 hub offers ten connection ports, unlike most four or seven-port USB 3.2 Gen 1 hubs. The USB extender also supports USB Battery Charging Specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total. This industrial USB 3.2 Gen 1 hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the USB splitter as required. The 10-port industrial hub also supports an extended operating temperature range (0°C to 70°C). It offers surge and ESD protection to each USB port preventing damage to your connected devices. Install the USB hub where it's best suited for your environment. You can securely mount the multi port USB 3.2 Gen 1 hub to a surface, and it includes optional DIN rail mounts for use with equipment rack installations. The rackmount hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 2.0 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions. The USB port expander is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions Great for assembly lines where only terminal block power is available
- Great for industrial and manufacturing environments where only terminal block connection is preferred
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet

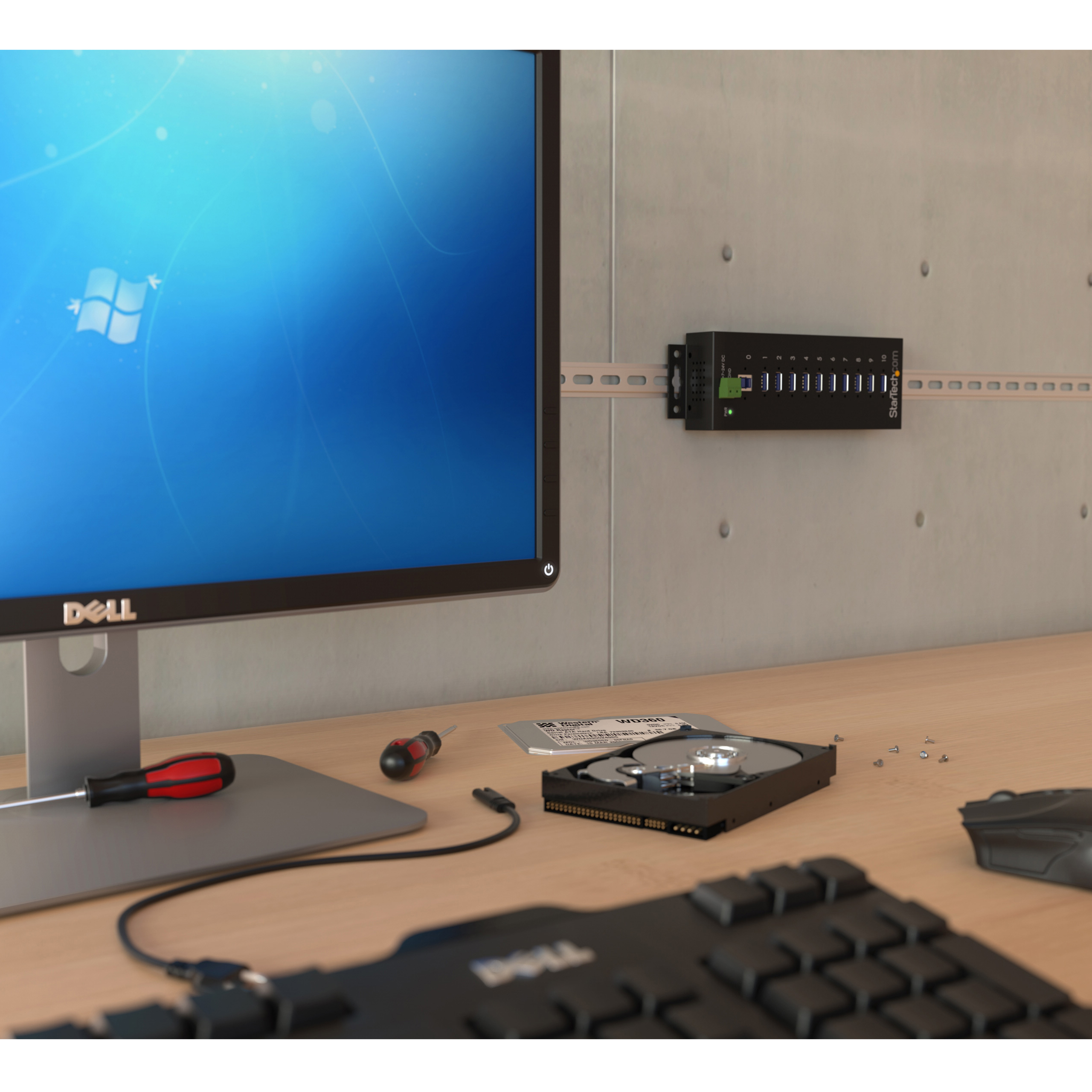

- Mount to a wall near or under a desk surface in a Lab, Service Repair area or office area connecting multiple USB peripherals
- Use in a conference or meeting room utilizing multiple USB peripherals or for charging several mobile devices
Website Search Keyword - 10 port hub
- 10 port usb hub
- 10 port usb 3.0 hub
- usb hub
- usb 3.0 hub
- 10 port usb 3 hub
- USB hubs
- USB 3 hub
- 10port USB 3.0 hub
- Ten Port USB Hub
- metal usb 3.0 hub
- wall mountable usb hub
- wall mountable hub
- usb 3.0 hub 10 port
- superspeed usb hub
- superspeed usb 3.0 hub
- 10 port industrial rugged usb 3.0 hub
- 10 port metal industrial usb 3.0 hub
- factory usb 3.0 hub
- usb 3.0 hub with terminal block
- 10 port mountable usb 3.0 hub
- mountable usb 3.0 hub
- industrial usb hub
- 10 port industrial metal usb 3.0 hub
- 10 port rugged industrial usb 3.0 hub
- usb 3.0 hub with esd
- usb 3.0 hub with surge
- 10 port metal usb 3.0 hub
- 10 port rugged usb 3.0 hub
- 10 port industrial usb 3.0 hub
- metal usb hub
- rugged usb hub
- industrial usb 3.0 hub
- U360-010-IND
- U360010IND
Required Regulatory Compliance Marks - Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - If connected to a USB 2.0 host port, performance may be limited
- This product is intended for use with terminal block power only – Standard AC adapter not available
System and Cable Requirements Host computer with an available USB 3.0 port Accessory Products - PEXUSB3S42
- PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S44V
- USB3SAB5M
- USB3SAB10BK
- UUSBHAUB3RA
- UUSBHAUB10
- USBLT1MBS
- USBLT3MW
- USB3SAA6BK
- ITB20D3250
Related Products - ST7300USBME
- ST4300USBM
- ST7300U3M
- ST7300USB3B
Input Voltage 7 ~ 24 DC Output Voltage (V) 7 ~ 24 DC Power Source Terminal Block Cable Length (mm) 2032 Color Black Extended Temperature Range Yes Humidity 5%~95% RH (Non-condensing) Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 198.000 Product Width (mm) 56.000 Product Height (mm) 31.000 Product Weight (g) 357.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Device Power Consumption (In Watts) 59 Watts Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)
Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 119388 hours OS Compatibility OS Independent Surge Protection 350W on the DFP and UFP Total Available Power Output (In Watts) 45 Watts USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3522 Industry Standards - USB Battery Charging Specification Rev. 1.2
- USB 3.0 - Backward compatible with USB 2.0/1.1

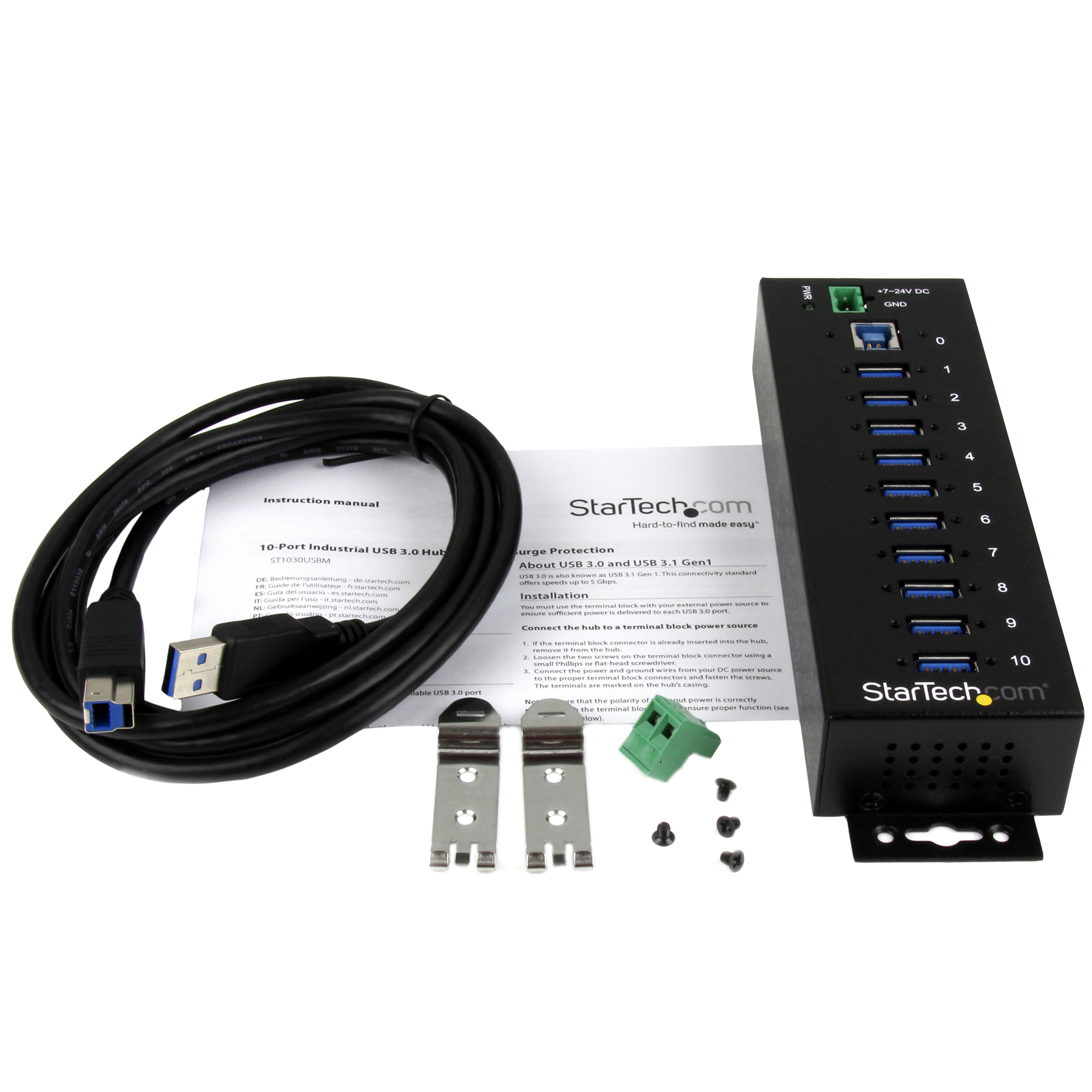

Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power (Green) Mounting Options Surface Mount USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 440 Carton Height (mm) 335 Carton Quantity 25 Carton Weight Gross (g) 15700 Included in Package - 1 - 10-port industrial USB 3.0 hub
- 1 - USB 3.0 host cable
- 1 - DIN rail mounting kit
- 1 - terminal block (2 wire)
- 1 - instruction manual
Included In Package for Label - 1 - 10-port industrial USB 3.0 hub
- 1 - USB 3.0 host cable
- 1 - DIN rail mounting kit
- 1 - terminal block (2 wire)
- 1 - instruction manual
Package Depth (mm) 244 Package Height (mm) 57 Package Width (mm) 169 Package Quantity 1 Package Weight (g) 592 Packaging Description 10-Port Industrial USB 3.0 Hub - ESD Protection Packaging Description India 10-Port Industrial USB 5Gbps Hub - ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 10 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2015-06-17 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Production Release 2015-07-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
