ST10GPEXNDPI

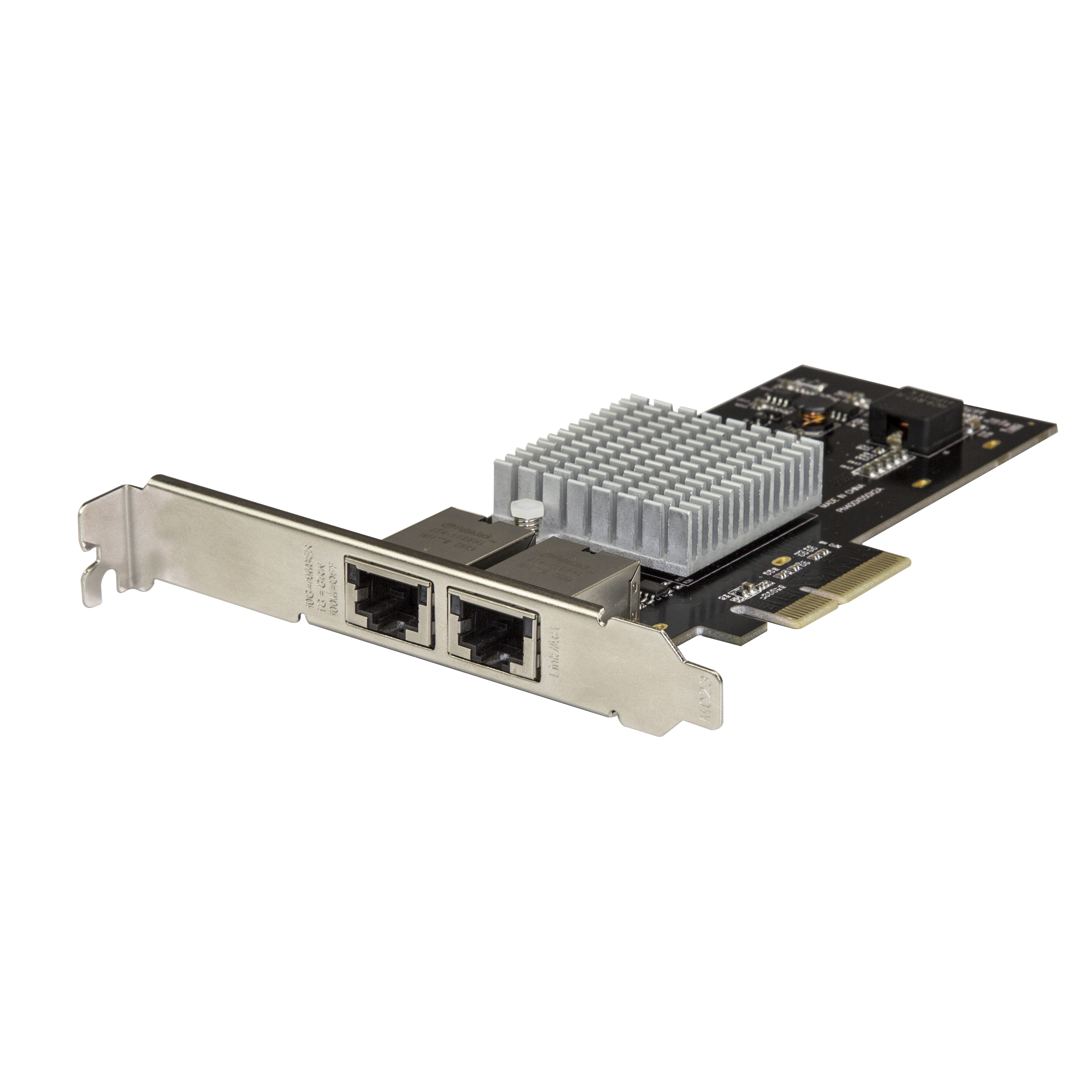

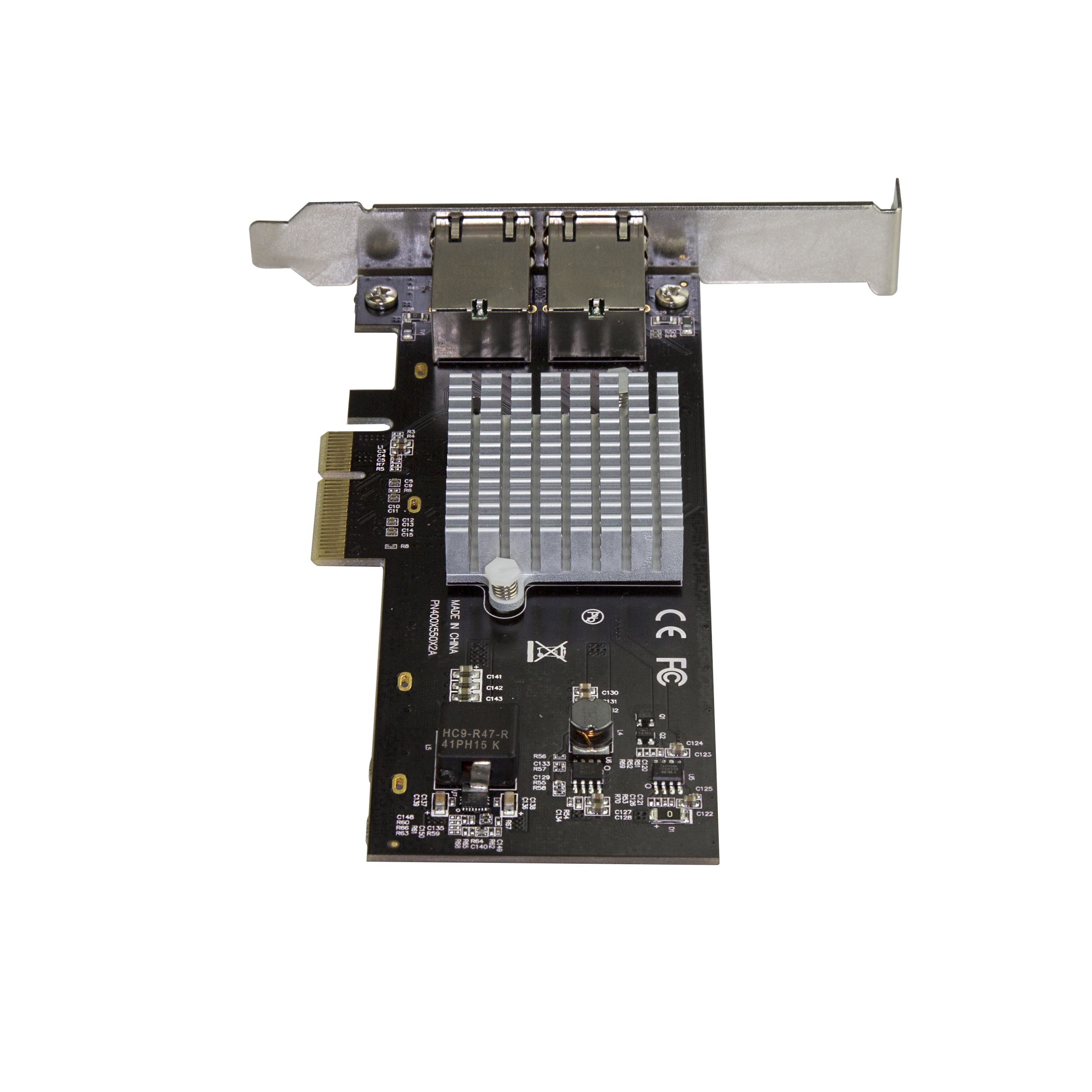

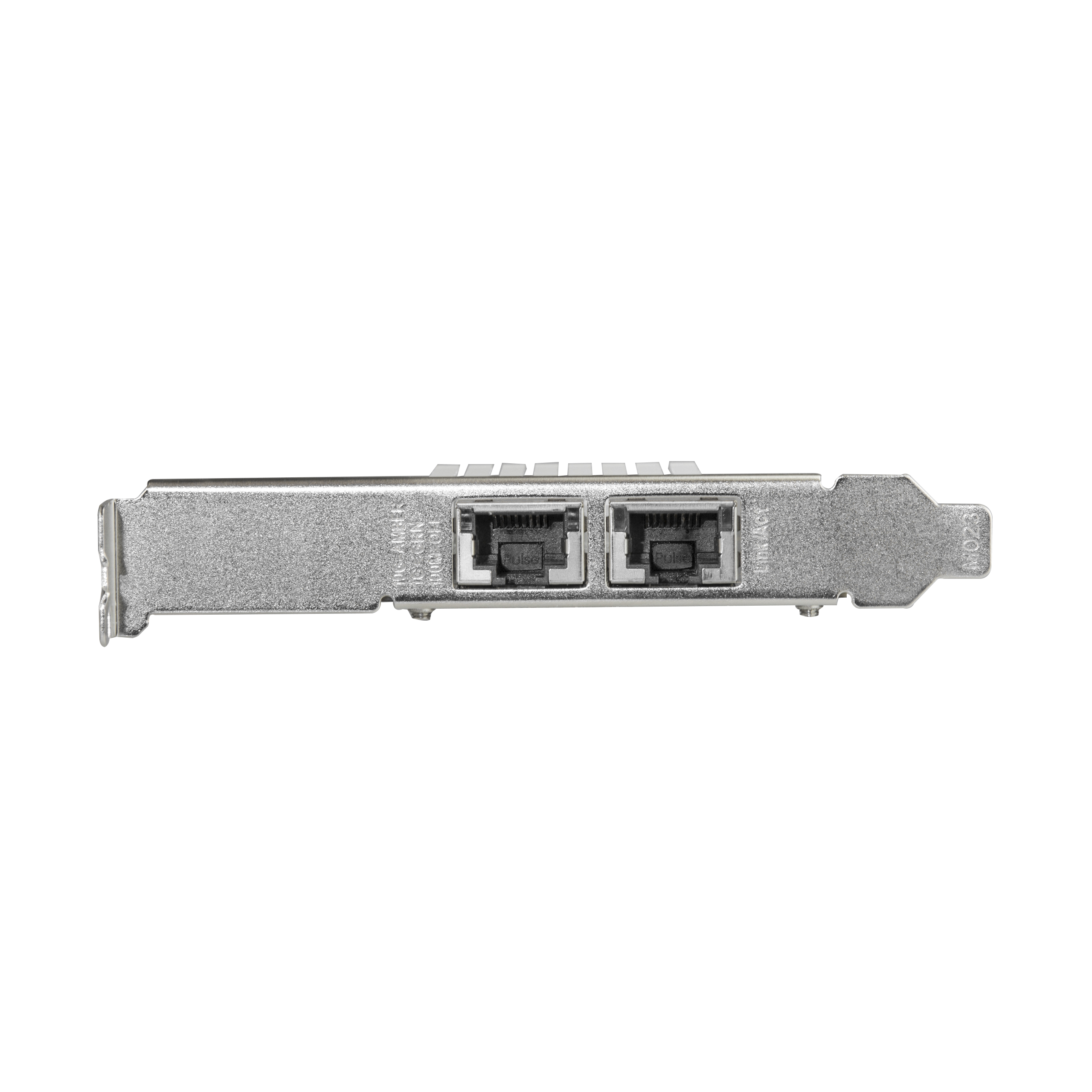

Dual Port Network Card PCIe 10G NBASE T NIC
Add two Ethernet ports to a server or workstation through one PCI Express slot, with support for five network speeds: 10G/5G/2.5G/1G/100Mbps
Main Image
Product Images
Product Images
Product Name Dual Port Network Card PCIe 10G NBASE T NIC Product Number ST10GPEXNDPI UPC 065030879538 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family 10G PCIe Ethernet NICs - Copper Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 2-Pt NIC 10G/NBASE-T Product Title (Short) 2 Port 10G PCIe Network Adapter Card NIC Product Title (Medium) Dual Port Network Card - PCIe 10G / NBASE-T Ethernet Network Interface Card Product Title (Standard) Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port Product Title (Long) Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card Product Title (AMZ) Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card (ST10GPEXNDPI) Title Ingram (Part 1) Dual Port Network Card - PCIe - Title Ingram (Part 2) 10GBase-T/NBASE-T NIC - Intel X550 Website Product Headline Add two Ethernet ports to a server or workstation through one PCI Express slot, with support for five network speeds: 10G/5G/2.5G/1G/100Mbps Bullet 1 DUAL PORT 10GbE NETWORK INTERFACE CARD: 10Gbps Dual port PCIe Network Adapter Card copper combines high data transfer rates to provide redundancy or independent connections to multiple networks Bullet 2 TECH SPECS: 10 Gbps | 2x RJ45 Ports |Intel X550AT2 | 10GBASE-T & NBASE-T | Multi-Gigabit 1 / 2.5 / 5 / 10 Gbps | PCI Express 3.0 x4 | 9K Jumbo Frames | VLAN | VT-c | PXE | Full & low profile | 2Yr Warranty Bullet 3 TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits validation tools to validate performance; compatible with major operating systems Bullet 4 ADVANCED FEATURES: Workstation NIC Supports SAN (Storage Area Network) advanced features including iSCSI offload and Fibre Channel over Ethernet (FCoE) Bullet 5 WIDE OS COMPATIBILITY: Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions) Bullets (Compact) PCIe Network Adapter Card Dual NIC ports Network Interface Card 2x 10 GbE RJ45 Ports - Intel X550AT2 Chip - 10GBASE-T / NBASE-T, Muli-Gigabit 1/2.5/5/10 Gbps, PCIe 3.0 x4, 15K Jumbo Frames, VLAN, PXE - Supports FCoE & iSCSI - 2 year warranty Bullets (Consolidated) PCIe Network Adapter Card Dual 10GbE NIC copper ports for performance and redundancy -2x 10 Gbps RJ45 Ports | Intel X550AT2 | 10GBASE-T/NBASE-T | Multi-Gigabit 1/2.5/5/10 Gbps | PCIe 3.0 x4 interface | 15K Jumbo Frames | VLAN | PXE | Full + low profile - SmartBits verified for industry-leading performance -Supports SAN (Storage Area Network) advanced features incl iSCSI offload and Fibre Channel over Ethernet (FCoE) - StarTech.com 2-year warranty and free lifetime technical support Marketing Copy Marketing Copy (No HTML) Applications - A cost-effective way to add two Ethernet ports to your server or desktop computer, with 5-speed network access
- The controller card utilizes advanced NBASE-T technology, enabling multigigabit connections over your existing Cat5e cabling
- Supports the latest multigigabit technology switches and routers such as new Cisco campus switches including Catalyst 4500E, 3850 and 3560-CX
- Ideal for high-demand database servers and mission-critical systems that need redundant network connectivity
Website Search Keyword - network interface card
- nic
- network adapter
- network card
- ethernet port
- nic card
- pci card
- ethernet card
- internet card
- pcie card
- pci network card
- lan card
- intel network interface card
- intel nic
- pcie network card
- NBase-T
- pci ethernet card
- 10gb nic
- 10 gig ethernet card
- 10 gigabit ethernet card
- 10gb ethernet card
- 10gb network card
- gigabit ethernet card
- Converged network adapter
- gigabit network card
- pci express network card
- pcie ethernet card
- PCIe network adapter
- 10G nic
- 10gb nic card
- PC network adapter
- ethernet network card
- multi-gigabit ethernet
- nbase t nic
- nbase-t nic
- server network card
- intel 10gb ethernet card
- 10gb ethernet card rj45
- 10gb ethernet nic
- 10 gigabit ethernet network card
- 10 gigabit ethernet adapter
- dual port ethernet card
- dual port network card
- ethernet card for desktop
- server adapter
- server network adapter
- nbase-t network card
- intel x550 dual port 10gbase-t adapter
- 5g nic
- intel nbase t
- intel nbase-t
- 10gb nic rj45
- 2 port ethernet card
- 2 port gigabit nic
- 2 port network card
- 2 port nic
- 2 port nic card
- 2.5G nic
- 4 mode nic
- 5 mode nic
- 5 speed ethernet card
- 10g nbase-t
- 5-speed network card
- PCIe network card
- 10 Gigabit Ethernet card
- 10Gb network card
- NBase-T NIC
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. System and Cable Requirements - Available PCI Express x4 slot
- For Windows, NBase-T support requires Windows 8 or higher
Accessory Products - C6ASPAT3BL
- C6ASPAT3GR
- C6ASPAT10BL
- C6ASPAT10GR
Related Products - ST10000SPEX
- PEX10000SFP
- ST1000SPEXI
- ST2000SPEXI
- PEX1000SFP
- ST1000SPEX2
Constrained SKU Alternatives (Limited Stock) ST20000SPEXI Color Black Humidity 20% ~ 80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 228.000 Product Width (mm) 15.000 Product Height (mm) 132.000 Product Weight (g) 98.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10 Gbps/5G/2.5G/1G/100 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 10 Gbps OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Promiscuous Mode Yes Supported Protocols IEEE 802.3X (Flow Control Support)</br> IEEE 802.1q (VLAN tagging) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - X550AT2 Industry Standards Interface/Bridge RJ45 (10 Gigabit Ethernet) LED Indicators - 2 - Link Speed
- 2 - Link/Activity
Carton Depth (mm) 420 Carton Height (mm) 316 Carton Quantity 40 Carton Weight Gross (g) 8124 Included in Package - 1 - network card
- 1 - low-profile bracket
- 1 - quick-start guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Low-Profile Bracket
- 1 - Network Card
Package Depth (mm) 144 Package Height (mm) 41 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 206 Packaging Description 2-port 10G NBASE-T Ethernet Network Card Packaging Description India 2-port 10G NBASE-T Ethernet Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-07-14 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-08-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-07-14 Target Production Release 2017-07-14 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
