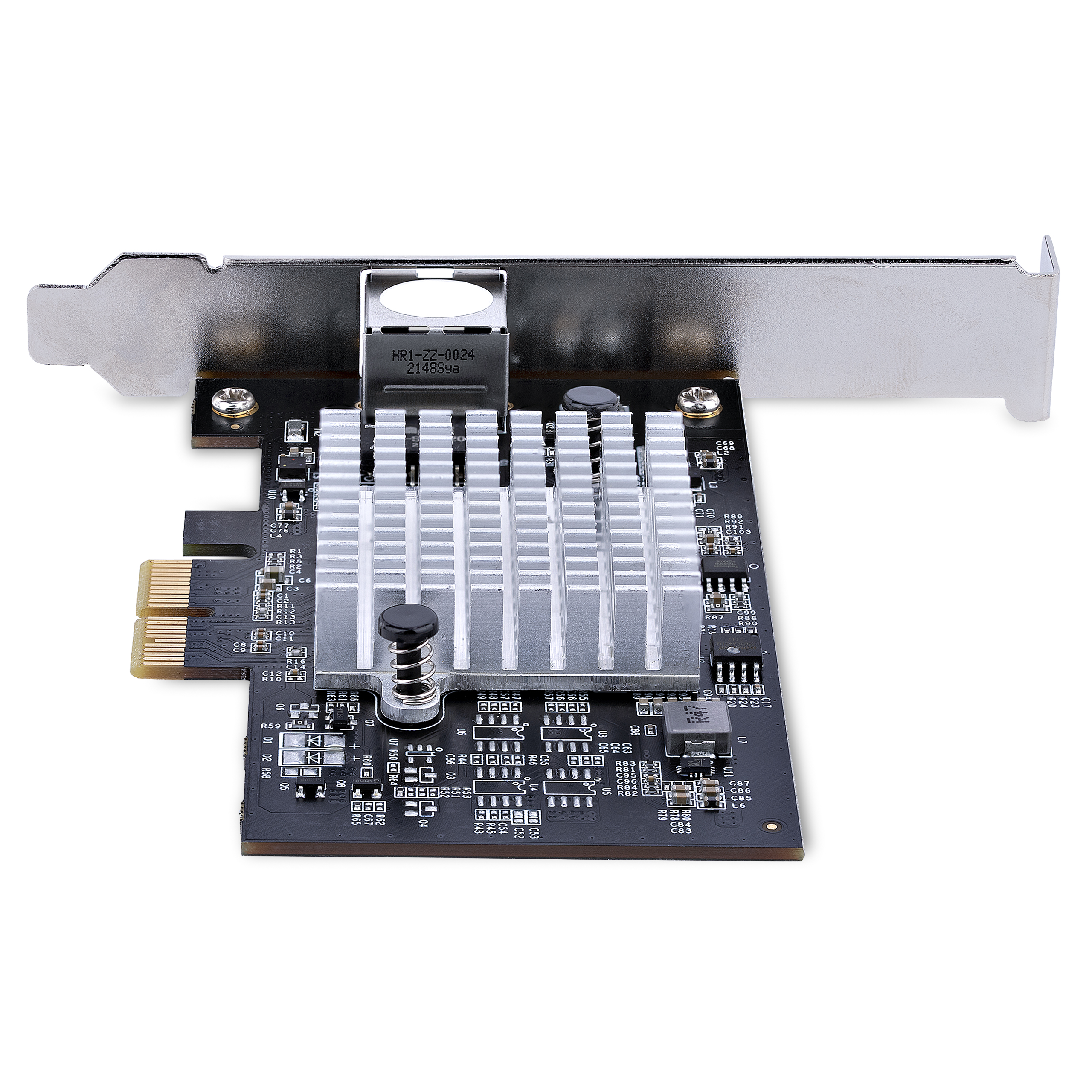

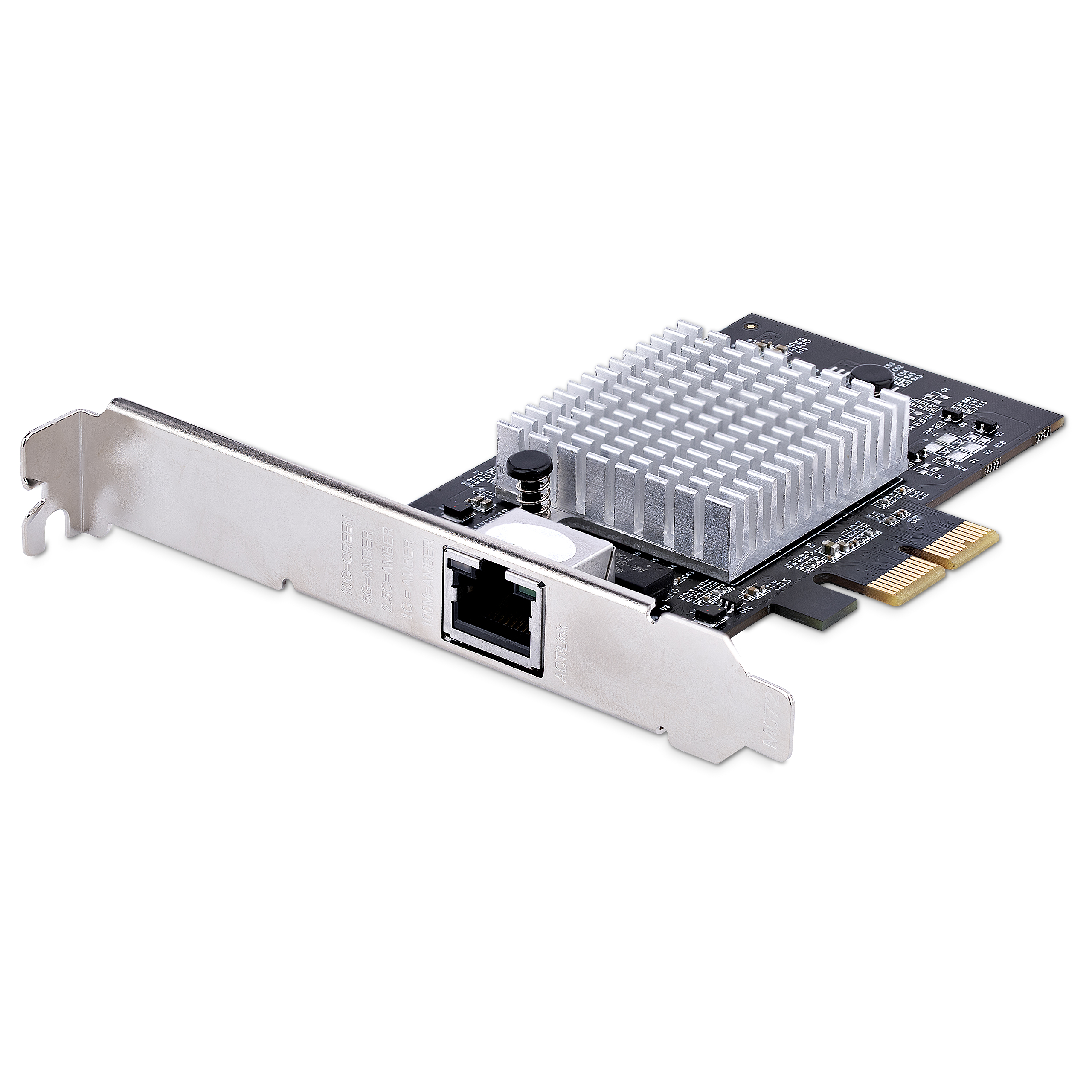

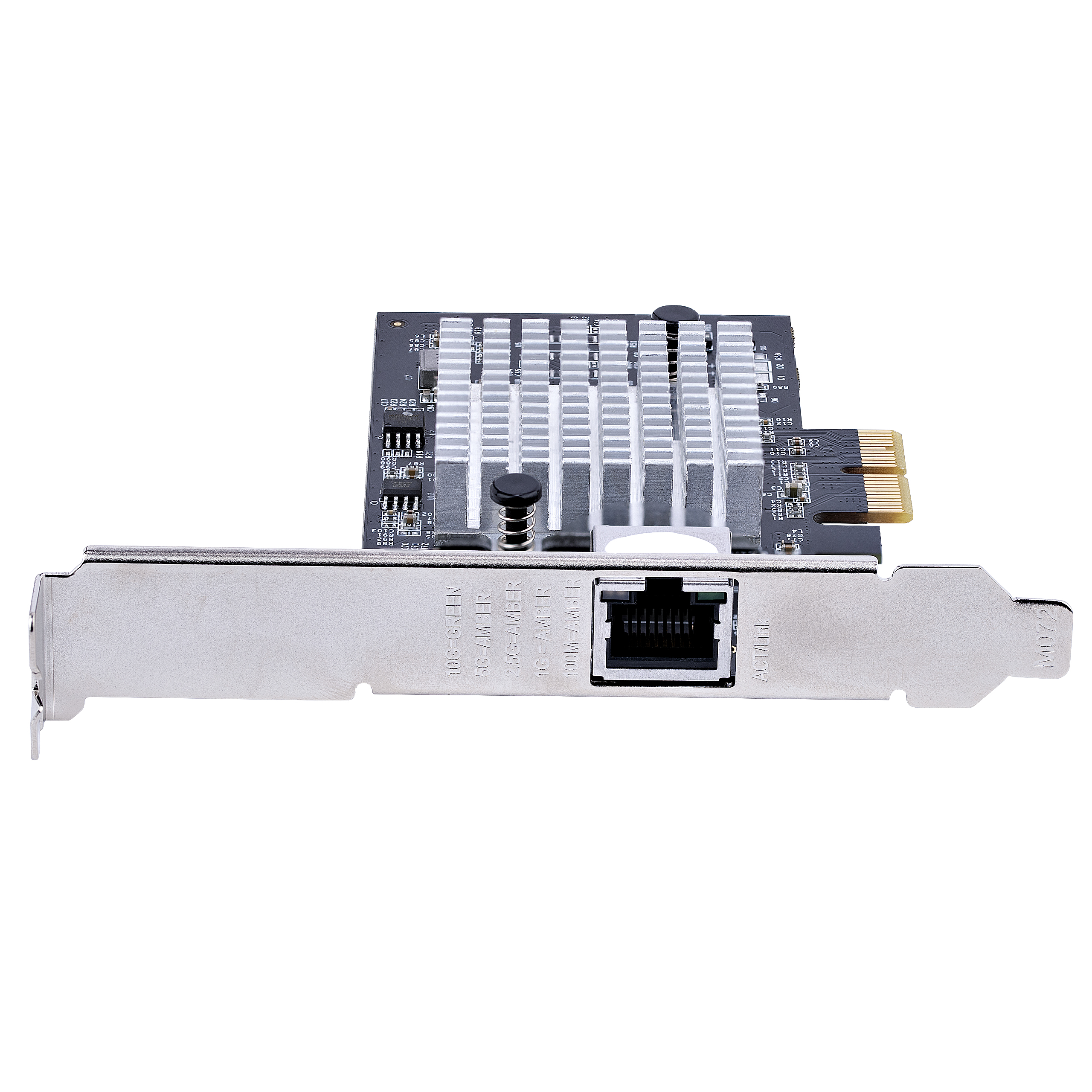

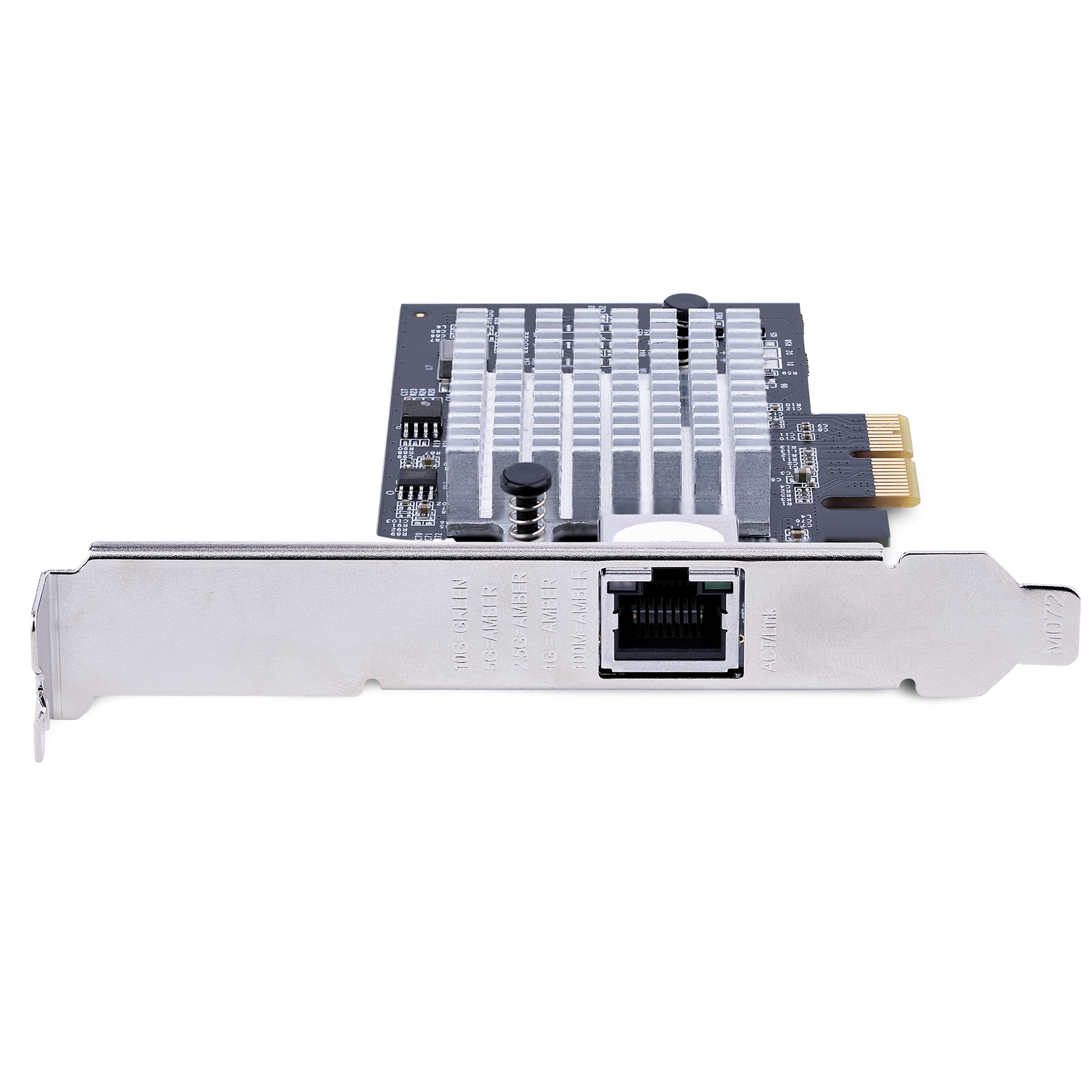

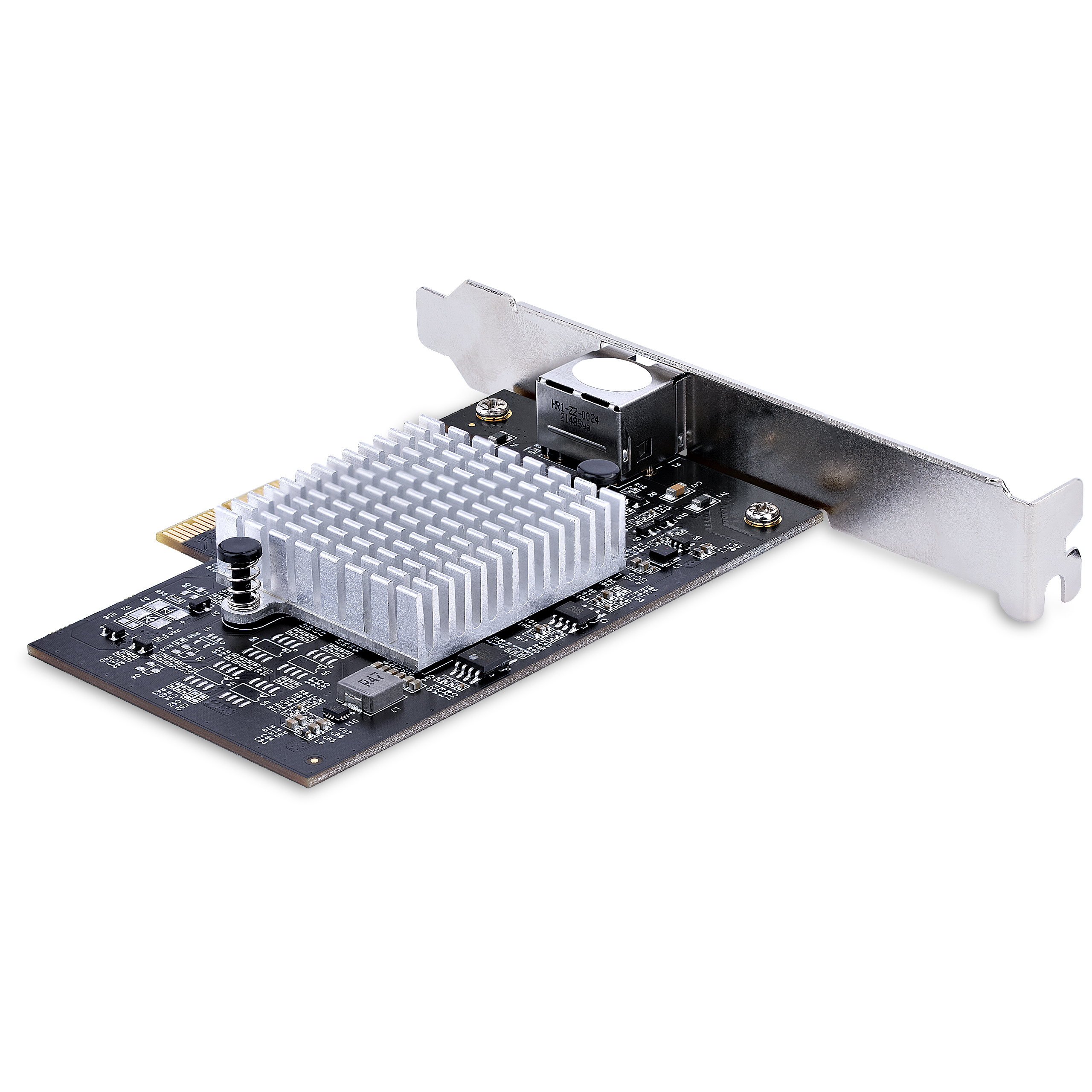

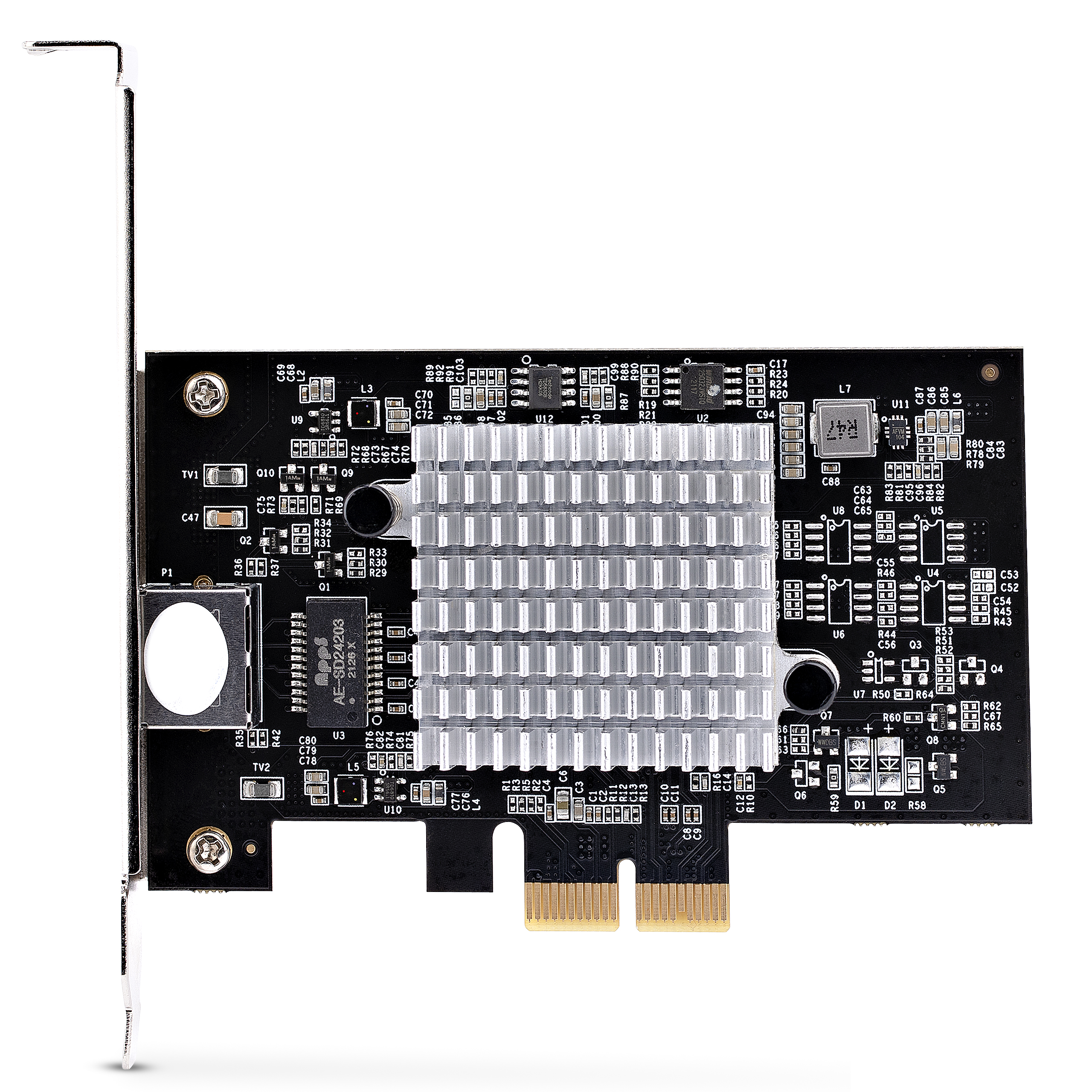

ST10GSPEXNB2
1 Port 10GBase T NBase T PCI Express Network Adapter Card
Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CS
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 1 Port 10GBase T NBase T PCI Express Network Adapter Card Product Number ST10GSPEXNB2 UPC 065030897549 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family Sales on comparable too low, 1000+ ADC rank. I wouldn't launch for emerging markets Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 10Gb Network Card Product Title (Short) 1-Port 10Gbps PCIe Network Adapter Card Product Title (Medium) 1-Port 10Gbps PCIe Network Adapter Card, PC Ethernet/LAN/Network Interface Card Product Title (Standard) 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card Product Title (Long) 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T Product Title (AMZ) 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card w/Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T/NBASE-T (ST10GSPEXNB2) Title Ingram (Part 1) 10G PCIe Network Adapter Card - Title Ingram (Part 2) 10GBASE-T/NBASE-T, RJ45 LAN Card Website Product Headline Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CS Bullet 1 NETWORK ADAPTER FOR PC: This 10 GbE capable PCIe network adapter card provides high-speed data transfer rates for desktops/servers leveraging an existing Cat5e, Cat6, or Cat6a cabling infrastructure Bullet 2 SPECIFICATIONS: Multiple Speeds NIC 10/5/2.5/1Gbps and 100/10Mbps; 10GBASE-T and NBASE-T; 1x RJ45 Port; PCIe 3.0 x2; Marvell AQC113CS; 16K Jumbo Frame; VLAN; PXE Boot; EEE; Wake On Lan (WoL); Full-Height and Low-Profile Brackets Included Bullet 3 COMPATIBILITY: The network card for PC is compatible with Windows, Windows Server, and Linux; The variable speed options and included low profile bracket widen the compatibility of the PCIe network card with current and legacy devices Bullet 4 MULTI-GIGABIT CONNECTIVITY: The network interface card auto negotiates speed and supports 2.5/5 Gbps network speeds on Cat5e cabling, and 10 Gbps on Cat6/6a; The Ethernet network card supports IP/TCP/UDP checksum offload, secure boot, PTP, and AVB Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 10Gb network card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) This 10G capable PCIe network adapter card leverages existing Cat5e/6/6a cabling - Six Speeds NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x2; 16K Jumbo; PXE Boot; AVB; PTP - The 10Gb network adapter card is compatible with Windows/Linux Bullets (Consolidated) This 10G capable PCIe network adapter card enables high-speed data rates for desktops/servers leveraging existing Cat5e/6/6a cabling - Six-Speed NIC 10G/5G/2.5G/1G/100M/10M 1x RJ45 PCIe 3.0 x2 | Marvell AQC113CS | 16K Jumbo | VLAN | PXE Boot | AVB and PTP - 10Gb network adapter card is supported by Windows/Windows Server/Linux - Six speed options and included low-profile bracket widen the compatibility of the network interface card with current/legacy devices - Replacement for ST10GSPEXNB Marketing Copy Marketing Copy (No HTML) Website Search Keyword - pcie network adapter card
- 10gb ethernet card
- 10gb nic
- lan card
- network card for pc
- network interface card
- PCIe ethernet card
- pcie network card
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes When using a PCIe 2.0 slot the maximum speed is 5 Gbps Accessory Products - N6PATCH3BK
- N6PATCH5BL
- N6PATCH5BK
- N6PATCH10BK
- N6PATCH15BL
- 45PATCH10BK
- 45PATCH3BK
- 45PATCH6BK
- RJ45PATCH15
Related Products - PEX10000SFPI
- ST1000SPEXI
- PEX1000SFP
- ST1000SPEX2
- ST10GSPEXNB
- ST10GSPEXNDP
Power Source Bus Powered Color Black Material Steel Operating Temperature 32°F to 140°F (0°C to 60°C) Product Length (mm) 106.000 Product Width (mm) 56.000 Product Height (mm) 15.000 Product Weight (g) 73.000 Storage Temperature 14°F to 158°F (-10°C to 70°C) TAA Compliant No Auto MDIX Yes Compatible Networks 10G/5G/2.5G/1G/100Mbps/10Mbps Full Duplex Support Yes General Specifications Wake on LAN (WoL) support: Yes Jumbo Frame Support 16K max. Maximum Data Transfer Rate 10 Gbps MTBF (hours) 479,040 hours OS Compatibility - Windows 10
- Windows 11
- Windows 8
- Linux
PXE Yes Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - AQC113CS Industry Standards Interface/Bridge RJ45 (10 Gigabit Ethernet) LED Indicators - 1 - Green LED: 10 Gbps
- 1 - Amber LED: 5G/2.5G/1G/100Mbps/10Mbps

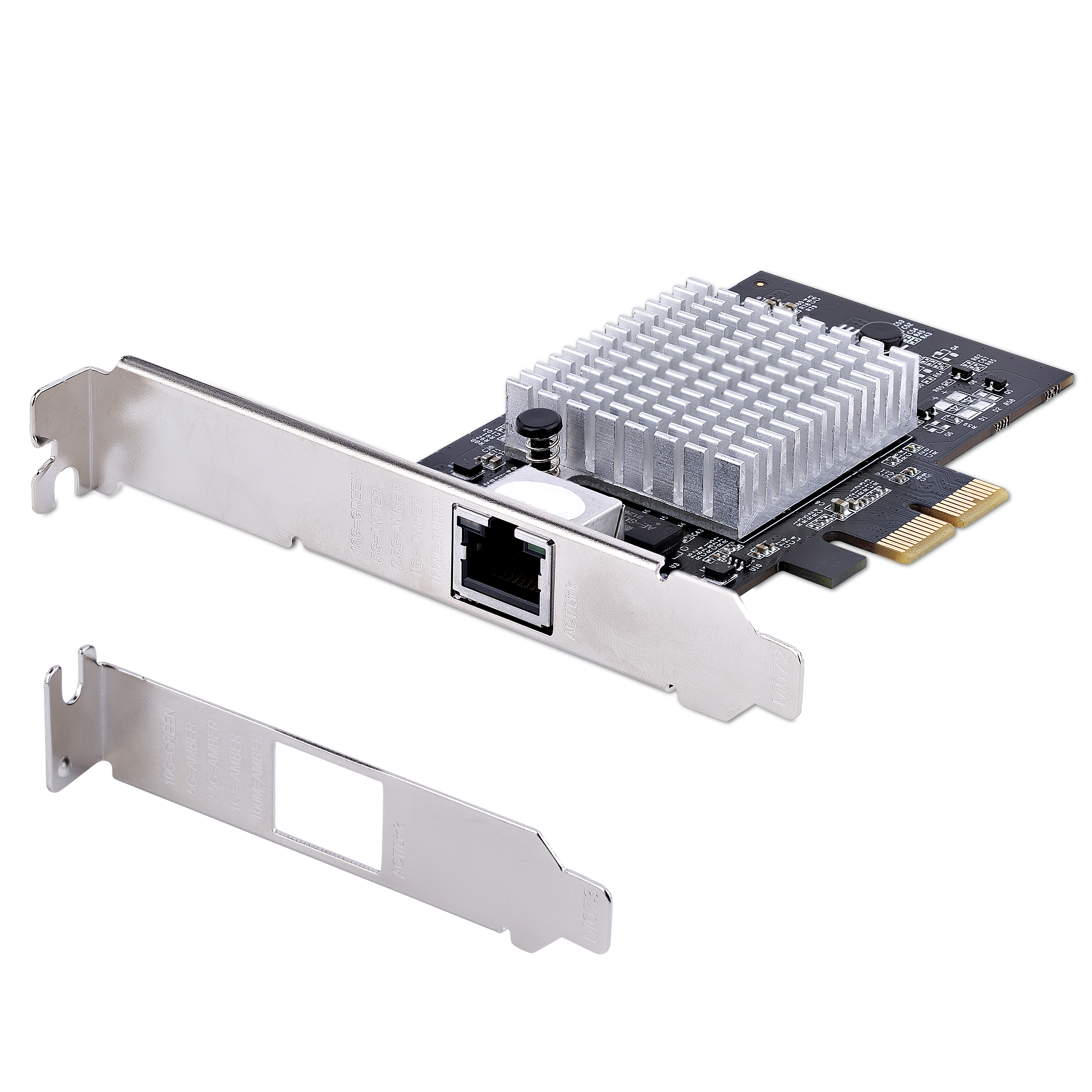

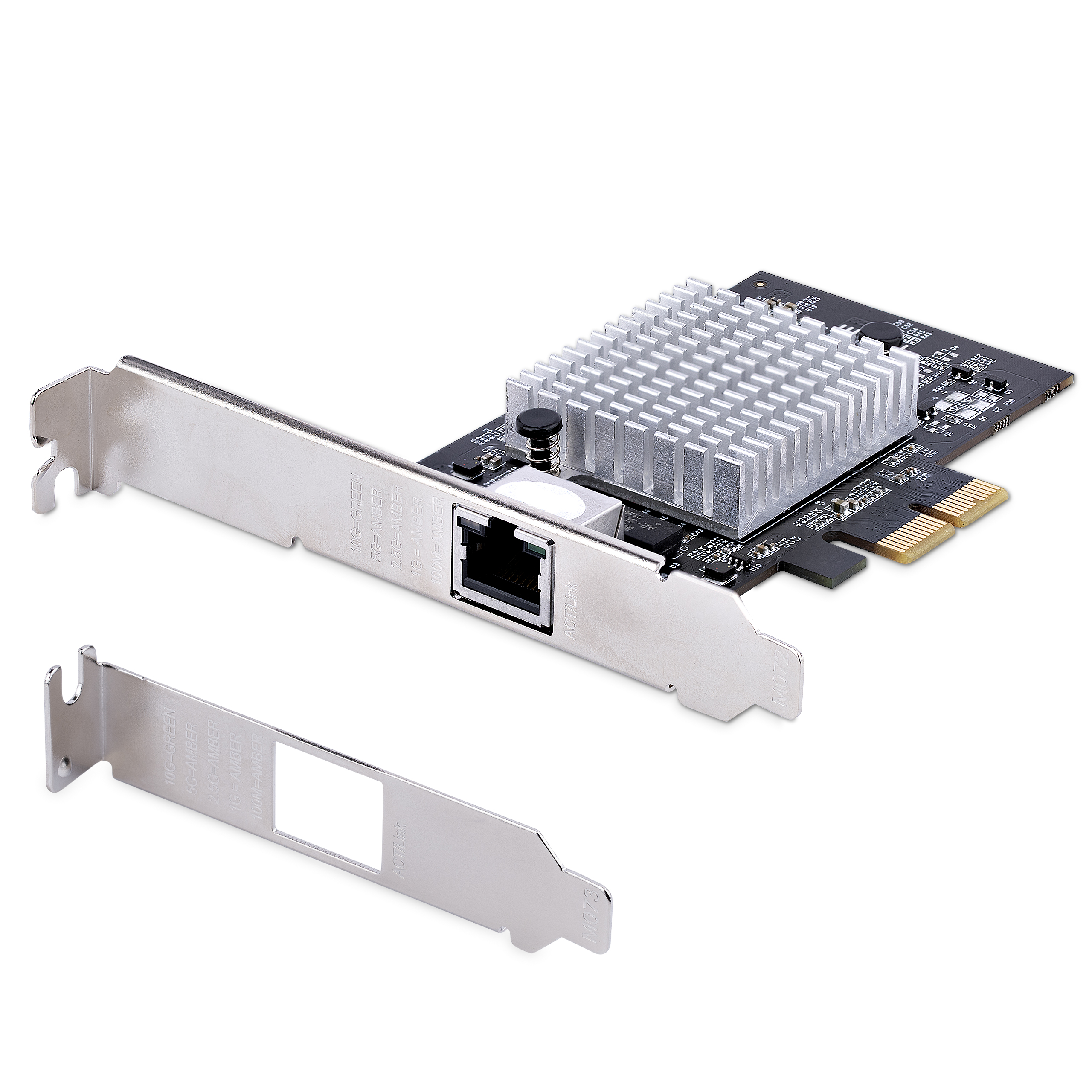

Carton Depth (mm) 452 Carton Height (mm) 326 Carton Quantity 40 Carton Weight Gross (g) 7204 Included in Package - 1 - PCIe Network Card
- 1 - Low-profile Bracket
- 1 - Quick-start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Low-Profile Bracket
- 1 - PCIe Network Card
Package Depth (mm) 217 Package Height (mm) 35 Package Width (mm) 152 Package Quantity 1 Package Weight (g) 162 Packaging Description 1-Port 10GBase-T / NBase-T Ethernet Network Adapter Card - PCIe Ver 3.0 x2 Packaging Description India 1-Port 10GBase-T / NBase-T Ethernet Network Converter Card - PCIe Ver 3.0 x2 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x2 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2022-07-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-12-17 Target Production Release 2022-04-15 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
