ST10GSPEXNDP
2 Port PCI Express 10GBase-T Ethernet Network Card
Dual NIC Card | Windows® & Mac | 2 x RJ45 | x8 PCIe 2.0 | Low-Profile Bracket Incl.
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port PCI Express 10GBase-T Ethernet Network Card Product Number ST10GSPEXNDP UPC 065030880220 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family 10G PCIe Ethernet NICs - Copper Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) 10Gb PCIe NIC Card Product Title (Short) 2 Port 10G PCIe Network Adapter Card NIC Product Title (Medium) Dual-Port 10Gb PCIe Network Card with 10GBASE-T & NBASE-T Product Title (Standard) Dual Port 10G PCIe Network Adapter Card - Tehuti TN4010 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port Product Title (Long) Dual Port 10G PCIe Network Adapter Card - Tehuti TN4010 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card Product Title (AMZ) Dual Port 10G PCIe Network Adapter Card - Tehuti TN4010 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card (ST10GSPEXNDP) Title Ingram (Part 1) 10Gb PCIe Network Card - Dual Title Ingram (Part 2) Port NIC - 10GBASET & NBASE-T Website Product Headline Dual NIC Card | Windows® & Mac | 2 x RJ45 | x8 PCIe 2.0 | Low-Profile Bracket Incl. Bullet 1 DUAL PORT 10GbE NETWORK INTERFACE CARD: 10Gbps Dual port PCIe Network Adapter Card copper combines high data transfer rates to provide redundancy or independent connections to multiple networks Bullet 2 SPECS: 10 Gbps | 2x RJ45 Ports | Tehuti TN4010 | 10GBASE-T & NBASE-T | Muli-Gigabit Ethernet 1/2.5/5/10Gbps | PCIe 2.0 x8 | 9K Jumbo Frames | VLAN | IEEE 802.3az Energy Efficiency | Full/low profile Bullet 3 WIDE HYPERVISOR & OS COMPATIBILITY: Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x to 4.14 (LTS versions); MacOS (10.12 to 10.14); & VMWare ESXi 5.0, 5.1+ Bullet 4 MULTI-GIGABIT CONNECTIVITY: Versatile connectivity auto negotiates based on network configuration: 10G, 5G, 2.5G, 1G; supports auto-MDIX, Wake-on-LAN (WoL), link aggregation, & VLAN tagging Bullet 5 STARTECH ADVANTAGE: Workstation NIC is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual Technical Advisors to support deployments across all timezones Bullets (Compact) PCIe Network Adapter Card Dual NIC ports Network Interface Card 2x 10 Gbps RJ45 Ports Tehuti TN4010- 10GBASE-T / NBASE-T Multi-Gigabit 1/2.5/5/10 Gbps, PCI Express 2.0 x8, 9K Jumbo Frames VLAN, IEEE 802.3az, Link Aggregation, Full profile - 2 yr warr Bullets (Consolidated) PCIe Network Adapter Card Dual 10GbE NIC copper ports for performance and redundancy -2x 10 Gbps RJ45 Ports | Tehuti TN4010 | 10GBASE-T/NBASE-T | Multi-Gigabit 1/2.5/5/10 Gbps | PCI Express 2.0 x8| 9K Jumbo Frames|VLAN |IEEE 802.3az Energy Efficient Ethernet | 2-year Warr - Windows 7/8/10; Server 2008 R2/2012/2016/2019; Linux kernels 3.x+; MacOS 10.12 to 10.14; VMWare ESXi 5.0/5.1+ - Auto negotiation 10G/5G/2.5G/1G - Network Interface card supports auto-MDIX, Wake-on-LAN (WoL)/Link Aggregation Marketing Copy Marketing Copy (No HTML) Applications - Desktop Computers with an x8 PCIe 2.X (or higher) slot
- Workstation connections to Aruba Networks® access points and Cisco® Campus Switches
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products ST10GSPEXNDP2 Constrained SKU Alternatives (Limited Stock) ST10GPEXNDPI Color Black Humidity 20% ~ 80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 121.000 Product Width (mm) 159.000 Product Height (mm) 20.500 Product Weight (g) 390.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10 Gbps/5G/2.5G/1G/100 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 10 Gbps OS Compatibility - Linux
- Windows 7
- Windows Server 2008 R2
- Windows 8
- macOS High Sierra (10.13)
- Windows 10
- Windows Server 2016
- Windows Server 2019
- macOS Mojave (10.14)
- macOS Sierra (10.12)
- Windows 11
- Windows Server 2022
- Windows Server 2012 R2
Promiscuous Mode Yes PXE No Supported Protocols Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Tehuti TN4010</br> Marvell 88X3110 Industry Standards - IEEE 802.3an (10GBASE-T)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3u (100BASE-T)
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.1q (VLAN tagging)
- PCI Express Rev 2.0
Interface/Bridge RJ45 (10 Gigabit Ethernet) LED Indicators - 2 - Link Speed
- 2 - Link/Activity

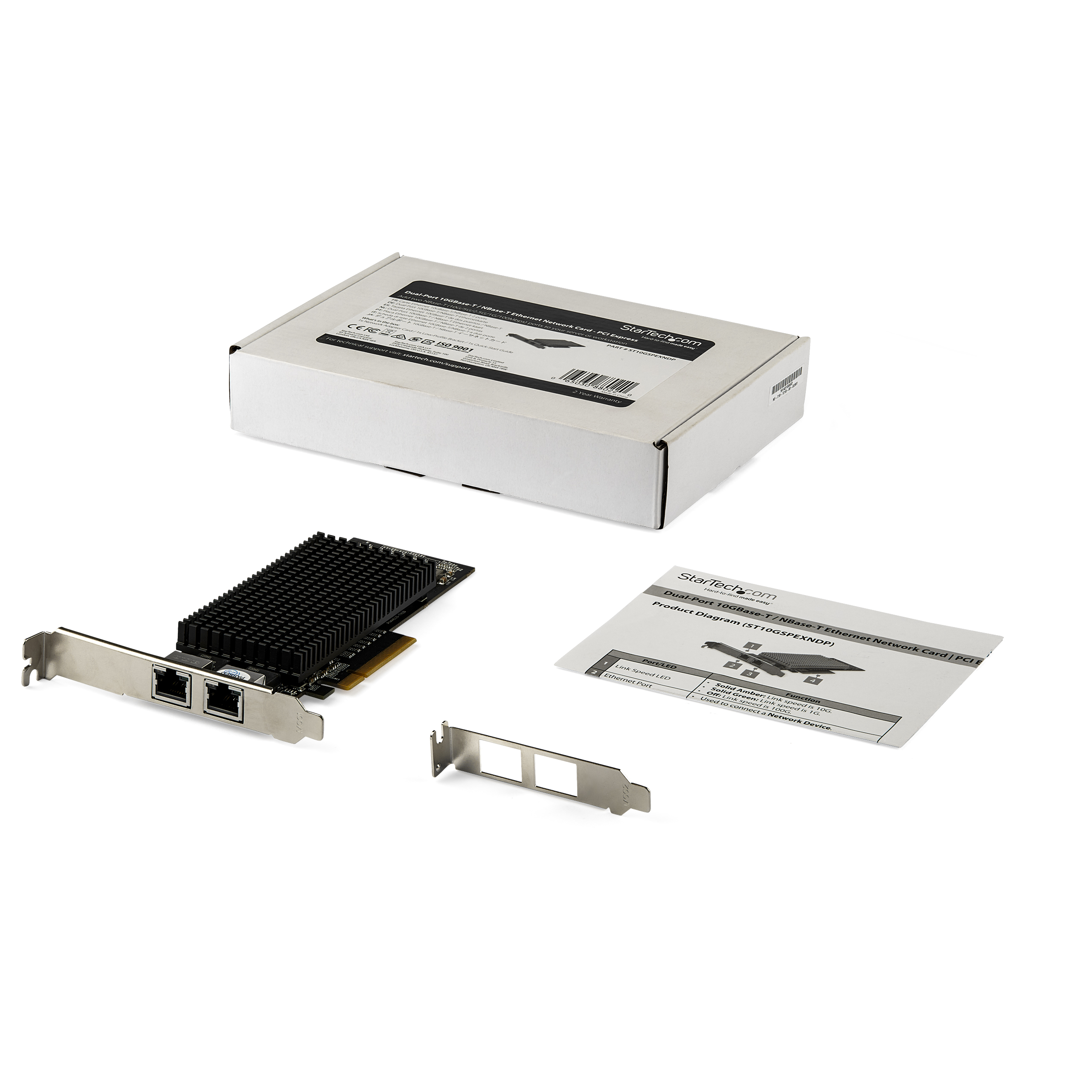

Carton Depth (mm) 312 Carton Height (mm) 232 Carton Quantity 20 Carton Weight Gross (g) 5268 Included in Package - 1 - Network Adapter Card
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 146 Package Height (mm) 40 Package Width (mm) 204 Package Quantity 1 Package Weight (g) 244 Packaging Description Dual-Port 10GBase-T / NBase-T Ethernet Card Packaging Description India Dual-Port 10GBase-T / NBase-T Ethernet Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x8 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-12-21 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-01-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-11-09 Target Production Release 2018-12-21 Tech Lead Stefan Tirolese Technical Writer Evan Hanbidge Technology Lifecycle None
