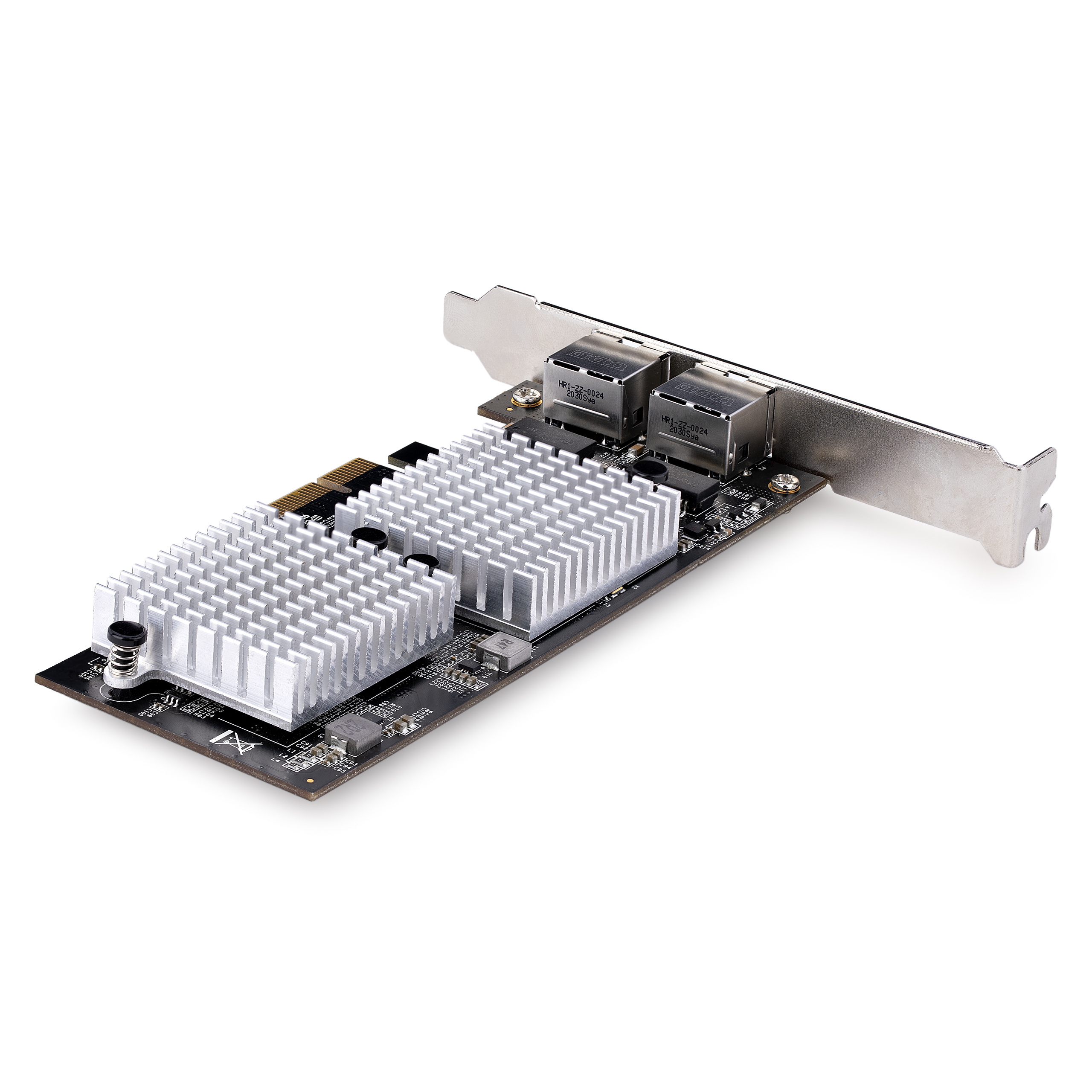

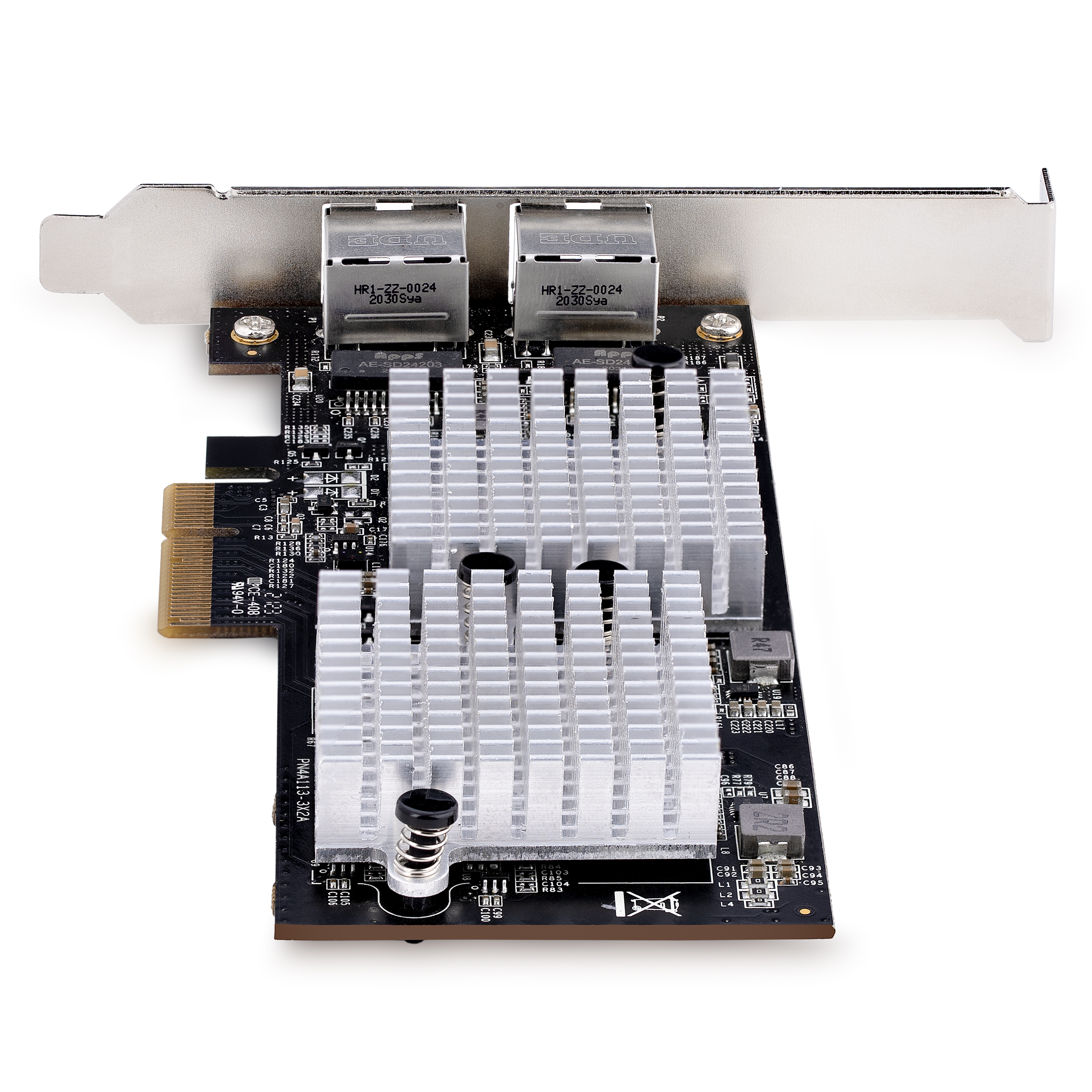

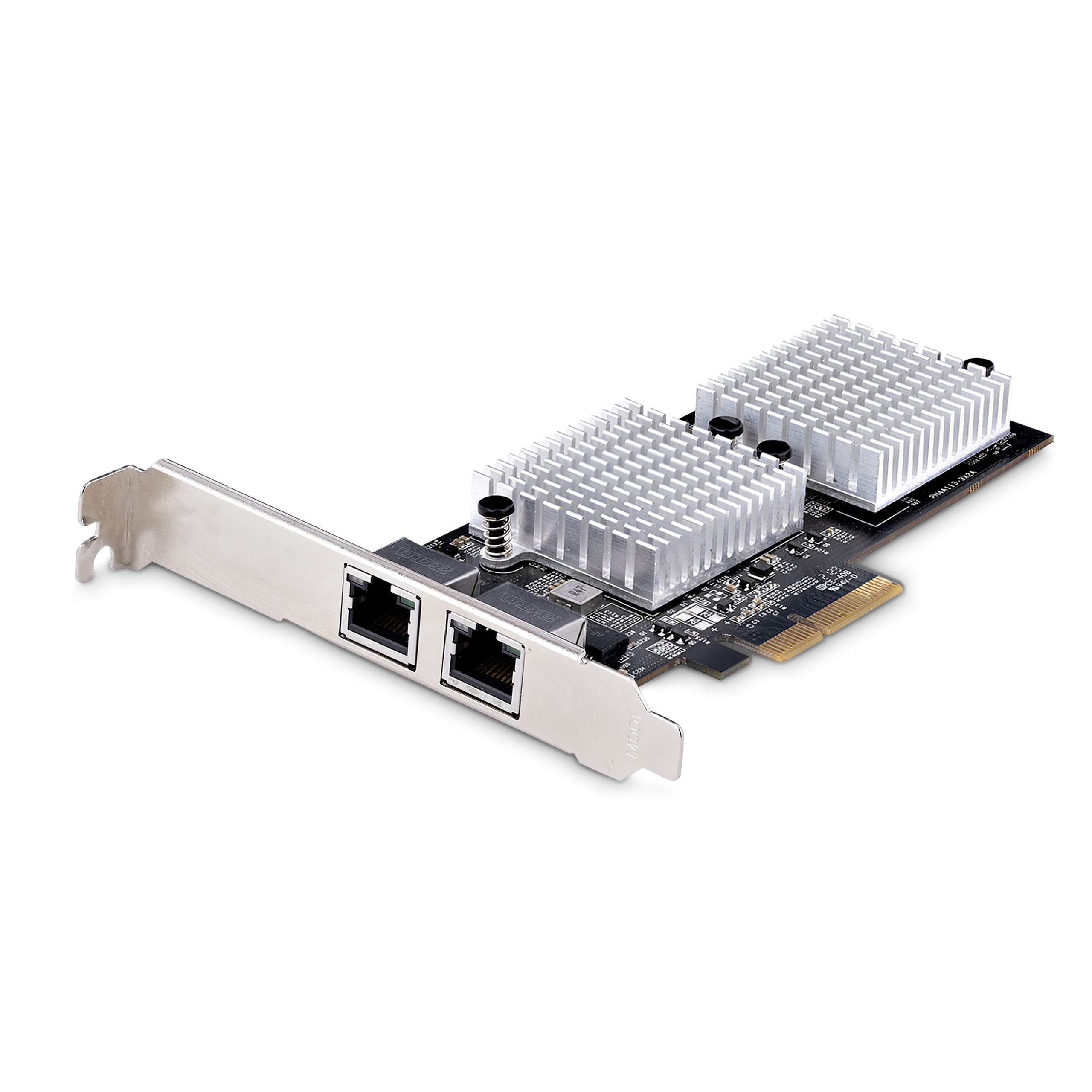

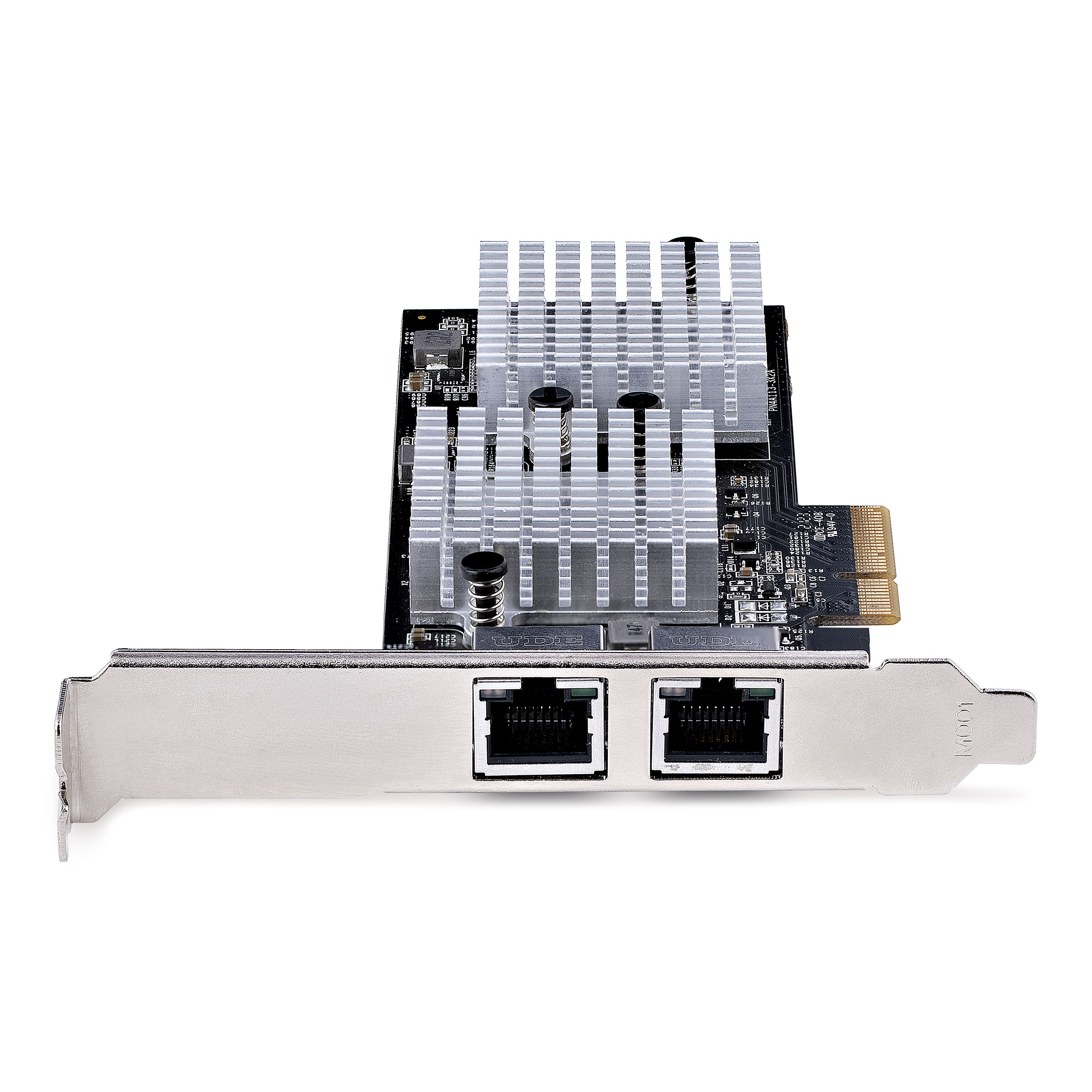

ST10GSPEXNDP2
2 Port 10Gbase T NBase T PCI Express Network Card Aqauanti
PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port 10Gbase T NBase T PCI Express Network Card Aqauanti Product Number ST10GSPEXNDP2 UPC 065030897693 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family No Family Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 10GbE Network Card Product Title (Short) 2-Port 10Gbps PCIe Network Adapter Card Product Title (Medium) 2-Port 10Gbps PCIe Network Adapter Card, PC Ethernet/LAN/Network Interface Card Product Title (Standard) 2-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, PCIe Ethernet Card w/Jumbo Frame, NIC/LAN Interface Card Product Title (Long) 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T Product Title (AMZ) 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T (ST10GSPEXNDP2) Title Ingram (Part 1) 10G PCIe Network Adapter Card - Title Ingram (Part 2) 10GBASE-T/NBASE-T, PCIe LAN Card Website Product Headline PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS Bullet 1 DUAL PORT 10G ETHERNET CARD: High-performance PCIe 10Gbps dual-port network card with dedicated Marvell chips; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); Independent Ethernet controllers for reliable performance Bullet 2 IT MANAGEABILITY: PXE boot enabled to deployment speeds/updates; 16K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management Bullet 3 MULTI-GIGABIT CONNECTIVITY: Network Interface Card supports auto negotiation; Supports 2.5/5Gbps speeds on Cat5e cabling, 10Gbps on Cat6/6a; NBase-T Ethernet Network Card features IP/TCP/UDP checksum offload, secure boot; PVP & AVB supported in macOS only Bullet 4 COMPATIBILITY: Network Card for PC is compatible with Windows, Windows Server, and Linux; Six network speeds and included low-profile bracket widen the compatibility of the PCIe Network Card with full-height and small form factor (SFF) systems Bullet 5 SPECIFICATIONS: 2x RJ45 Ports, Six-Speed NIC 10/5/2.5/1Gbps and 100/10Mbps (Independent controllers), 10GBASE-T and NBASE-T (2.5GBASE-T and 5GBASE-T), PCIe 3.0 x4, Marvell AQC113CS, 16K Jumbo Frames, VLAN Tagging, WoL, PXE boot, EEE, Secure Boot Bullets (Compact) 2-port 10GbE capable PCIe network adapter card leverages existing Cat5e/6/6a cabling - Six Speed NIC 10G/5G/2.5G/1G/100M/10M; Marvell AQC113CS; PCIe 3.0 x4; 16K Jumbo; PXE Boot; AVB; PTP - 10Gb network adapter card is compatible with Windows/Linux Bullets (Consolidated) 2-port 10GbE capable PCIe network adapter for desktops/servers/SFF - Cat5e/6/6a cabling compatible - 10GBASE-T and NBASE-T | Marvell AQC113CS - 2x RJ45 Ports | PCIe 3.0 x4 Connector | Six-Speed NIC 10G/5G/2.5G/1G/100M/10M | 16K Jumbo | VLAN | PXE Boot | AVB and PTP (supported in macOS only) - 10Gb network card for PC supports Windows/Windows Server/Linux - Included low-profile bracket for SFF systems - Network interface card compatible with current/legacy networking devices Marketing Copy Marketing Copy (No HTML) Website Search Keyword - pcie network adapter card
- 10gb ethernet card
- 10gb nic
- lan card
- network card for pc
- network interface card
- PCIe ethernet card
- pcie network card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes PVP and AVB are supported in macOS only Accessory Products - C6ASPAT15BL
- C6ASPAT7BK
- C6ASPAT2BL
- C6ASPAT10BK
- C6ASPAT20BL
- C6ASPAT5GR
- N6PATCH3BK
- N6PATCH5BL
- N6PATCH5BK
- N6PATCH10BK
- N6PATCH15BL
- 45PATCH10BK
- 45PATCH3BK
- 45PATCH6BK
- RJ45PATCH15
Related Products - ST1000SPEXI
- PEX10000SFPI
- PEX1000SFP
- ST1000SPEX2
- ST10GSPEXNB
- ST10GSPEXNDP
- ST10GSPEXNB2
Power Source Bus Powered Color Black Humidity 20% - 80% RH Operating Temperature 21°F to 122°F (5°C to 50°C) Product Length (mm) 145.000 Product Width (mm) 20.000 Product Height (mm) 65.000 Product Weight (g) 116.000 Storage Temperature 14°F to 140°F (-10°C to 60°C) TAA Compliant No Auto MDIX Yes Compatible Networks 10G/5G/2.5G/1G/100Mbps/10Mbps Full Duplex Support Yes Jumbo Frame Support 16K max. Maximum Data Transfer Rate 10 Gbps OS Compatibility - Linux
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Windows Server 2012 R2
- Windows 8
Promiscuous Mode Yes PXE Yes Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Marvell - AQC113CS Industry Standards - IEEE 802.3an (10GBASE-T)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3u (100BASE-T)
- PCI Express Version 3.0
- 802.3bz (2.5GBASE-T)
- 802.3bz (5GBASE-T)
- IEEE 802.3 (10BASE-T)
- IEEE P802.3az Energy Efficient Ethernet (EEE)
- Wake-on-LAN (WOL)
- IEEE 1588 (PTP)
Interface/Bridge RJ45 (10 Gigabit Ethernet) LED Indicators - 2 - Right LED Indicator is Link Status</br> Solid Green = Active Link </br> Flashing Green= Activity
- 2 - Left LED Indicator is Link Speed</br> Solid Green = 10 Gbps </br> Solid Amber = 5/2.5/1 Gbps and 10/100 Mbps

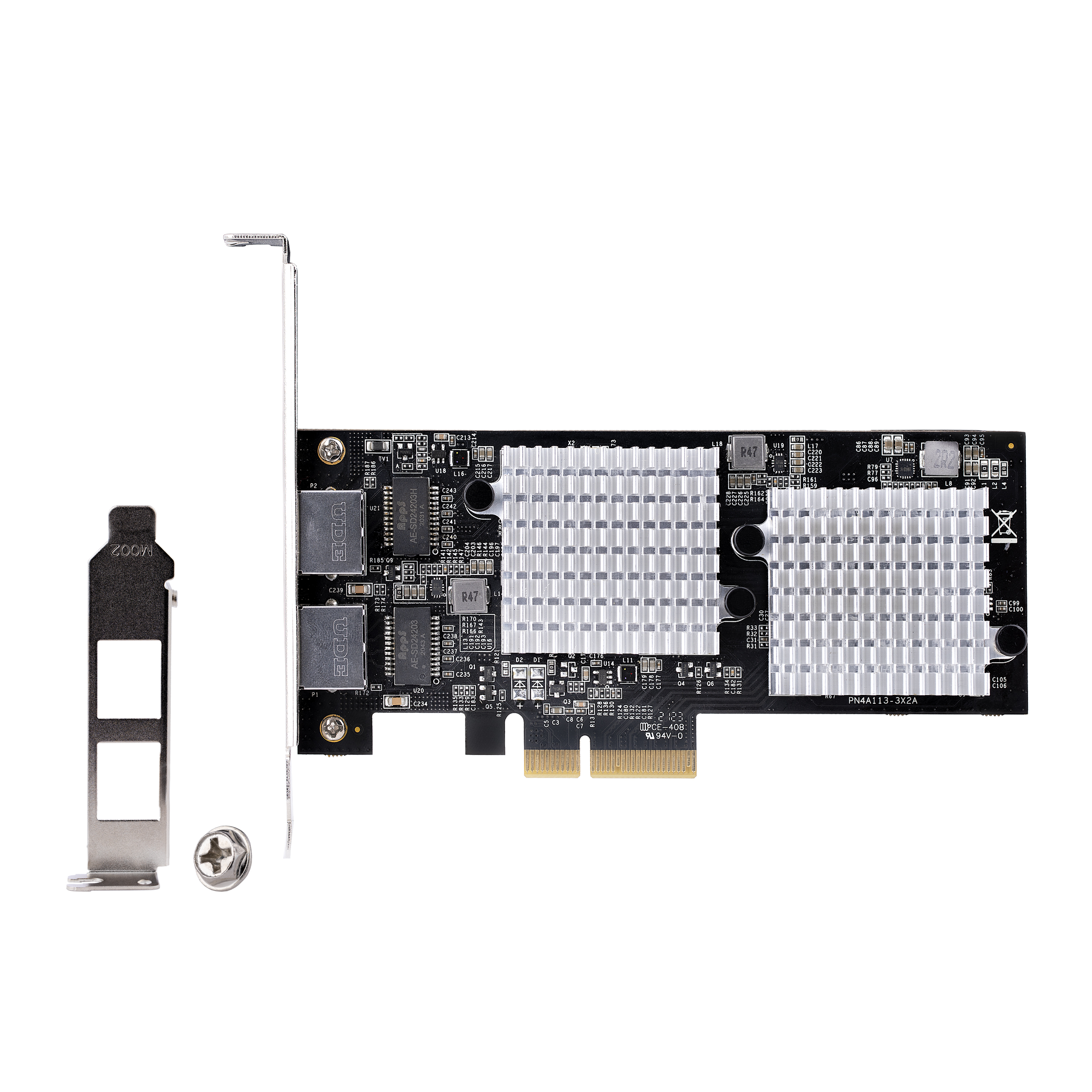

Carton Depth (mm) 440 Carton Height (mm) 315 Carton Quantity 40 Carton Weight Gross (g) 9050 Included in Package - 1 - PCIe Network Card
- 1 - Low-profile Bracket
- 1 - Quick-start Guide
Included In Package for Label - 1 - PCIe Network Card
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 148 Package Height (mm) 36 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 206 Packaging Description 2-Port 10GBase-T / NBase-T Ethernet Network Adapter Card - PCIe Ver 3.0 x4 Packaging Description India 2-Port 10GBase-T / NBase-T Ethernet Network Converter Card - PCIe Ver 3.0 x4 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Host Connector 1 PCI Express x4 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2022-07-14 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-08-22 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-06-01 Target Production Release 2022-07-30 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
