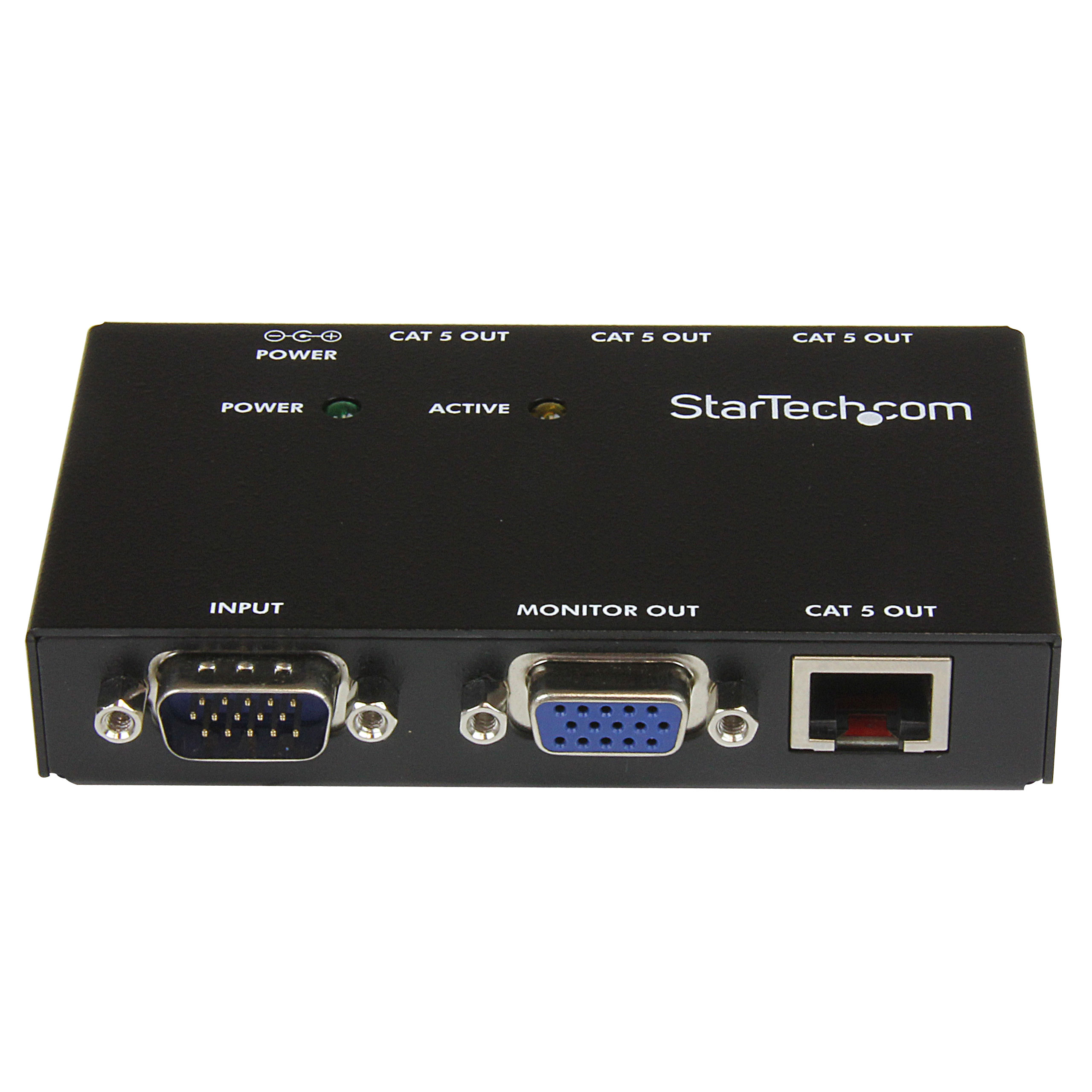

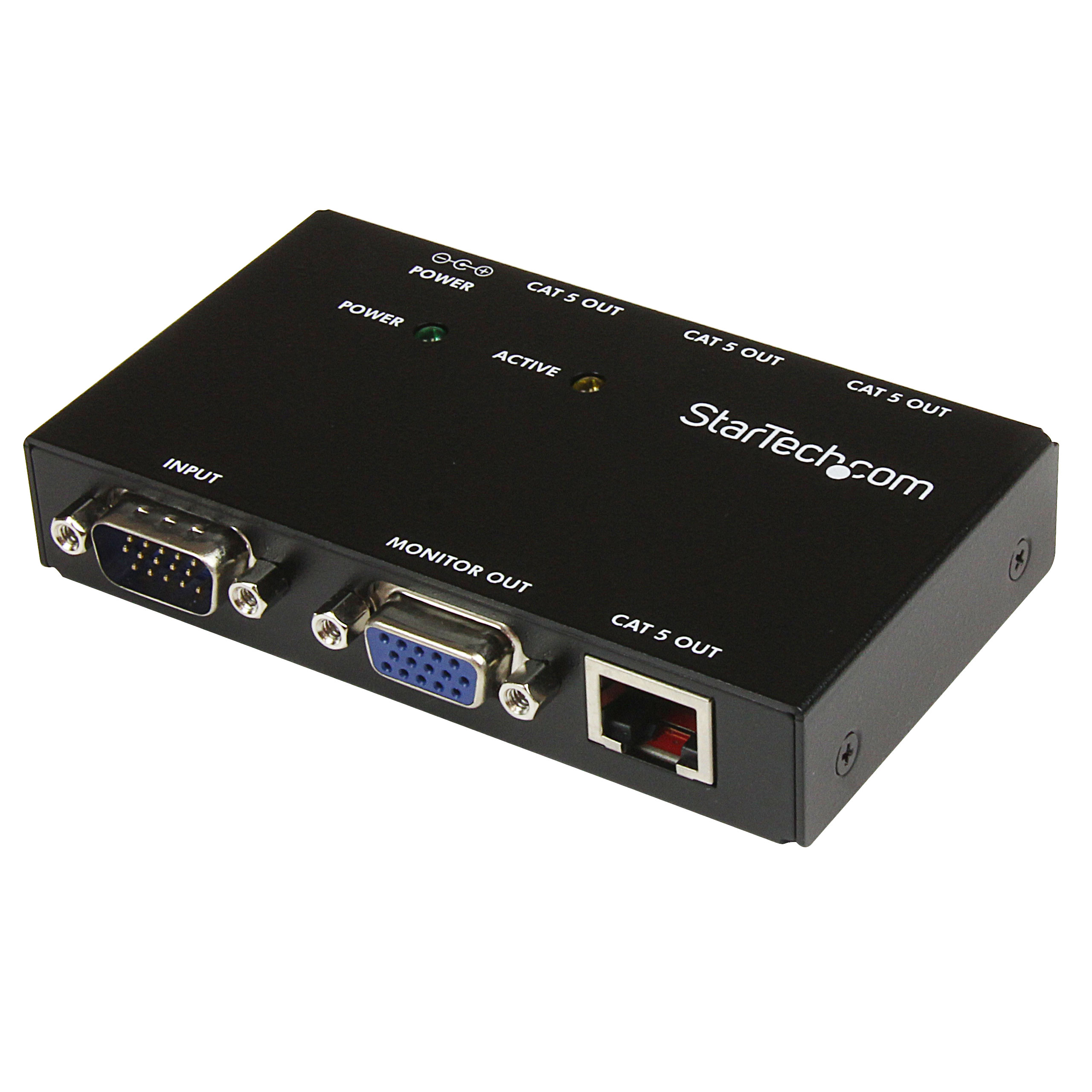

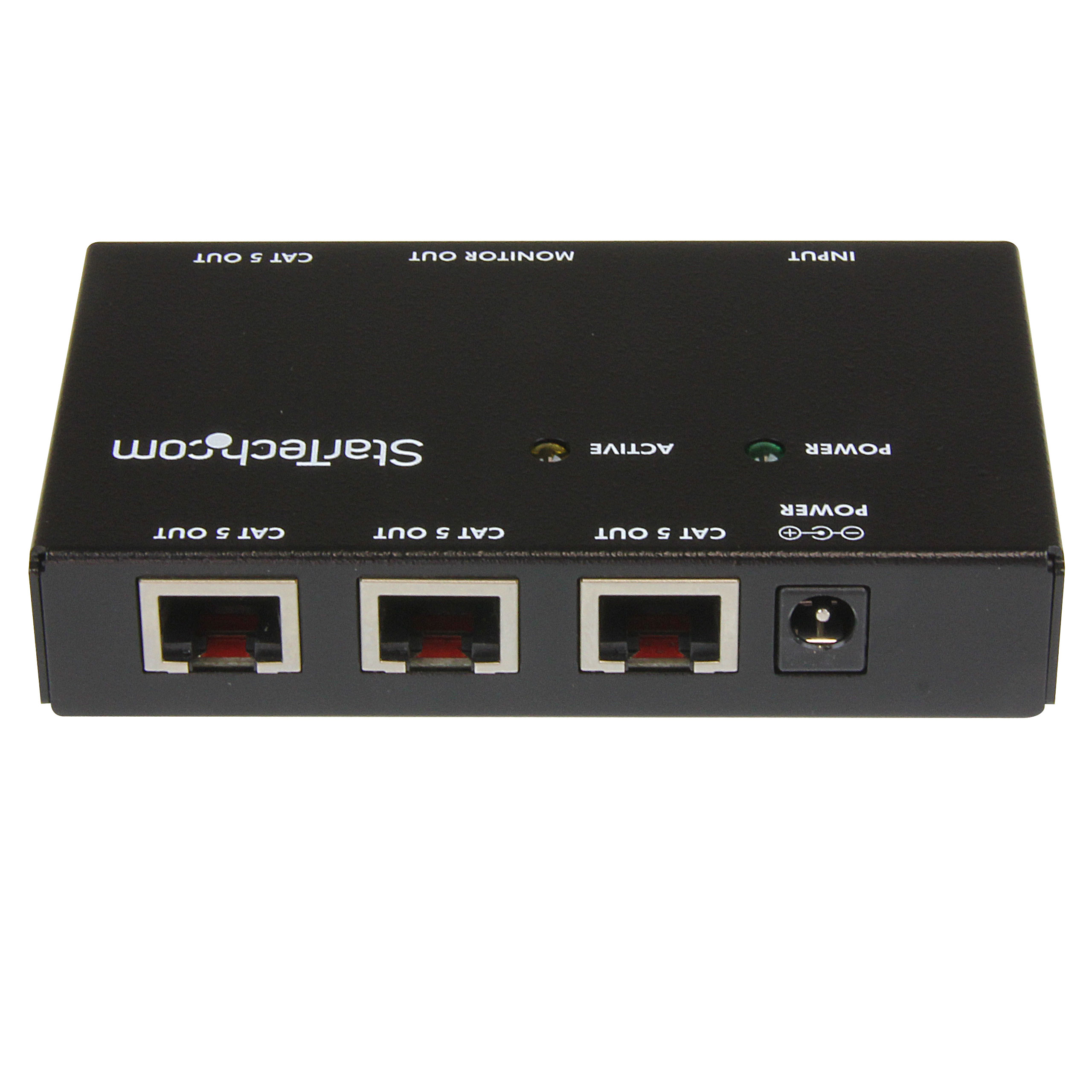

Main Image
ST1214T
4 Port UTP VGA Splitter For ST121 Series Extender
Extend and distribute a VGA signal to up to 4 displays over Cat5 cable
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port UTP VGA Splitter For ST121 Series Extender Product Number ST1214T UPC 065030824446 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Family VGA Extender Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port VGA Video Extender over Cat 5 Product Title (Medium) x Product Title (Standard) 4 Port VGA Over CAT5 Video Extender, 450ft (150m), TAA Product Title (Long) 4 Port VGA Over CAT5 Video Extender - 450ft (150m) - TAA Product Title (AMZ) VGA Over CAT5 Video Extender - VGA Extender - 450ft (150m) - 4-Port , TAA (ST1214T) Title Ingram (Part 1) 4 Port VGA Video Extender over C Title Ingram (Part 2) at 5 Website Product Headline Extend and distribute a VGA signal to up to 4 displays over Cat5 cable Bullets (Consolidated) Extend and distribute a VGA signal to up to 4 displays over Cat5 cable - vga over cat5 extender - Compatible with VGA computers and VGA monitors, projectors or televisions - Supports resolutions up to 1600 x 1200 - Extender - VGA extender over cat5/VGA over CAT5 extender/VGA extender over CAT5/VGA to CAT 5 extender - Backed by a StarTech.com 2-year warranty and free lifetime technical support Marketing Copy Website Search Keyword - Digital Signage
- Video Extension
- B132-004-2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements Accessory Products - ST121R
- ST121EXT
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- ST1216PRO
- ST122L
- ST124L
- ST128L
- ST128PRO
- ST222MX
- ST228MX
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST121UTP
- ST122UTPA
- ST1212T
- ST1218T

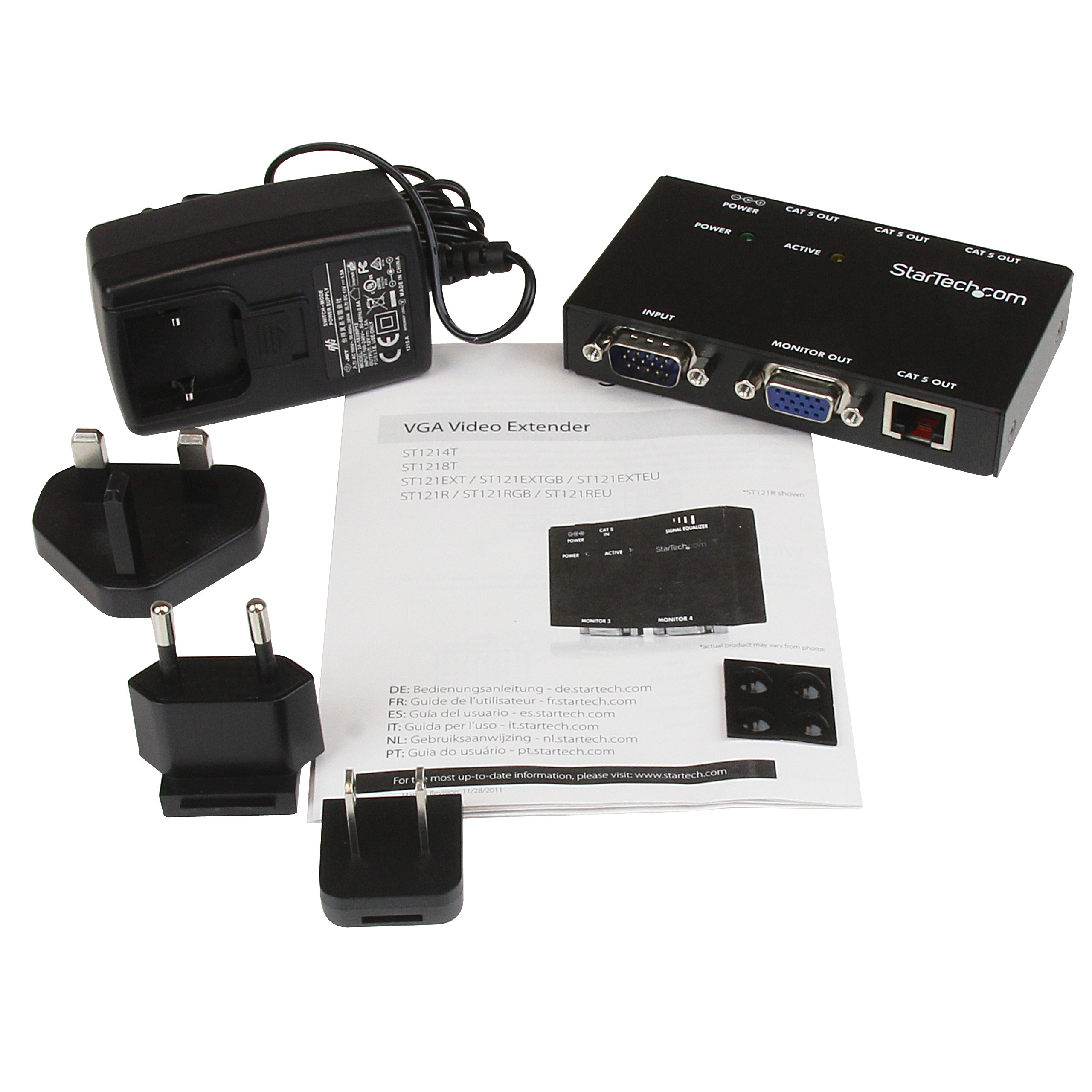

Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 12V DC Power Consumption (In Watts) 7.2 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Aluminum Primary Material Aluminum Product Length (mm) 103.000 Product Width (mm) 63.890 Product Height (mm) 20.580 Product Weight (g) 201.000 TAA Compliant Yes Max Distance 150m [492ft] Maximum Analog Resolutions Audio No Cabling Cat 5 UTP or better Cascadable Yes Carton Depth (mm) 328 Carton Height (mm) 252 Carton Quantity 12 Carton Weight Gross (g) 7046 Included in Package - 1 - VGA Extender - Transmitter
- 4 - Rubber Feet
- 1 - Universal Power Adapter (NA/UK/EU)
Package Depth (mm) 102 Package Height (mm) 100 Package Width (mm) 221 Package Quantity 1 Package Weight (g) 518 Packaging Description 4 Port VGA Video Extender over Cat 5 Packaging Description India 4 Port VGA Video Extender over Cat 5 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 VGA Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
