ST1218T

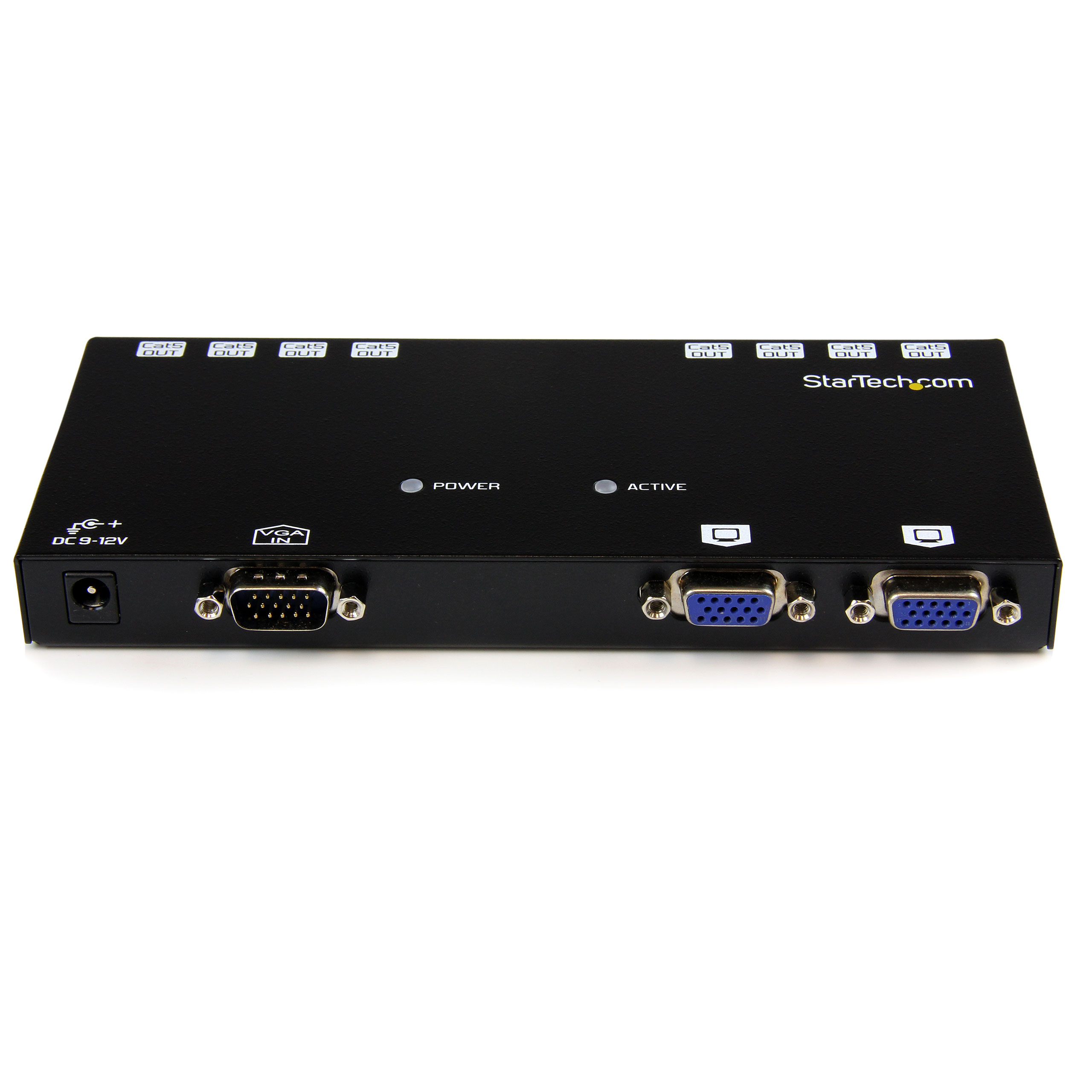

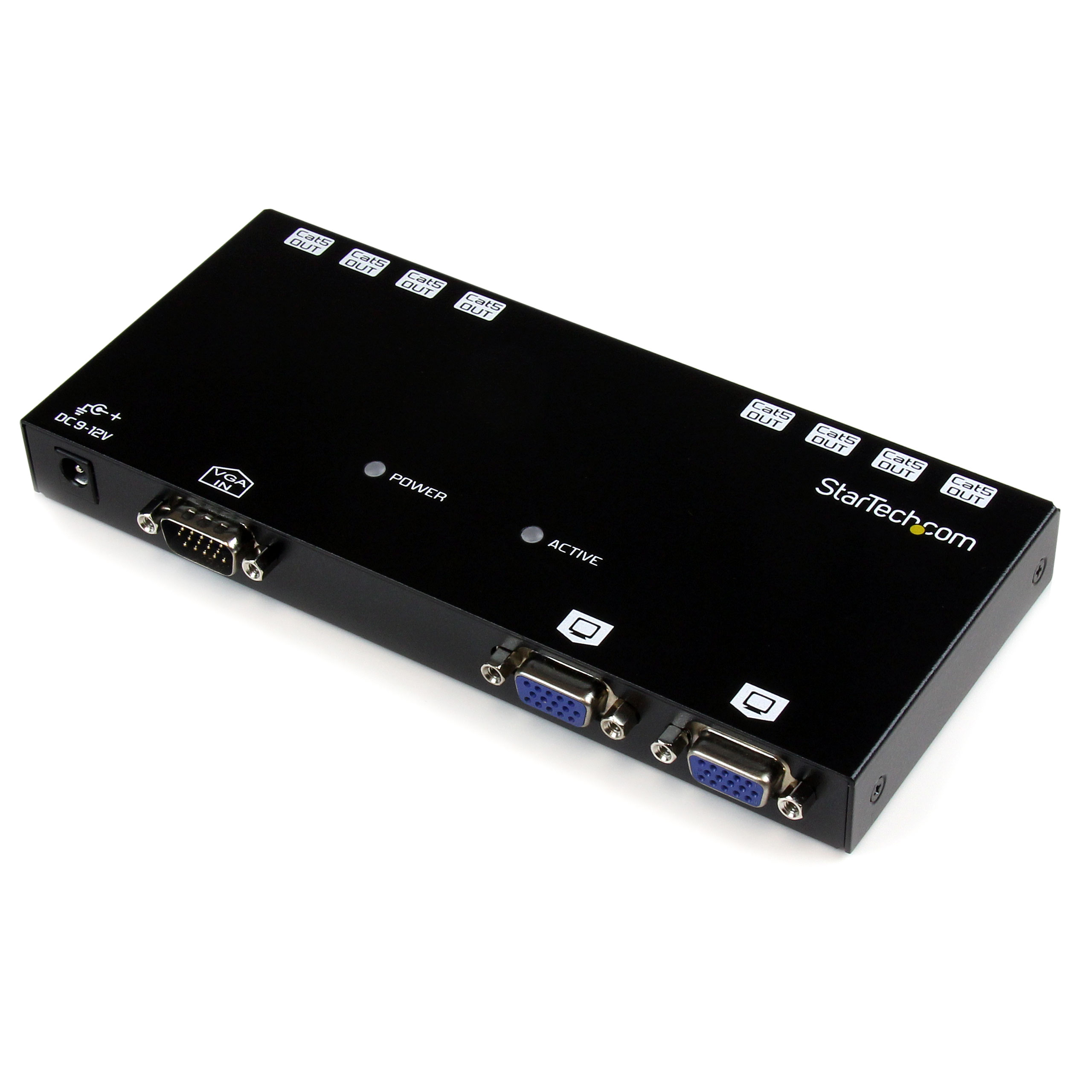

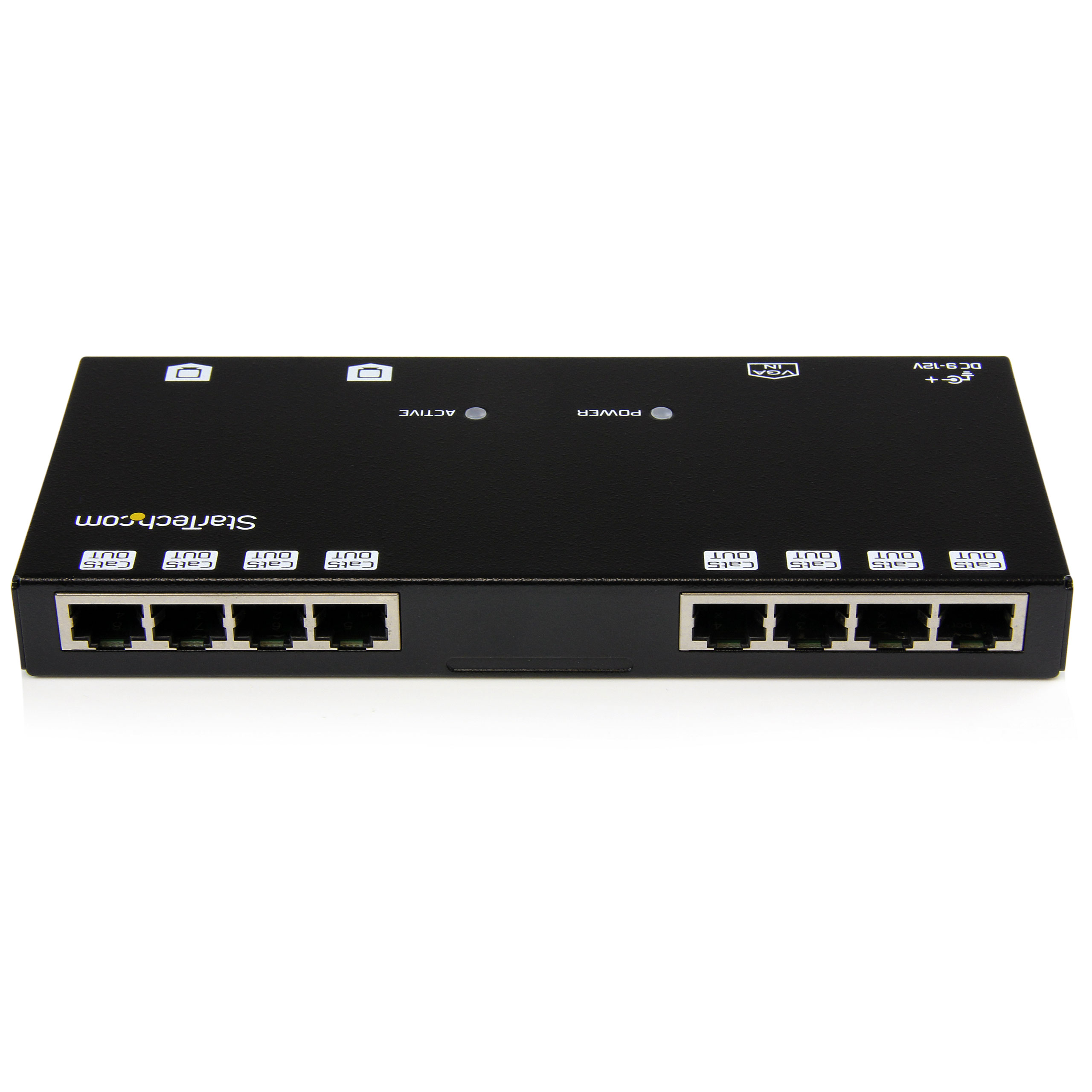

8 Port UTP VGA Splitter for ST121 Series Extender
Extend and distribute a VGA signal to up to 8 displays over Cat5 cable
Main Image
Product Images
Product Images
BOM Image
Product Name 8 Port UTP VGA Splitter for ST121 Series Extender Product Number ST1218T UPC 065030830584 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Family VGA Extender Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 8 Port VGA Video Extender over Cat 5 Product Title (Medium) x Product Title (Standard) 8-Port VGA Video Extender over CAT5, TAA Product Title (Long) 8 Port VGA Video Extender over Cat 5 - TAA Product Title (AMZ) 492 ft. (150 m) VGA Over Cat5 Extender - VGA Extender - 8 Port Repeater - Cat5 - Video Over Ethernet , TAA (ST1218T) Title Ingram (Part 1) 8 Port VGA Video Extender over C Title Ingram (Part 2) at 5 Website Product Headline Extend and distribute a VGA signal to up to 8 displays over Cat5 cable Bullet 1 Consists of 1 Base unit for distributing 8 ports through Cat5 and two VGA ports for local displays Bullet 2 Extends VGA video by up to 492ft (150m) Bullet 3 Supports cascading multiple transmitter units Bullet 4 Provides crystal clear picture quality Bullet 5 Pure hardware design, with no software or drivers to install Bullets (Consolidated) Video extender - up to 492 ft Marketing Copy Applications - Use a combination of repeaters or receivers to simplify adding more displays to your digital signage installation
- Position displays where they will be most effective for viewing, but install the system equipment elsewhere in a clean and secure environment
- Ideal for digital signage applications in financial, educational and corporate sectors to deliver up to date, eye-catching content
- Expand the range of your advertisements in auditoriums, trade-shows and retail environments
Website Search Keyword - Video Extender
- Extender
- 8 Port
- Cat 5
- VGA
- B132-008A-2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements Accessory Products - ST121R
- ST121EXT
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- ST1216PRO
- ST122L
- ST124L
- ST128L
- ST128PRO
- ST222MX
- ST228MX
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST121UTP
- ST122UTPA
- ST1214T
- ST1212T

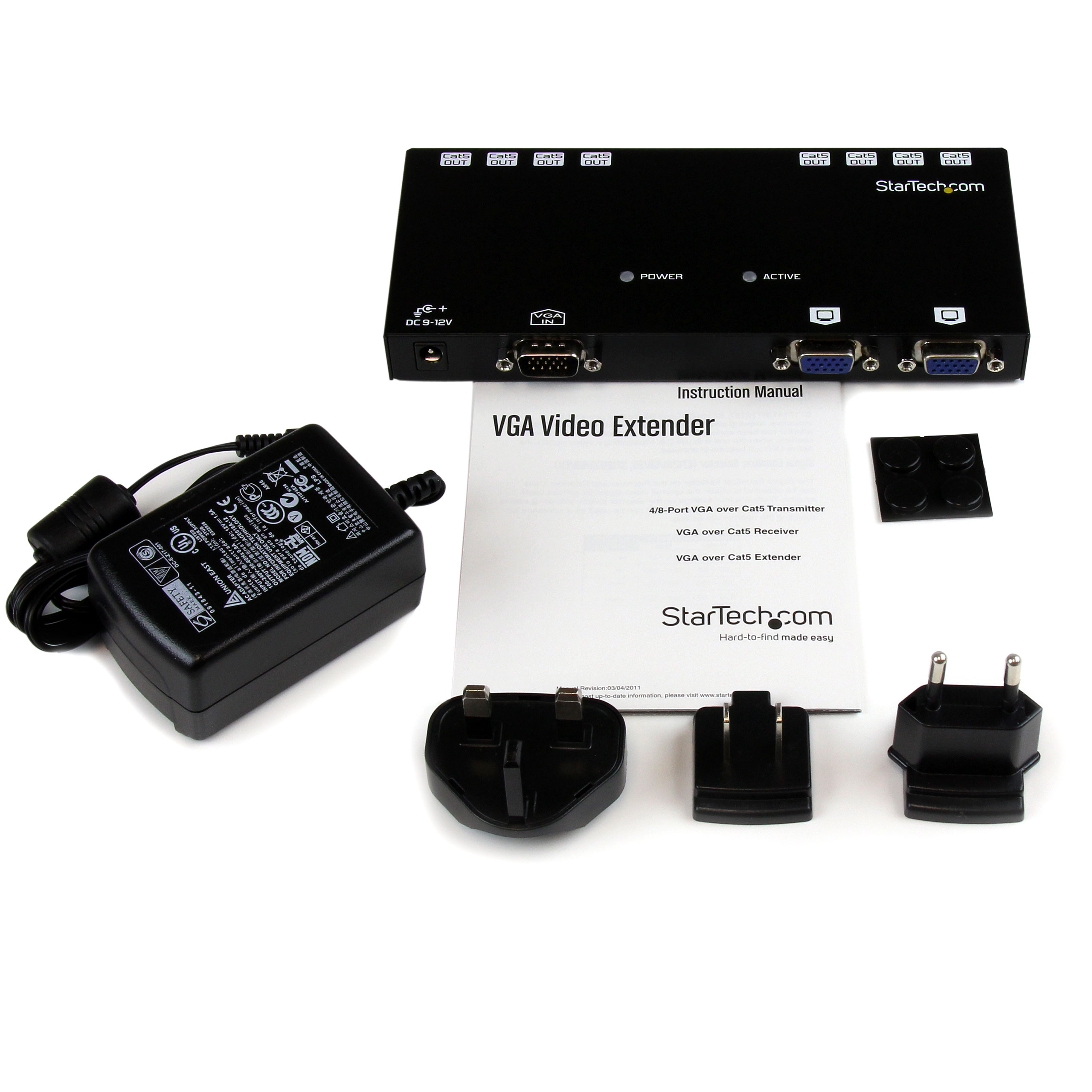

Input Current 0.5A Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Aluminum Primary Material Aluminum Product Length (mm) 180 Product Width (mm) 85 Product Height (mm) 20 Product Weight (g) 444.000 TAA Compliant Yes Max Distance 150m [492ft] Supported Resolutions Audio No Cabling Cat 5 UTP or better Cascadable Yes Carton Depth (mm) 406 Carton Height (mm) 318 Carton Quantity 12 Carton Weight Gross (g) 11476 Included in Package - 1 - Power Adapter
- 1 - Instruction Manual
- 1 - 8 Port VGA Transmitter
Package Depth (mm) 241 Package Height (mm) 94 Package Width (mm) 186 Package Quantity 1 Package Weight (g) 792 Packaging Description 8 Port VGA Video Extender over Cat 5 Packaging Description India 8 Port VGA Video Extender over Cat 5 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 8 Host Connector 3 VGA Host Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
