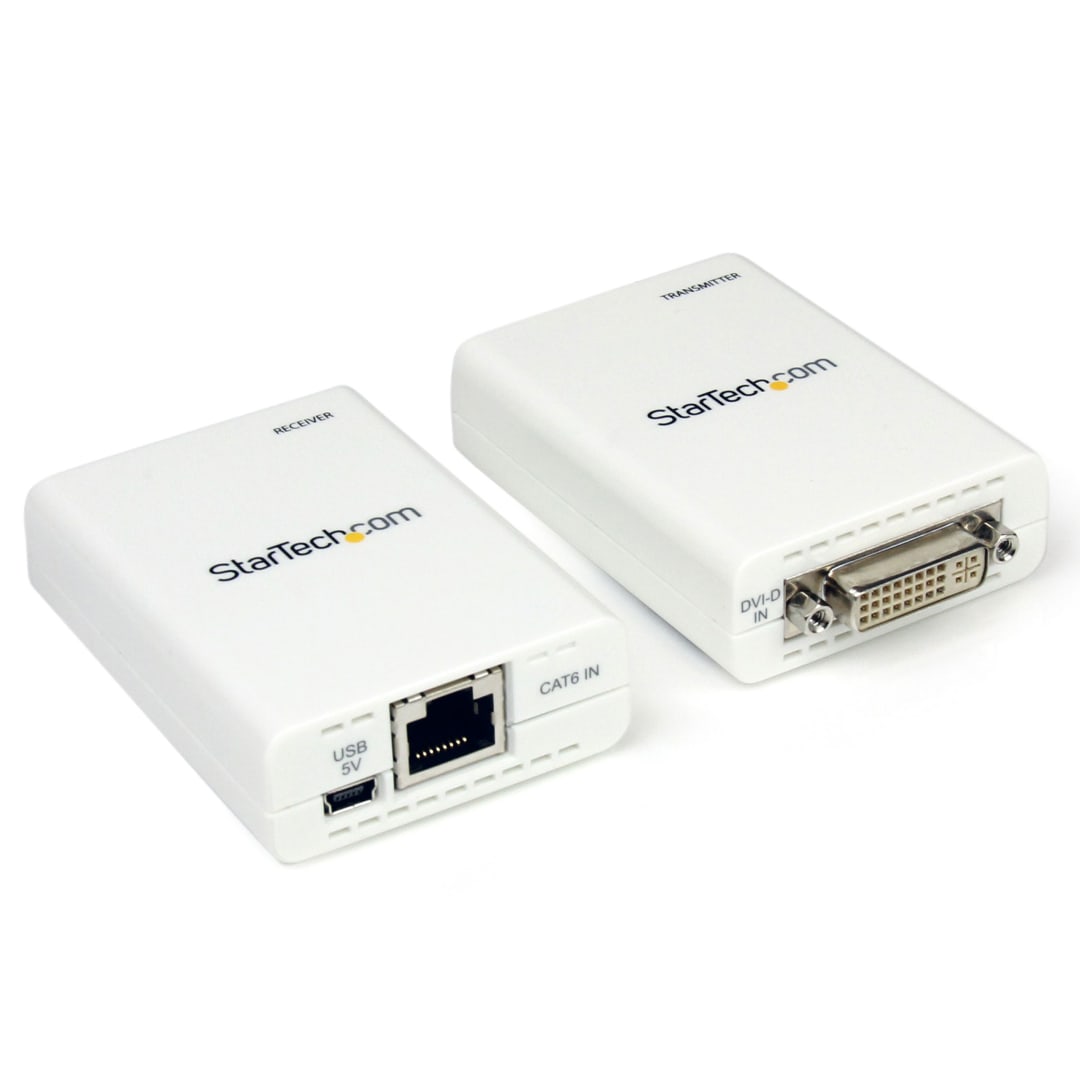

ST121DVI25
DVI Extender over One Cat6
Extend a High-Definition DVI Video Signal up to 25m (80ft) over Cat6 Cabling
Main Image
Product Images
Product Images
BOM Image
Product Name DVI Extender over One Cat6 Product Number ST121DVI25 UPC 065030844376 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) DVI over Cat6 Active Extender up to 80ft Product Title (Standard) DVI over Cat6 Active Extender – up to 80ft (25m) Product Title (Long) DVI over Cat6 Active Extender – up to 80ft (25m) Product Title (AMZ) DVI over Cat6 Active Extender – up to 80ft (25m) (ST121DVI25) Title Ingram (Part 1) DVI over Cat6 Active Extender – Title Ingram (Part 2) up to 80ft (25m) Website Product Headline Extend a High-Definition DVI Video Signal up to 25m (80ft) over Cat6 Cabling Bullet 1 Extend DVI-D video up to 80ft (25m) Bullet 2 Supports Cat 6 Ethernet cabling Bullet 3 Supports resolutions up to 1920x1080 Bullet 4 Compact, lightweight enclosure Bullet 5 No software/drivers required Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword - DVI Extender
- DVI-D Extender
- DVI-D video extender
- DVI over Cat 6
- DVI over Cat6
- DVI-D over Cat 6
- DVI-D over cat6
- dvi video over cat 6
- dvi video over cat6
- active extender
Accessory Products - DVIDDMM10
- DVIDDMM20
- DVIDDMM6
- N6PATCH75BK
- C6PATCH50BL
- C6PATCH25GR
- N6PATCH75OR
- C6PATCH50GN
- C6PATCH50YL
Related Products - ST121UTPDVI
- ST121UTPHDMI
- ST122UTPAL
- ST121UTPMINI
- ST1214T
- ST121UTPEP

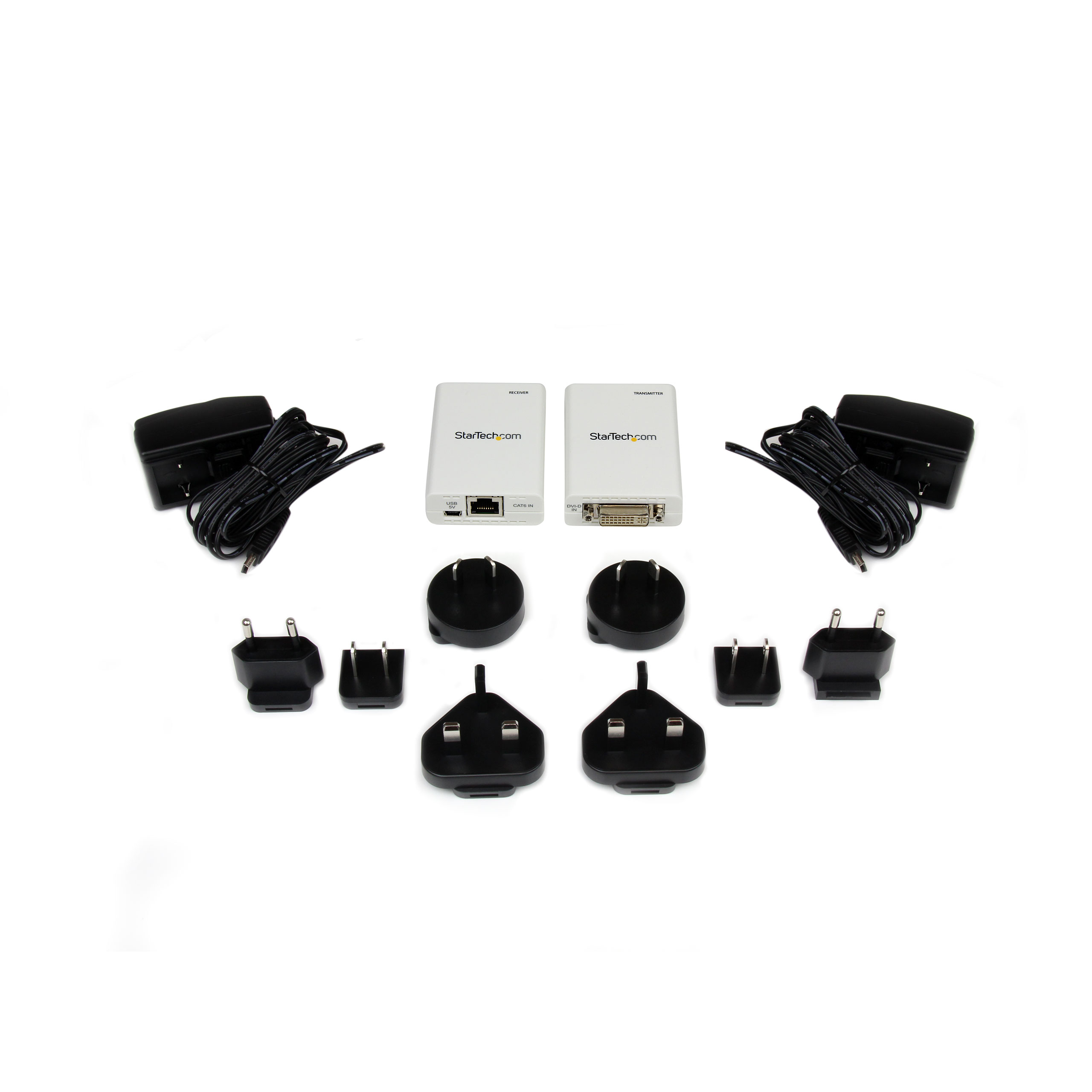

Input Current 0.3A Input Voltage 110V-240V AC Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 3W Max Power Source 2 AC Adapters Included Color White Humidity 20~90% RH (non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 80 Product Width (mm) 55 Product Height (mm) 23 Product Weight (g) 110 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant No Max Distance 25m [82ft] Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 1080p / 1920x1080 Wide Screen Supported Yes Cabling Cat 6 UTP LED Indicators 1 - Power Indicator Carton Depth (mm) 645 Carton Height (mm) 327 Carton Quantity 20 Carton Weight Gross (g) 10000 Included in Package - 1 - DVI over Cat 6 Transmitter Unit
- 1 - DVI over Cat 6 Receiver Unit
- 2 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 158 Package Height (mm) 62 Package Width (mm) 260 Package Weight (g) 450 Packaging Description DVI Video Extender over Cat 6 - 25m Packaging Description India DVI Video Extender over Cat 6 - 25m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
