ST121HD20FXA
HDMI Over Fiber Extender 4k60Hz 18Gbps 4 4 4
HDMI® Transmitter and Receiver Kit | HDMI® 2.0b | 7.1 Surround Sound | Single and Multimode Fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI Over Fiber Extender 4k60Hz 18Gbps 4 4 4 Product Number ST121HD20FXA UPC 065030885034 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX035X Product Title (Ultra-Short) HDMI to Fiber 4K60Hz Product Title (Short) HDMI Over Fiber Extender 4K 60Hz 3300ft Product Title (Medium) HDMI Over Fiber Extender - HDMI® 2.0b - YUV4:4:4 - 7.1 Surround Sound - 4K 60Hz Product Title (Standard) HDMI Over Fiber Extender Kit (LC), 4K 60Hz HDMI 2.0, 3300ft (1km) Single Mode/1000ft (300m) Multimode over Fiber Optic Cable Product Title (Long) HDMI Over Fiber Extender (LC) - 4K 60Hz HDMI 2.0 - 3300ft (1km) over Single Mode - 1000ft (300m) over Multimode Fiber Optic Cable - Transmitter/Receiver AV Converter Kit Product Title (AMZ) HDMI Over Fiber Extender (LC) - 4K 60Hz HDMI 2.0 - 3300ft (1km) over Single Mode - 1000ft (300m) over Multimode Fiber Optic Cable - Transmitter/Receiver AV Converter Kit (ST121HD20FXA) Title Ingram (Part 1) HDMI Over Fiber Extender - 4K Title Ingram (Part 2) - HDMI® 2.0b - 7.1 Surround Sound Website Product Headline HDMI® Transmitter and Receiver Kit | HDMI® 2.0b | 7.1 Surround Sound | Single and Multimode Fiber Bullet 1 HDMI OVER FIBER EXTENDER KIT: Extend an Ultra HD (UHD) 4K 60Hz HDMI 2.0 signal + 7.1 CH audio up to 3280ft (1km) over single mode or up to 985ft (300m) over multimode fiber cabling w/ an LC connector; HDR10 / HDCP 2.2; 4:4:4 chroma subsampling Bullet 2 RELIABLE VIDEO TRANSMISSION: Fiber connection allows for uncompressed and uninterrupted video transmission & Electromagnetic interference (EMI) immunity and optical isolation for reliable signal integrity; 3x Status LEDs for power/optical link/HDMI link Bullet 3 SERIAL AND IR EXTENSION: Extend serial or IR signals over the fiber cable; IR control extension kit includes 2x IR Receivers & 2x IR Blasters (IR remote not included); RS-232 terminal block connectors for device or display control (up to 115.2Kbps) Bullet 4 EASY INSTALLATION: Point to Point connection between AV transmitter and receiver; No IP configuration/drivers/network equipment required; Durable steel housing w/ built-in mounting hardware for a tidy installation; 7ft fiber cable for testing Bullet 5 STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This long range HDMI over fiber converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) HDMI over Fiber Extender transmitter/receiver - 4K60Hz HDMI 2.0 + 7.1ch audio - 3280ft over single mode/985ft over multimode fiber optic cable - Uncompressed video/signal immune to EMI - IR Extension Kit/Serial extension - No network equipment needed Bullets (Consolidated) HDMI over fiber extender/converter | Extend an Ultra HD 4K 60Hz HDMI 2.0 signal + 7.1 CH audio up to 3280ft/1km over single mode or up to 985ft/300m over multimode fiber optic cable | LC connectors - Fiber connection delivers an uncompressed video signal and immunity to Electromagnetic Interference (EMI) - IR Extension Kit (remote not incl.) and Serial extension w/ RS232 terminal block - Incl. AV transmitter and receiver | No IP configuration/network equipment required | Mounting Hardware Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 4k hdmi wireless transmitter and receiver
- hdmi optical extender
- hdmi over multimode fiber
- uhd hdmi extender
- hdmi to fiber optic converter
- long range hdmi extender
- hdmi transmitter and receiver kit
- hdmi over fiber optic cable
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - SVA5M3NEUA
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- CDP2HD4K60H
- DP2HD4K60H
- ST122HD202
- ST124HD20
- ST128HD20
Related Products - ST121UTP232
- DS128
- DSRXL
- ST121HDFXA

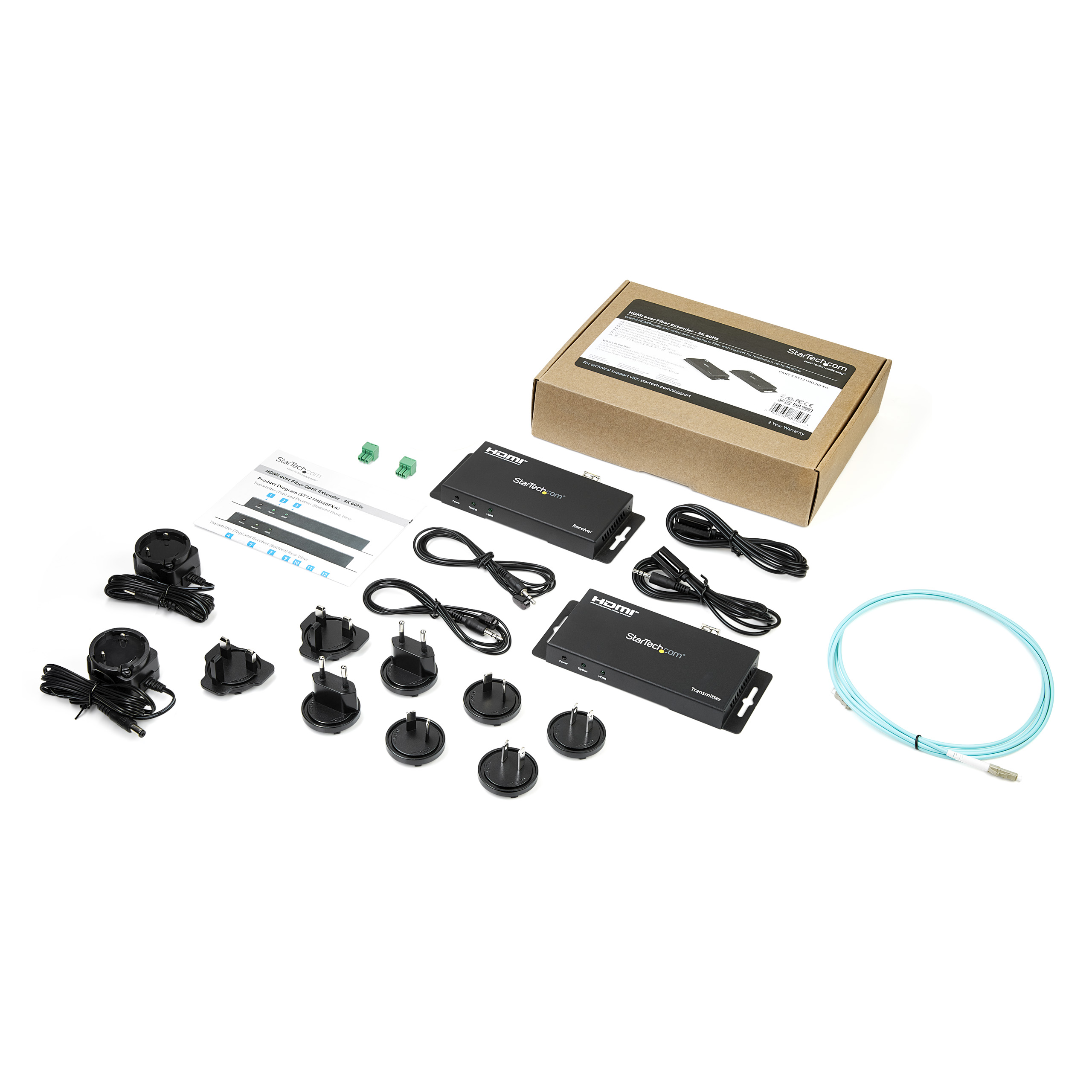

Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 5V DC Power Consumption (In Watts) 3 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0-80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 161.000 Product Width (mm) 68.000 Product Height (mm) 18.000 Product Weight (g) 282.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant No General Specifications HDR Support HDR10 Max Distance 1 km (0.6 mi) Maximum Data Transfer Rate 18 Gbps Maximum Digital Resolutions 4096 x 2160 (4K) @ 60 Hz Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Fiber Optic Cascadable No Rack-Mountable No Carton Depth (mm) 328 Carton Height (mm) 410 Carton Quantity 20 Carton Weight Gross (g) 21688 Included in Package - 1 - Local HDMI® Extender Unit
- 1 - Remote HDMI® Receiver Unit
- 2 - IR Receiver
- 2 - IR Blaster
- 1 - 7ft. [2.1m] Fiber Optic Patch Cable
- 2 - Foot Pad Set
- 2 - Universal Power Adapter NA / UK / EU / AU
- 1 - User Manual
Package Depth (mm) 194 Package Height (mm) 64 Package Width (mm) 264 Package Quantity 1 Package Weight (g) 1022 Packaging Description HDMI over Fiber Extender - 4K 60Hz Packaging Description India HDMI over Fiber Extender - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 LC Simplex Fiber Connector 2 (Quantity) 1 Connector 3 Infrared (IrDA) Connector 3 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 LC Simplex Fiber Host Connector 2 (Quantity) 1 Host Connector 3 Infrared (IrDA) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-10-17 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-11-28 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Anas Abdul Hameed Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-09-20 Target Production Release 2019-10-31 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
