ST121HD20FXA2
HDMI Over Fiber Extender 4k60Hz 18Gbps 4 4 4
Extend an HDMI® audio and video signal over optical fiber at resolutions of up to 4K 60Hz with 7.1 channel audio
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI Over Fiber Extender 4k60Hz 18Gbps 4 4 4 Product Number ST121HD20FXA2 UPC 065030897303 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family No family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX035X Product Title (Ultra-Short) 4K HDMI over Fiber Product Title (Short) 4K 60Hz HDMI over Fiber Extender Kit Product Title (Medium) 4K 60Hz HDMI over Fiber Extender Kit (LC), 3300ft Single Mode/1000ft Multimode Product Title (Standard) 4K HDMI over Fiber Extender Kit, 4K 60Hz, 3300ft (1km) Single Mode/1000ft (300m) Multimode LC Fiber Optic, HDR, IR Extender Product Title (Long) 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR, HDCP, 3.5mm Audio/RS232/IR Extender, Transmitter and Receiver Kit Product Title (AMZ) 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft (Single Mode) or 1000ft (Multimode) LC Fiber Optic, HDR, HDCP, Audio/RS232/IR Extender, Transmitter and Receiver Kit (ST121HD20FXA2) Title Ingram (Part 1) HDMI over Fiber Extender Kit - Title Ingram (Part 2) 4K 60Hz, Transmitter/Receiver Website Product Headline Extend an HDMI® audio and video signal over optical fiber at resolutions of up to 4K 60Hz with 7.1 channel audio Bullet 1 HDMI OVER FIBER EXTENDER KIT: Extend an Ultra HD (UHD) 4K 60Hz HDMI signal with 7.1ch audio up to 3300ft (1km) over Single Mode or up to 1000ft (300m) over Multimode fiber cabling; Single Strand LC/UPC connector; HDR10; HDCP 2.2; 4:4:4 Chroma Subsampling Bullet 2 RELIABLE VIDEO TRANSMISSION: HDMI extender works over Single Mode or Multimode fiber, enabling the use of existing fiber cabling; Single strand optical fiber provides full bandwidth video while being immune to Electro-Magnetic Interference (EMI) Bullet 3 AUDIO CAPABILITIES: HDMI 2.1 Extender offers an audio extraction function that enables playback of HDMI source audio via the 3.5mm audio output on the receiver unit; Simultaneous audio playback across both HDMI and 3.5mm outputs is supported Bullet 4 HASSLE-FREE INSTALLATION: Point-to-Point connection with optical fiber between transmitter and receiver means no IP configuration, drivers, or network equipment required; Durable metal housing with built-in mounting brackets for a tidy installation Bullet 5 ROBUST FEATURES: HDMI to Fiber Converter features a local HDMI output and IR/serial extension for convenient and versatile setup options; EDID Copy; LED indicators for status monitoring; 8kV air and 6kV contact Electrostatic Discharge (ESD) protection Bullets (Compact) HDMI over Fiber Extender Kit; 4K 60Hz HDMI over Single Strand LC Optical Fiber; 7.1ch Audio; HDR10; Single Mode up to 3300ft; Multimode up to 1000ft; Metal housing; Built-in mounting brackets; IR/serial extension; 8kV Air/6kV Contact ESD protection Bullets (Consolidated) HDMI over Fiber Extender kit extends a 4K 60Hz signal with 7.1ch audio; Single Strand LC/UPC connector; HDR10; HDCP 2.2 - Works over Single Mode fiber up to 3300ft or Multimode fiber up to 1000ft enabling the use of existing fiber cabling - Audio extraction for simultaneous audio playback across both HDMI and 3.5mm outputs - No IP configuration/drivers required; Durable metal housing; Built-in mounting brackets - Local HDMI output; IR/serial extension; 8kV air and 6kV contact ESD protection Marketing Copy Marketing Copy (No HTML) Applications - Ideal for Digital Signage where the display is far away from the source device
- Extend an HDMI video source in a hospital, with no Electromagnetic/Radio Frequency Interference (EMI/RFI)
- Connect a local video source to a remote display that is located across a building complex
Website Search Keyword - 4K HDMI extender
- fiber optic hdmi
- hdmi converter
- hdmi extender
- hdmi extender kit
- hdmi over fiber
- HDMI Over Fiber Extender
- hdmi receiver
- hdmi transmitter
- ir extender
- video extender
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - Only the pre-installed SFP transceivers are supported.
- HDMI CEC is not supported by this product.
System and Cable Requirements OM3 Multimode or OS1 Single Mode cabling or higher is recommended for optimal performance. Accessory Products - HDMMV1M
- HDMMV2M
- DP2HD4K60H
- RHDMM2MP
- HDMM5MP
Related Products ST121HD20FXA Input Current 0.35A Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 0.1W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20% ~ 90% RH (non-condensing) Material Metal Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 134.000 Product Width (mm) 68.000 Product Height (mm) 18.000 Product Weight (g) 562.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio General Specifications - Supported Baud Rate: 4800 ~ 115200bits/s
- Supported IR Frequency: 20 ~ 60KHz
- HDMI Audio Formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

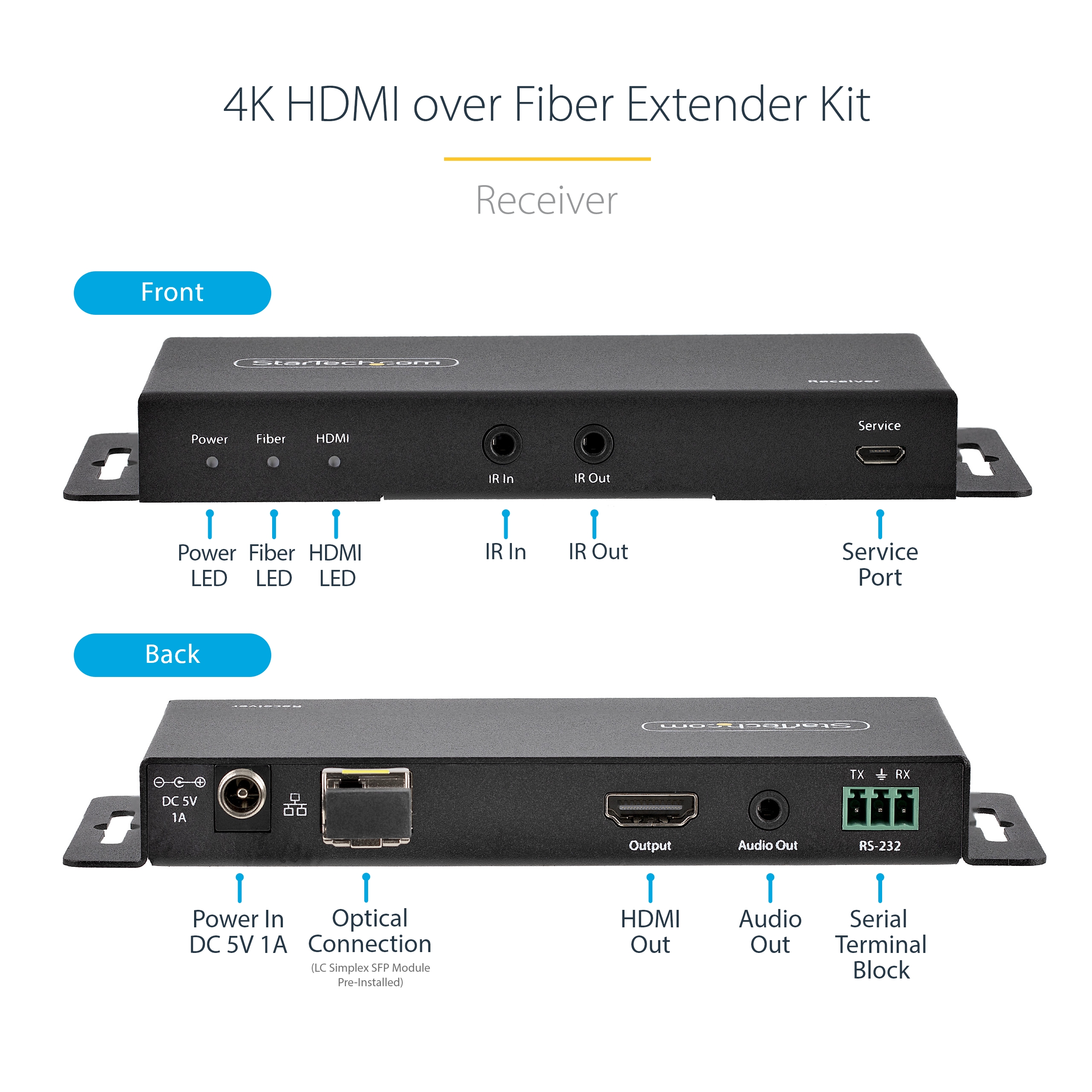

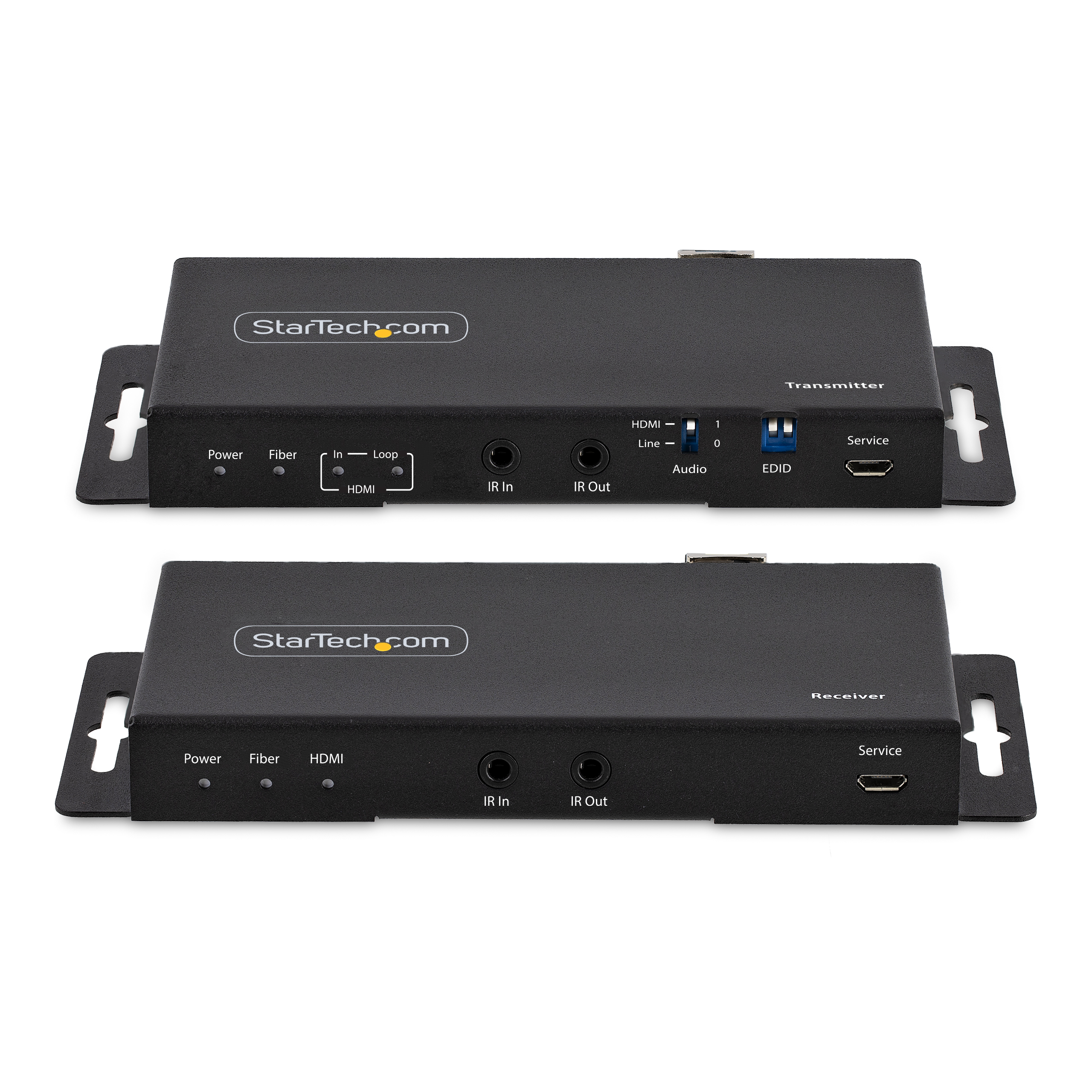

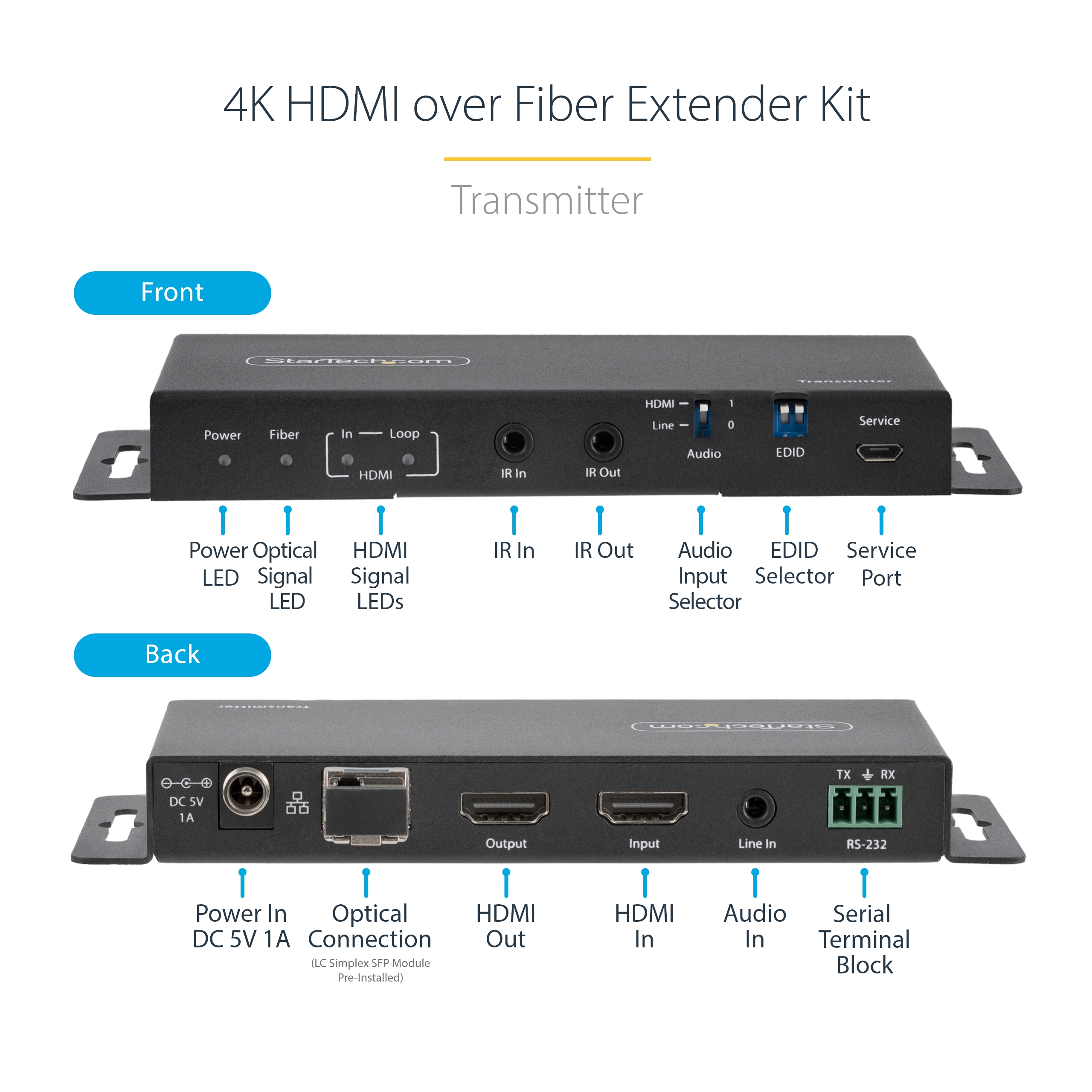

HDR Support HDR10 Max Distance 1 km (0.6 mi) Maximum Cable Length (mm) 1000000 Maximum Data Transfer Rate 18 Gbps Maximum Digital Resolutions 4K 60Hz OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Fiber Optic Chipset ID SiFotonics SD1503/SD1513 Industry Standards HDMI 2.1 TMDS, HDCP 2.2 and DVI 1.0 compliant LED Indicators - 1 - Red - Power
- 1 - Green - Fiber Connection Active
- 1 - Green - HDMI Input detected (Transmitter Only)
- 1 - Green - HDMI Loop (Local HDMI Output, Transmitter Only)
- 1 - Green - HDMI Output (Receiver Only)

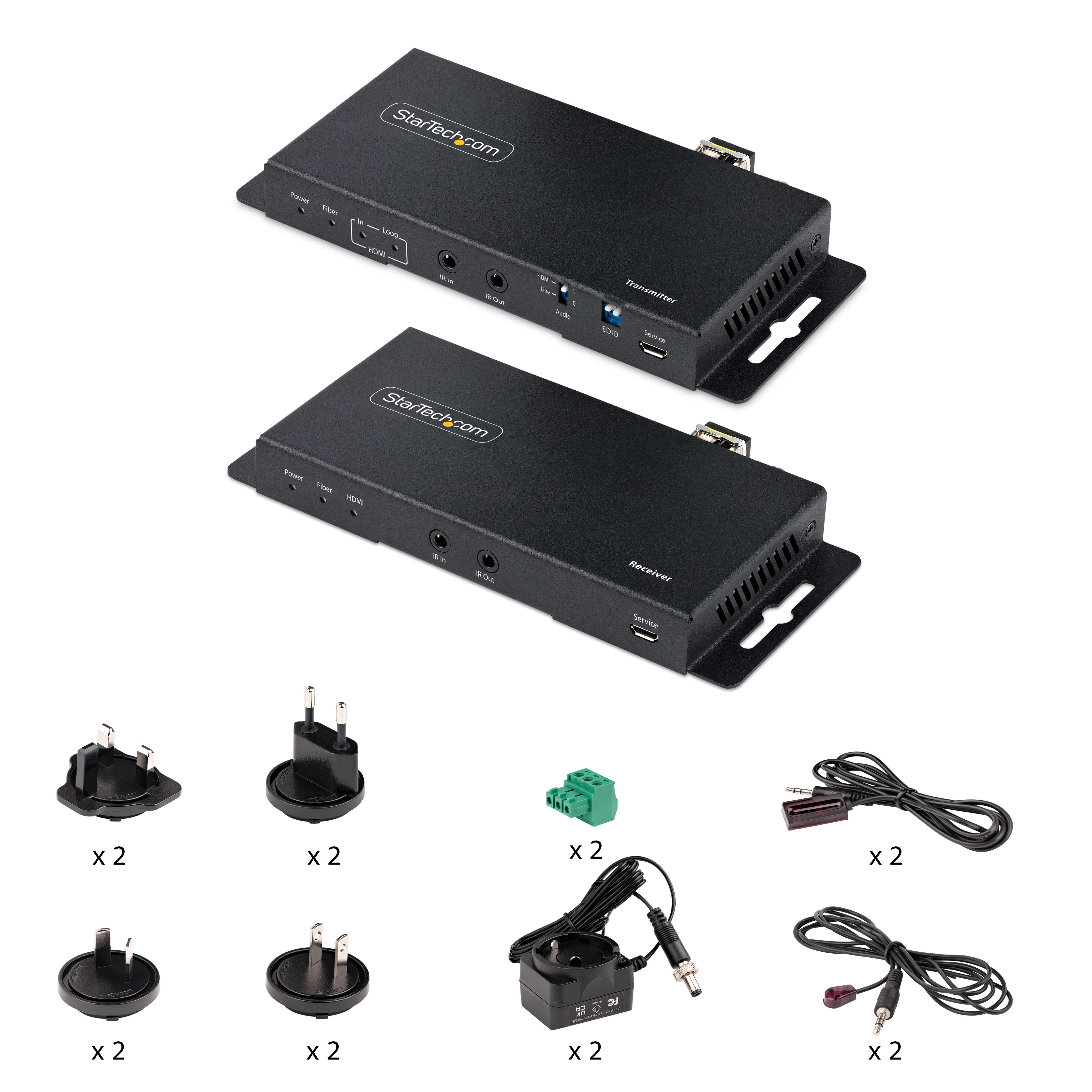

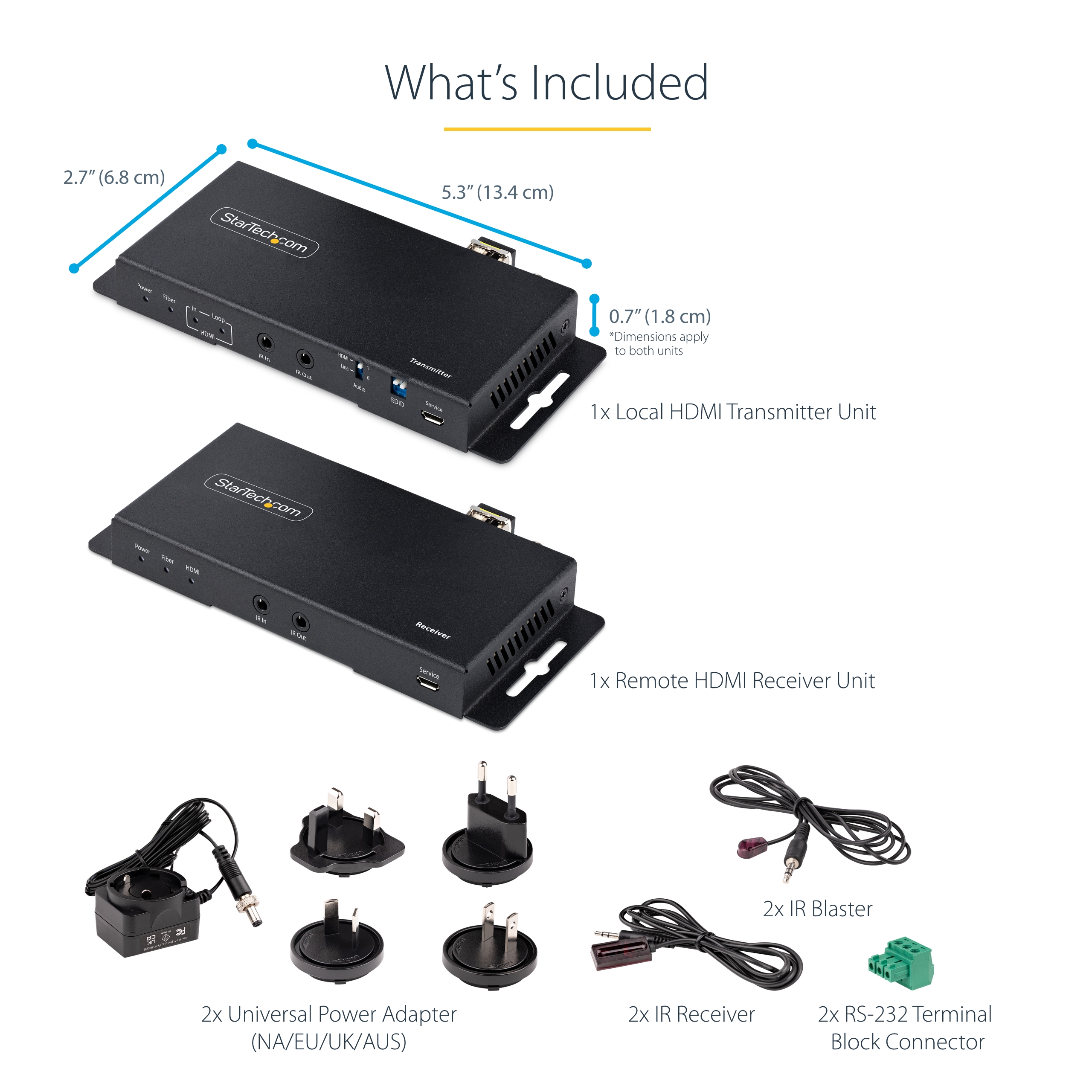

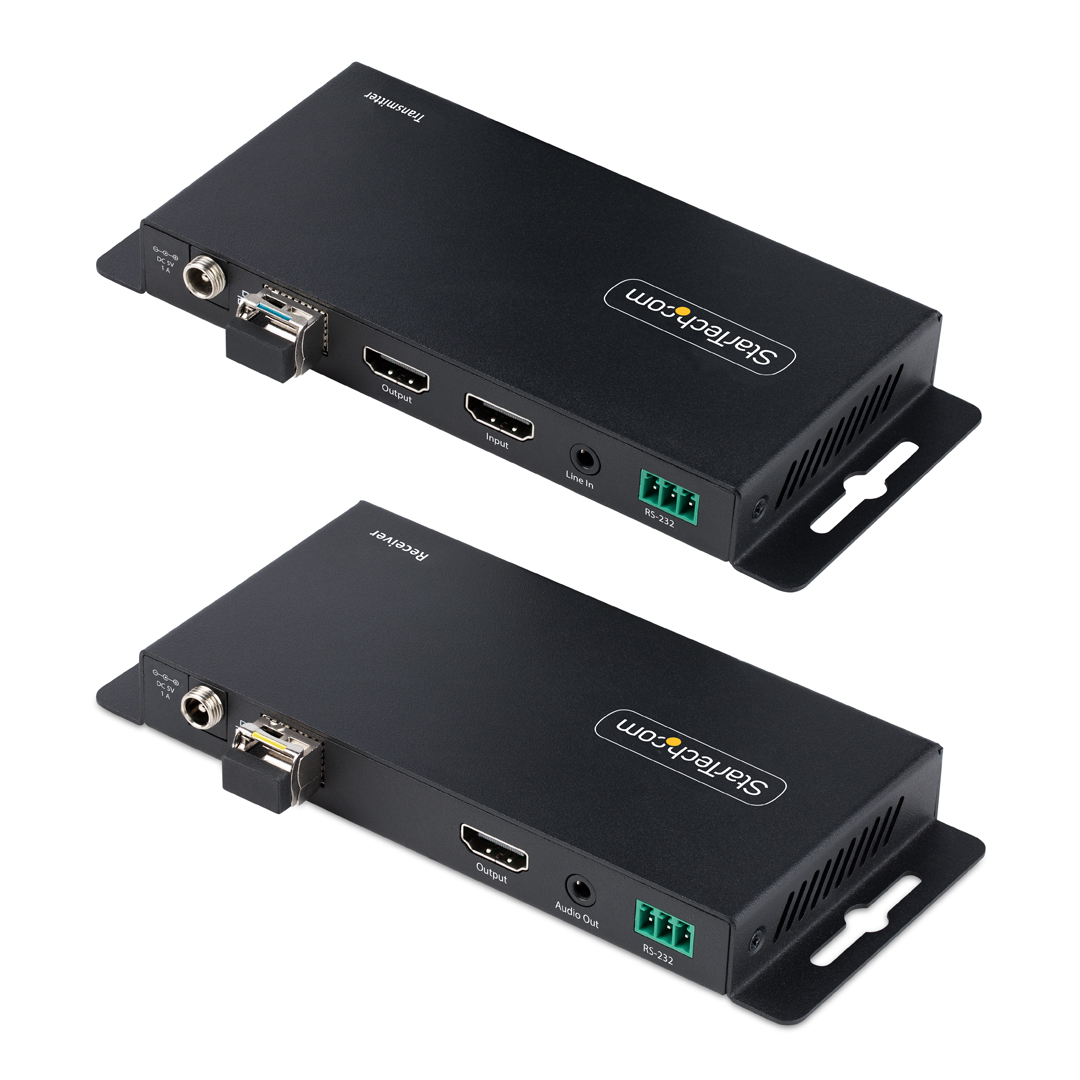

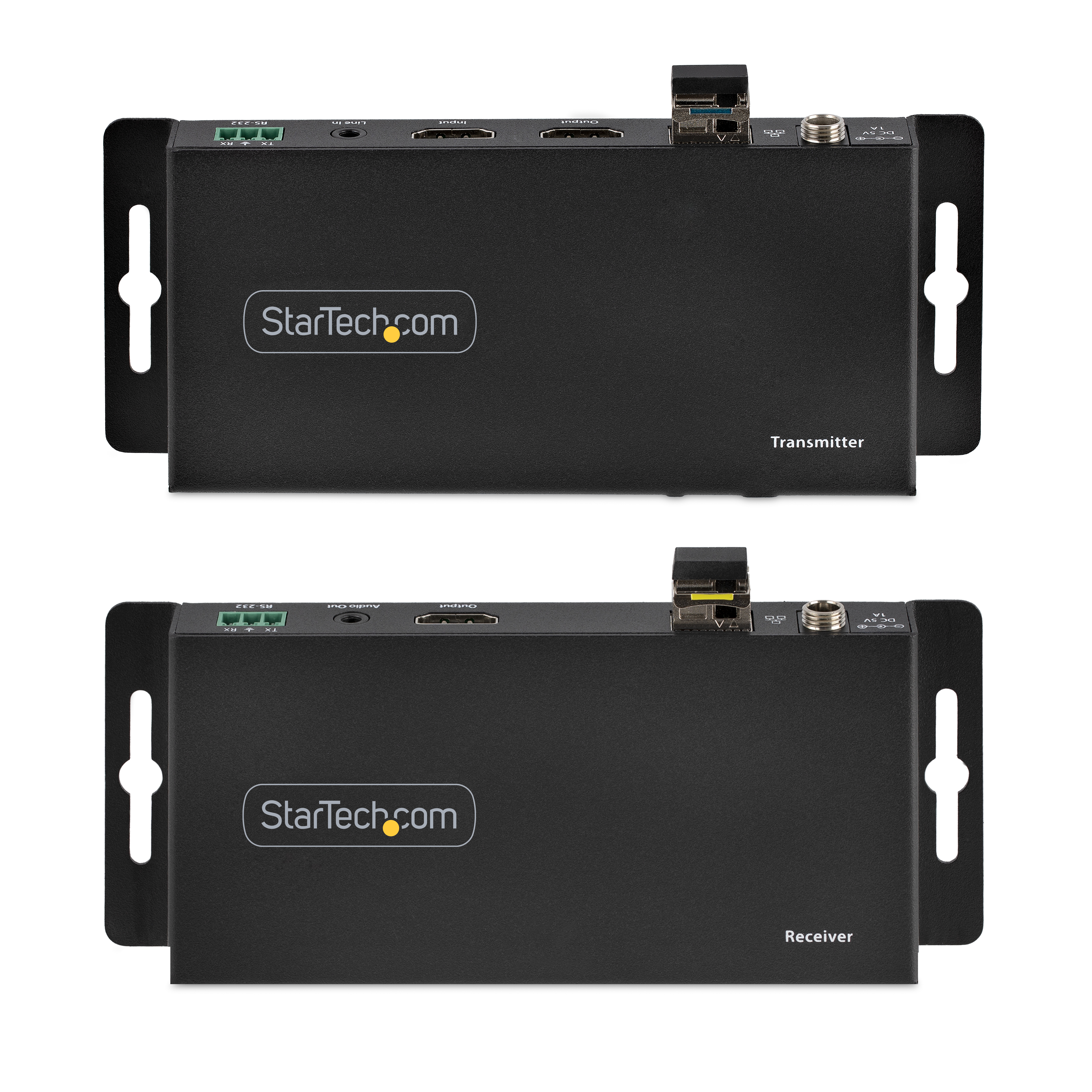

Rack-Mountable No Carton Depth (mm) 331 Carton Height (mm) 436 Carton Quantity 10 Carton Weight Gross (g) 11282 Included in Package - 1 - Local HDMI Transmitter Unit
- 1 - Remote HDMI Receiver Unit
- 2 - IR Blaster
- 2 - IR Receiver
- 2 - Power Adapter
- 2 - RS-232 Terminal Block Connector
- 1 - Quick-Start Guide

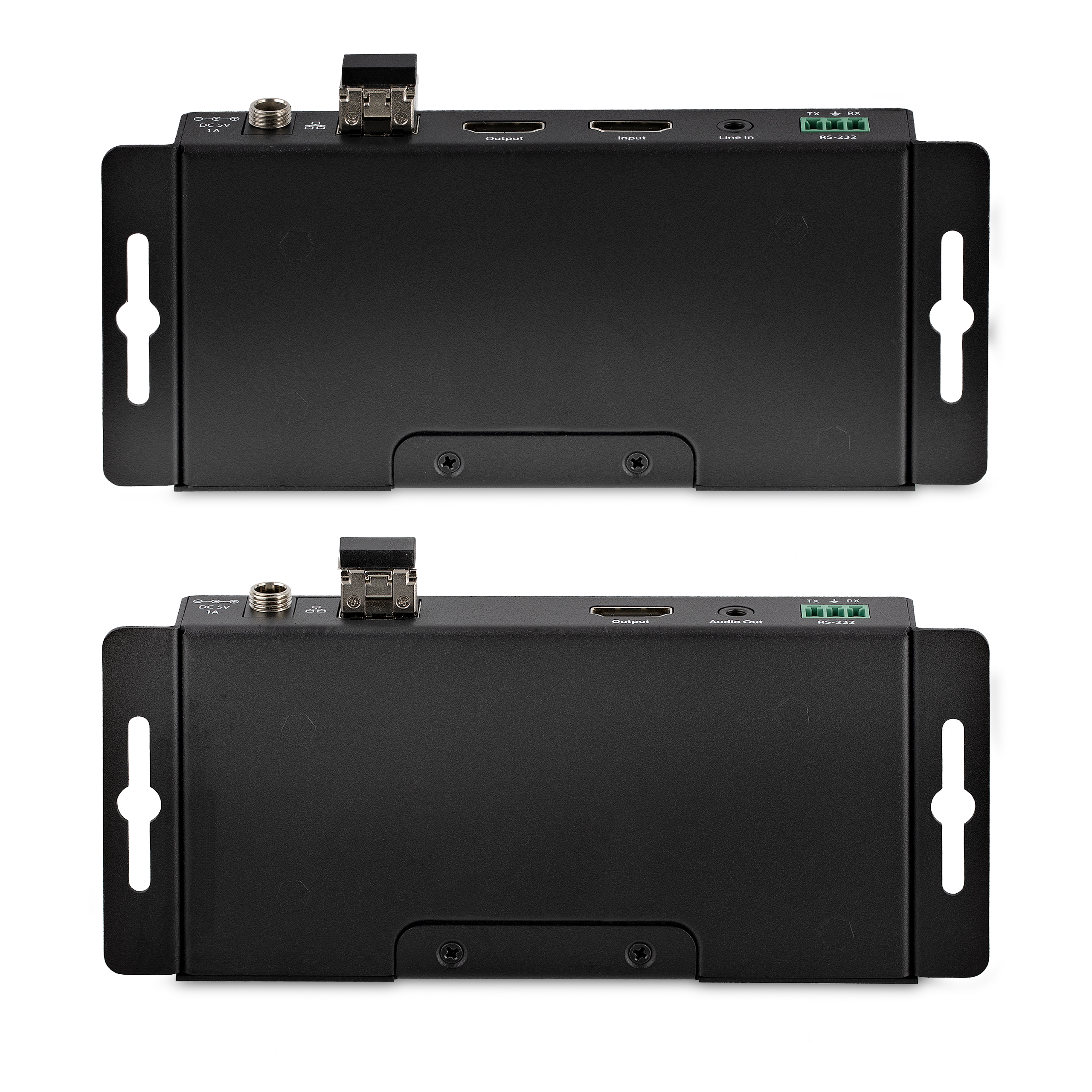

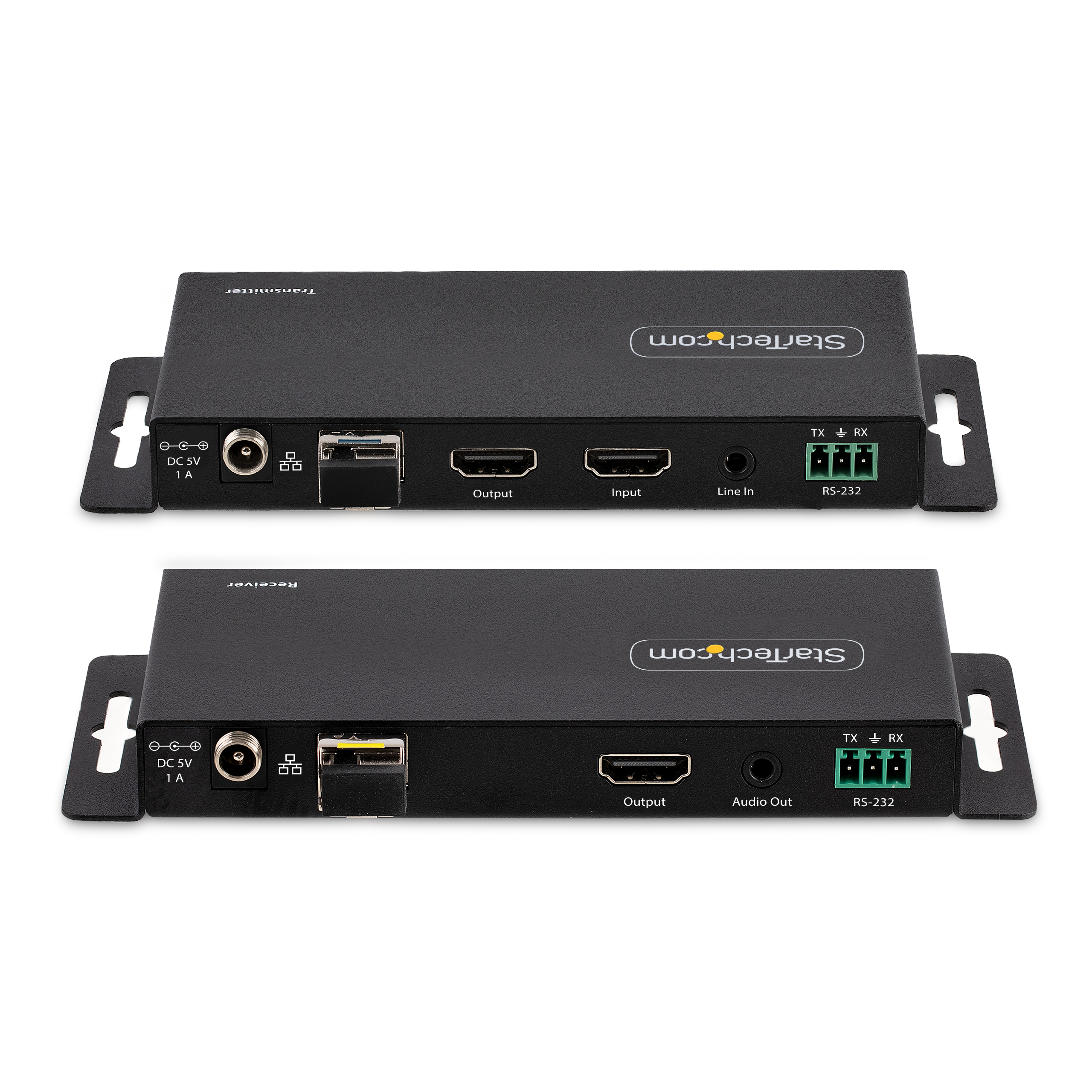

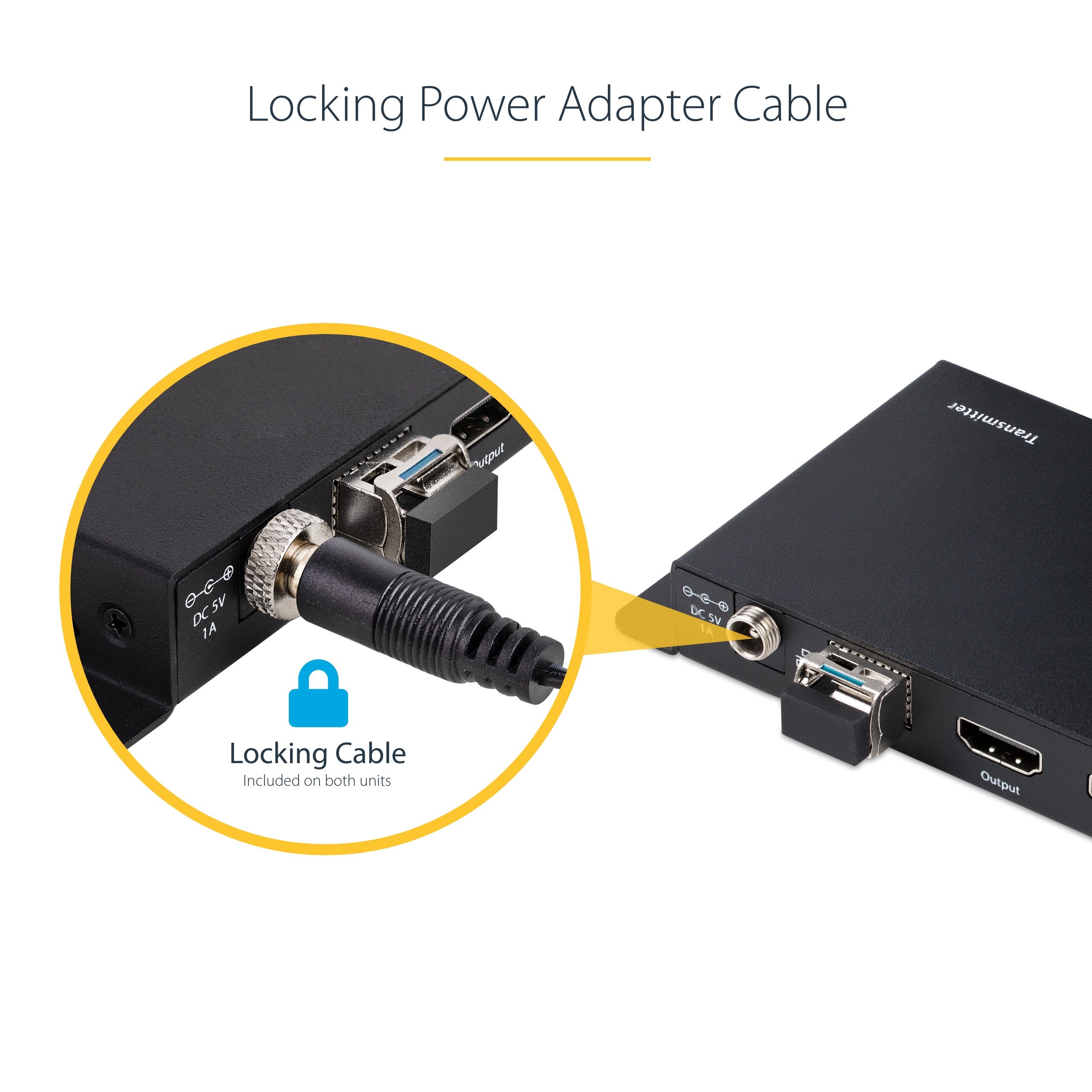

Package Depth (mm) 203 Package Height (mm) 65 Package Width (mm) 303 Package Quantity 1 Package Weight (g) 1046 Packaging Description HDMI over Fiber Extender - 4K 60Hz Packaging Description India HDMI over Fiber Extender - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 Terminal Block (3 Wire) Connector 3 (Quantity) 1 Connector 4 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 4 (Quantity) 1 Connector 5 Infrared (IrDA) Connector 5 (Quantity) 1 Connector 6 Infrared (IrDA) Connector 6 (Quantity) 1 Connector 7 USB Micro-B (480Mbps, 2.5W) Connector 7 (Quantity) 1 Connector 8 LC Fiber Connector 8 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 HDMI Host Connector 2 (Quantity) 1 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 1 Host Connector 4 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Host Connector 4 (Quantity) 1 Host Connector 5 Terminal Block (3 Wire) Host Connector 5 (Quantity) 1 Host Connector 6 3.5mm (3 Conductors, TRS) Host Connector 6 (Quantity) 1 Host Connector 7 Infrared (IrDA) Host Connector 7 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment NA Comparable SKU 2 Comment NA Digital Content Due Date 2023-02-21 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,PL,SE,SG,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-08-12 Target Production Release 2023-01-15 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Required
