ST121HD25
HDMI Extender over One Cat6
Extend a single HDMI® video signal up to 25m (80ft) over Cat6 cabling
Main Image
Product Images
Product Images
BOM Image
Product Name HDMI Extender over One Cat6 Product Number ST121HD25 UPC 065030844765 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) HDMI over Cat6 Active Extender Product Title (Standard) High Speed HDMI® over Cat6 Active Extender - up to 80ft (25m) Product Title (Long) High Speed HDMI over Cat6 Active Extender - up to 80ft (25m) Product Title (AMZ) High Speed HDMI® over Cat6 Active Extender - up to 80ft (25m) - 1920x1080 - HDMI Extender over Cat 6 Ethernet UTP (ST121HD25) Title Ingram (Part 1) High Speed HDMI over Cat6 Active Title Ingram (Part 2) Extender - up to 80ft (25m) Website Product Headline Extend a single HDMI® video signal up to 25m (80ft) over Cat6 cabling Bullet 1 Extend HDMI® video up to 80ft (25m) Bullet 2 Supports Cat 6 Ethernet cabling Bullet 3 Supports resolutions up to 1080p (1920x1080) Bullet 4 Compact, lightweight enclosure Bullet 5 No software/drivers required Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword - HDMI Extender
- HDMI over Cat 6
- HDMI over Cat6
- HDMI video over cat 6
- HDMI video over cat6
- active extender
Accessory Products - HDMIMM10
- HDMIMM20
- HDMIMM6
- N6PATCH75BK
- C6PATCH50BL
- C6PATCH25GR
- N6PATCH75OR
- C6PATCH50GN
- C6PATCH50YL
Related Products - ST121UTPDVI
- ST121DVI25
- ST121UTPHDMI
- ST122UTPAL
- ST121UTPMINI
- ST1214T
- ST121UTPEP

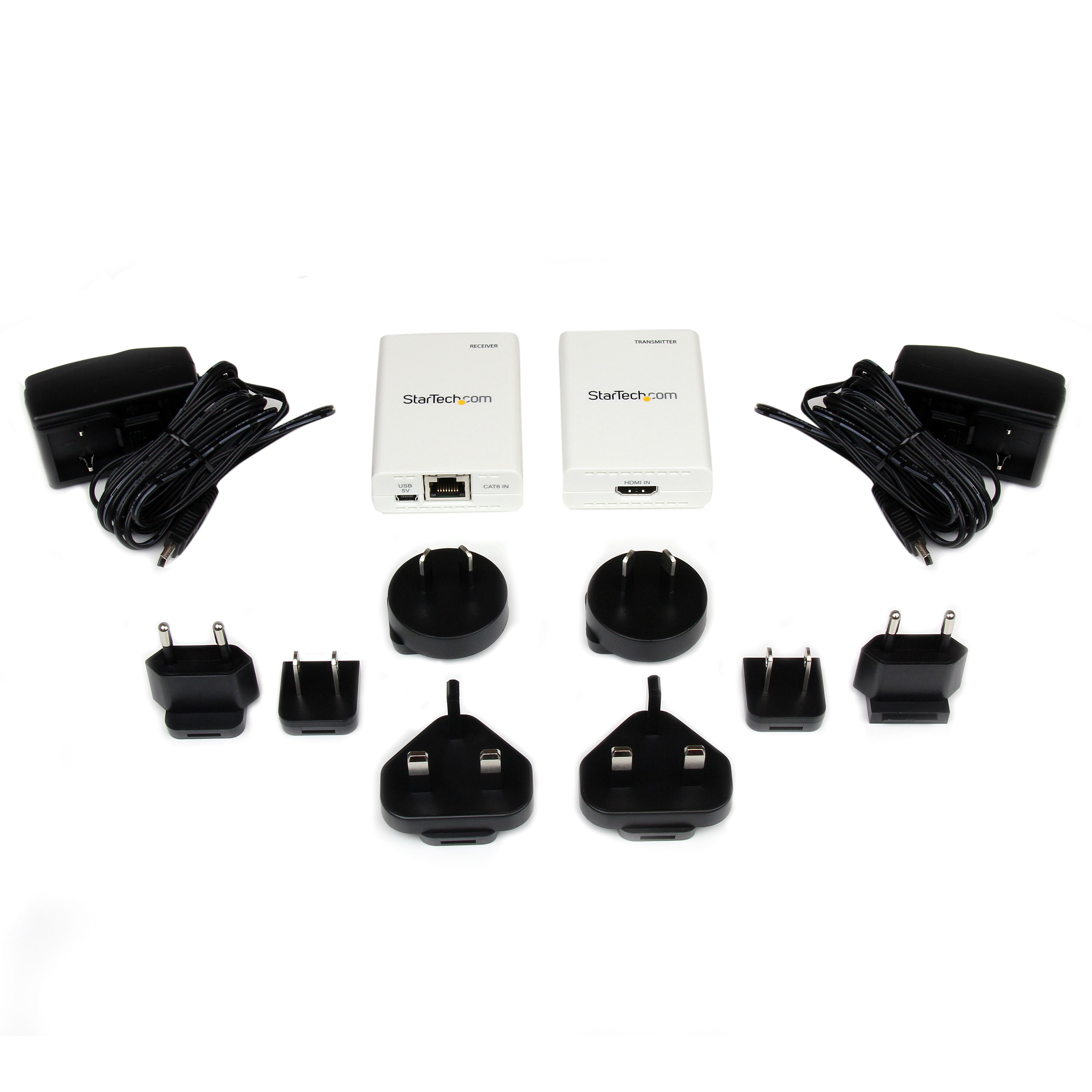

Equivalent Part Number in the EU ST121HD25EU Equivalent Part Number in the UK ST121HD25GB Input Current 0.3A Input Voltage 110V-240V AC Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 3W Max Power Source 2 AC Adapters Included Color White Humidity 20~90% RH (non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 75 Product Width (mm) 55 Product Height (mm) 22 Product Weight (g) 54 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant No Max Distance 25m [82ft] Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 1080p / 1920x1080 Wide Screen Supported Yes Cabling Cat 6 UTP Cascadable No LED Indicators 1 - Power Indicator Carton Depth (mm) 290 Carton Height (mm) 360 Carton Quantity 20 Carton Weight Gross (g) 13200 Included in Package - 1 - HDMI over Cat 6 Transmitter Unit
- 1 - HDMI over Cat 6 Receiver Unit
- 2 - Power Adapters
- 1 - Instruction Manual
Package Depth (mm) 160 Package Height (mm) 62 Package Width (mm) 260 Package Weight (g) 608 Packaging Description HDMI® Video Extender over Cat 6 - 25m Packaging Description India HDMI® Video Extender over Cat 6 - 25m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
