ST121HDBT5
HDMI Over CAT5 Extender w Power Over Cable RS232
Extend an HDMI signal by up to 330ft (100m) over CAT5/CAT6 cable, with 10/100 network, infrared, serial control, and Power over Cable

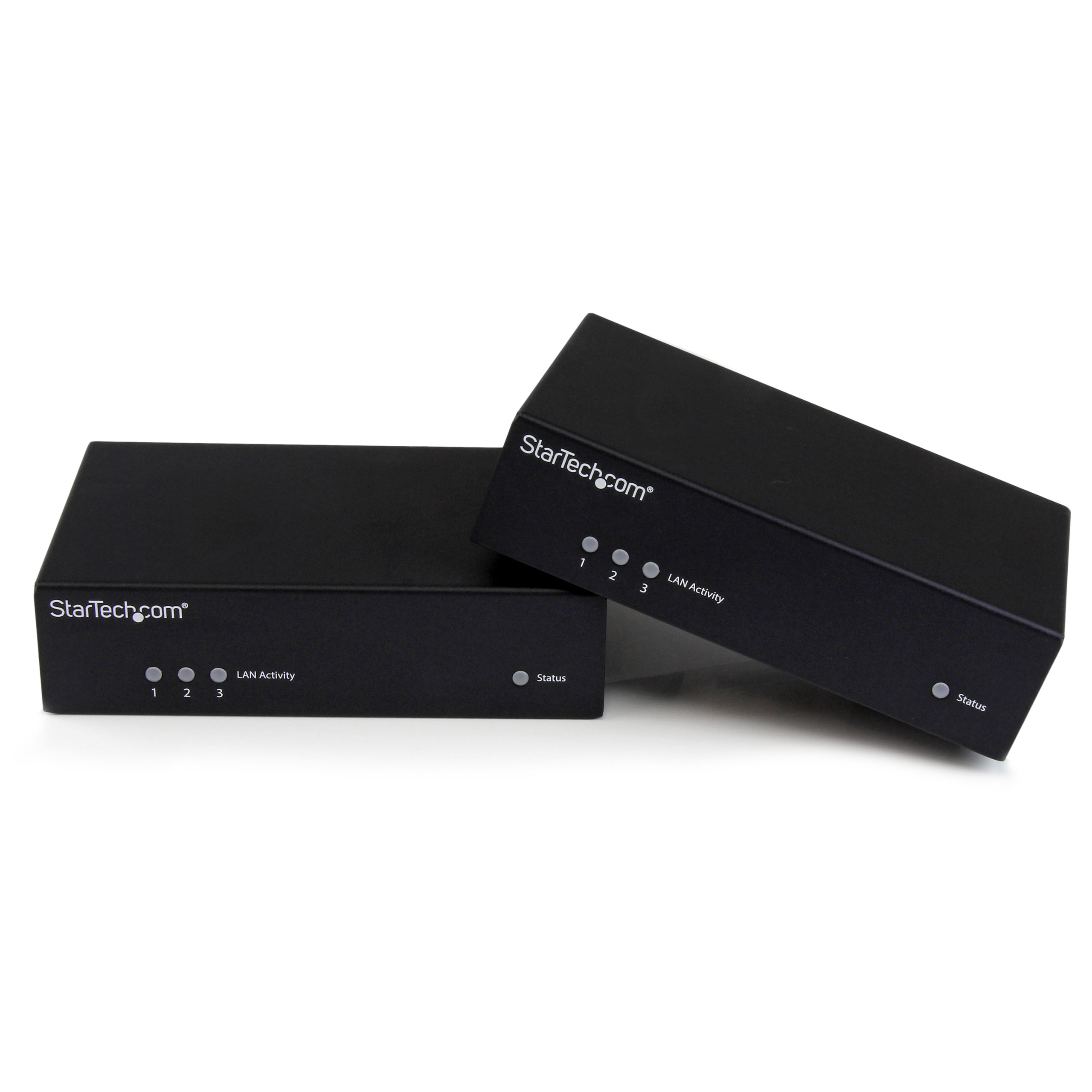

Main Image

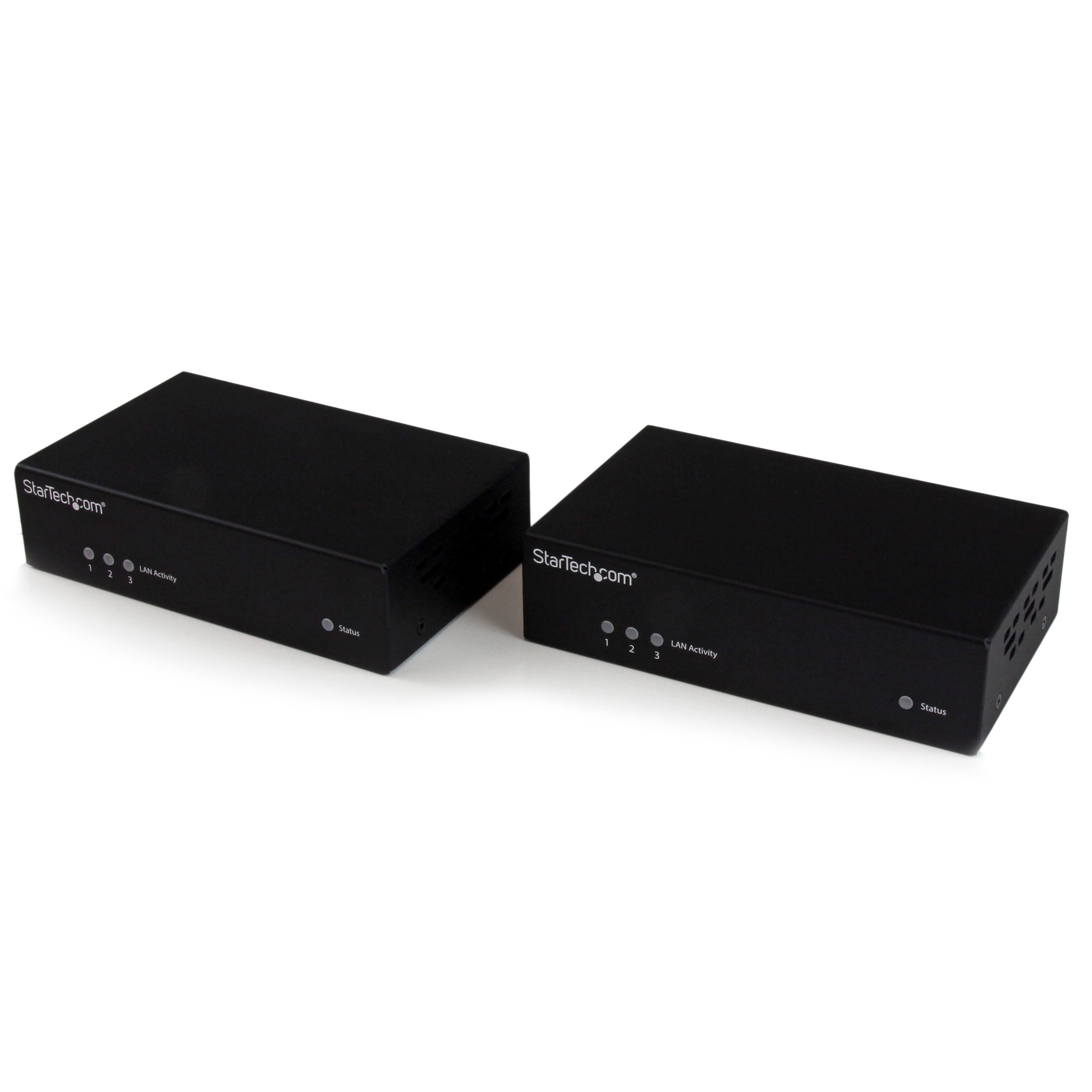

Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Over CAT5 Extender w Power Over Cable RS232 Product Number ST121HDBT5 UPC 065030855006 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI CAT5 Extender Product Title (Short) HDMI Over CAT5e / Cat6 Extender - 330ft Product Title (Medium) HDMI over CAT5 HDBaseT Extender - Power over Cable - Ultra HD 4K - 330 ft (100m) Product Title (Standard) HDMI over CAT5 HDBaseT Extender - Power over Cable - IR - RS232 - 10/100 Ethernet - Ultra HD 4K - 330 ft (100m) Product Title (Long) HDMI over CAT5 HDBaseT Extender - Power over Cable - IR - RS232 - 10/100 Ethernet - Ultra HD 4K - 330 ft (100m) - TAA Product Title (AMZ) HDMI over CAT5 HDBaseT Extender - Power over Cable - IR - RS232 - 10/100 Ethernet - Ultra HD 4K - 330 ft (100m) (ST121HDBT5) Title Ingram (Part 1) HDMI Over CAT5 Extender Power Over Title Ingram (Part 2) Cable RS232 IR Ethernet - 100m Website Product Headline Extend an HDMI signal by up to 330ft (100m) over CAT5/CAT6 cable, with 10/100 network, infrared, serial control, and Power over Cable Bullet 1 Save cost by extending HDMI, Ethernet, RS-232, IR, and Power over a single Cat5 cable, using HDBaseT technology Bullet 2 Astonishing picture quality with support for UHD 4K resolutions at up to 115 ft. (35 m) Bullet 3 Built-in 10/100 extender hub Bullet 4 Tidy, professional installation with optional mounting hardware included and extension over a single cable Bullet 5 Supports CAT5e and CAT6 Ethernet cable Bullets (Compact) Use this HDBaseT extender to extend your HDMI signal by up to 330ft (100m) over CAT5 - Works with HDMI devices like computers, Blu-ray players & set top boxes, HDMI monitors, TVs and projectors - 1920x1200 resolution support - RS232 & HDMI Extender Bullets (Consolidated) Use this HDBaseT extender to extend your HDMI signal by up to 330ft (100m) over CAT5 - Works with HDMI source devices such as computers, Blu-ray players and TV set top boxes and HDMI monitors, televisions and projectors - Supports resolutions up to 1920x1200 or 1080p - HDMI over Ethernet Extender/HDBaseT Extender/4K HDMI Extender/RS232 HDMI Extender - Extend an HDMI signal to locations where power outlets are limited - Extends 10/100 network, infrared, serial control, and Power over Cable Marketing Copy Marketing Copy (No HTML) Applications - Extend an HDMI signal to locations where power outlets are limited
- At tradeshows and auditoriums, remotely place your demo display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Connect a remote RS232 device such as a serial touchscreen monitor, or a serial modem to your local computer
- Control your IR video source with remote control from the remote display
- Connect IP devices such as Smart TVs, computers, and gaming consoles to the Interent or Local network on either side of the extender
Website Search Keyword - HDMI extender
- HDMI over CAT5 Extender
- hdbase t
- HDBASE-T
- hdbaset
- Power Over Ethernet
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST121HDBTE
- ST121HDT4P
- ST12MHDDCRP
- ST121HDFXA
- ST121SHD50
- ST121UTPHD2
- ST12MHDDC
- ST121HDBTPW

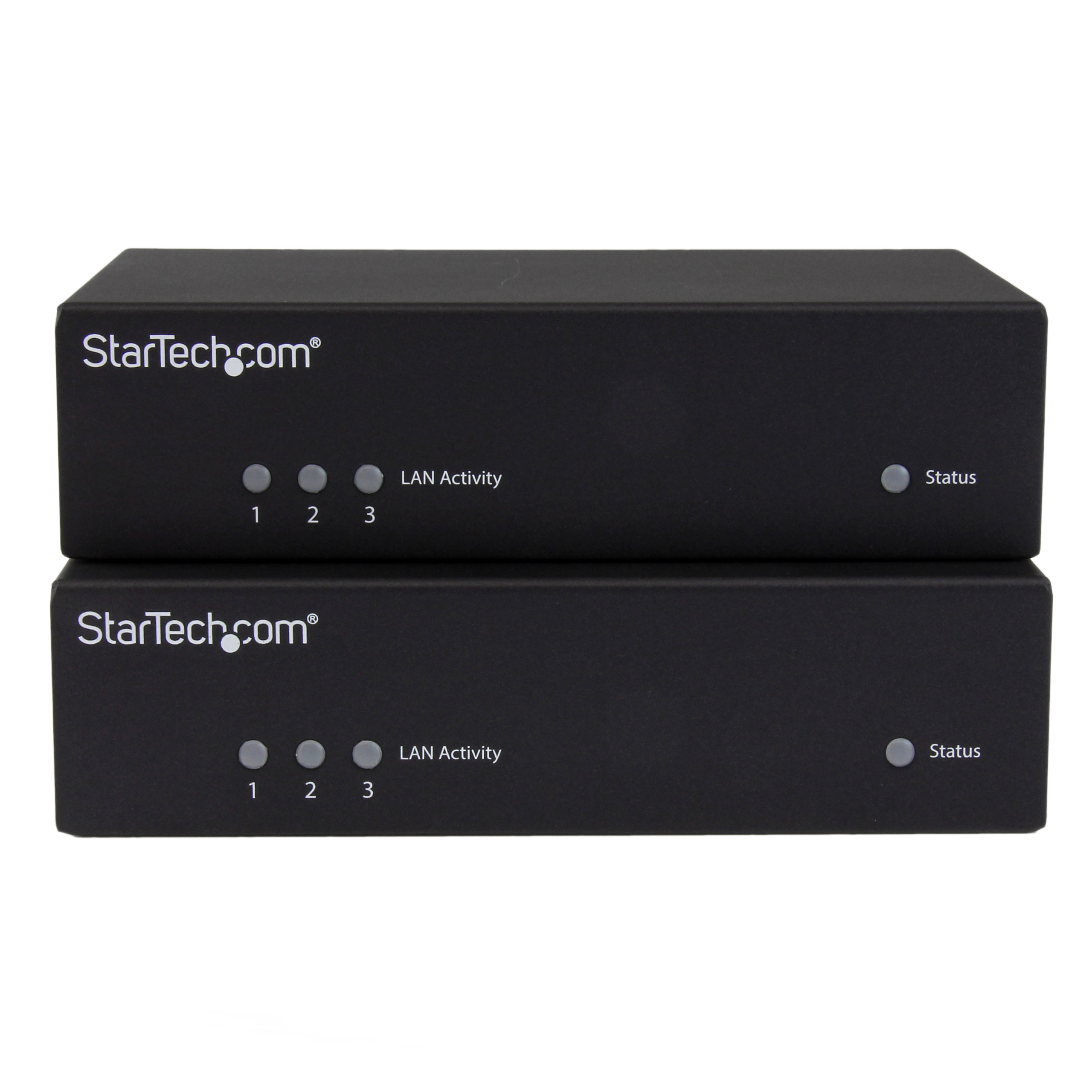

Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Color Black Humidity 0% - 80 % RH (non-condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 139.000 Product Width (mm) 89.000 Product Height (mm) 37.000 Product Weight (g) 859.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Cable Length (mm) 100000 Maximum Digital Resolutions Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better Cascadable No LED Indicators - 3 - LAN Activity LEDs
- 1 - Status LED

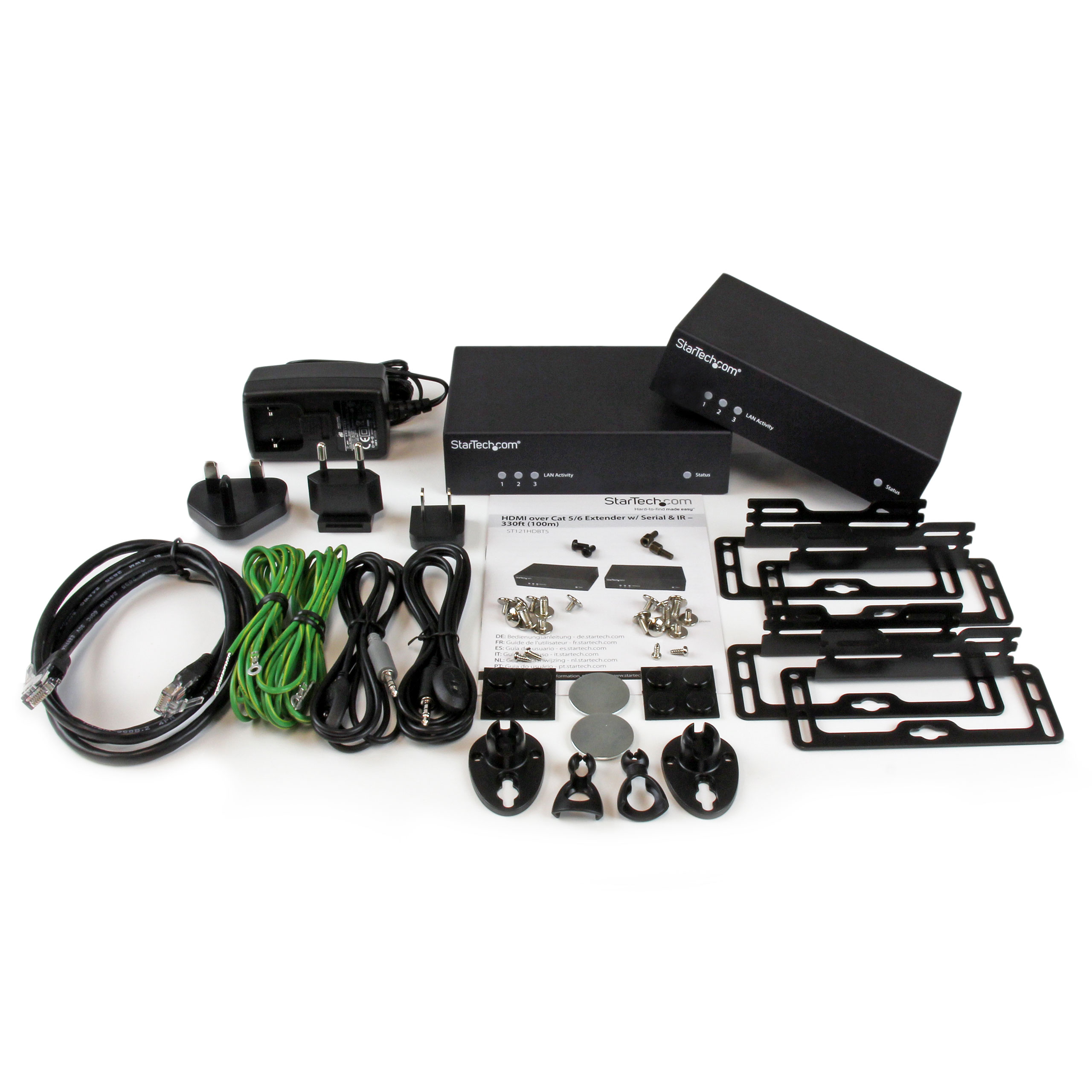

Rack-Mountable Yes Carton Depth (mm) 179 Carton Height (mm) 74 Carton Quantity 1 Carton Weight Gross (g) 1653 Included in Package - 1 - HDMI extender
- 2 - grounding wires
- 1 - instruction manual
- 1 - HDMI receiver
- 2 - mounting brackets
- 1 - IR sensor kit (transmitter cable & receiver cable)
- 2 - foot pad sets
- 1 - universal power adapter (NA, EU, UK, AU)

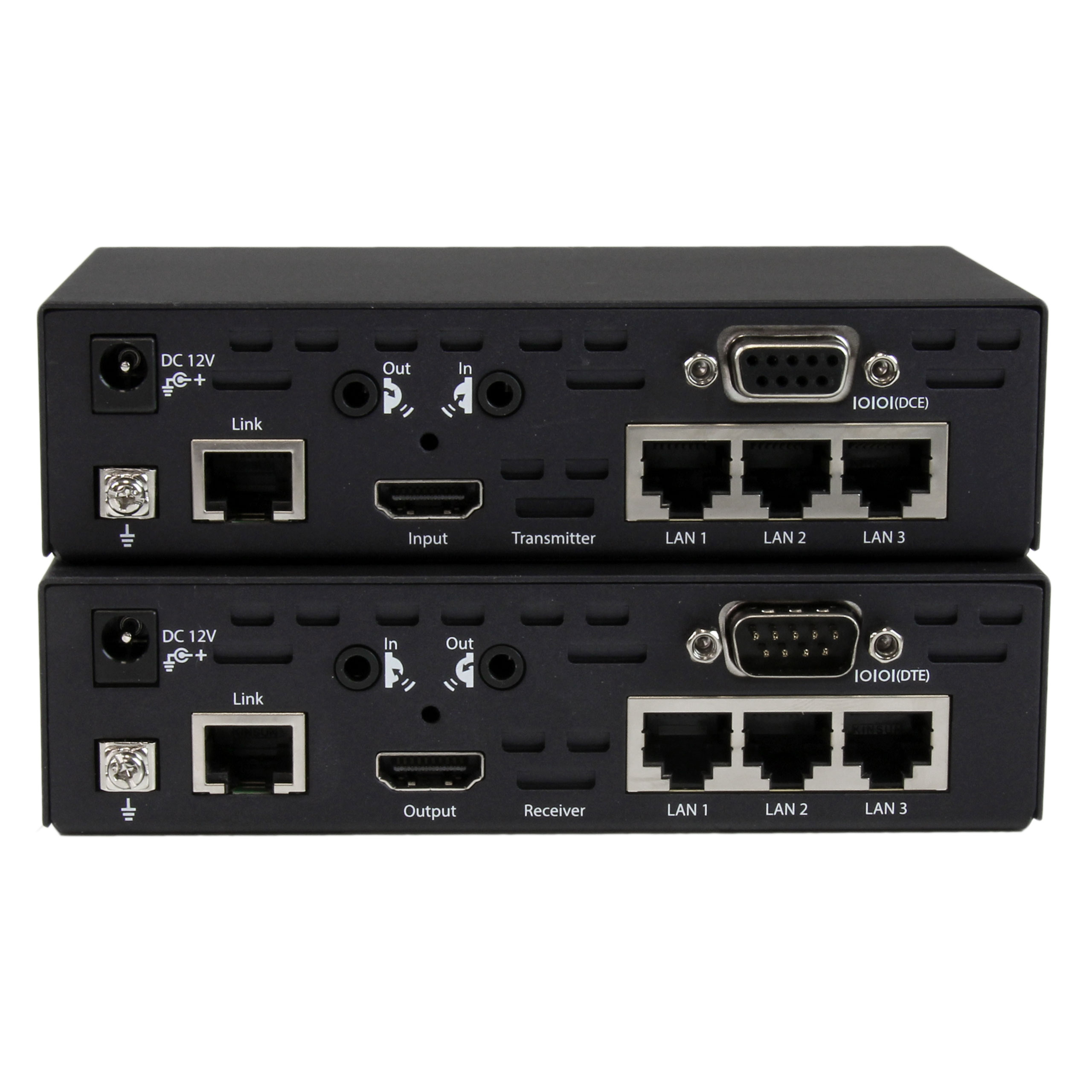

Package Depth (mm) 179 Package Height (mm) 74 Package Width (mm) 313 Package Quantity 1 Package Weight (g) 1640 Packaging Description HDMI over Cat 5/6 Extender w/ Serial & IR – 330ft (100m) Packaging Description India HDMI over Cat 5/6 Extender w/ Serial & IR – 330ft (100m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Connector 5 Infrared (IrDA) Connector 5 (Quantity) 2 Connector 6 RJ-45 Connector 6 (Quantity) 3 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 3 Host Connector 3 Infrared (IrDA) Host Connector 3 (Quantity) 2 Host Connector 4 DB-9 Serial Host Connector 4 (Quantity) 1 Host Connector 5 HDMI Host Connector 5 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-27 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
