Main Image
ST121HDBTD

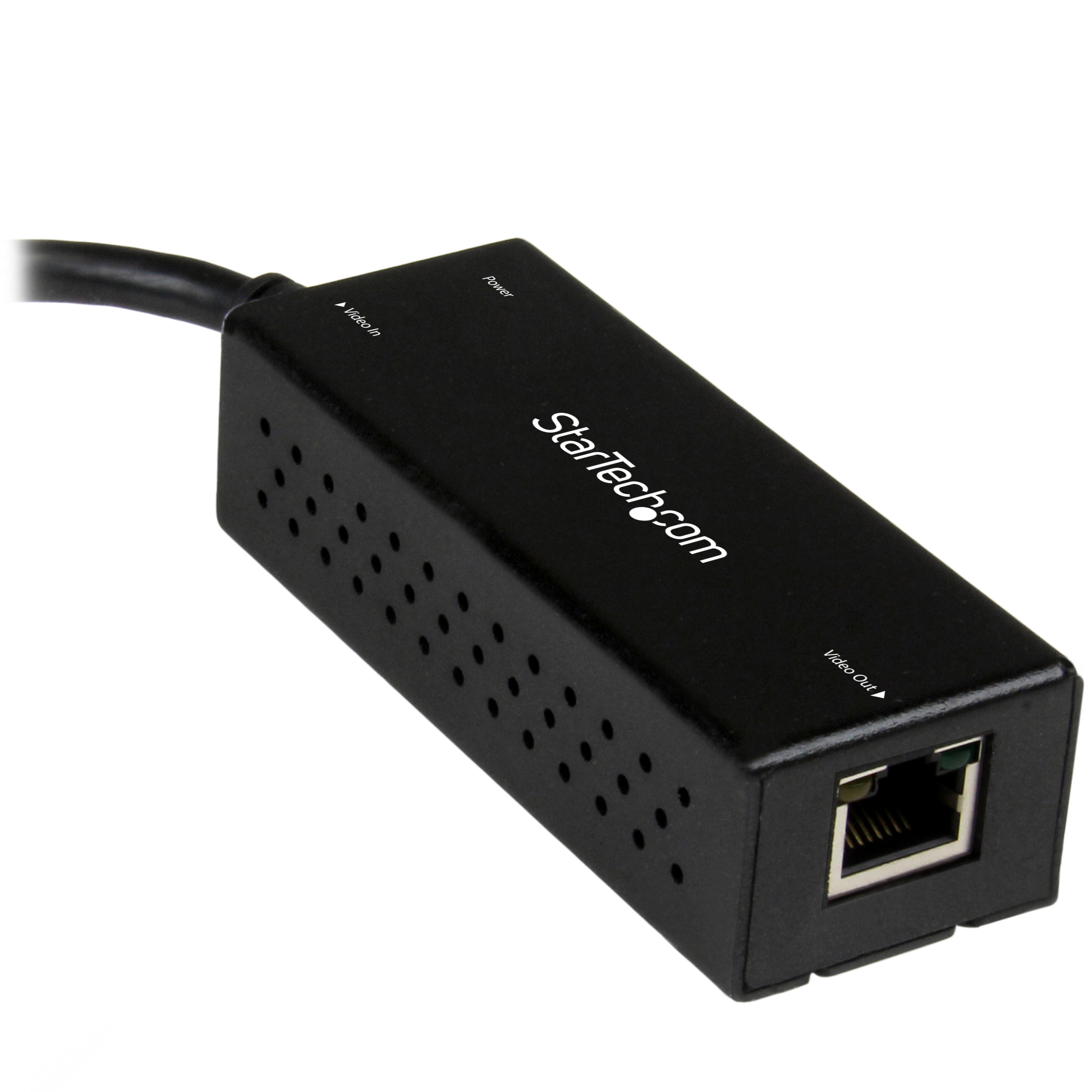

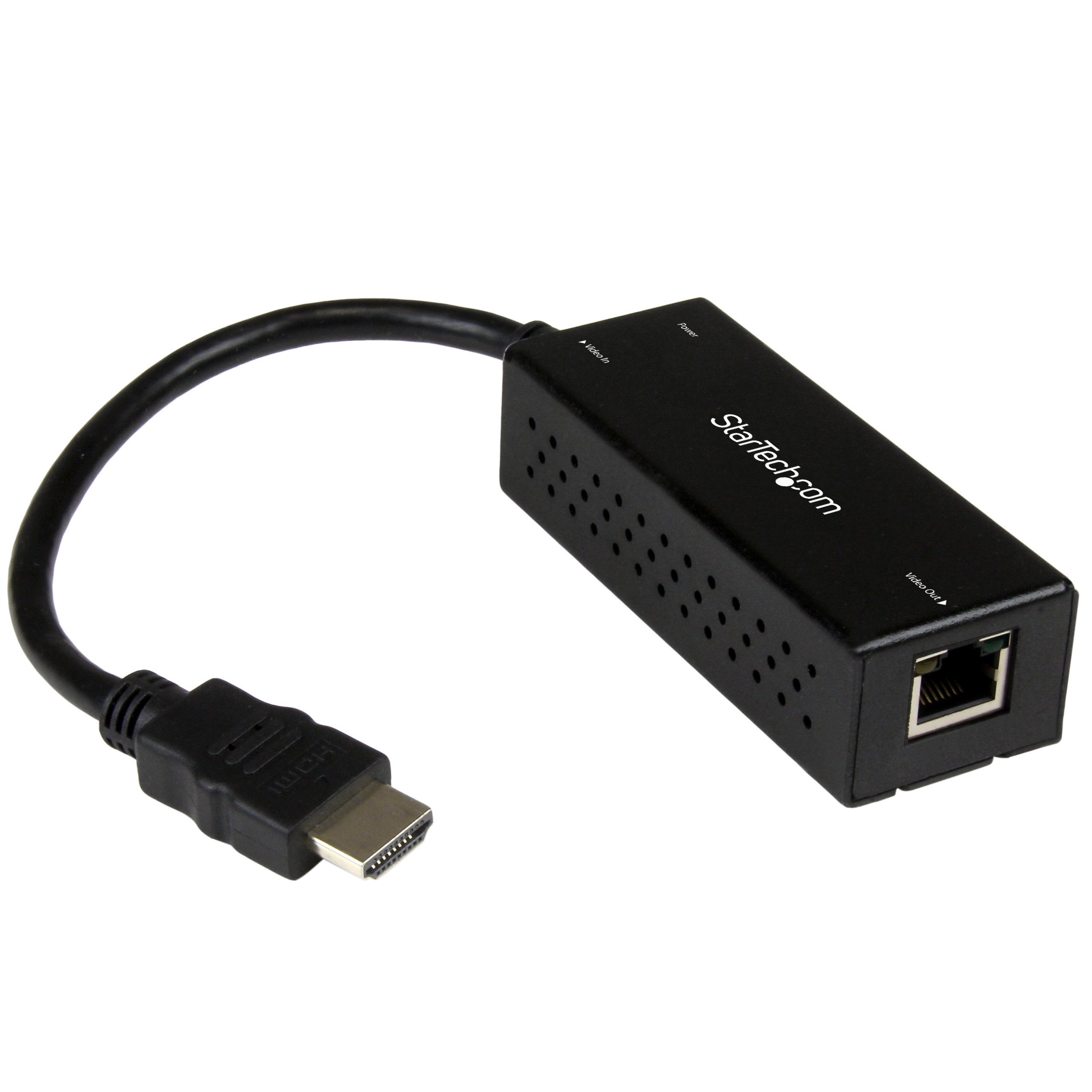

HDBaseT Dongle Transmitter - 70m
Extend HDMI to an HDBaseT display or receiver over Cat5e or CAT6 cabling
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name HDBaseT Dongle Transmitter - 70m Product Number ST121HDBTD UPC 065030863575 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family 4K HDBaseT Extender ? Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDBaseT Transmitter Product Title (Short) Compact HDBaseT Transmitter - Up to 4K Product Title (Medium) Compact HDBaseT Transmitter - HDMI over CAT5 - USB Powered - Up to 4K Product Title (Standard) Compact HDBaseT Transmitter - HDMI over CAT5e - HDMI to HDBaseT Converter - USB Powered - Up to 4K Product Title (Long) Compact HDBaseT Transmitter - HDMI over CAT5e - USB Powered - Up to 4K Product Title (AMZ) 4K HDBaseT Extender - Compact - HDMI over CAT5e / CAT6 - HDMI to HDBaseT Converter - USB Powered - Up to 4K - HDMI over Ethernet (ST121HDBTD) Title Ingram (Part 1) HDMI to HDBaseT Converter - Title Ingram (Part 2) - 4K at 40m - 1080p at 70m Website Product Headline Extend HDMI to an HDBaseT display or receiver over Cat5e or CAT6 cabling Bullet 1 Installs easily and discreetly, with a compact transmitter that's USB powered and features a built-in HDMI cable Bullet 2 Maintains astonishing picture quality up to 130 feet away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling Bullet 3 Ensures compatibility with your existing HDBaseT hardware, with HDCP compliance Bullet 4 Also supports HD video resolutions such as 1920x1200 or 1080p up to 230 ft. away Bullet 5 No software or drivers required with plug-and-play installation Bullets (Compact) Extend HDMI to an HDBaseT display or receiver over Cat5e or CAT6 cabling - USB powered - Built-in HDMI cable - Resolutions up to UHD 4K at 130 ft or 1080p HD at 230 ft - HDMI to HDBaseT converter - HDBaseT over CAT5e Extender - HDBaseT transmitter Bullets (Consolidated) Extend HDMI to an HDBaseT display or receiver over Cat5e or CAT6 cabling - Works with HDMI video sources such as Blu-ray players and computers and HDBaseT monitors projectors and receivers - HDBaseT transmitter/HDMI to HDBaseT converter/HDMI over single CAT5e or CAT6 Ethernet Extender/HDMI over CAT5e or CAT6/HDBaseT CAT5e - 4K resolutions at 130 ft and 1080p resolutions at 230 ft - Installs easily and discreetly with a compact transmitter that features USB power and a built-in HDMI cable Marketing Copy Marketing Copy (No HTML) Applications - Transmits your HDMI video signal from a secure location to a remote HDBaseT display, projector or receiver, in a convenient, customer-facing viewing area
- Turns your HDMI video source into an HDBaseT signal that can be used to create brilliant digital signage displays in hospitals, shopping centers or restaurants
- Replaces a defective HDBaseT transmitter in your existing HDBaseT infrastructure
Website Search Keyword - 4k hdbaset extender
- 4k hdmi extender
- 4k hdmi extender dongle
- 4k hdmi over ethernet
- dongle
- extend hdmi over ethernet
- extender hdmi over network
- HDBaseT extender
- hdbaset hdmi extender
- HDBaseT Lite
- HDBaseT Projector
- HDBaseT Sender Dongle
- HDBaseT Transmitter Dongle
- HDBaseT TV
- hdmi extender
- HDMI Extender Transmitter
- hdmi over cat6
- hdmi over ethernet
- HDMI over HDBaseT Transmitter
- hdmi over network
- plug and play
- shopping centres
- Sony 4000lm
- Sony 5000lm
- trade shows
- USB powered
- Hdbaset converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- N6PATCH100BL
- UUSBHAUB6
- UUSBHAUB10
Related Products - ST121HDBTPW
- ST121HDBTE
- ST121UTPHD2
- ST121HDBTU
- ST121HDBTDK

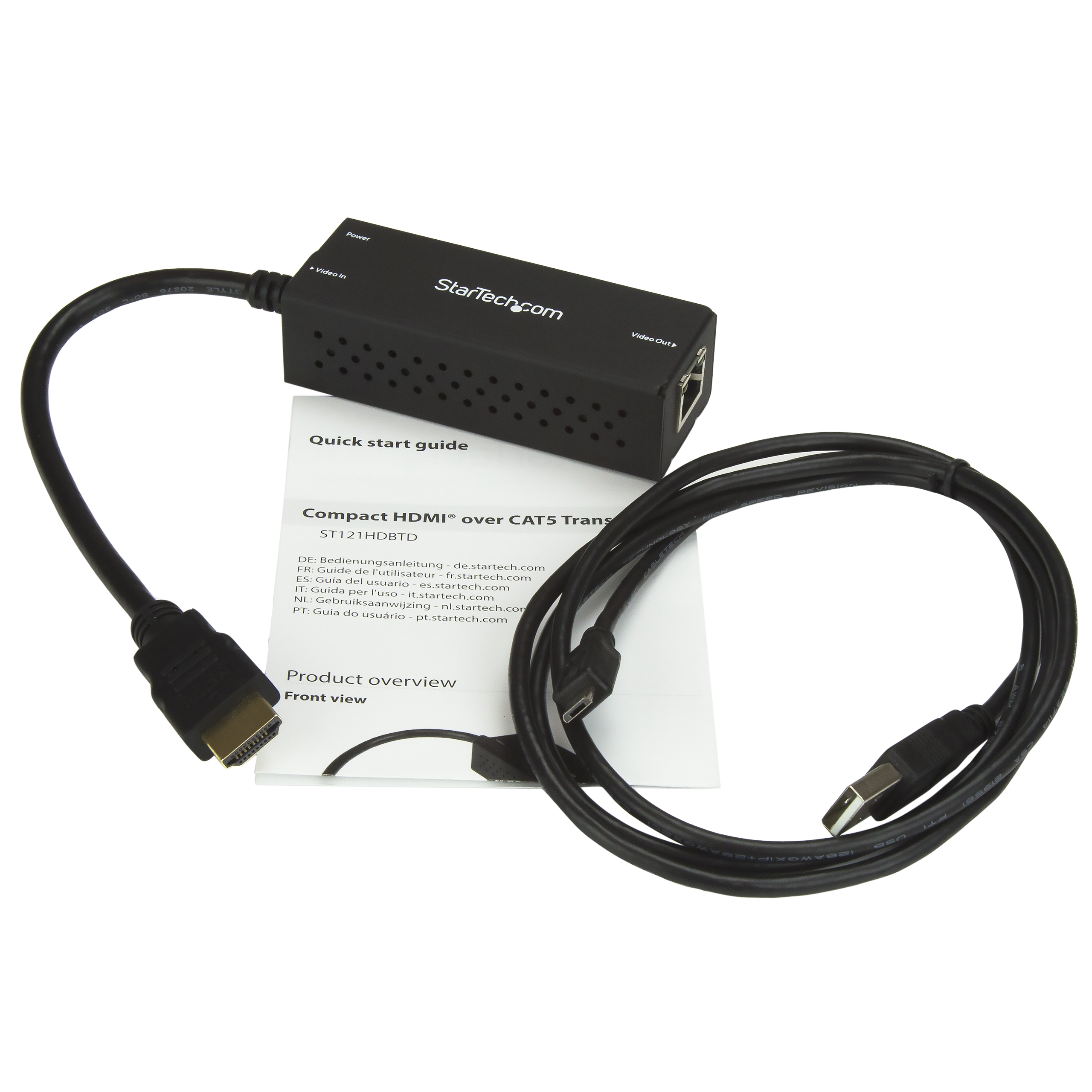

Power Source USB-Powered Color Black Humidity 0% - 80 % RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 310.000 Product Width (mm) 35.000 Product Height (mm) 25.000 Product Weight (g) 108.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 70m [230ft] Maximum Cable Length (mm) 70 Maximum Digital Resolutions 4096 x 2160 (4K) @ 30 Hz Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable No Rack-Mountable No Carton Depth (mm) 176 Carton Height (mm) 182 Carton Quantity 12 Carton Weight Gross (g) 2904 Included in Package - 1 - HDMI transmitter
- 1 - quick start guide
- 1 - 4.3 ft. [1.3 m] USB cable for power
Package Depth (mm) 104 Package Height (mm) 46 Package Width (mm) 156 Package Quantity 1 Package Weight (g) 210 Packaging Description Compact HDMI® over CAT5 Transmitter - 70m Packaging Description India Compact HDMI® over CAT5 Transmitter - 70m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-07-24 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-07-15 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-02-05 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
