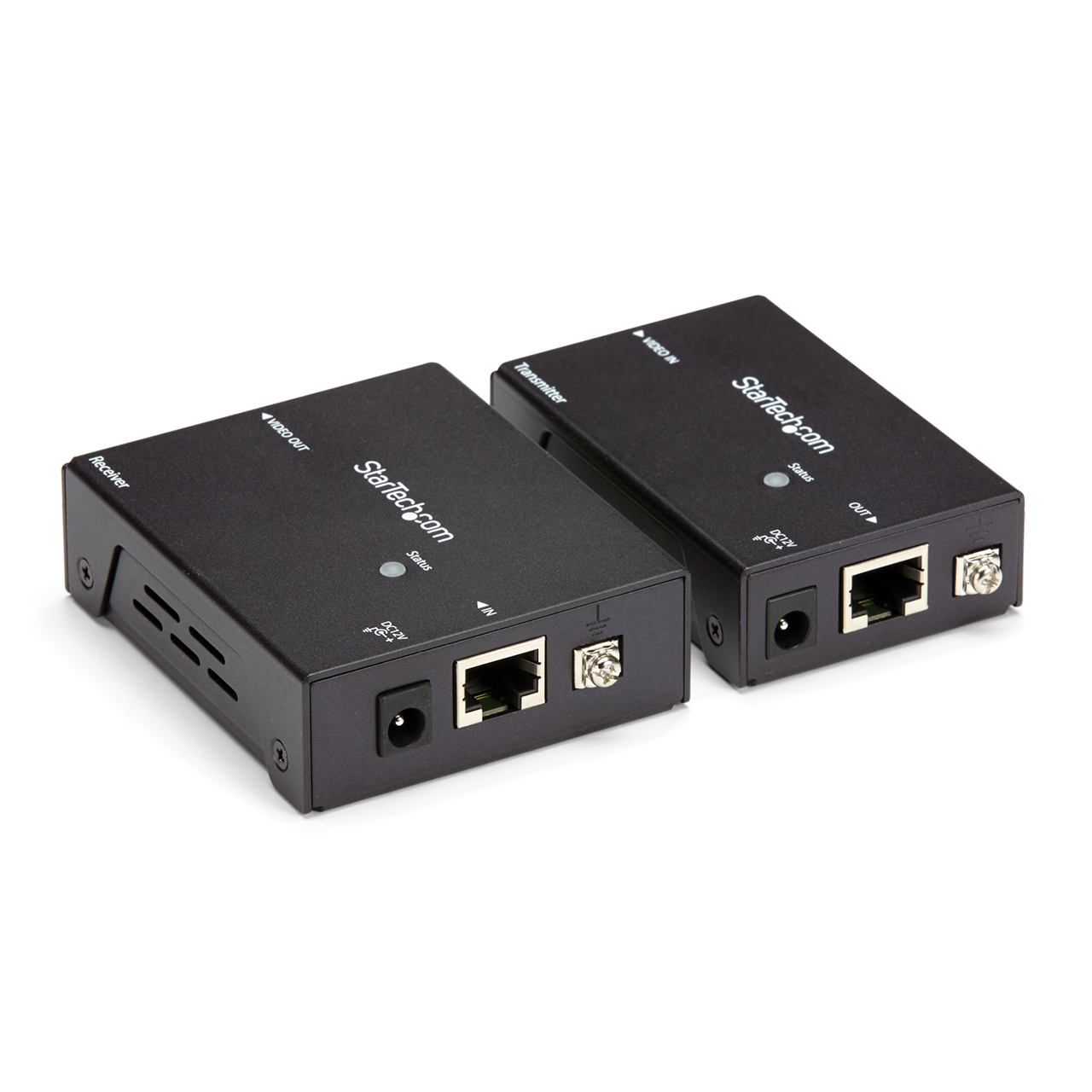

ST121HDBTE
HDMI extender 70m HDBASE-T power from one side
Extend HDMI® up to 230ft (70m) over a single CAT5e/6 cable with Power over Cable to Receiver
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name HDMI extender 70m HDBASE-T power from one side Product Number ST121HDBTE UPC 065030851107 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI CAT6 Extender Product Title (Short) HDMI Over Single Cat5e Extender - 4K Product Title (Medium) HDMI over CAT5 HDBaseT Extender - Power over Cable - 4K Product Title (Standard) HDMI over CAT5e HDBaseT Extender, Power over Cable, Ultra HD 4K, TAA Product Title (Long) HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K - TAA Product Title (AMZ) HDMI over CAT5e / CAT6 Ethernet Extender w/ HDBaseT, 4K@115ft, 1080p@230ft, HDMI Video Transmitter/Receiver Kit, TAA Title Ingram (Part 1) HDMI Over Single Cat5e Extender Title Ingram (Part 2) with Power Over Cable - 70m Website Product Headline Extend HDMI® up to 230ft (70m) over a single CAT5e/6 cable with Power over Cable to Receiver Bullet 1 Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling Bullet 2 Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70m) Bullet 3 70m (230ft) maximum Cat5 cable distance Bullet 4 No software/drivers required Bullet 5 Hassle-free, professional installation with included mounting brackets, and full video extension over one CAT5 cable Bullets (Compact) Extend HDMI® up to 230ft (70m) over a single CAT 5e / Cat 6 cable with Power over Cable to Receiver - HDMI® Over Single CAT5e or CAT6 Ethernet Extender with Power Over Cable - HDMI Extender Over CAT5e or CAT6 w/ POC Extender - 230 ft (70m) - 1080p Bullets (Consolidated) Extend HDMI up to 230ft (70m) over a single CAT5e/CAT6 cable with HDBaseT - Supports video resolutions up to 1080p - HDBaseT Extender/HDMI over single CAT5e or CAT6 Ethernet Extender/Power Over Cable/HDMI Extender Over CAT5e or CAT6/POC Extender/HDBaseT CAT5 - Works at distances up to 230 feet (70 meters) - Requires one power adapter for both the transmitter and receiver - Cost-effective HDMI extension through non-proprietary network cabling - Mounting hardware included for tidy installation Marketing Copy Marketing Copy (No HTML) Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Optimize placement of your demo stations at tradeshows and in auditoriums

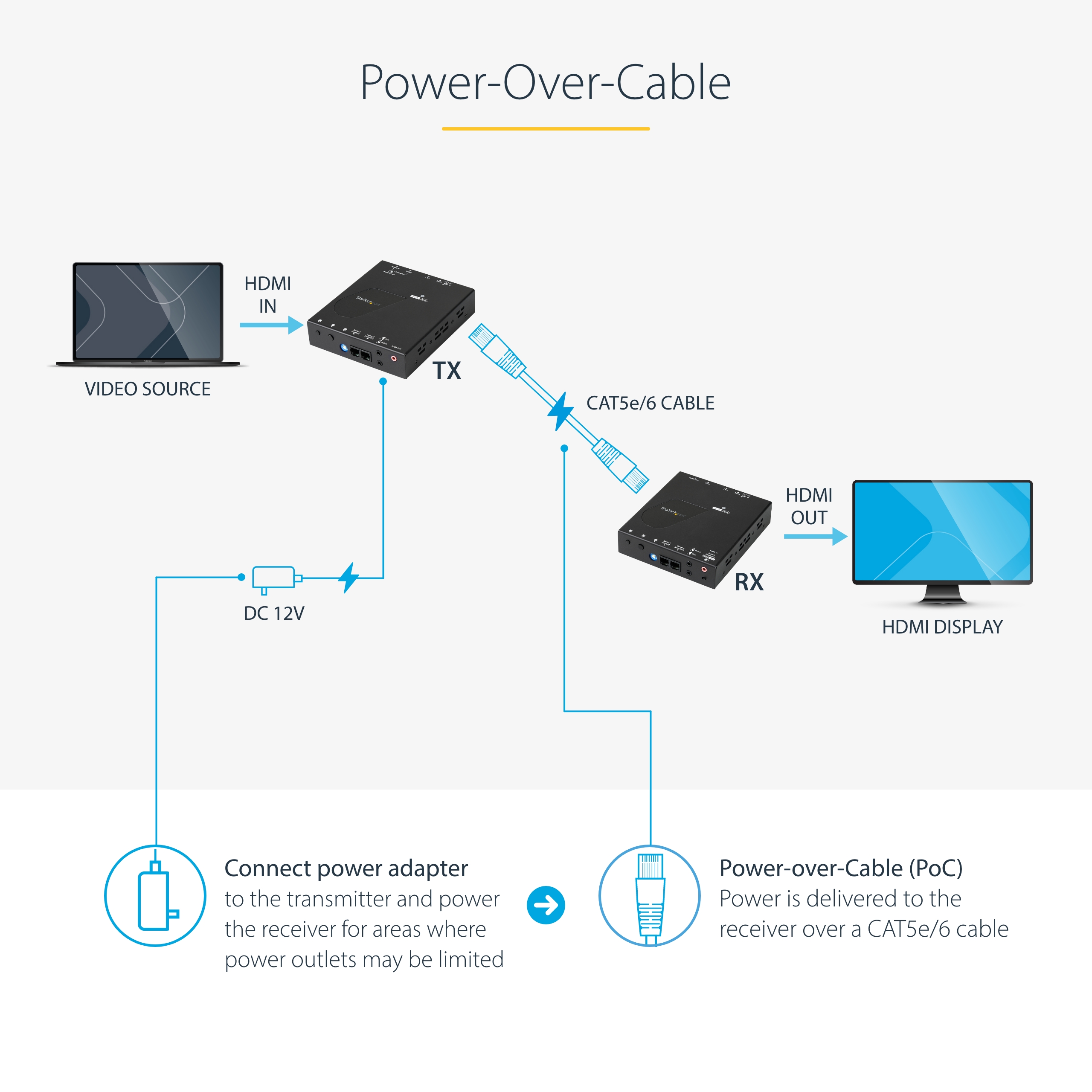

- Extend HDMI when power outlets are limited, with only a single power adapter required at either the Transmitter or Receiver, using Power Over Cable
Website Search Keyword - HDMI Extender
- HDMI over Cat 6
- HDMI over Cat6
- HDMI video over cat 6
- HDMI video over cat6
- active extender
- BHDBT-K-PI
- B126-1A1
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes If you want to add more displays, you can daisy chain this product with the HDBaseT repeater ST121HDBTRP. Accessory Products - IM12D1500P
- HDMM6
- HDMM10
- HDMMV2M
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- ST121HDBTRP
- ST124HD4K
- VS440HDMI
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST121HDT4P
- ST12MHDDCRP
- ST121HDFXA
- ST121SHD50
- ST121UTPHD2
- ST12MHDDC
Constrained SKU Alternatives (Limited Stock) ST121HDBTPW Input Current 0.5A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 7 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % RH (non-condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 80.000 Product Width (mm) 67.000 Product Height (mm) 25.000 Product Weight (g) 428.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 70m [230ft] Maximum Cable Length (mm) 70000 Maximum Digital Resolutions MTBF (hours) 52,000 hrs. Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling Cat 5e UTP or better Cascadable No LED Indicators - 1 - status LED (local)
- 1 - status LED (remote)

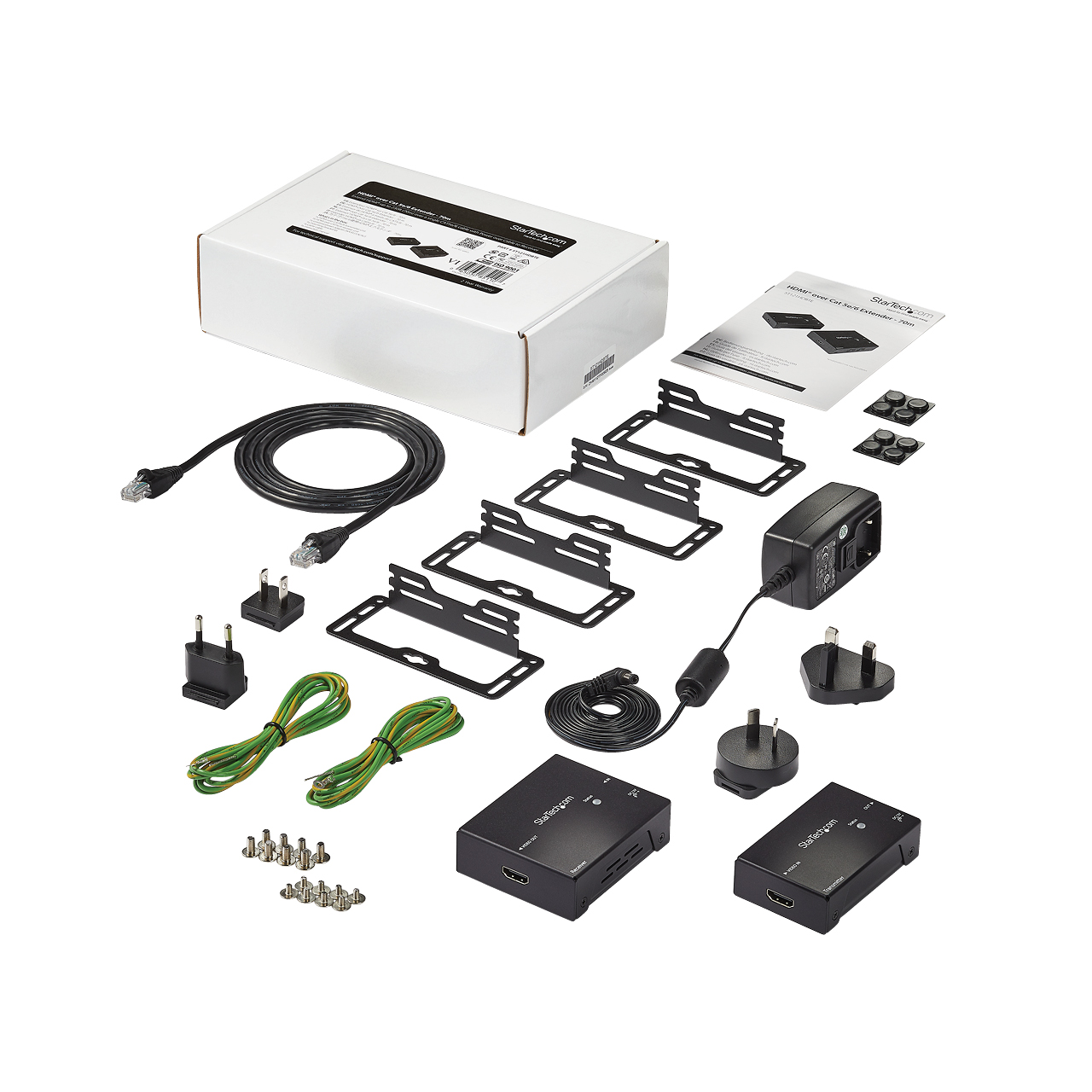

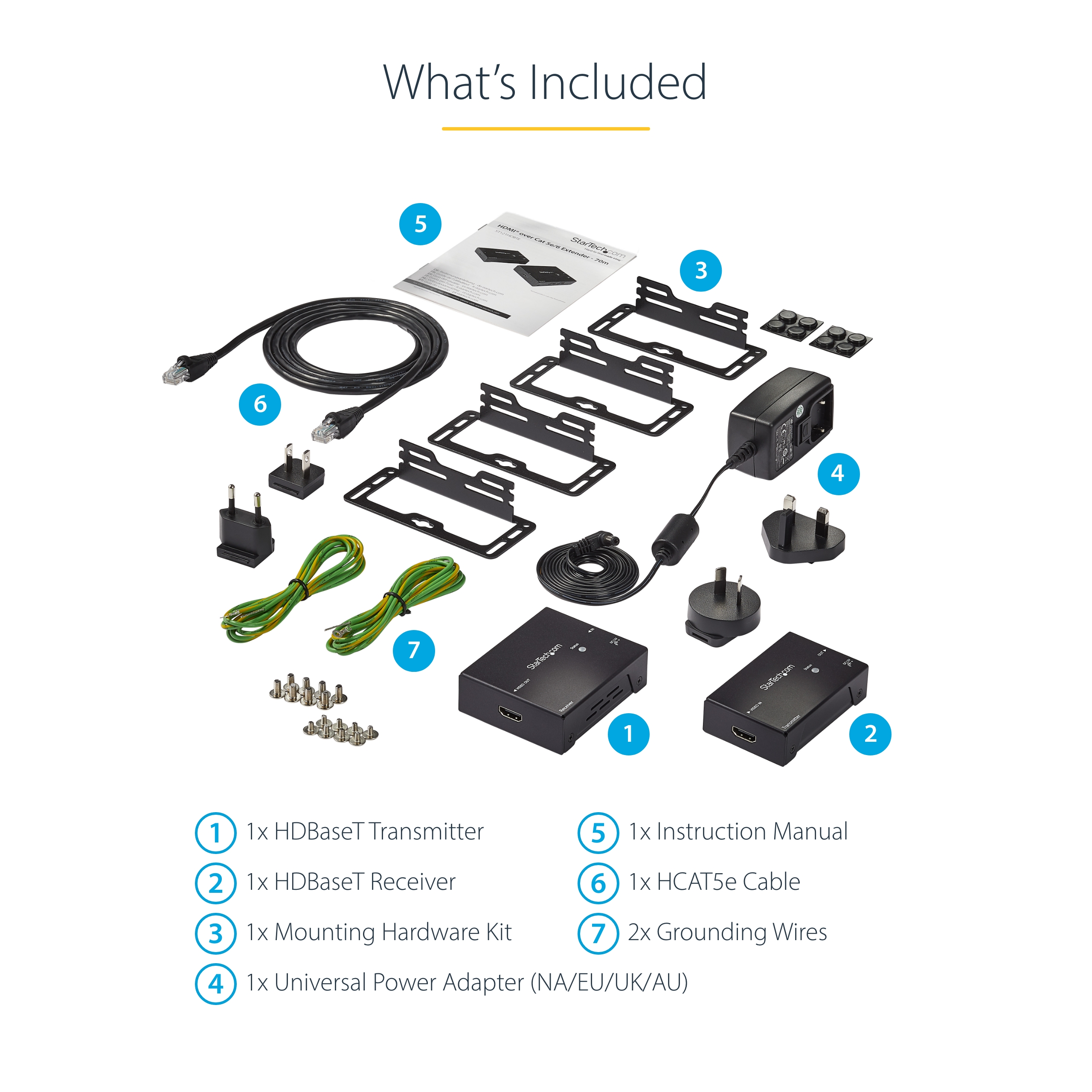

Carton Depth (mm) 322 Carton Height (mm) 264 Carton Quantity 12 Carton Weight Gross (g) 13712 Included in Package - 1 - HDMI over CAT5e/6 transmitter unit
- 1 - HDMI over CAT5e/6 receiver unit
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - instruction manual
- 1 - mounting bracket kit
- 2 - grounding wires
- 1 - 5ft (1.5m) Cat5e Cable

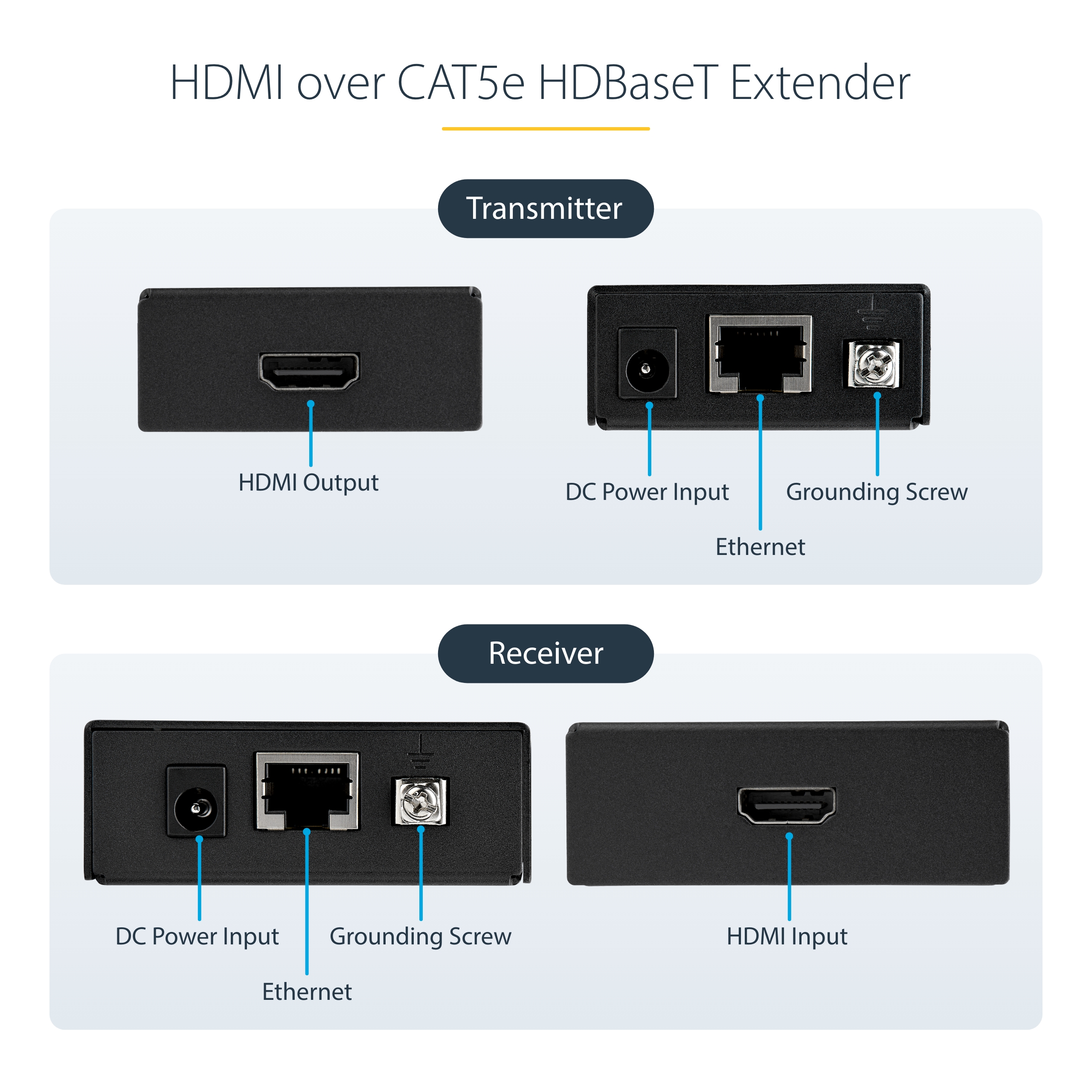

Package Depth (mm) 158 Package Height (mm) 70 Package Width (mm) 234 Package Quantity 1 Package Weight (g) 1084 Packaging Description HDMI® over Cat 5e/6 Extender - 70m Packaging Description India HDMI® over Cat 5e/6 Extender - 70m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
