HDBaseT lite HDMI extender with RS-232 and IR

Extend HDMI over CAT6 or CAT5e cabling, with RS232 serial and IR control

Main Image

Product Images

Product Images

BOM Image

Product Name	HDBaseT lite HDMI extender with RS-232 and IR
Product Number	ST121HDBTL
UPC	065030868396
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Extenders > Video Extenders
Category Level 1	Video Display Connectivity
Category Level 2	Video Extenders
Category Level 3	HDBaseT
Family	No Family
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX066X

Manual https://images.salsify.com/image/upload/s--g85AkOdg--/701a143e81fe89b5640f905f6f9c8e69880233f6.pdf

Product Title (Ultra-Short)	4K HDBaseT Extender
Product Title (Short)	Extender HDMI Over Cat5e HDBaseT - 4K
Product Title (Medium)	HDMI over CAT5 Extender with IR and Serial - HDBaseT Extender - HDMI over CAT6
Product Title (Standard)	HDMI over CAT5e Extender with IR and Serial, HDBaseT Extender, HDMI over CAT6, 4K, TAA
Product Title (Long)	HDMI over CAT5e Extender with IR and Serial - HDBaseT Extender - 4K - TAA
Product Title (AMZ)	HDMI Over Cat5e / CAT6 Extender - Extend up to 210 ft / 70m - HDBaseT Certified - HDMI Extender - IR Extender - HDMI Booster , TAA (ST121HDBTL)
Title Ingram (Part 1)	4K HDBaseT Extender Kit - HDMI
Title Ingram (Part 2)	CAT6 Video Extender - IR RS232
Website Product Headline	Extend HDMI over CAT6 or CAT5e cabling, with RS232 serial and IR control
Bullet 1	HDMI OVER CAT5e/CAT6: Extend an Ultra HD 4K 30Hz HDMI video signal and 7.1CH audio up to 115' (35m) over Cat5e/6 Ethernet cable; Extend 1080p HDMI up to 230' (70m); YUV video encoding; RS-232 & IR extension/control; 4:4:4 chroma subsampling, HDCP 1.4
Bullet 2	SINGLE POWER ADAPTER FLEXIBILITY: For added installation flexibility, the power adapter can be placed at either the remote or local side for areas where power outlets may be limited; Power is delivered to transmitter/receiver over the Ethernet cable (POC)
Bullet 3	HDBASET CERTIFIED: HDMI extender is tested and certified by the HDBaseT Alliance to help ensure quality and compatibility for Digital Signage & AV installers/integrators for commercial and/or professional environments
Bullet 4	INCLUDED ACCESORIES: Transmitter & receiver with point to point direct connection (no network equipment required); Cat5e cable for testing; IR Blaster and IR Receiver w/ mounting hardware (IR remote not incl)
Bullet 5	EASY INSTALLATION: No IP configuration or drivers required for the powered HDMI extender kit (transmitter & receiver); An HDBaseT repeater (ST121HDBTRP) is available for scalable solutions over longer distances
Bullets (Compact)	Extend HDMI over CAT6 or CAT5e cabling with RS232 serial and IR control - HDBaseT extender - Video extender - HDMI over CAT5e extender - CAT5e HDMI extender - HDBaseT extender - HDMI booster - HDMI CAT 5e extender - HDMI repeater - HDMI extension
Bullets (Consolidated)	Extend HDMI over CAT6 or CAT5e cabling with RS232 serial and IR control - Get hassle-free video and control extension with HDMI IR RS-232 and power with a single HDBaseT extender - Get a reliable video extender with an HDBaseT certified HDMI over CAT5e extender - Professional installation with mounting hardware included - Maintain astonishing 4K picture quality at up to 115 ft. (35 m) away/CAT5e HDMI extender/HDBaseT extender/HDMI booster/HDMI CAT 5e extender/HDMI repeater/HDMI extension
Marketing Copy
Marketing Copy (No HTML)	The extender offers a complete end-to-end video and control solution, using HDBaseT technology to extend not just HDMI, but also DC power, IR and serial control over a single CAT5 cable. This HDBaseT extender has been certified via the HDBaseT Certification Program. This certification ensures the extender is compliant with HDBaseT technical standards, and maximizes reliability with your HDMI display and video source, by ensuring compliance with their established HDMI ecosystem. This HDBaseT extender maintains your UHD 4K picture quality - four times the resolution of high-definition 1080p - even at 330 feet away from your video source. Plus, because the extender supports high-definition 1080p and lower resolutions, you can comfortably use this extender to make any video source look great, while future-proofing your setup for 4K implementation. HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Both the transmitter and receiver included with this HDBaseT extender kit are mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It's perfect for customer-facing displays in bars, restaurants or hotel lobbies. Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable. The ST121HDBTL is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications	Extend video where power outlets are limited with HDBaseT offering power over cable that powers both the transmitter and receiver using a single power source at either side of the connection Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword	210ft 4k 70m best hdmi extender over cat6 best hdmi over cat6 cat5 hdmi extender cat6 hdmi cat6 to hdmi converter Dell Inspiron 15 3000 Dell Inspiron 15 5000 Digital Signage ethernet to ir Extend HDMI Extend HDMI over cat6 hd base t extender HDBaseT Certified HDBaseT Extender hdbaset hdmi hdbaset hdmi extender hdbaset lite hdbaset technology hdmi amplifier hdmi and ir over cat6 hdmi booster hdmi cat 5 extender hdmi cat 6 extender hdmi cat5 hdmi cat6 hdmi distribution over cat5 hdmi distribution over cat6 HDMI Extender hdmi extender cat5 hdmi extender cat6 hdmi extender ethernet hdmi extender ir hdmi extender over cat5e or cat6 cables hdmi extender over single cat5 hdmi extender over single cat6 hdmi extender with ir hdmi extension HDMI HDBaseT hdmi over cat 6 HDMI over CAT5 hdmi over cat5 distribution hdmi over cat5 extender hdmi over cat5 with ir HDMI over CAT6 hdmi over cat6 extender hdmi over cat6 with ir hdmi over ethernet hdmi over ethernet network hdmi over ethernet with ir hdmi over single cat5 hdmi over single cat6 hdmi repeater hdmi signal booster hdmi to cat5 hdmi to cat5 converter hdmi to cat5 extender hdmi to cat6 hdmi to cat6 converter hdmi to cat6 extender hdmi to ethernet hdmi to ethernet converter hdmi to ethernet extender HP Probook 450 G2 ir extender ir extender kit ir hdmi extender ir over cat6 ir over ethernet ir repeater over cat5 ir repeater over cat6 Kanex EXT-HDBASE70E Kanex HDBASE70POE Macbook Pro Mounting hardware Power Over Cable Power over ethernet Pro AV Rs 232 rs232 extender ThinkPad E550 Thinkpad X1 Carbon Thinkpad Yoga 11e UHD Ultra HD Video Extender video extender over cat5 video over cat5 video over cat6

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

Special Notes If you want to add more displays, you can daisy chain this product with the HDBaseT repeater ST121HDBTRP.

Accessory Products	IM12D1500P HDMM6 HDMM10 HDMM15 RJ45PATCH25 RJ45PATCH50 RJ45PATCH75 N6PATCH100WH ST121HDBTRP VS440HDMI SVA12M2NEUA SVA12M5NA
Related Products	ST121HDBTE ST121HDBT5 ST121HDT4P ST12MHDDCRP ST121HDFXA ST121SHD50 ST121UTPHD2 ST12MHDDC

Input Current 0.6 A
Input Voltage 100 - 240 AC
Output Current 1.5 A
Output Voltage (V) 12V DC
Power Consumption (In Watts) 18
Power Source AC Adapter Included
Plug Type M
Center Tip Polarity Positive

Color	Black
Humidity	0% - 80 %
Material	Steel
Operating Temperature	0°C to 40°C (32°F to 104°F)
Primary Material	Steel
Product Length (mm)	92
Product Width (mm)	66
Product Height (mm)	27
Product Weight (g)	452
Storage Temperature	-10°C to 60°C (14°F to 140°F)
TAA Compliant	Yes

Max Distance 70m [230ft]
Maximum Cable Length (mm) 70000
Maximum Digital Resolutions
Supported Resolutions
Wide Screen Supported Yes
Audio Yes
AV Input HDMI
AV Output HDMI
Cabling Cat 5e UTP or better
Cascadable Yes
LED Indicators
1 - status LED (transmitter)
1 - status LED (receiver)

Carton Depth (mm)	410
Carton Height (mm)	334
Carton Quantity	12
Carton Weight Gross (g)	13834

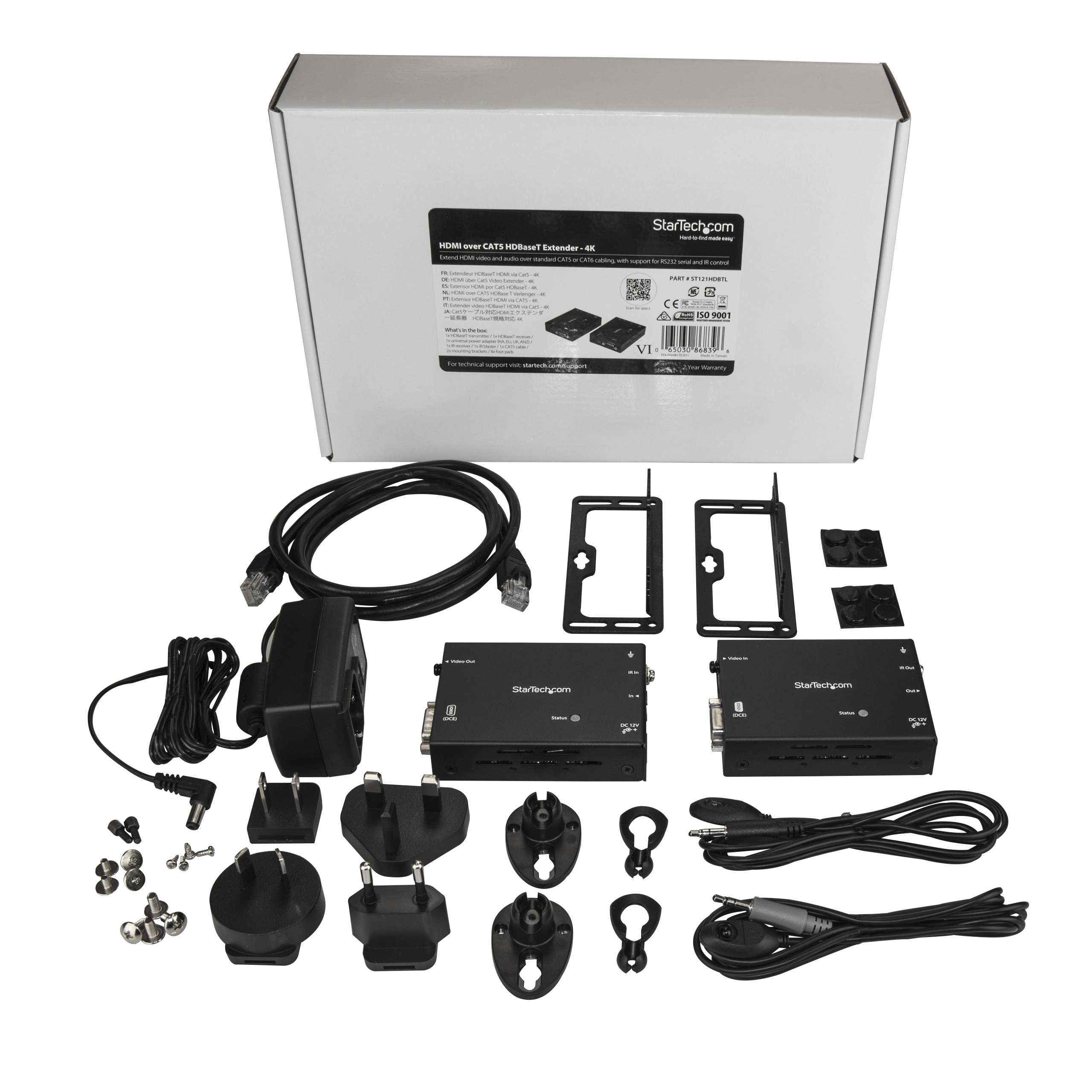

Included in Package	1 - HDBaseT transmitter 1 - HDBaseT receiver 1 - universal power adapter (NA, EU, UK, ANZ) 1 - IR receiver 1 - IR blaster 8 - foot pads 2 - mounting brackets 1 - 5ft (1.5m) Cat5e Cable
Package Depth (mm)	197
Package Height (mm)	75
Package Width (mm)	295
Package Quantity	1
Package Weight (g)	1054
Packaging Description	HDMI over CAT5 HDBaseT Extender - 4K
Packaging Description India	HDMI over CAT5 HDBaseT Extender - 4K
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

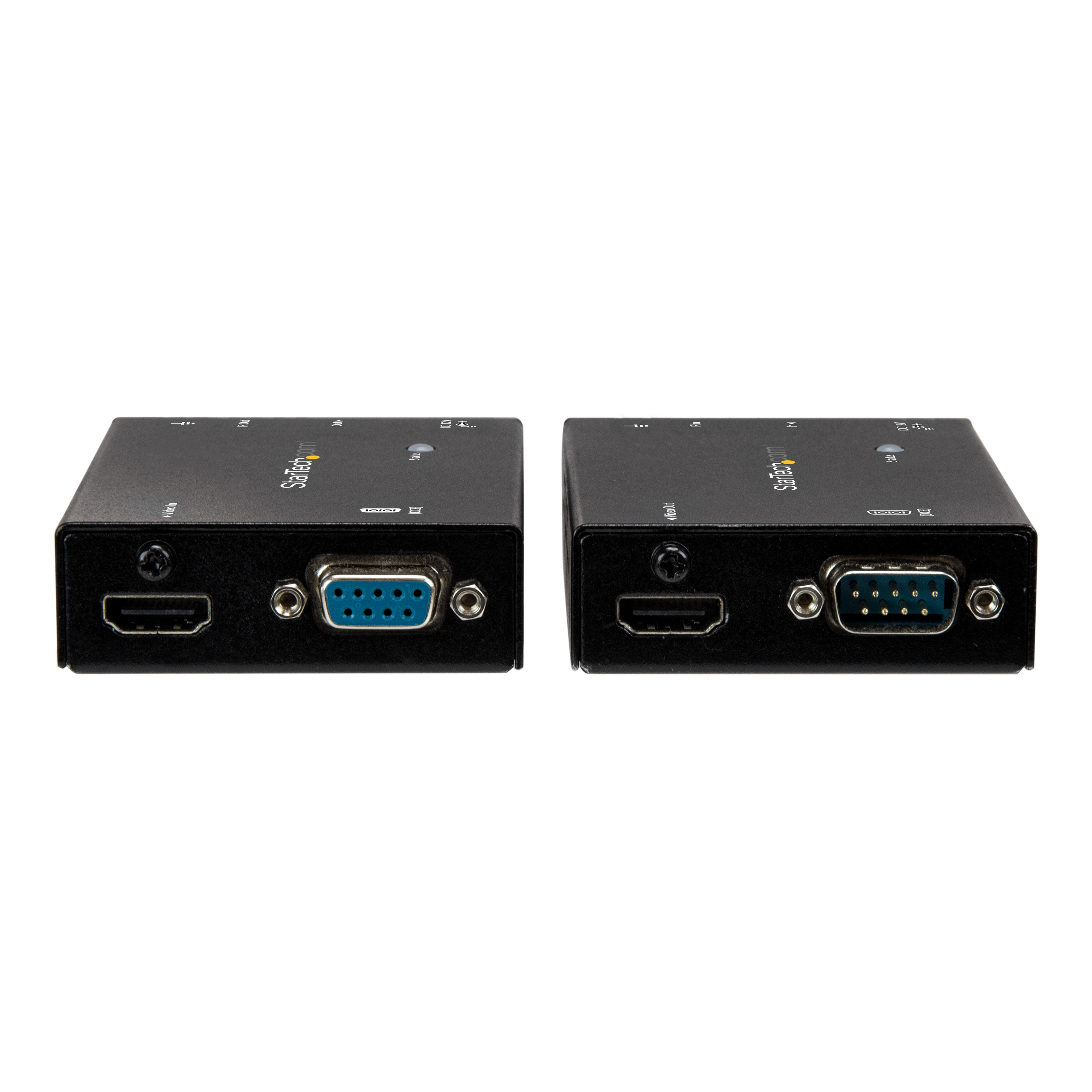

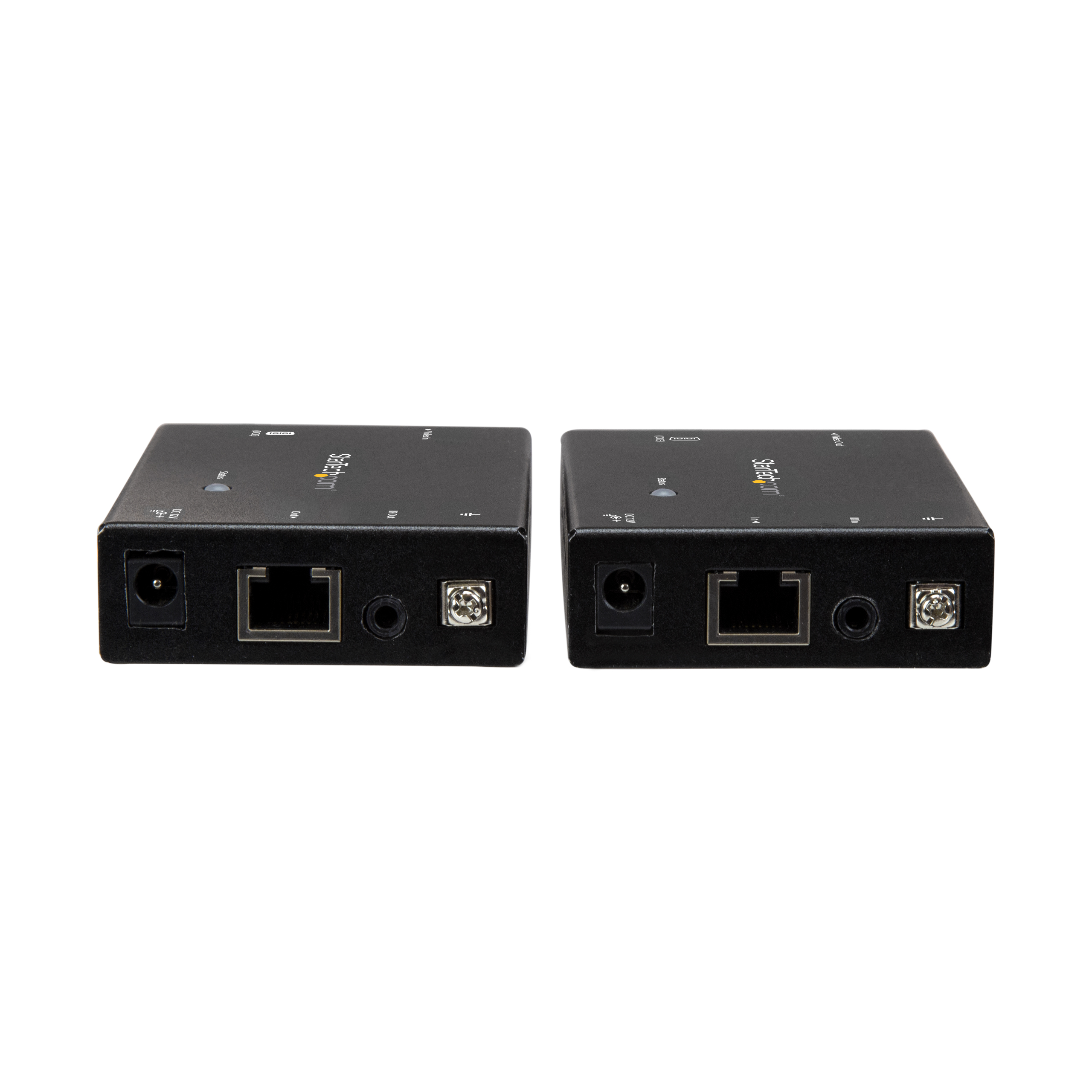

Connector 1	HDMI
Connector 1 (Quantity)	1
Connector 2	DB-9 Serial
Connector 2 (Quantity)	1
Connector 3	RJ-45
Connector 3 (Quantity)	1
Connector 4	3.5mm (3 Conductors, TRS)
Connector 4 (Quantity)	1
Host Connector 1	HDMI
Host Connector 1 (Quantity)	1
Host Connector 2	DB-9 Serial
Host Connector 2 (Quantity)	1
Host Connector 3	RJ-45
Host Connector 3 (Quantity)	1
Host Connector 4	3.5mm (3 Conductors, TRS)
Host Connector 4 (Quantity)	1

Amazon Merchandising Manager	Kathleen Marshall
Artwork Due Date	2017-03-31
Buying Center - AV & Collaboration	Yes
Buying Center - Data Center	No
Buying Center - End User Compute	No
Buying Center - Networking & Edge	No
Digital Content Due Date	2017-06-21
Enhanced Gallery Designer	Rob Selenis
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
Launch Markets (concatenated)	AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US
Primary Technology	None
Product Development Specialist	Otto Gutierrez
Product Information Creation Specialist (PICS)	Dan Dagenais
Product Manager	Rob Fleck
Product Performance Specialist	Ray Aoki
Product Photographer	Alejandra Valencia
Target Development Completion Date	2017-02-24
Target Production Release	2017-03-31
Tech Lead	Justin Weaver
Technical Writer	Andrew Richardson
Technology Lifecycle	None
Vending Machine	Not Compatible with Vending Machine

Input Current	0.6 A
Input Voltage	100 - 240 AC
Output Current	1.5 A
Output Voltage (V)	12V DC
Power Consumption (In Watts)	18
Power Source	AC Adapter Included
Plug Type	M
Center Tip Polarity	Positive

Max Distance	70m [230ft]
Maximum Cable Length (mm)	70000
Maximum Digital Resolutions
Supported Resolutions
Wide Screen Supported	Yes

Audio	Yes
AV Input	HDMI
AV Output	HDMI
Cabling	Cat 5e UTP or better
Cascadable	Yes
LED Indicators	1 - status LED (transmitter) 1 - status LED (receiver)
