ST121HDBTPW
HDMI Over CAT 5 UTP Extender w Power Over Cable

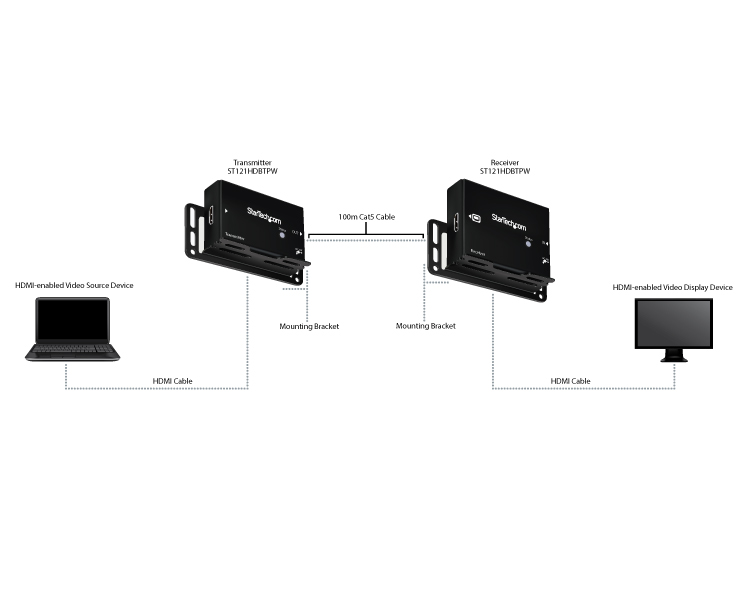

Extend HDMI up to 330ft (100m) over CAT5e/CAT6 cable with Power over Cable to Receiver
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Over CAT 5 UTP Extender w Power Over Cable Product Number ST121HDBTPW UPC 065030854177 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI CAT6 Extender Product Title (Short) HDMI Over CAT5e / CAT6 Extender - 4K Product Title (Medium) x Product Title (Standard) HDMI over CAT5e HDBaseT Extender, Power over Cable, Ultra HD 4K, TAA Product Title (Long) HDMI over CAT5e HDBaseT Extender - 4K - TAA Product Title (AMZ) 330 ft. (100 m) HDMI Over CAT5e / CAT6 Extender - HDMI over CAT5e - HDBaseT Extender - 4K30 - HDMI Video Extender , TAA (ST121HDBTPW) Title Ingram (Part 1) HDMI Over CAT5e Extender Title Ingram (Part 2) with Power Over Cable - 4K Website Product Headline Extend HDMI up to 330ft (100m) over CAT5e/CAT6 cable with Power over Cable to Receiver Bullet 1 Extend video where power outlets are limited with HDBaseT offering power over cable that powers both the transmitter and receiver using a single power source at either side of the connection Bullet 2 Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling Bullet 3 Hassle-free, professional installation with included mounting brackets, and full video extension existing infrastructure Bullet 4 HDMI transmitter and receiver included Bullet 5 No software or drivers required Bullets (Consolidated) Use this HDBaseT extender to extend your HDMI signal up to 330ft over CAT5e or CAT6 with only a single power adapter - Works with HDMI video source devices such as Blu-ray players and cable boxes and HDMI displays - Compatible with HDBaseT extension systems - HDBaseT extender/HDMI extender/HDMI over CAT5e/Power Over Cable HDMI Extender/HDMI over CAT5e/CAT6 Ethernet Extender - Power over cable means the remote receiver doesn't require power so you can extend to areas with limited power outlets Marketing Copy Marketing Copy (No HTML) Applications - Extend HDMI to locations where power outlets are limited
- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword BHDBT-K-SI Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes If you want to add more displays, you can daisy chain this product with the HDBaseT repeater ST121HDBTRP. Accessory Products - IM12D1500P
- HDMM6
- HDMM10
- HDMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- N6PATCH100WH
- ST121HDBTRP
- VS440HDMI
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST121HDT4P
- ST12MHDDCRP
- ST121HDFXA
- ST121SHD50
- ST121UTPHD2
- ST12MHDDC
- ST121HDBTE
- ST121HDBT5
Constrained SKU Alternatives (Limited Stock) ST121HDBT20L Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Color Black Humidity 0% - 80 % RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 80 Product Width (mm) 67 Product Height (mm) 25 Product Weight (g) 423 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Cable Length (mm) 100000 Maximum Digital Resolutions Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling Cat 5e UTP or better Cascadable No LED Indicators - 1 - Status (transmitter)
- 1 - Status (receiver)

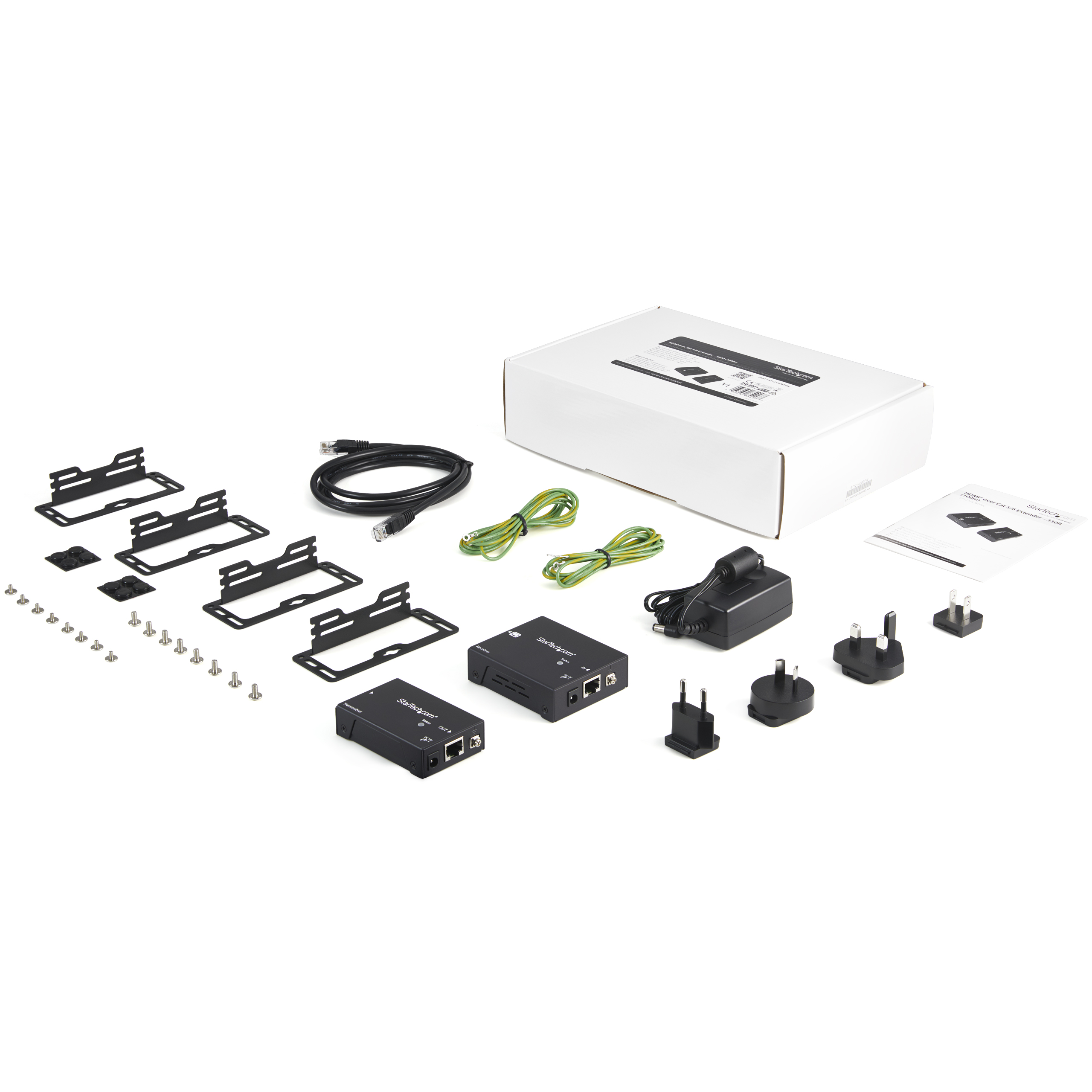

Carton Depth (mm) 418 Carton Height (mm) 337 Carton Quantity 12 Carton Weight Gross (g) 14128 Included in Package - 1 - HDMI extender
- 4 - mounting brackets
- 2 - foot pad set
- 2 - grounding wires
- 1 - instruction manual
- 1 - HDMI receiver
- 1 - universal power adapter (NA / EU / UK / AU)
- 2 - screw sets
- 1 - 5ft (1.5m) Cat5e Cable
Package Depth (mm) 295 Package Height (mm) 74 Package Width (mm) 196 Package Quantity 1 Package Weight (g) 1102 Packaging Description HDMI over Cat 5/6 Extender – 330ft (100m) Packaging Description India HDMI over Cat 5/6 Extender – 330ft (100m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-09-10 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
