ST121HDBTRP
HDBaseT HDMI Line Repeater with Local HDMI Out
Turn your HDBaseT extender into a scalable distribution system, by delivering HDMI content to additional locations
Main Image
Product Images
Product Images
BOM Image
Product Name HDBaseT HDMI Line Repeater with Local HDMI Out Product Number ST121HDBTRP UPC 065030864565 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDBaseT Repeater Product Title (Short) ST121HDBTE, ST121HDBTPW HDBaseT Repeater Product Title (Medium) HDBaseT Repeater for ST121HDBTE or ST121HDBTPW - 4K Product Title (Standard) HDBaseT Repeater for ST121HDBTE or ST121HDBTPW HDMI Extender Kit - HDBaseT Distribution System - 4K Product Title (Long) HDBaseT Repeater for ST121HDBTE or ST121HDBTPW HDMI Extender Kit - 4K Product Title (AMZ) HDBaseT Repeater for ST121HDBTE or ST121HDBTPW HDMI over CAT5e / CAT6 Extender Kit - HDBaseT Distribution System - 4K (ST121HDBTRP) Title Ingram (Part 1) HDBaseT Repeater w/ HDMI Out For Title Ingram (Part 2) ST121HDBTE or ST121HDBTPW - 4K Website Product Headline Turn your HDBaseT extender into a scalable distribution system, by delivering HDMI content to additional locations Bullet 1 Expand your HDBaseT video signal to accommodate more displays in different locations Bullet 2 Increase the range and scalability of your HDBaseT setup by adding up to three independent repeaters Bullet 3 Ensures compatibility with your existing HDBaseT hardware, with HDCP compliance Bullet 4 Maintain astonishing picture quality up to 130 feet away, with support for UltraHD 4K, over non-proprietary CAT5e or CAT6 cabling Bullet 5 Supports HD video resolutions such as 1920x1200 or 1080p up to 230 ft. away Bullets (Compact) Turn your HDBaseT extender into a scalable distribution system by delivering HDMI content to additional locations - Works with ST121HDBTE and ST121HDBTPW HDMI extenders - 4K picture quality up to 130 feet away - HDMI over CAT5e repeater with HDMI out Bullets (Consolidated) Turn your HDBaseT extender into a scalable distribution system, by delivering HDMI content to additional locations - Works with ST121HDBTE and ST121HDBTPW HDMI extenders and HDMI monitors projectors and televisions - HDMI extender/HDBaseT Repeater/HDBaseT to HDMI/HDMI over CAT5e/HDMI HDBaseT repeater - Expand your HDBaseT video signal to accommodate more displays in different locations - Increase the range and scalability of your HDBaseT extender - 4K picture quality up to 130 feet away Marketing Copy Marketing Copy (No HTML) Applications - Add more displays to your existing HDBaseT run
- Create a scalable solution that gives you the freedom to add displays at different locations in the future
- Route digital signage through large commercial settings, such as schools, hospitals, arenas or shopping centers
Website Search Keyword - 4k
- hdmi over cat6
- hdmi repeater
- HDBaseT Repeater
- HDMI extender 1080p
- HDMI extender IR
- HDMI extender receiver
- hdmi over cat7
- HDMI extender transmitter
- hdmi over hdbaset
- hdmi over hdbaset repeater
- hdmi hdbaset repeater
- 70m range
- hdmi over cat7 repeater
- hdmi over cat6 repeater
- HDMI extender repeater
- HDMI extender serial
- HDMI extender 70m
- HDMI extender EDID
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - IM12D1500P
- HDMM6
- HDMM10
- HDMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- ST121HDBTE
- ST121HDBTPW
Related Products - ST121SHD50
- ST121SHD30
- ST121UTPHD2
- ST121HDBTU
- ST121HDBTDK
- ST121HDBTD
- ST121HDBT5
- ST121HDT4P
Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 220.000 Product Width (mm) 117.000 Product Height (mm) 43.000 Product Weight (g) 930.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 70m [230ft] Maximum Cable Length (mm) 70000 Maximum Digital Resolutions 4096 x 2160 (4K) @ 30 Hz Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI Cabling Cat 5e UTP or better Cascadable Yes LED Indicators - 2 - input selection LEDs
- 2 - output selection LEDs
- 1 - status LED

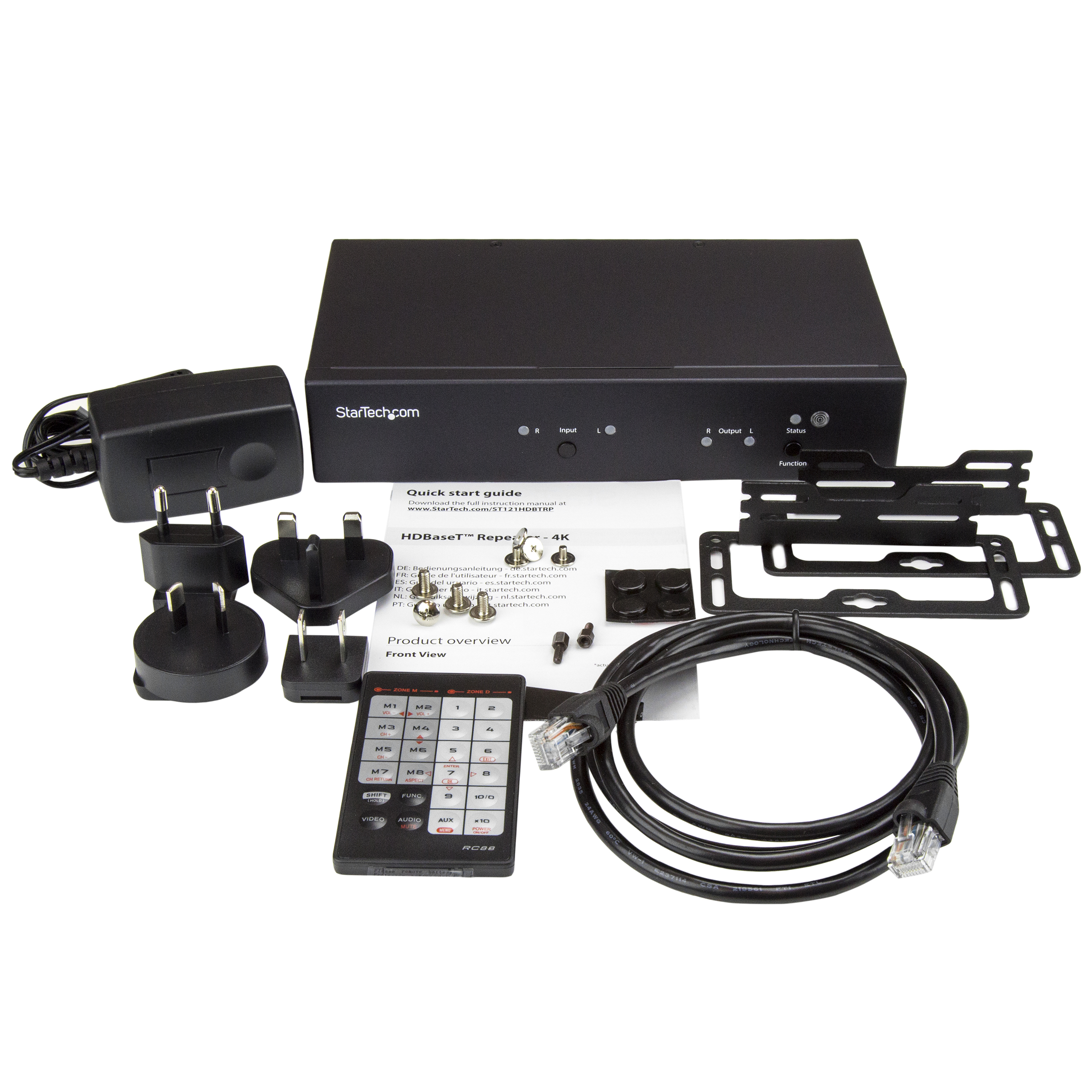

Rack-Mountable Yes Carton Depth (mm) 389 Carton Height (mm) 275 Carton Quantity 6 Carton Weight Gross (g) 11300 Included in Package - 1 - HDBase-T repeater
- 1 - universal power adapter (NA / UK / EU / AU)
- 1 - CAT5 cable
- 1 - mounting kit
- 1 - rubber foot pad set
- 1 - quick start guide
- 1 - screw kit
- 1 - IR remote control
Package Depth (mm) 235 Package Height (mm) 77 Package Width (mm) 368 Package Quantity 1 Package Weight (g) 1680 Packaging Description HDBaseT™ Repeater - 4K Packaging Description India HDBaseT™ Repeater - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 HDMI Host Connector 2 (Quantity) 1 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 2 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 1 Host Connector 5 RJ-45 Host Connector 5 (Quantity) 1 Host Connector 6 RJ-45 Host Connector 6 (Quantity) 1 Host Connector 7 DB-9 Serial Host Connector 7 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-02-09 Digital Content Due Date 2016-08-05 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-02-05 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
