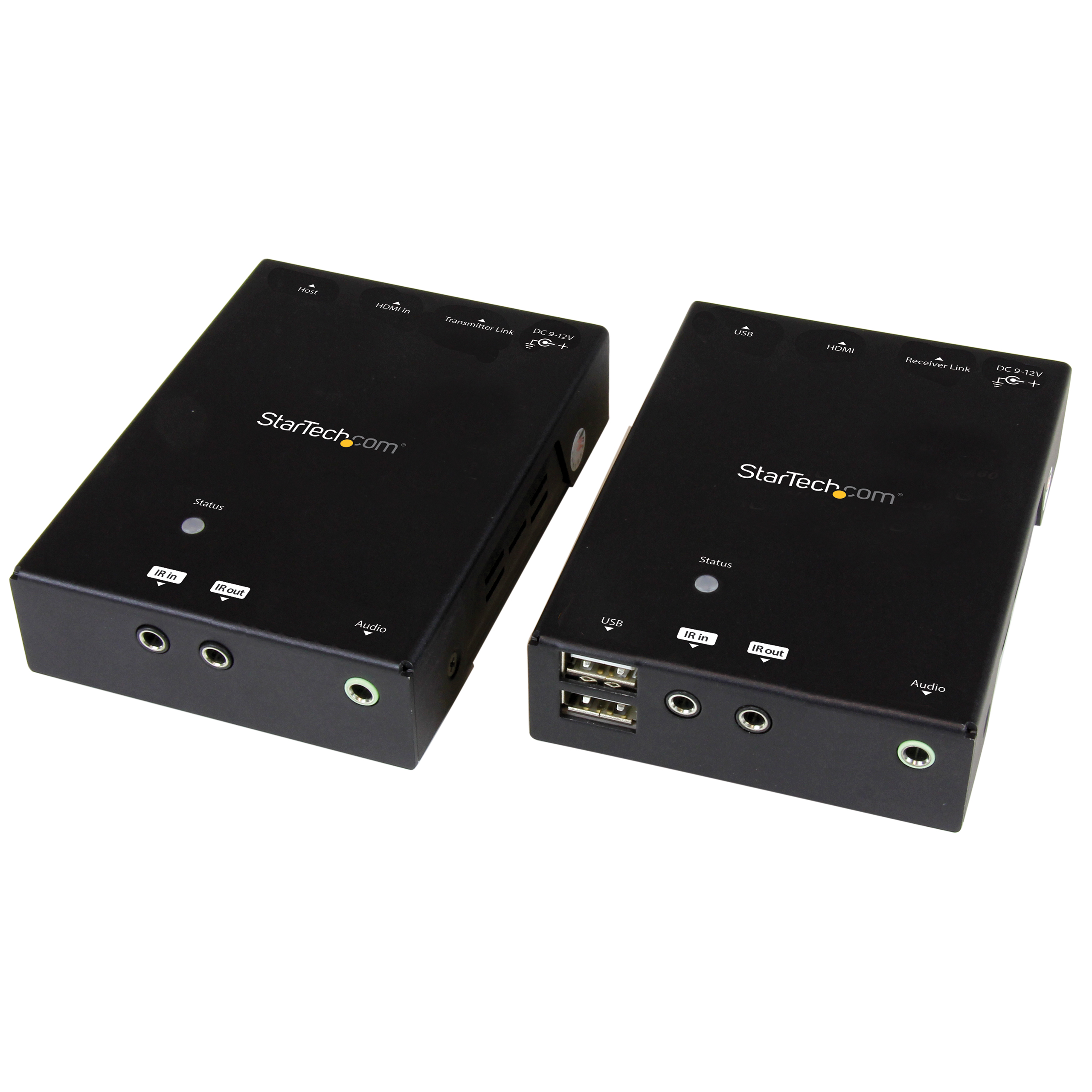

ST121HDBTU
HDBaseT 2.0 with USB extender
Extend Ultra HD 4K video, an IR signal and four USB devices to a remote location, with power over cable
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDBaseT 2.0 with USB extender Product Number ST121HDBTU UPC 065030863223 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDBaseT USB Extender Product Title (Short) HDMI over CAT5e HDBaseT Extender - 4K Product Title (Medium) HDMI over CAT56 HDBaseT Extender with USB Hub and IR - 295 ft (90m) - Up to 4K Product Title (Standard) HDMI over CAT5e or CAT6 HDBaseT Extender with USB Hub and IR - 295 ft (90m) - Up to 4K Product Title (Long) HDMI over CAT5e HDBaseT Extender with USB Hub - 295 ft (90m) - Up to 4K Product Title (AMZ) HDMI over CAT5e / CAT6 HDBaseT Extender with 4-port USB Hub, IR and Power over Cable - 295 ft (90m) - Ultra HD 4K (ST121HDBTU) Title Ingram (Part 1) HDBaseT 2.0 Extender with HDMI Title Ingram (Part 2) and USB - HDMI over CAT5e - 90m Website Product Headline Extend Ultra HD 4K video, an IR signal and four USB devices to a remote location, with power over cable Bullet 1 Extend video to locations where power outlets are limited, with both the transmitter and receiver using a single power source at either side of the connection Bullet 2 Maintain astonishing picture quality up to 295 feet away, with support for UltraHD 4K Bullet 3 Mounting brackets are included for a hassle-free installation Bullet 4 Also supports HD video resolutions such as 1920x1200 or 1080p at 330 ft Bullet 5 No software or drivers required Bullets (Compact) Extend Ultra HD 4K video, an IR signal and four USB devices to a remote location, with power over cable - Supports HDBaseT 2.0 - 295ft HDMI & USB extension - Works with standard CAT5e or CAT6 cable - UltraHD picture quality with 4K @ 30Hz resolution Bullets (Consolidated) Extend Ultra HD 4K video, an IR signal and four USB devices to a remote location, with power over cable - 295 ft HDBaseT extender - Compatible with HDMI video source devices such as computers, set top boxes Blu-ray and DVD players and HDMI monitors and televisions - Supports resolutions up to 4K at 30hz - HDBaseT 2.0/HDMI extender/USB extender/HDMI and USB over CAT5e or CAT6 Extender/HDMI 4K Extender/HDMI over CAT5e - Extend USB and video to create a remote kiosk with touchscreen or console control Marketing Copy Marketing Copy (No HTML) Applications - Place the display in a convenient viewing area, while the system equipment is installed elsewhere in a clean and secure environment
- Optimize the placement of your demo stations at tradeshows and in auditoriums
- Extend USB and video to create a remote kiosk with touchscreen or console control
Website Search Keyword - HDMI over CAT5
- HDMI over CAT6
- HDBaseT Extender
- HDMI Extender
- USB Extender
- Remote HDMI
- Remote USB
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - IM12D1500P
- HDMM6
- HDMM10
- HDMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- USB2HABM3
- USB2HABM6
- USB2HABM10
Related Products - ST121HDBTE
- ST121HDBTPW
- ST121UTPHD2
- ST424HDBT
- STHDBTRX

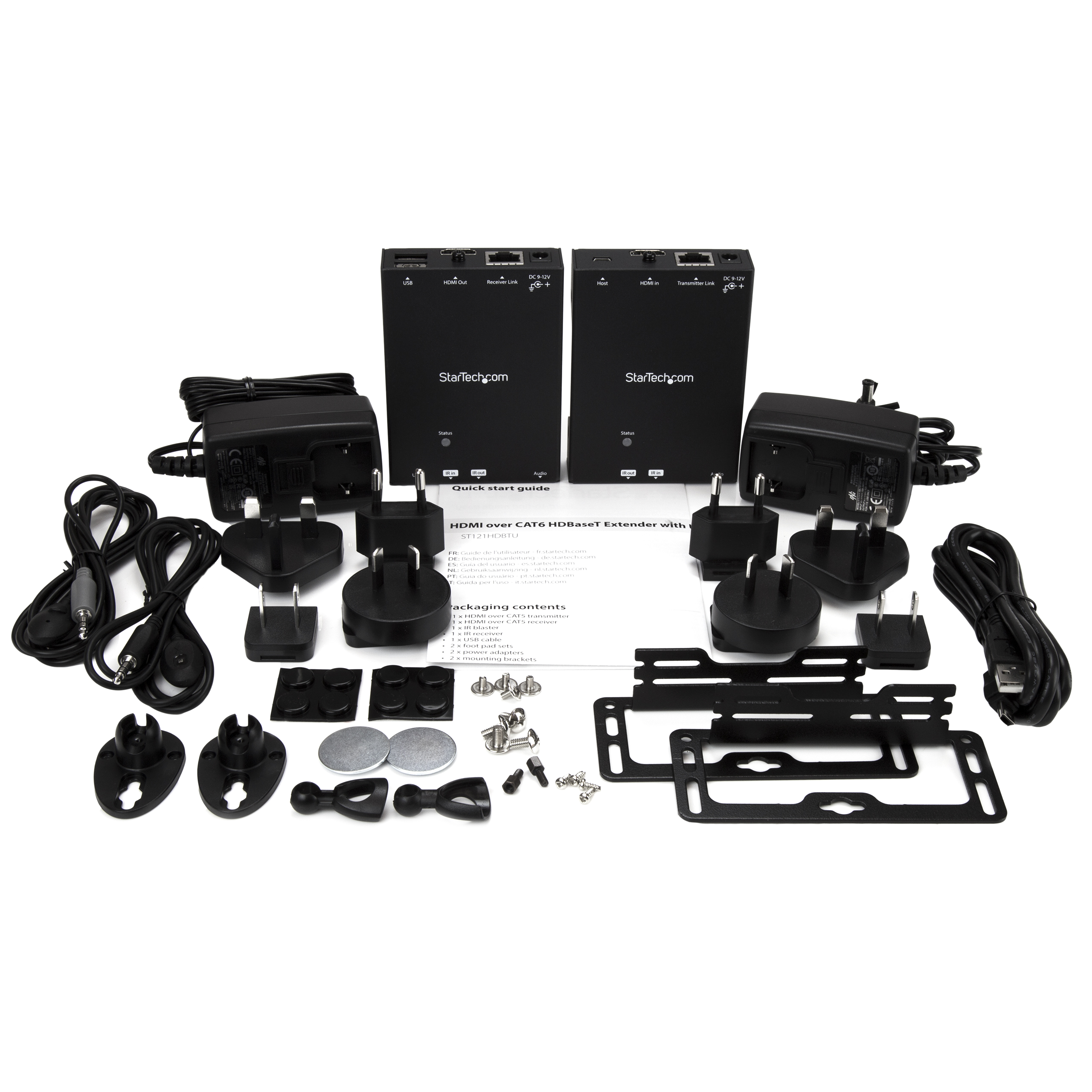

Constrained SKU Alternatives (Limited Stock) ST121USBHD Input Current 12 DC Input Voltage 100 - 240 AC Output Current 1.5 A Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity 0% - 80 % RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 102.000 Product Width (mm) 75.000 Product Height (mm) 24.000 Product Weight (g) 306.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 100m [328ft] Maximum Digital Resolutions 4096 x 2160 (4K) @ 30 Hz Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling Cat 5e UTP or better Cascadable No Carton Depth (mm) 318 Carton Height (mm) 298 Carton Quantity 6 Carton Weight Gross (g) 10410 Included in Package - 1 - HDMI over CAT6 transmitter
- 1 - HDMI over CAT6 receiver
- 1 - USB cable
- 1 - IR blaster
- 1 - IR receiver
- 2 - foot pad sets
- 1 - quick install guide
- 2 - power adapters
- 2 - mounting brackets
Package Depth (mm) 245 Package Height (mm) 85 Package Width (mm) 300 Package Quantity 1 Package Weight (g) 1580 Packaging Description HDMI CAT6 Extender with USB Hub & IR - 4K Packaging Description India HDMI CAT6 Extender with USB Hub & IR - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-10-01 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-11-24 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
