ST121HDFXA
HDMI Video and Audio Extender Over Fiber with IR
Extend HDMI video and audio over SC Multi Mode fiber, with Infrared control

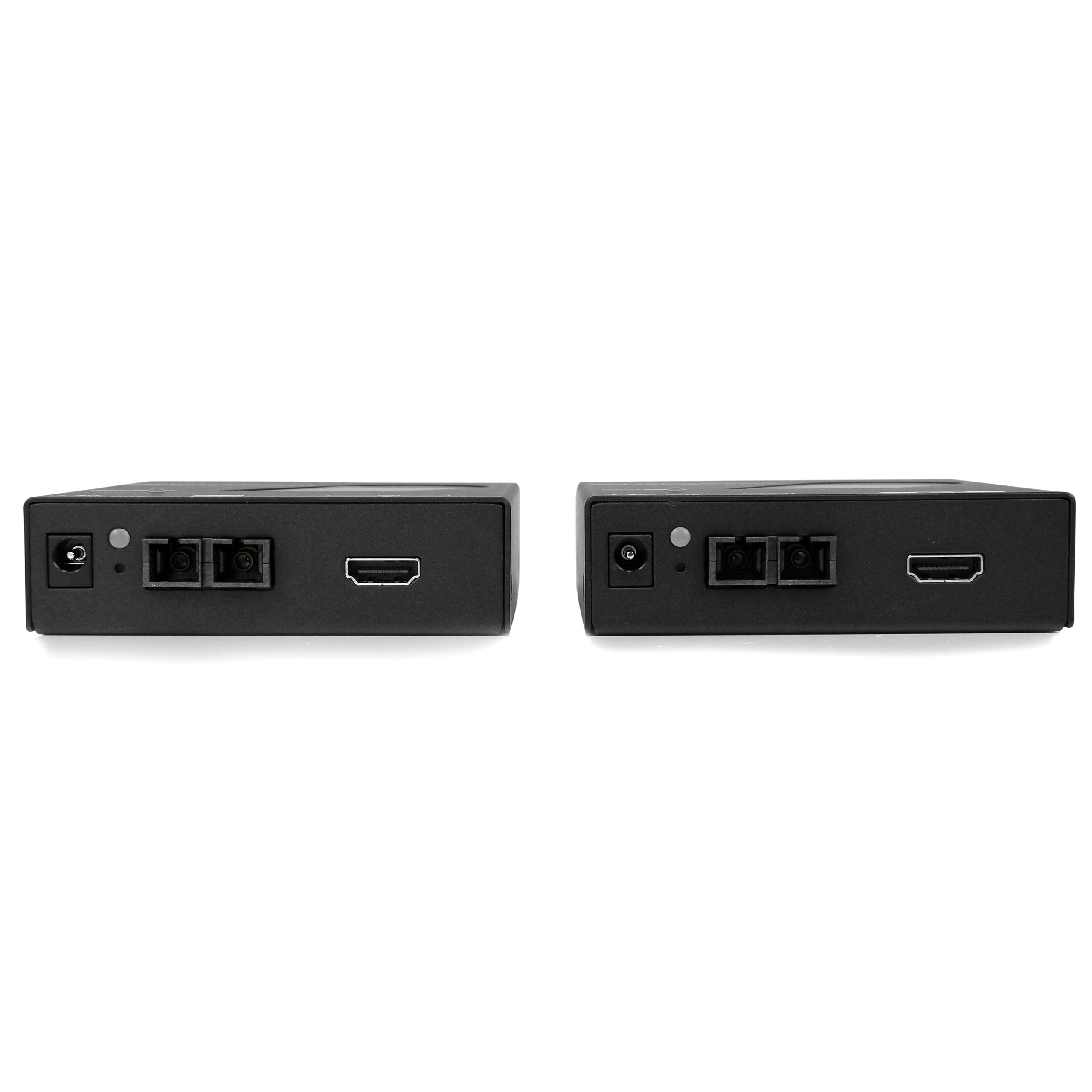

Main Image

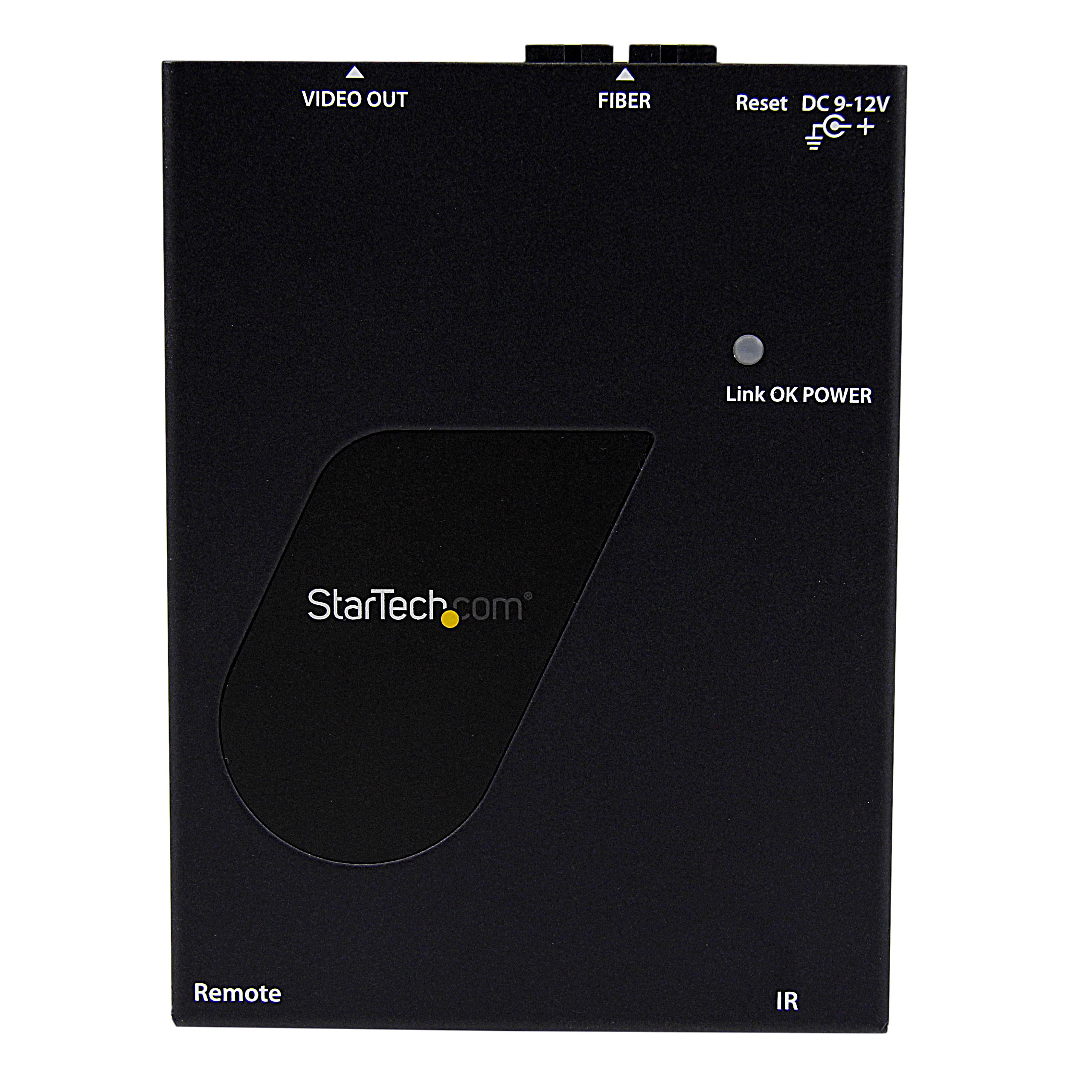

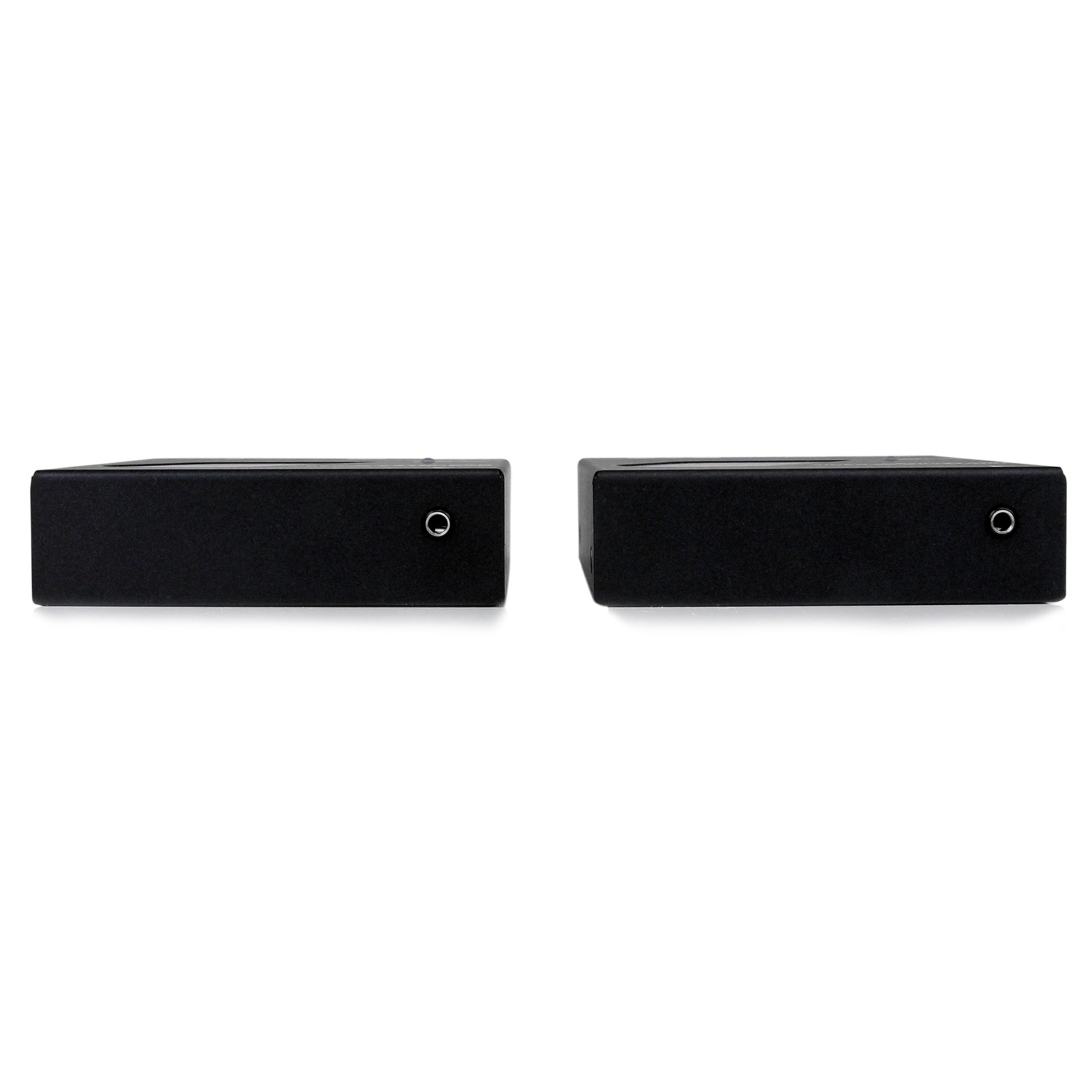

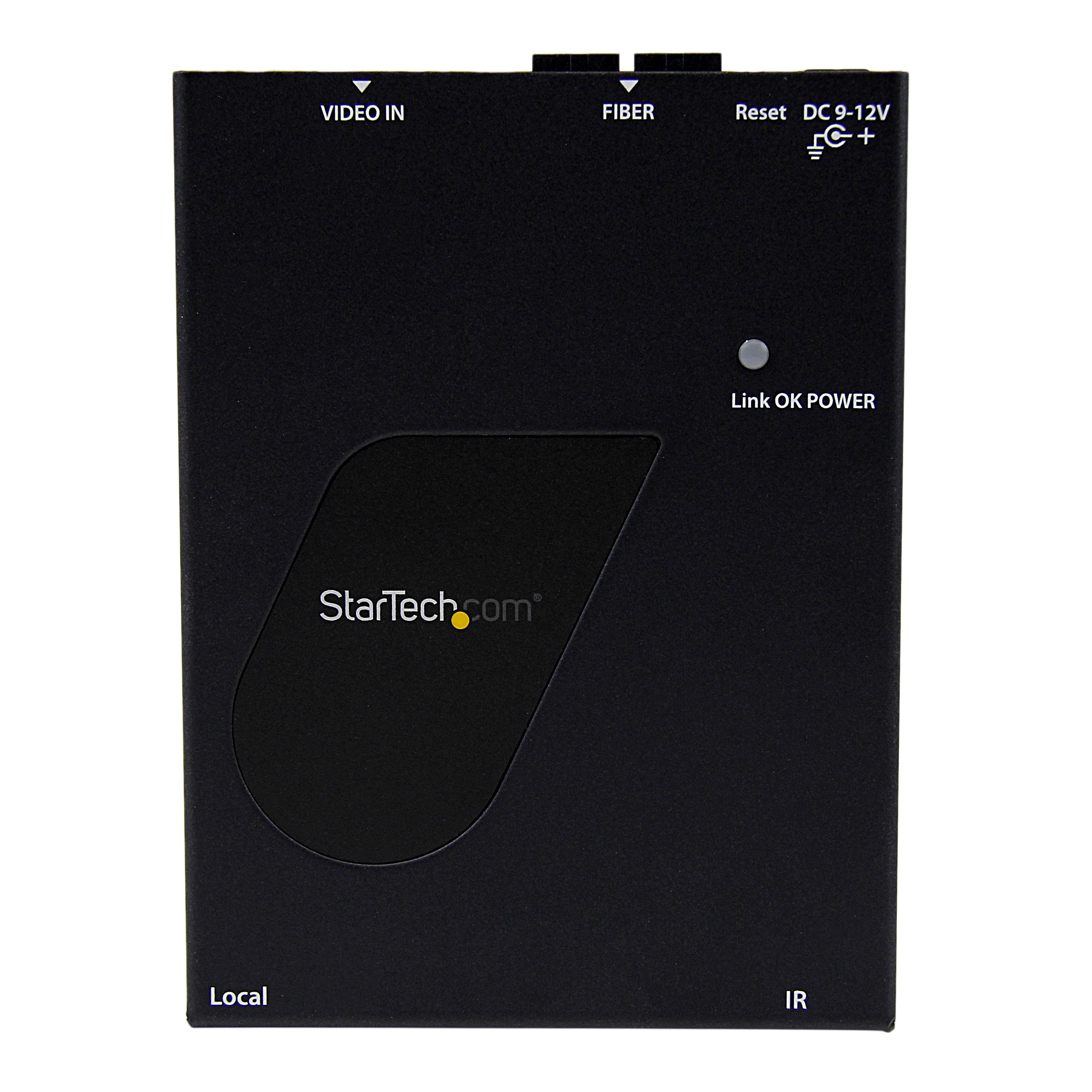

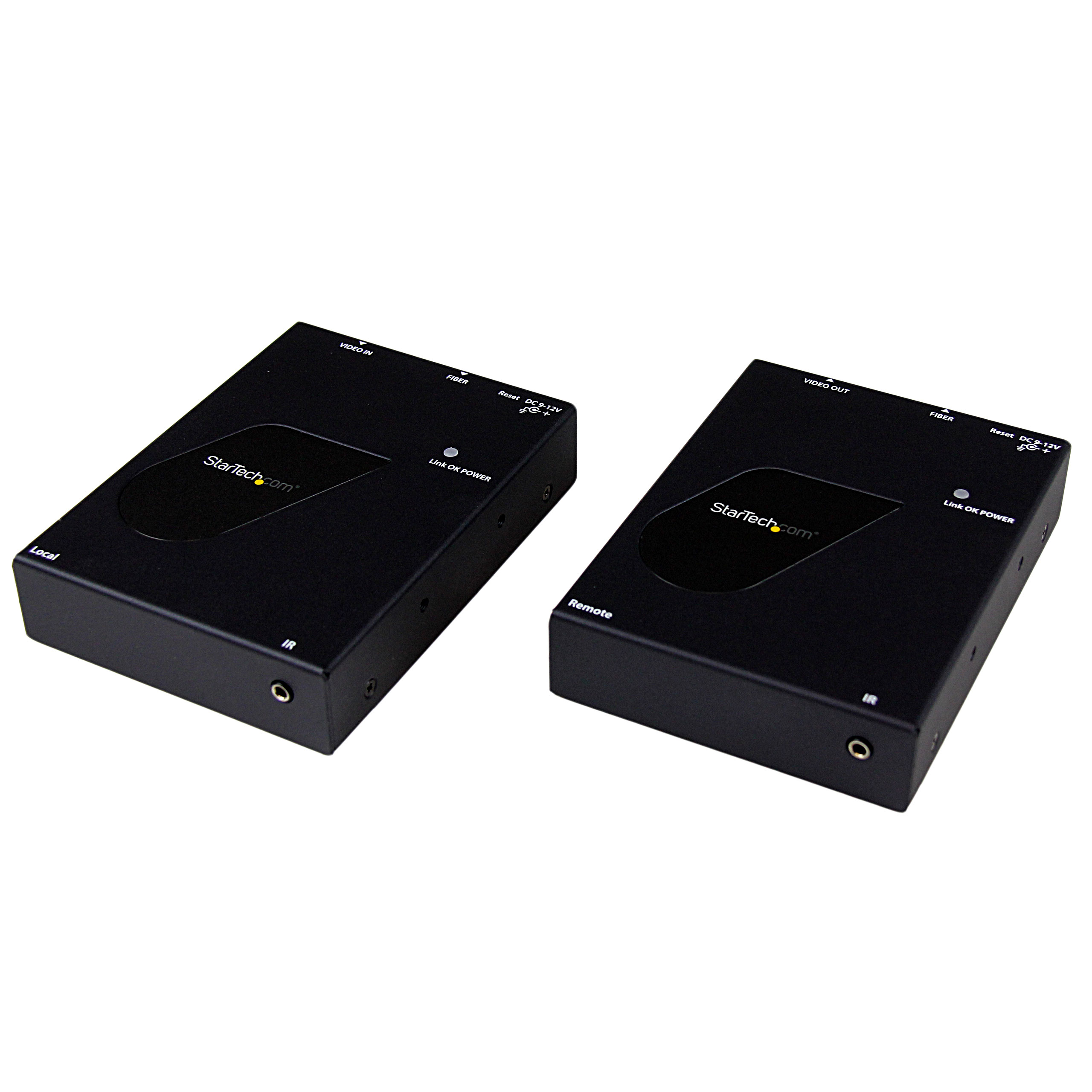

Product Images
Product Images
Product Images
Product Images

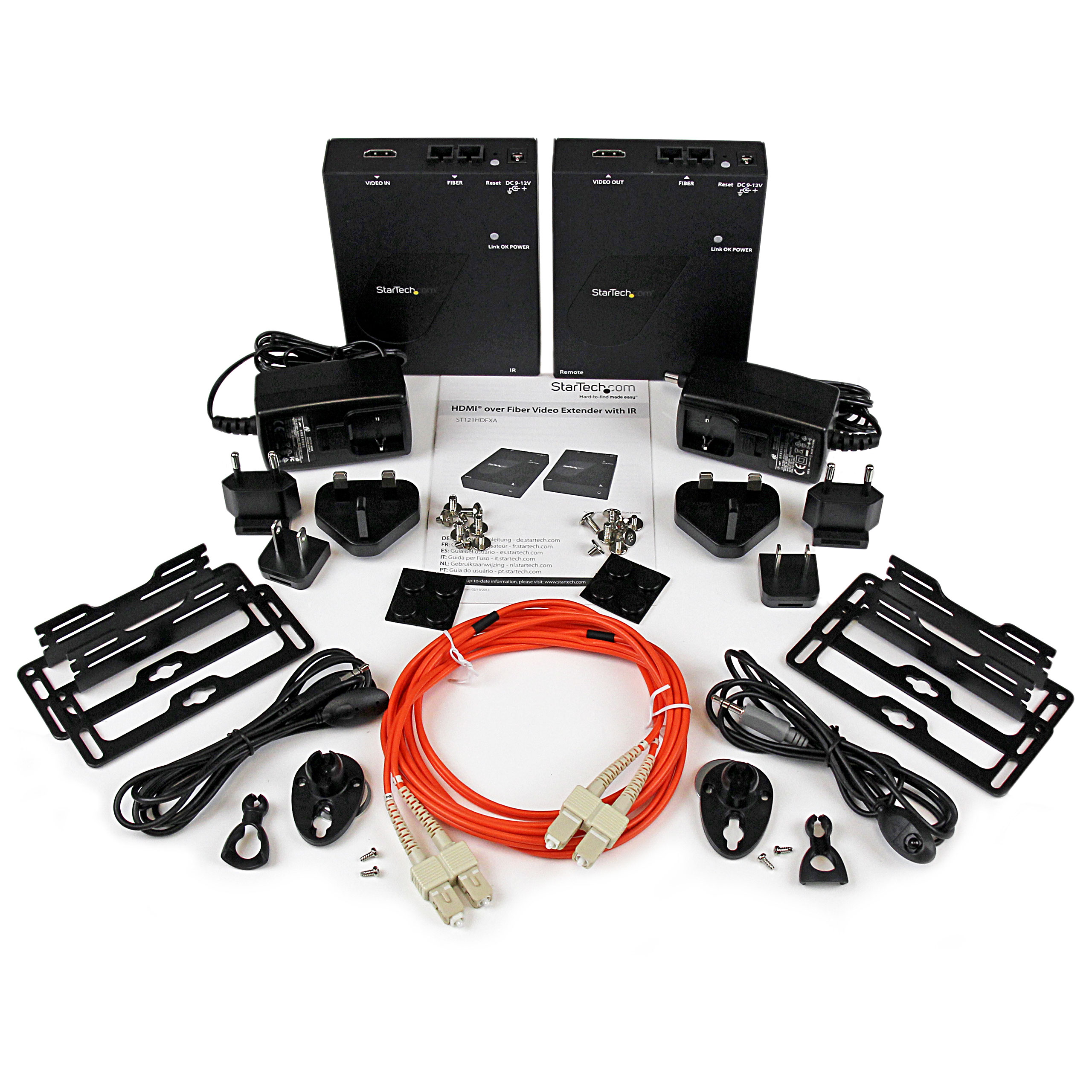

BOM Image
Product Name HDMI Video and Audio Extender Over Fiber with IR Product Number ST121HDFXA UPC 065030849982 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Fiber Extender Product Title (Short) HDMI Over Fiber Extender (SC) w/ IR Product Title (Medium) x Product Title (Standard) HDMI® Over Fiber Extender with IR Control – SC Fiber - 2600ft (800m) - 1920x1200/1080p Product Title (Long) HDMI Over Fiber Extender with IR Control – SC Fiber - 2600ft (800m) - 1920x1200/1080p Product Title (AMZ) HDMI® Over Fiber Extender with IR Control - HDMI to SC Fiber Converter Extender up to 2600ft (800m) - 1920x1200 / 1080p (ST121HDFXA) Title Ingram (Part 1) HDMI Over Fiber Extender (SC) Title Ingram (Part 2) w/ IR Control - 2600ft - 1080p Website Product Headline Extend HDMI video and audio over SC Multi Mode fiber, with Infrared control Bullet 1 Resolutions up to 1080p (1920x1200) Bullet 2 Local transmitter and remote receiver units included Bullet 3 Supports bi-directional IR communication Bullet 4 Extend HDMI video up to 2600ft (800m) Bullet 5 Uses SC fiber optic cabling Bullets (Consolidated) Extend HDMI video and audio over SC Multi Mode fiber, with Infrared control - Compatible with HDMI video source devices such as laptop computers or Blu-ray players and HDMI monitors, TVs or projectors - Supports resolutions up to 1920x1200 or 1080p - HDMI Over Fiber Extender/HDMI to Fiber Converter with IR Control and Mounting Hardware/HDMI Extender Over SC Fiber - Reach distances up to 2600ft (800m) - Uses SC fiber optic cabling - Local transmitter and remote receiver included Marketing Copy Applications - Extend an HDMI video source in a hospital, with no EMI (electromagnetic interference)
- Connect a video source to a display across a large shopping complex
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword - A/V
- IR extender
- 1080p
- HDMI Extender
- HDMI over SC fiber Video Extender Audio IR Control Infrared
- Digital Signage
- HDMI over fiber optics
- HDMI over fiber
- Video / Audio Extender
- Transmitter and Receiver
- Sender and Receiver
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Special Notes If your video source is HDCP encrypted, your connected display MUST be HDCP compliant. If the extender detects a non-HDCP compliant display while you’re extending an HDCP encrypted video source, the content will not display System and Cable Requirements Multi-mode fiber cabling (50/125 or 62.5/125) terminated with SC duplex connectors, is required to connect the transmitter to the receiver. Accessory Products - SVA12M2NEUA
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- 50FIBPSCSC5
Related Products - ST121UTP232
- HDMIEXT
- ST121HDMR50
- ST121HDMR250
- ST121HDMIT
- DS128
- DSRXL
Input Voltage 100 - 240 AC Output Current 1.5A Power Consumption (In Watts) 18 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0-80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 129.000 Product Width (mm) 97.000 Product Height (mm) 26.000 Product Weight (g) 457.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes General Specifications Max Distance 800m [2624ft] Maximum Cable Length (mm) 792480 Maximum Data Transfer Rate HDMI® - 3.4Gbps Maximum Digital Resolutions 1080p @ 60Hz, 48-bit Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Fiber Optic Cascadable No Rack-Mountable Yes Carton Depth (mm) 320 Carton Height (mm) 299 Carton Quantity 6 Carton Weight Gross (g) 13050 Included in Package - 1 - Local HDMI® Extender Unit
- 1 - Remote HDMI® Receiver Unit
- 2 - Universal Power Adapter NA / UK / EU
- 1 - User Manual
- 1 - IR Receiver Cable
- 1 - IR Transmitter Cable
- 1 - 7 ft [2.1 m] Multi-mode SC-SC duplex Fiber Optic cable
- 2 - Mounting Brackets
- 2 - Foot Pad Set
Package Depth (mm) 228 Package Height (mm) 86 Package Width (mm) 312 Package Quantity 1 Package Weight (g) 1940 Packaging Description HDMI® over Fiber Video Extender with IR Packaging Description India HDMI® over Fiber Video Extender with IR Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 Connector 3 Infrared (IrDA) Connector 3 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 SC Duplex Fiber Host Connector 2 (Quantity) 1 Host Connector 3 Infrared (IrDA) Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
