ST121HDT4P
HDMI over Single Cat5e / Cat 6 Extender with POC
Extend HDMI®, IR and Ethernet up to 330ft (100m) over CAT5e/6 with Power over Cable to Receiver
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI over Single Cat5e / Cat 6 Extender with POC Product Number ST121HDT4P UPC 065030850964 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX033X Product Title (Ultra-Short) HDMI over Cat5e/6 Product Title (Short) HDMI® over Single Cat 5 Extender - 330ft Product Title (Standard) HDMI over Single Cat 5e/6 Extender with Power over Cable Ethernet and IR - 330 ft Product Title (Long) HDMI over Single Cat 5e/6 Extender with Power over Cable Ethernet and IR - 330 ft Product Title (AMZ) HDMI over Single Cat 5e/6 Extender with Power over Cable Ethernet and Inrared IR - HDMI over Ethernet Cable 1080p - 330 ft (ST121HDT4P) Title Ingram (Part 1) HDMI® over Single Cat 5e / Cat6 Title Ingram (Part 2) Extender with Power over Cable Website Product Headline Extend HDMI®, IR and Ethernet up to 330ft (100m) over CAT5e/6 with Power over Cable to Receiver Bullet 1 Power Over Cable, allows a single power source to operate the transmitter and Receiver Bullet 2 Supports Cat5e or Cat6 Ethernet cabling Bullet 3 No software/drivers required Bullet 4 330ft (100m) Maximum HDMI extension Bullet 5 Includes transmitter (local) and receiver (remote) units Bullets (Consolidated) Extend HDMI IR and Ethernet up to 330ft (100m) over CAT5e/6 with Power over Cable to Receiver - Works with HDMI video sources like Blu-ray players and computers - Extends your HDMI signal up to 100 meters (330 feet) - Supports resolutions up to 1080p - Works with HDMI TVs monitors and projectors - HDMI over Ethernet/HDMI extender over CAT5 - HDMI over single CAT5e/HDMI over CAT6/HDMI Over single CAT6 with POC Ethernet and IR - A single power adapter for both the transmitter and receiver Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Optimize placement of your demo stations at tradeshows and in auditoriums
- Perfect for video conferencing solutions in boardrooms and office settings
- Extend HDMI when power outlets are limited, with only a single power adapter required at the Transmitter, using Power Over Cable
Website Search Keyword - HDMI extender over Cat5
- HDMI over single Cat5
- HDBaseT extender
- HDMI over single Cat6
- Cat5 extender
- HDMI ethernet extender
- HDMI over Ethernet cable
- Cat6 Extender
- HDMI over Cat6 Cable
- HDMI over Cat5 cable
- HDMI extender
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - HDMIMM10
- C6PATCH50BL
- C6PATCH50GN
- C6PATCH50YL
- HDMIMM20
- HDMIMM6
- N6PATCH75BK
- N6PATCH75OR
- C6PATCH25GR
Related Products - ST121HDBTE
- ST121UTPHD2
- ST121HDFXA
- ST121SHD50
- ST12MHDDC
- ST12MHDDCRP
Input Current 2A Input Voltage 100 - 240 AC Output Current 0.5A Output Voltage (V) 48 DC Power Consumption (In Watts) 24 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Aluminum and Plastic Product Length (mm) 205 Product Width (mm) 145 Product Height (mm) 73 Product Weight (g) 790 TAA Compliant No General Specifications - Maximum 1080p Distance: 100 m (330 ft.)
- Maximum 4K Distance: 90 m (295 ft.)

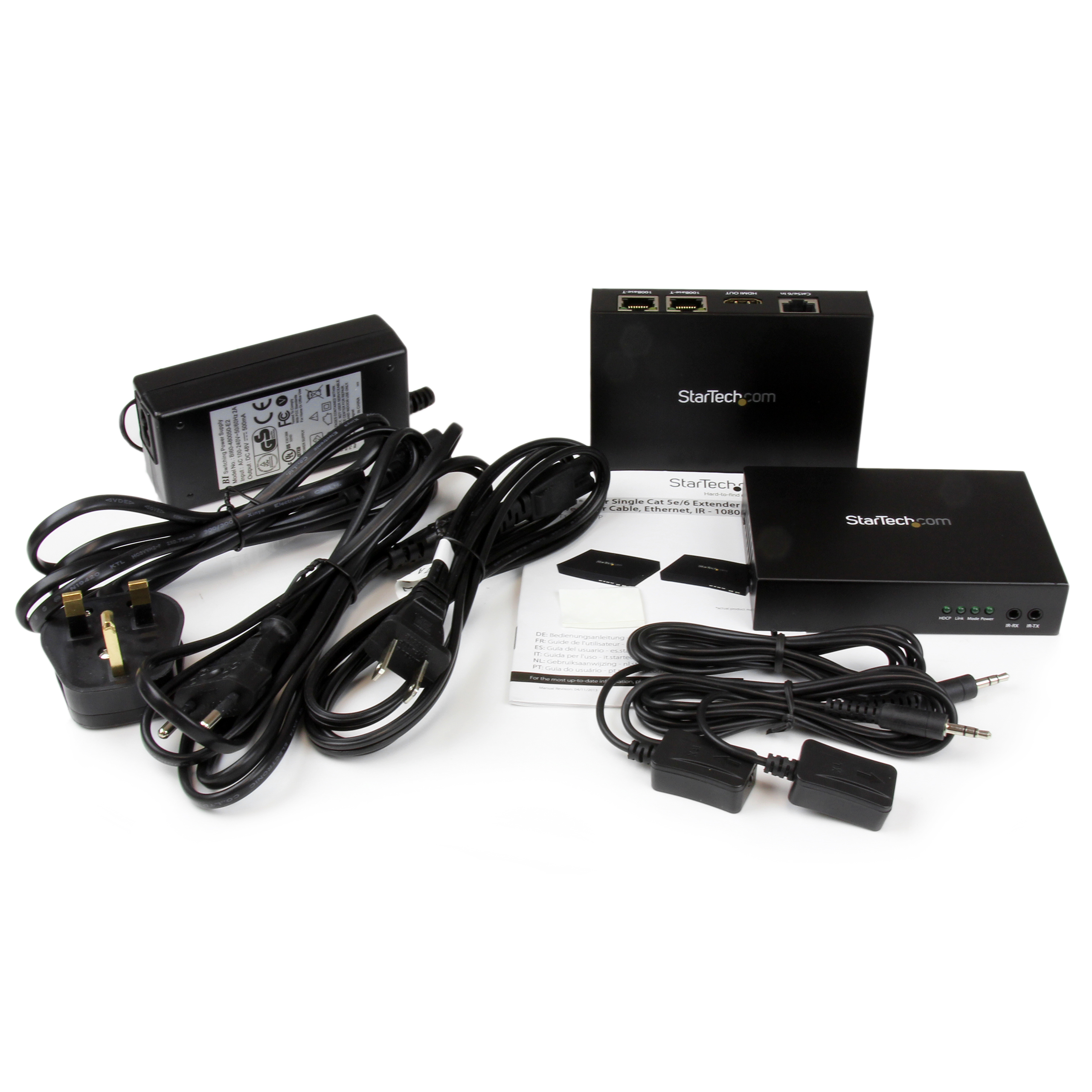

Max Distance 100m [328ft] Maximum Cable Length (mm) 100000 Maximum Digital Resolutions 4K Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling Cat 5e UTP or better Cascadable No Carton Depth (mm) 330 Carton Height (mm) 300 Carton Quantity 10 Carton Weight Gross (g) 12900 Included in Package - 1 - HDMI Extender Transmitter Unit
- 1 - HDMI Extender Receiver Unit
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
- 2 - IR Extender Cables

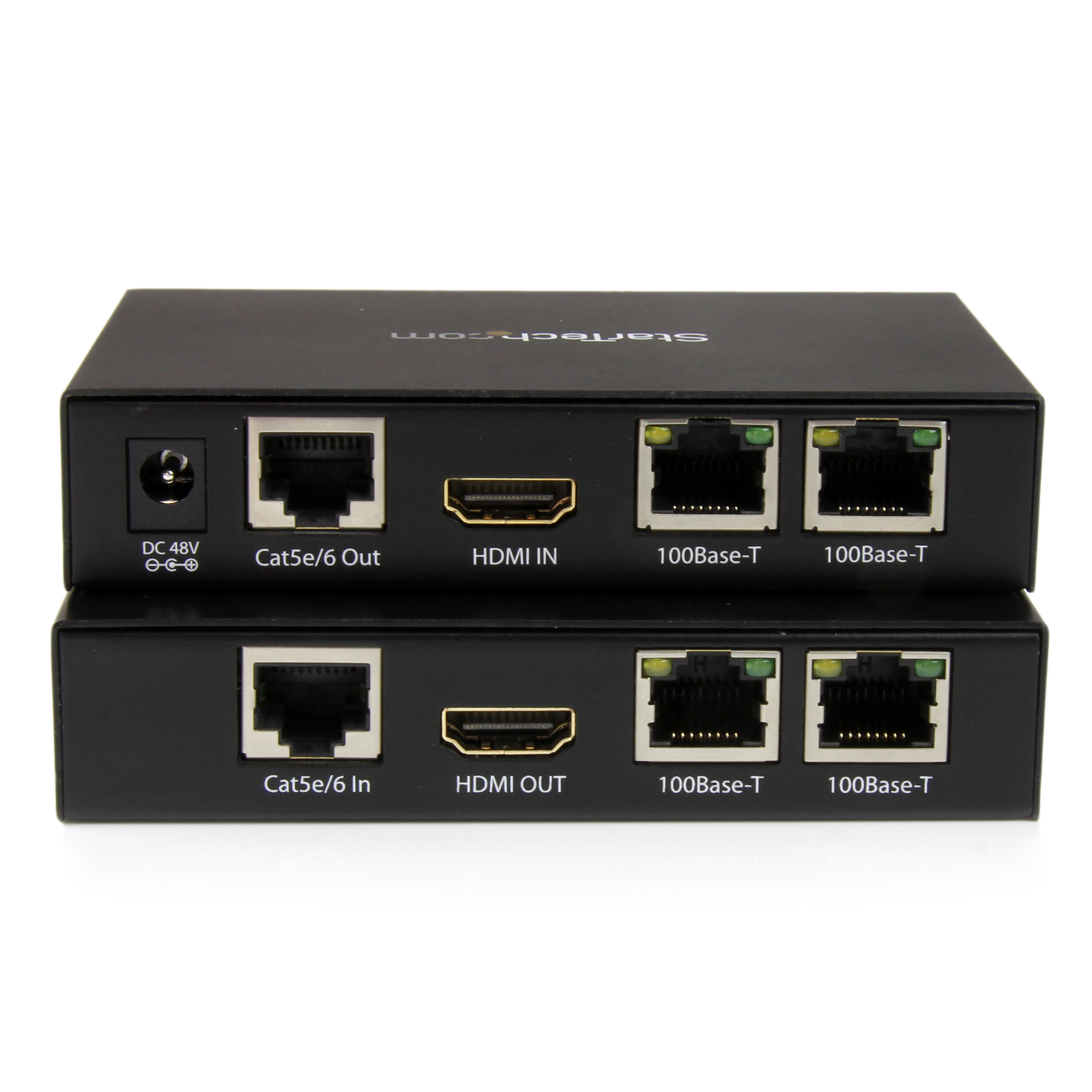

Package Depth (mm) 145 Package Height (mm) 73 Package Width (mm) 205 Package Quantity 1 Package Weight (g) 790 Packaging Description HDMI® over Cat 5e/6 Extender - 1080p Packaging Description India HDMI® over Cat 5e/6 Extender - 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 3 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 Infrared (IrDA) Connector 3 (Quantity) 2 Connector 4 HDMI Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 3 Connector 6 Infrared (IrDA) Connector 6 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-04-09 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
