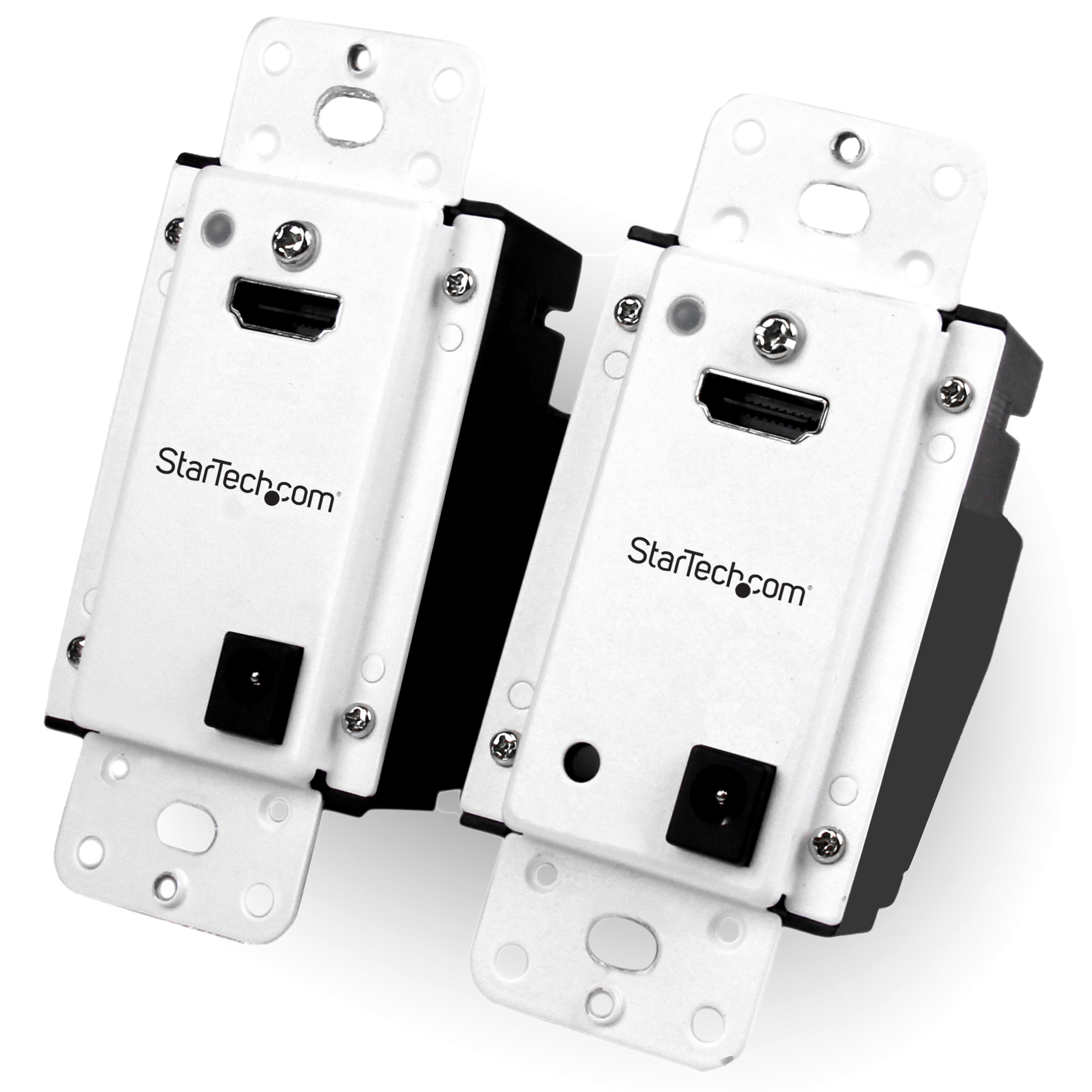

ST121HDWP
HDMI Extender over dual CAT5 - Wallplates
Extend HDMI up to 165ft (50m) over Cat5e/6 cabling with a wall plate finish, and power the extender from a single power source on either side of the connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Extender over dual CAT5 - Wallplates Product Number ST121HDWP UPC 065030858526 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI CAT5 Extender Product Title (Short) Wall Plate HDMI 165ft CAT5 Extender Product Title (Medium) Wall Plate HDMI over CAT5 Extender with Power Over Cable – 1080p – 165ft (50m) Product Title (Standard) Wall Plate HDMI over CAT5 Extender with Power Over Cable – 1080p – 165ft (50m) Product Title (Long) Wall Plate HDMI over CAT5 Extender with Power Over Cable – 1080p – 165ft (50m) Product Title (AMZ) Wall Plate HDMI over CAT5 Extender with Power Over Cable – HDMI CAT5 or CAT6 Audio Video Extender Kit – 1080p – 165ft (50m) (ST121HDWP) Title Ingram (Part 1) HDMI over CAT5 Extender w/ Wall Title Ingram (Part 2) Plate & Power Over Cable – 50m Website Product Headline Extend HDMI up to 165ft (50m) over Cat5e/6 cabling with a wall plate finish, and power the extender from a single power source on either side of the connection Bullet 1 Installs in a wall plate for a tidy professional installation Bullet 2 Only requires power at one side of the installation with Power Over Cable technology Bullet 3 165ft (50m) HDMI extention over standard CAT5 cabling Bullet 4 Support for video resolutions up to 1920x1200 or 1080p Bullet 5 Optional power configurations with support for in-wall terminal power, or external power adapter Bullets (Compact) Extend HDMI up to 165ft (50m) over CAT5e/6 cabling with a wall plate finish, and power the extender from a single power source - Works with HDMI devices such as computers, Blu-ray players, monitors, TVs & projectors - 1920 x 1200 resolution support Bullets (Consolidated) Extend HDMI up to 165ft (50m) over Cat5e/6 cabling with a wall plate finish, and power the extender from a single power source on either side of the connection - Compatible with HDMI video source devices such as computers and Blu-ray and HDMI monitors, televisions and projectors - Supports PC resolutions up to 1920x1200 or 1080p - HDMI Extender Over CAT5/HDMI Extender Wall Plate/HDMI CAT5/HDMI Wallplate Extender - Seamlessly integrate HDMI ports in hotels, restaurants and corporate offices Marketing Copy Applications - Install in your boardroom to extend a video source to or from a remote location
- Extend an HDMI signal to locations where power outlets are limited
- At tradeshows and auditoriums, remotely place your demo display in a viewing area, while the system equipment is placed elsewhere
- Easily connect your HDMI source device to a boardroom or classroom display or projector, enabling the instructor or presenter to share content with everyone in the room
- Use to seamlessly integrate HDMI ports in hotels, restaurants and corporate offices, keeping the rooms looking tidy with boxes and cabling out of view from guests
Website Search Keyword - hdmi extender
- hdmi over cat5
- Power Over Cable
- CAT5 Extender
- wall plate HDMI
- wall HDMI
- HDMI Extender Over CAT5
- HDMI CAT5
- HDMI Wallplate Extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- WIRC5ECMR
- WIRC5ECMRGRY
- CRJ45SOL50PK
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST121HDBTE
- ST121HDBT5
- ST121HDT4P
- ST12MHDDCRP
- ST121HDFXA
- ST121SHD50
- ST121UTPHD2
- ST12MHDDC
- ST121HDBTPW

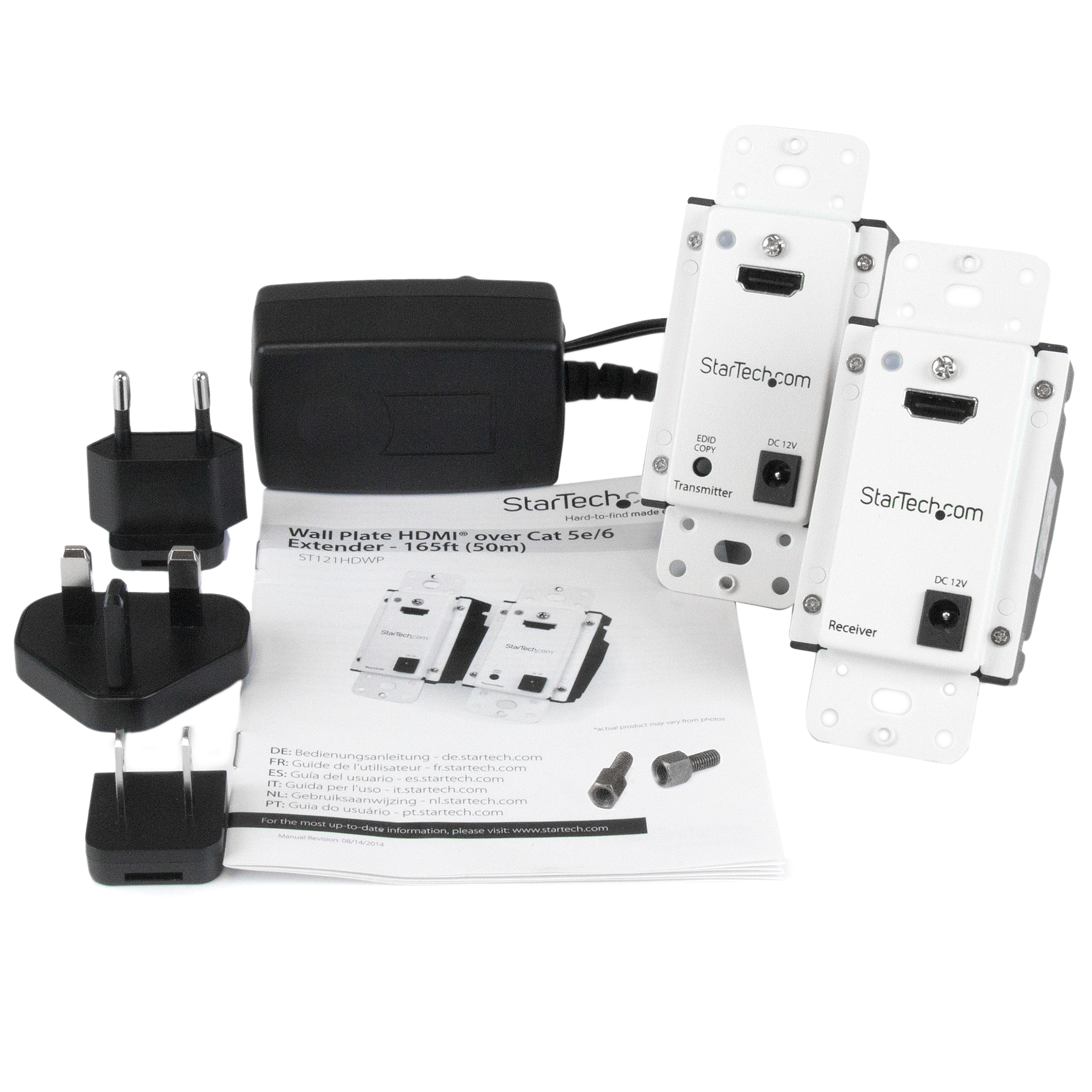

Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White Humidity 0% - 80 % RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 105.000 Product Width (mm) 45.000 Product Height (mm) 43.000 Product Weight (g) 428.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 50m [164ft] Maximum Cable Length (mm) 50000 Maximum Digital Resolutions 1920x1200 or 1920x1080 (1080p) OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 322 Carton Height (mm) 272 Carton Quantity 12 Carton Weight Gross (g) 7090 Included in Package - 1 - Wall-mounted HDMI Extender

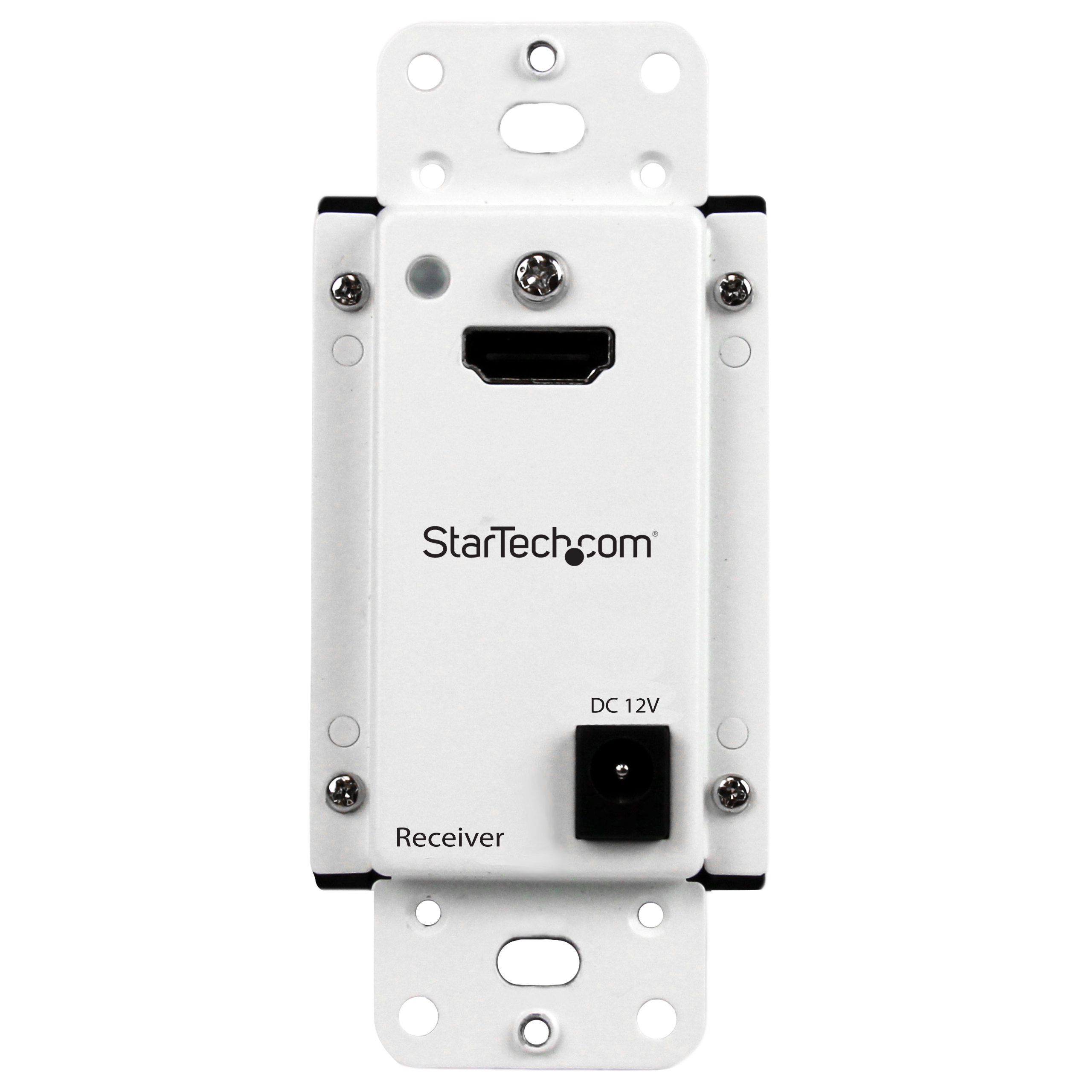

- 1 - Wall-mounted HDMI Receiver
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 156 Package Height (mm) 65 Package Width (mm) 234 Package Quantity 1 Package Weight (g) 532 Packaging Description Wall Plate HDMI® over Cat 5e/6 Extender - 165ft (50m) Packaging Description India Wall Plate HDMI® over Cat 5e/6 Extender - 165ft (50m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-11 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,JP,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
