ST121R
2 Port Receiver for ST121 Series UTP VGA Extender
Extend and distribute a VGA signal to up to 4 displays over Cat5 cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port Receiver for ST121 Series UTP VGA Extender Product Number ST121R UPC 065030824323 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Family VGA Extender Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) VGA Video Extender Receiver over Cat 5 Product Title (Standard) VGA over CAT5 remote receiver for video extender, TAA Product Title (Long) VGA over CAT 5 Remote Receiver for Video Extender - TAA Product Title (AMZ) VGA over CAT5 Remote Receiver - VGA Receiver for Line of ST121 VGA Extenders - 500 ft. 150 m , TAA (ST121R) Title Ingram (Part 1) VGA Video Extender Remote Receiv Title Ingram (Part 2) er over Cat 5 Website Product Headline Extend and distribute a VGA signal to up to 4 displays over Cat5 cable Bullet 1 Extends video cables by up to 500 ft. (150m) Bullet 2 Pure hardware design, no software or drivers required Bullet 3 Included mounting brackets Bullet 4 Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission Bullets (Consolidated) Extend and distribute a VGA signal to up to 4 displays over Cat5 cable - works with the ST1212T, ST1214T and ST1218T CAT5 extenders to receive a VGA video signal and distribute to the monitor - Supports resolutions up to 1920x1200 - VGA receiver/VGA over Cat5 receiver/VGA to Cat5 receiver/VGA over CAT 5 extender - Ideal for digital signage applications in financial, educational, and business sectors - Cat5 extension design allows you to make use of existing Cat 5 infrastructure Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Ideal for digital signage applications in financial, educational, and business sectors
- Extend your display across harsh environment industrial sites
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword - Extra reciever for ST121UTP
- Reciever for ST1214UTP
- Digital Signage
- B132-100-1
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - ST121EXT
- ST1212T
- ST1214T
- ST1218T
- ST1216PRO
- ST122
- ST122PRO
- ST122PROA
- ST122SW
- ST124
- ST124PRO
- ST124PROA
- ST124SW
- ST128
- ST128PRO
- ST128PROA
- ST222MX
- ST224MX
- ST228MX
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M2NEUA
- SVA12M5NA

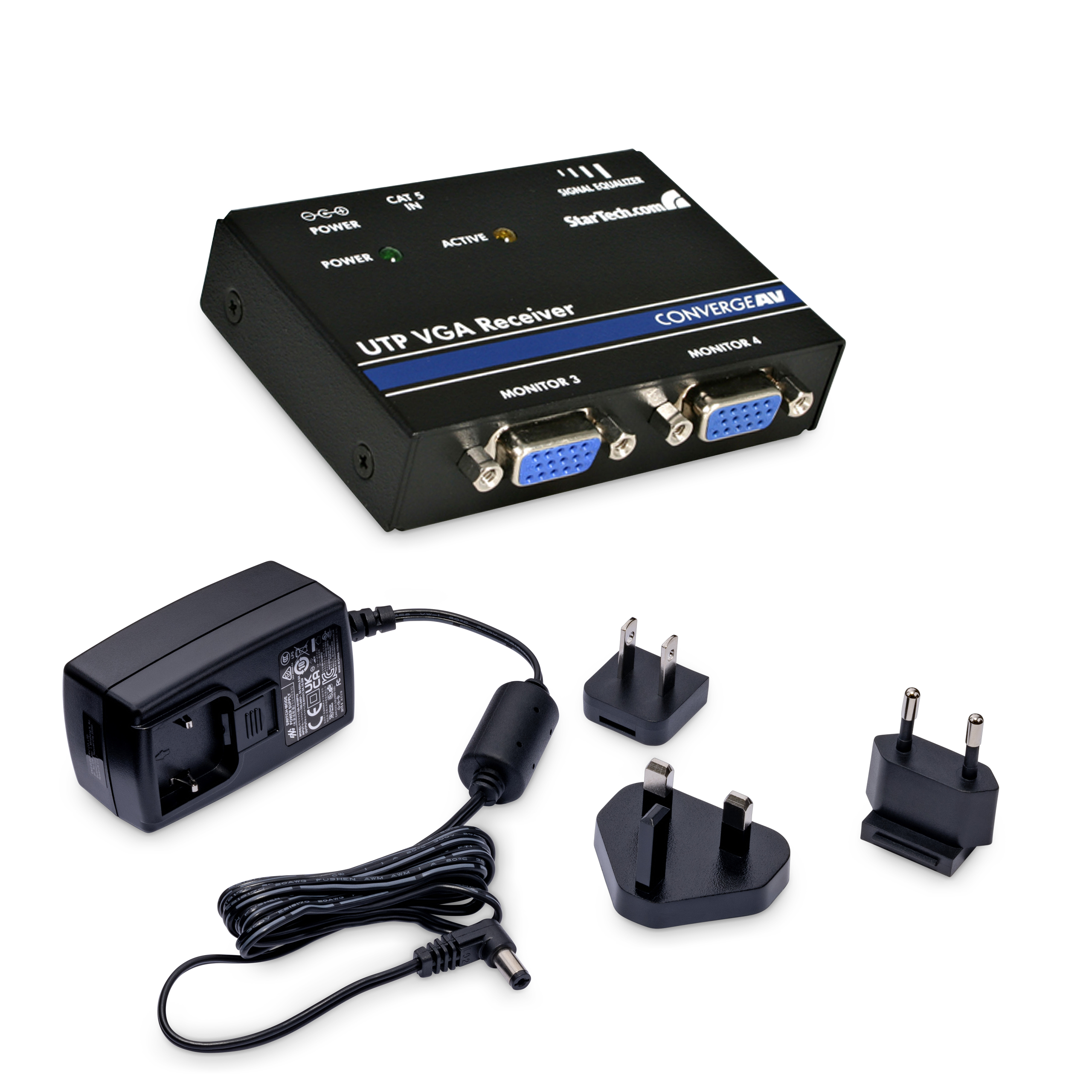

Equivalent Part Number in the EU ST121REU Equivalent Part Number in the UK ST121RGB Input Current 0.2A Input Voltage 100 - 240 AC Output Current 0.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 6 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Aluminum Primary Material Aluminum Product Length (mm) 84.160 Product Width (mm) 65.090 Product Height (mm) 20.550 Product Weight (g) 168.000 TAA Compliant Yes Max Distance 150m [492ft] Maximum Analog Resolutions 1024x768 Maximum Cable Length (mm) 152440 Supported Resolutions Audio No Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 324 Carton Height (mm) 266 Carton Quantity 12 Carton Weight Gross (g) 7158 Included in Package - 1 - 9V AC 500ma ADAPTORS
- 1 - INSTRUCTION MANUAL
- 1 - REMOTE UNIT VGA EXTENDER
Package Depth (mm) 104 Package Height (mm) 98 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 532 Packaging Description VGA Video Extender Remote Receiver over Cat 5 Packaging Description India VGA Video Extender Remote Receiver over Cat 5 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,JP,MX,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
