ST121SHD50
HDMI Over CAT5 CAT6 Extender w Power Over Cable
Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Over CAT5 CAT6 Extender w Power Over Cable Product Number ST121SHD50 UPC 065030851404 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Over CAT5e/Cat6 Product Title (Short) HDMI Over CAT5e/CAT6 Extender - 165 ft Product Title (Medium) x Product Title (Standard) HDMI Over CAT5e/CAT6 Extender with Power Over Cable, 165 ft (50m), TAA Product Title (Long) HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m) - TAA Product Title (AMZ) HDMI Over CAT5e / CAT6 Extender with Power Over Cable - 165 ft (50m) HDMI Video/Audio Over Dual Ethernet Cable Extender , TAA (ST121SHD50) Title Ingram (Part 1) HDMI Over CAT5e/CAT6 Extender Title Ingram (Part 2) w/ Power Over Cable - 1080p Website Product Headline Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver Bullet 1 Power Over Cable allows a single power source to operate the Transmitter and Receiver Bullet 2 Supports Cat5e or Cat6 Ethernet cabling (50m) Bullet 3 No software/drivers required Bullet 4 Supports HD resolutions up to 1080p (1920x1080) Bullet 5 Includes transmitter (local) and receiver (remote) units Bullets (Consolidated) Extend HDMI up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver - HDMI over Cat5e - HDMI Cat5 Extender - HDMI over Cat6 - HDMI extender over Cat5e - HDMI Ethernet Extender - HDMI over Dual Cat5e/6 Video/Audio Extender - 1920x1080p - HDMI over Cat5e Cat6 Video Extender Kit - Supports Cat5e (50m) or Cat6 (40m) Ethernet cabling Marketing Copy Applications - Extend HDMI when power outlets are limited, with only a single power adapter required at either the Transmitter or Receiver using Power Over Cable
- Optimize placement of digital signage in healthcare, education, retail, and government facilities
- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Website Search Keyword - HDMI cat5 extender
- hdmi over cat 5
- HDBASET
- HDMI cat6 extender
- hdmi over cat 6
- hdmi over ethernet
- hdmi over network
- B126-1A1-POC
- B125-101-60-IR
- B125-101-60
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - This extender requires two CAT5 cables for the entire distance of your cable run.
- The extender does not work through Ethernet equipment, such as switches or routers.
Accessory Products - IM12D1500P
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- VS440HDMI
- ST128HDMI2
- ST122HD4KU
- SVA12M2NEUA
- SVA12M5NA
- VIDWALLMNT
Related Products - ST121HDBTE
- ST121UTPHD2
- ST121HDFXA
- ST12MHDDC
- ST12MHDDCRP
- ST121SHD30
- ST121HDT4P

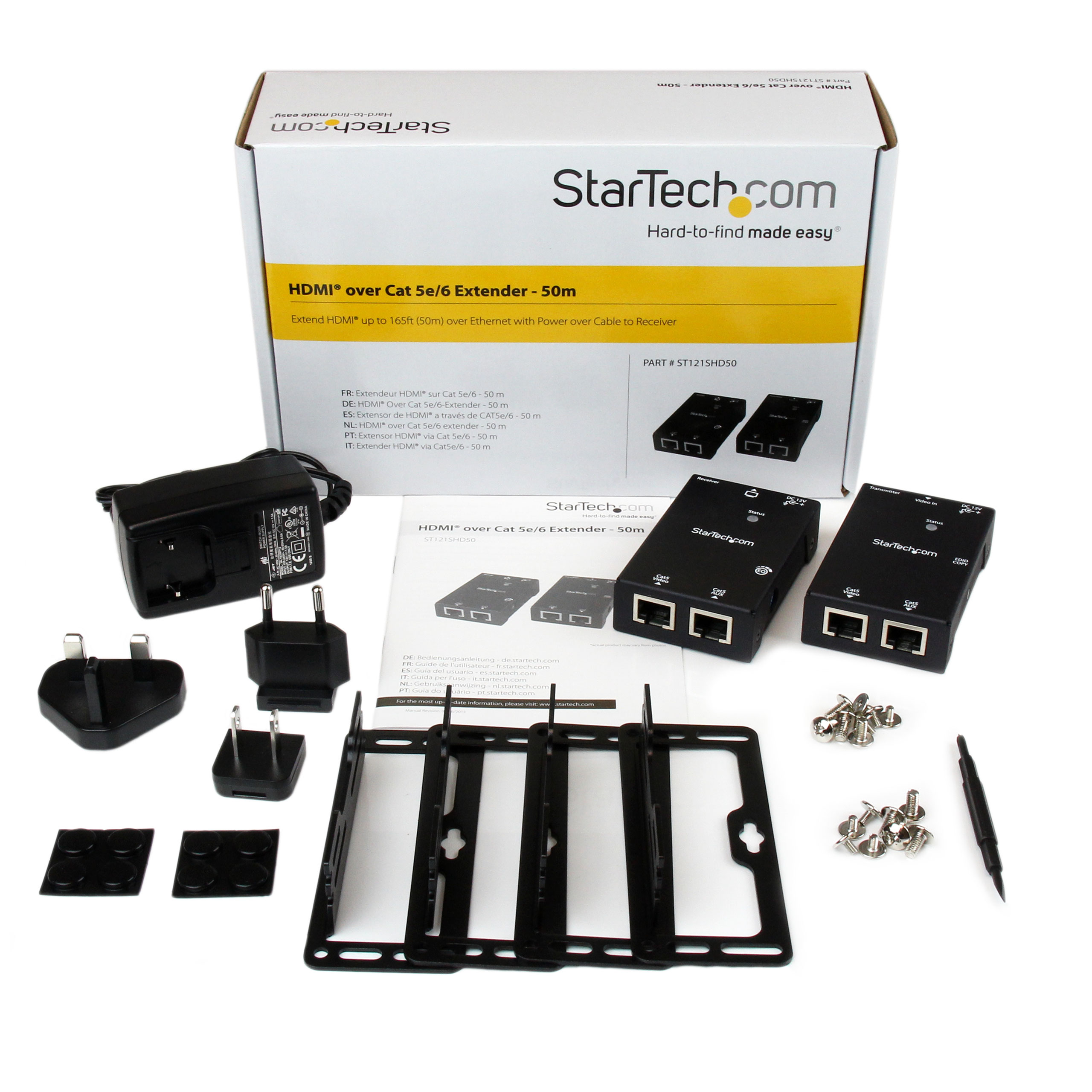

Constrained SKU Alternatives (Limited Stock) ST121HDBTPW Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 80.000 Product Width (mm) 51.000 Product Height (mm) 21.000 Product Weight (g) 314.000 Storage Temperature -10°C to 60°C (14°F to 115°F) TAA Compliant Yes General Specifications Max Distance 50m [164ft] Maximum Digital Resolutions 1080p / 1920x1080 Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better Cascadable No LED Indicators 1 - Power Rack-Mountable Yes Carton Depth (mm) 416 Carton Height (mm) 269 Carton Quantity 12 Carton Weight Gross (g) 11642 Included in Package - 1 - HDMI over CAT5e/6 UTP transmitter
- 1 - universal power adapter (NA / EU / UK / AU)
- 2 - foot pad set
- 1 - HDMI over CAT5e/6 UTP receiver
- 1 - instruction manual
- 2 - mounting brackets
Package Depth (mm) 235 Package Height (mm) 66 Package Width (mm) 159 Package Quantity 1 Package Weight (g) 908 Packaging Description HDMI® over Cat 5e/6 Extender - 50m Packaging Description India HDMI® over Cat 5e/6 Extender - 50m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
