Main Image
ST121USBHD
50m HDMI USB Extender
Extend 1080p video and four USB peripheral devices to a remote location
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 50m HDMI USB Extender Product Number ST121USBHD UPC 065030862363 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Extender - 50m Product Title (Short) HDMI over CAT6 Extender with USB - 165ft Product Title (Medium) HDMI over CAT6 Extender with 4-port USB Hub - 165 ft (50m) - 1080p Product Title (Standard) HDMI over CAT6 Extender with 4-port USB Hub, Remote HDMI over CAT5 or CAT6, 165 ft (50m), 1080p, TAA Product Title (Long) HDMI over CAT6 Extender with 4-port USB Hub - 165 ft (50m) - 1080p - TAA Product Title (AMZ) HDMI over CAT6 Extender with 4-port USB Hub - Remote HDMI over CAT5 or CAT6 - 165 ft (50m) - 1080p , TAA (ST121USBHD) Title Ingram (Part 1) 50m HDMI Extender with 4-Port Title Ingram (Part 2) USB Hub - HDMI Over CAT6 - 1080p Website Product Headline Extend 1080p video and four USB peripheral devices to a remote location Bullet 1 Crystal-clear picture quality, with support for uncompressed 1920x1200 or 1080p HD video extension Bullet 2 Easy remote peripheral integration, with a built-in 4-port USB hub Bullet 3 Tidy, professional installation using the included mounting hardware Bullet 4 Supports CAT5e and CAT6 Ethernet cable Bullet 5 HDMI transmitter and receiver included Bullets (Compact) Extend 1080p video and four USB peripheral devices to a remote location over CAT5 or CAT6 cabling - Supports 165 ft HDMI and USB extention over shielded CAT6 - HDMI video over Ethernet - 4-port USB peripherals - 1920x1200 resolution Bullets (Consolidated) Extend 1080p video and four USB peripheral devices to a remote location over standard CAT5 or CAT6 cabling - Compatible with HDMI video source devices such as computers and Blu-ray players and HDMI monitors televisions and projectors - Supports resolutions up to 1920x1200 or 1080p - HDMI over CAT5 Extender/HDMI extender/HDMI USB extender/video extender - Easy remote peripheral integration, with a built-in 4-port USB hub - Create an interactive digital signage kiosk with USB touchscreen Marketing Copy Applications - Place your display in a convenient viewing area, while your system equipment is installed elsewhere in a clean and secure environment
- Optimize placement of your demo stations at tradeshows and in auditoriums
- Operate one or more servers from a remote location within the same building or campus
- Control your PC in an area where fan or hard drive noise is unacceptable, such as a television broadcast studio
Website Search Keyword - HDMI extender
- USB extender
- 1920X1200
- video conference room extender
- HDMI USB extender
- HDMI extender 50m
- HDMI over CAT5 Extender
- USB and HDMI over CAT5
- digital signage extender
- remote touchscreen
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SVUSBPOWER
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- N6PATCH100BK
- USB2HABM3
- USB2HABM6
- USB2HABM10
Related Products - ST121HDBTE
- ST121HDBTPW
- ST121HDT4P
- ST12MHDDCRP
- ST121HDFXA
- ST121SHD50
- ST121UTPHD2
- ST12MHDDC

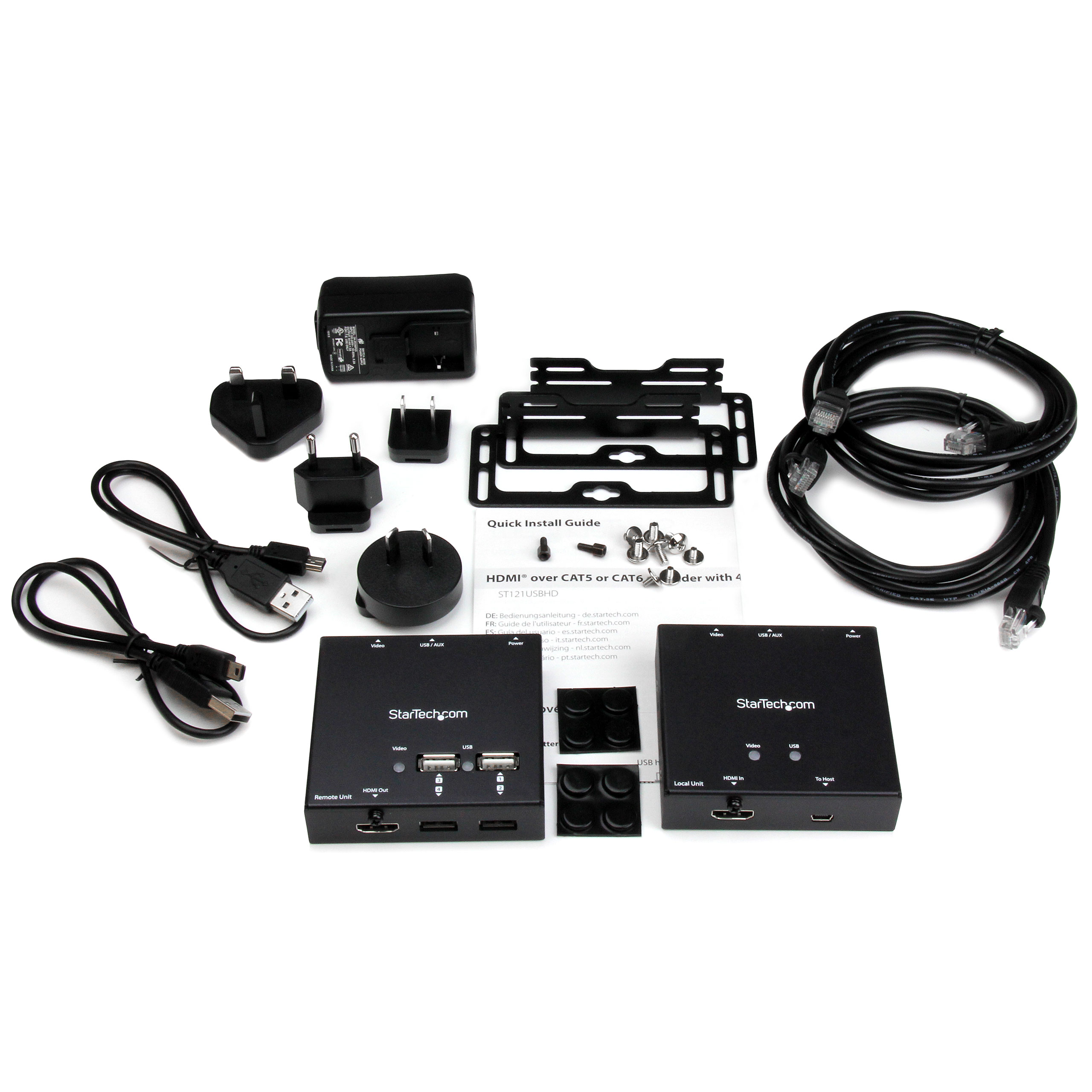

Constrained SKU Alternatives (Limited Stock) ST121HDBTU Output Current 1 A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source AC Adapter Included Plug Type N Color Black Humidity 0% - 80 % RH (non-condensing) Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 82.000 Product Width (mm) 82.000 Product Height (mm) 21.000 Product Weight (g) 460.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Audio Specifications HDMI - 2 Channel Audio Max Distance 50m [164ft] Maximum Data Transfer Rate HDMI - 3.4Gbps Maximum Digital Resolutions 1080p @ 60Hz, 48-bit Wide Screen Supported Yes Audio Yes AV Input HDMI Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 333 Carton Height (mm) 260 Carton Quantity 6 Carton Weight Gross (g) 7064 Included in Package - 1 - HDMI over CAT6 transmitter
- 2 - Ethernet cables
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - quick install guide
- 1 - HDMI over CAT6 receiver
- 2 - USB to Mini-USB cables
- 1 - mounting kit
Package Depth (mm) 311 Package Height (mm) 73 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 1056 Packaging Description HDMI CAT6 Extender with 4-port USB hub Packaging Description India HDMI CAT6 Extender with 4-port USB hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 4 Connector 5 USB Mini-B (480Mbps, 2.5W) Connector 5 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-03-25 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-08-14 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
