ST121UTP

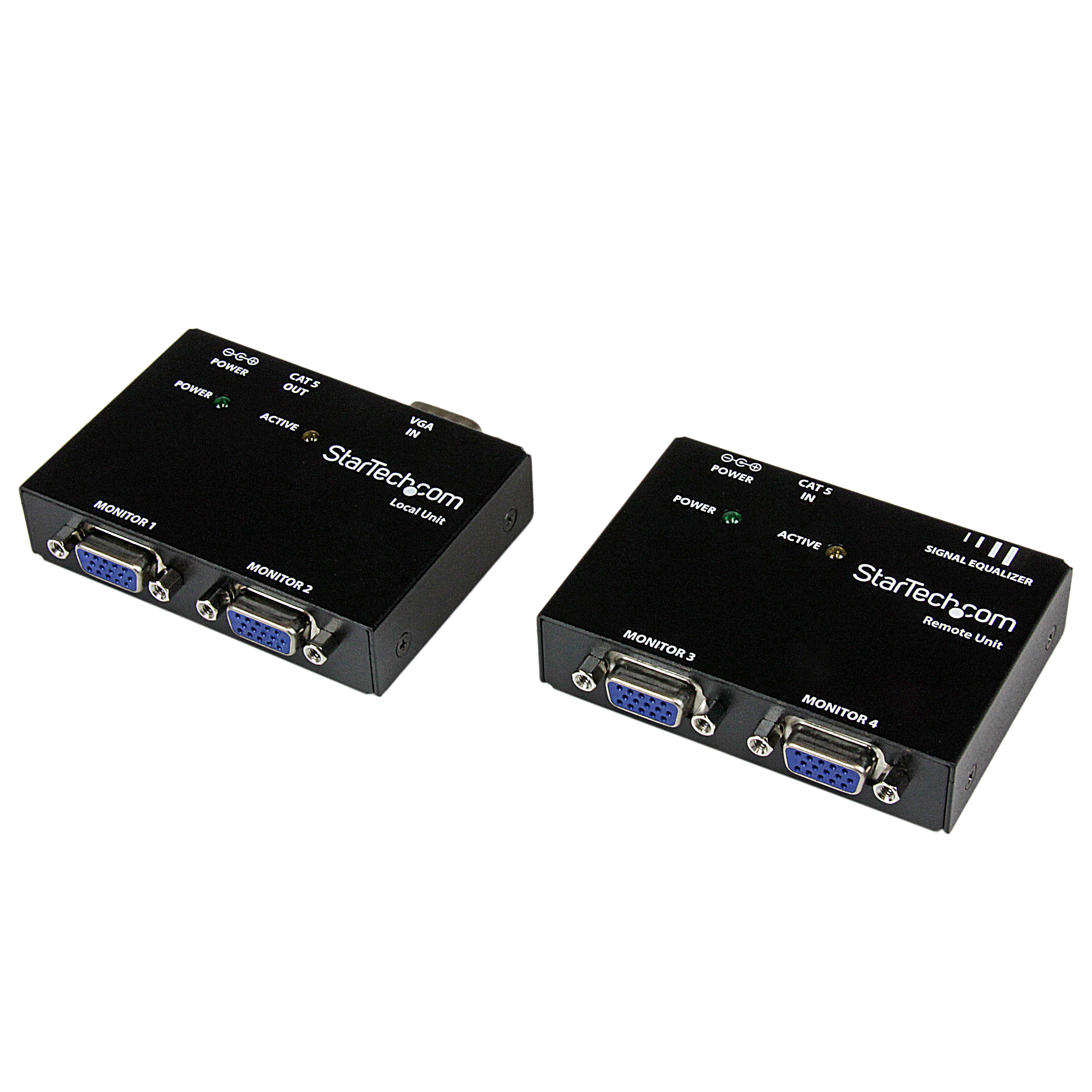

Cat5 UTP VGA Multisync Video Extender
Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling
Main Image
Product Images
Product Images
BOM Image
Product Name Cat5 UTP VGA Multisync Video Extender Product Number ST121UTP UPC 065030791236 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Family VGA Extender Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) VGA Video Extender over Cat5 Product Title (Standard) VGA Video Extender over CAT5 (ST121 Series), TAA Product Title (Long) VGA Video Extender over Cat5 (ST121 Series) - TAA Product Title (AMZ) VGA Video Extender over Cat5 (ST121 Series) - Up to 500ft (150m) - VGA over Cat 5 Extender - 2 Local and 2 Remote , TAA (ST121UTP) Title Ingram (Part 1) VGA Video Extender over Cat5 (ST Title Ingram (Part 2) 121 Series) Website Product Headline Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling Bullet 1 Extends video cables by up to 500 ft. (150m) Bullet 2 Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location) Bullet 3 Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission Bullet 4 Included mounting brackets Bullets (Compact) Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling - VGA over CAT5 extender - VGA extender over CAT5 - VGA over CAT 5 extender - VGA extender over CAT 5 - VGA to CAT5 Extender Bullets (Consolidated) Extend and distribute a VGA signal to 2 local - and 2 remote displays over Cat5 or better cabling - 1440x900 @ 150ft/50m - 1280x1024 @ 300ft/100m - 1024x768 @ 500ft/150m - VGA over Cat 5 Extender - VGA to Cat5 Extender - VGA Extender Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Ideal for digital signage applications in financial, educational, and business sectors
- Extend your display across harsh environment industrial sites
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword - Digital Signage
- Video Extension
- B1301012
Required Regulatory Compliance Marks - Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST122UTPA
- ST1214T
- ST1218T
- ST121R
- ST121EXT

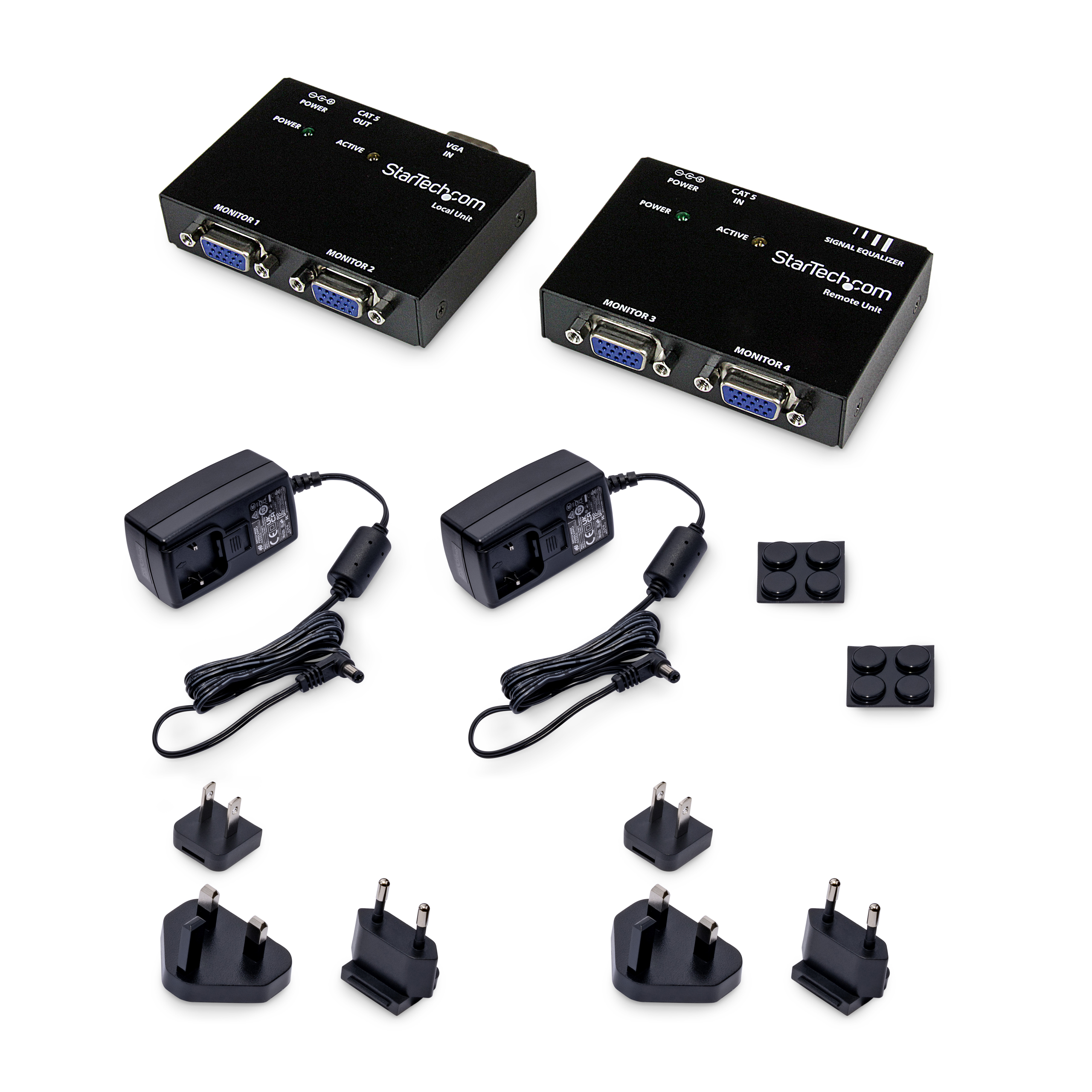

Constrained SKU Alternatives (Limited Stock) ST121UTPEP Equivalent Part Number in the EU ST121UTPEU Equivalent Part Number in the UK ST121UTPGB Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Non-Condensing Material Aluminum Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Aluminum Product Length (mm) 60.000 Product Width (mm) 83.000 Product Height (mm) 20.000 Product Weight (g) 335.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Max Distance 150m [492ft] Supported Resolutions Audio No Cabling Cat 5e UTP or better Cascadable No Carton Depth (mm) 515 Carton Height (mm) 322 Carton Quantity 12 Carton Weight Gross (g) 12534 Included in Package - 1 - Local VGA Extender Unit
- 1 - Remote VGA Extender Unit
- 2 - Power Adapter
- 1 - Instruction Manual
- 2 - Sets Rubber Feet
- 1 - Mounting Bracket for Receiver (w/ screws)
Package Depth (mm) 242 Package Height (mm) 93 Package Width (mm) 188 Package Quantity 1 Package Weight (g) 948 Packaging Description VGA Video Extender over Cat5 (ST121 Series) Packaging Description India VGA Video Extender over Cat5 (ST121 Series) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 VGA Host Connector 2 (Quantity) 2 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,JP,MX,NZ,PE,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
