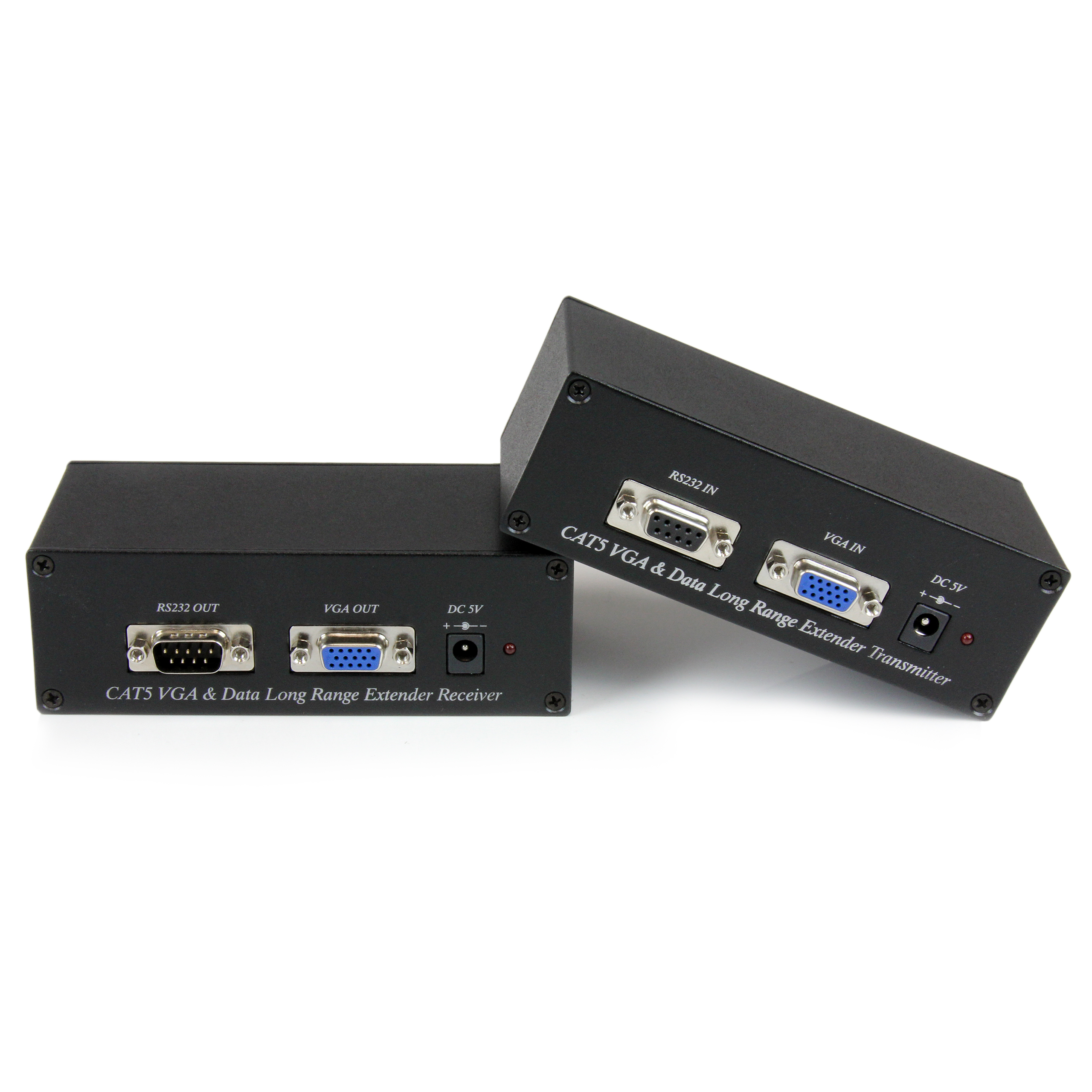

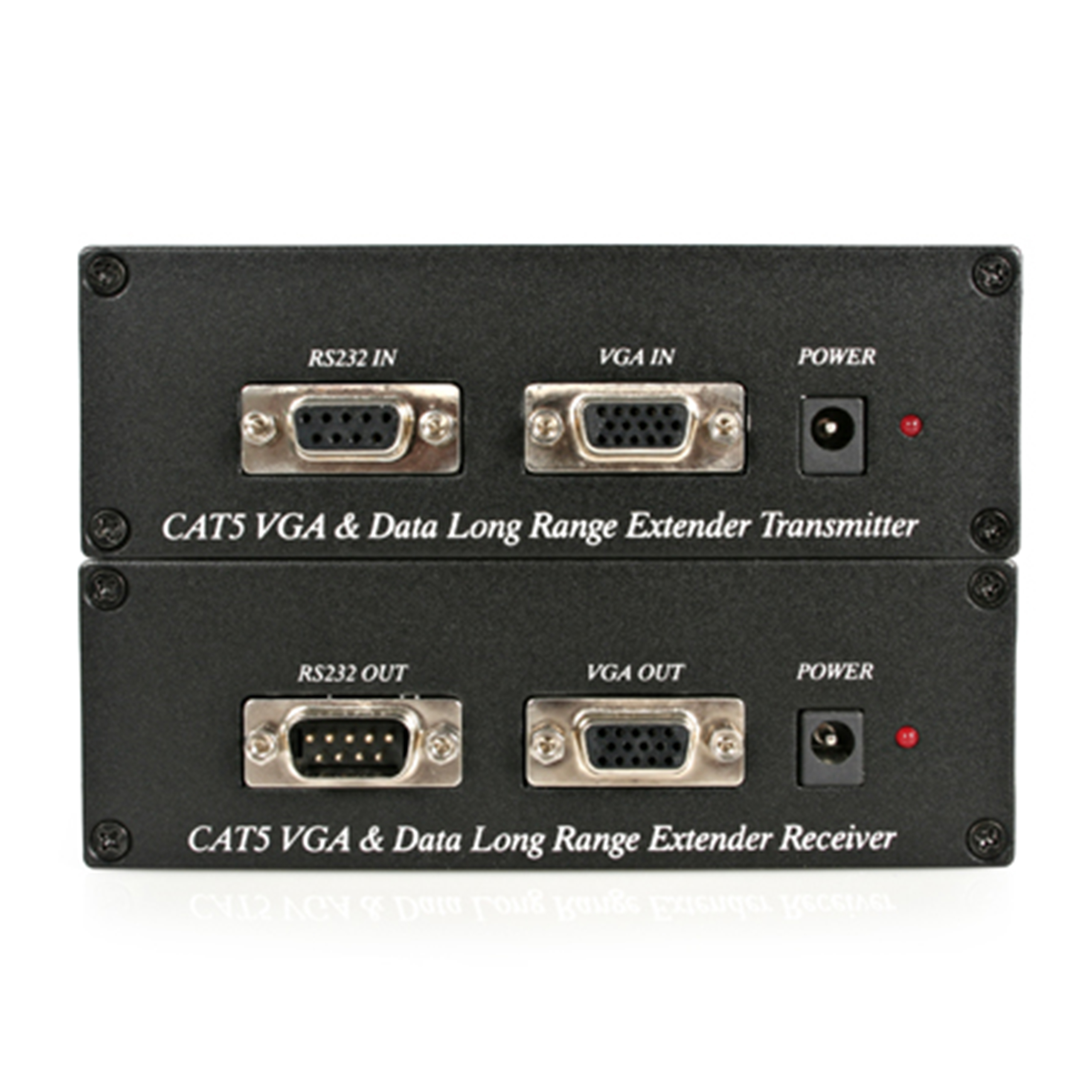

ST121UTP232
VGA & RS-232 Cat 5 Extender
Extend a VGA video and an RS232 data signal up to 300 meters (950 feet) using Cat5 cabling
Main Image
Product Images
Product Images
BOM Image
Product Name VGA & RS-232 Cat 5 Extender Product Number ST121UTP232 UPC 065030821049 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX071X Product Title (Short) VGA Video Extender over Cat 5 with RS232 Product Title (Standard) StarTech.com VGA Video Extender over Cat 5 with RS232 Product Title (Long) VGA Video Extender over Cat 5 with RS232 Product Title (AMZ) VGA over CAT5 Video Extender with RS232 Serial - Serial and VGA Extender - Up to 300 m (ST121UTP232) Title Ingram (Part 1) VGA Video Extender over Cat 5 wi Title Ingram (Part 2) th RS232 Website Product Headline Extend a VGA video and an RS232 data signal up to 300 meters (950 feet) using Cat5 cabling Bullet 1 Send VGA and RS232 Data over one CAT5 UTP cable to instead of VGA cable and data cable Bullet 2 Dual output at transmitter: 1 VGA output for local, plus 1 Cat5 RJ45 output for remote side Bullet 3 Supports up to 1600x1200 @85Hz Bullet 4 Long range transmission up to 300 meters (Max.) Bullet 5 Each set including transmitter and receiver Bullets (Consolidated) Extend a VGA video and an RS232 data signal up to 300 meters (984 feet) using Cat5 cabling - VGA RS232 Extender - VGA Over CAT5 Extender - VGA Audio RS-232 Extender - VGA over Cat 5 - VGA Video Extender over Cat5 - 1600x1200 @85Hz - Long range transmission up to 300 m Marketing Copy Applications - Security (access keypads, card scanners, home security systems)
- Healthcare(monitor and control medical equipment)
- Traffic Flow Management (air traffic control, expressway flow)
- Ideal for industrial sites with harsh environments
- Ideal for remote display applications in financial, educational, and business sectors
- Sending Video images and serial data to a projector and controlling it from your desk
Website Search Keyword - VGA
- RS-232
- Extender
- Video
- Serial
- Converge AV
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Sync Signal H/V Separated (TTL) Accessory Products - SVUSBPOWER
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MXT100
- MXT10010
- SCNM9FF
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA5N3NEUA
Related Products - RS232EXTC5
- ST122UTPA
- ST121UTP

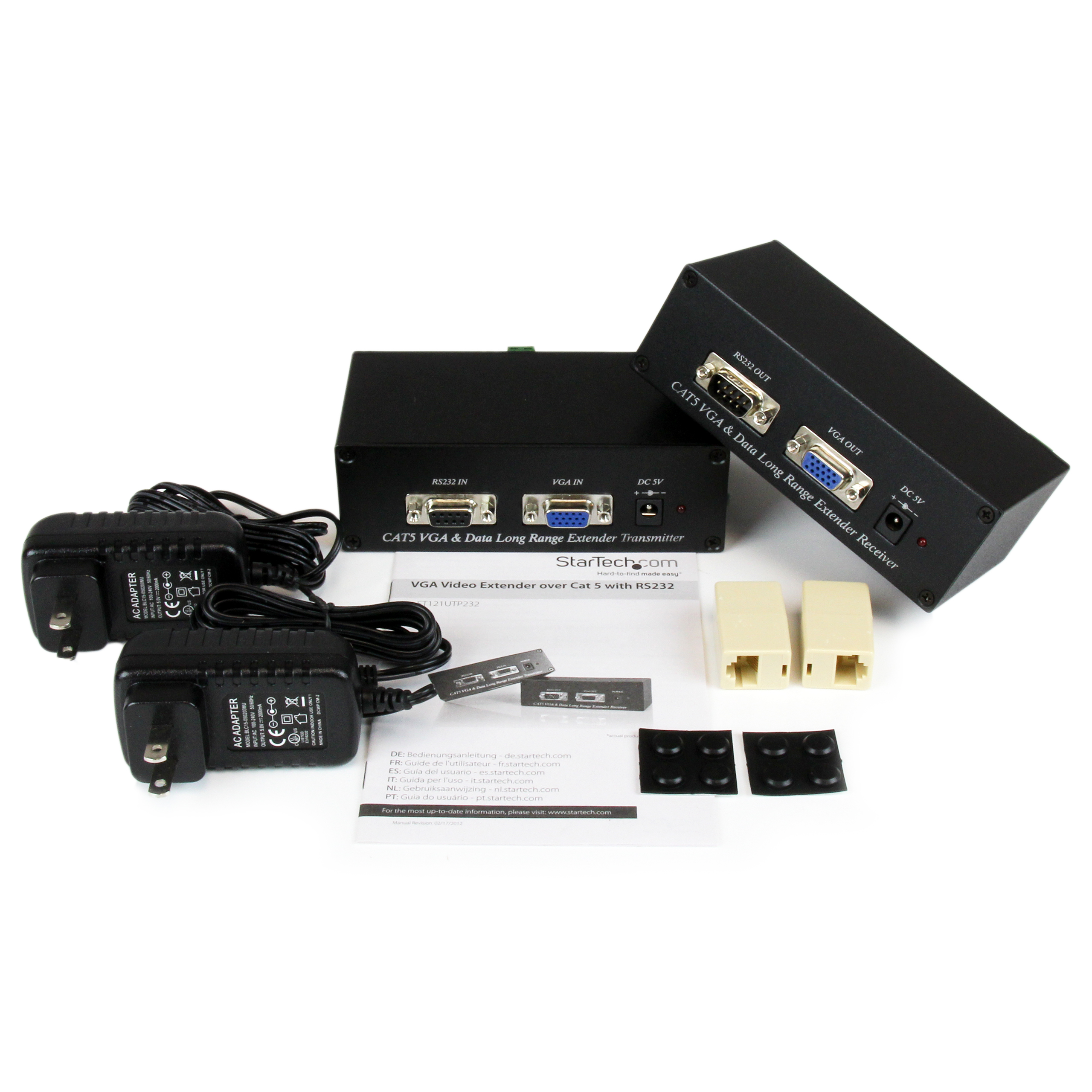

Equivalent Part Number in the UK ST121UTP23GB Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source 2 AC Adapters Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 133 Product Width (mm) 76 Product Height (mm) 44 Product Weight (g) 776 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Max Distance 300m [984ft] Maximum Analog Resolutions 1600x1200 @ 85Hz Supported Resolutions 1600x1200 max Audio No Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 325 Carton Height (mm) 324 Carton Quantity 20 Carton Weight Gross (g) 24560 Included in Package - 1 - CAT5 VGA & RS232 Transmitter
- 1 - CAT5 VGA & RS232 Extender Receiver
- 2 - 12V DC, 500mA Power Adapters
- 1 - User Manual
- 2 - Package of 4 rubber stoppers
- 2 - RJ45 Coupler
Package Depth (mm) 244 Package Height (mm) 56 Package Width (mm) 155 Package Quantity 1 Package Weight (g) 1045 Packaging Description VGA Video Extender over Cat 5 with RS232 Packaging Description India VGA Video Extender over Cat 5 with RS232 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 DB-9 Serial Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
