ST121UTP23GB

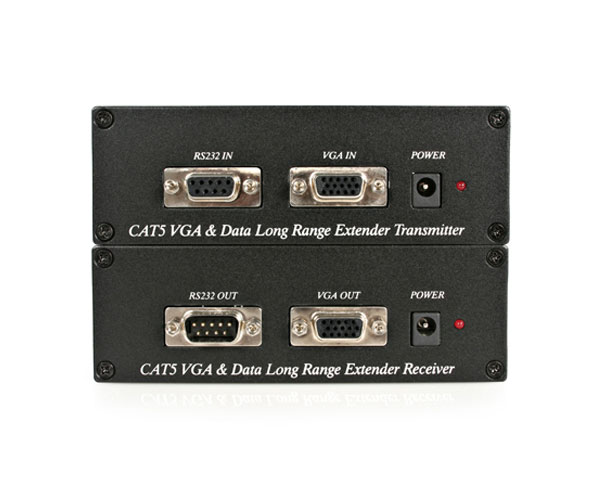

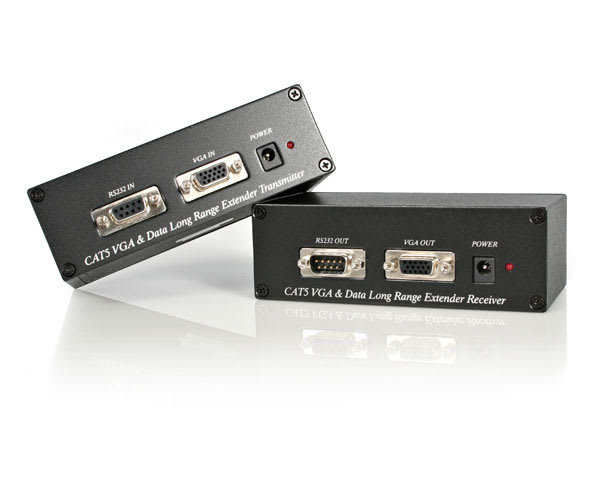

Converge A/V VGA & RS-232 Cat 5 Extender
Extend a VGA and RS232 signal to a remote display using Cat5 cabling
Main Image
Product Images
Product Images
Product Images

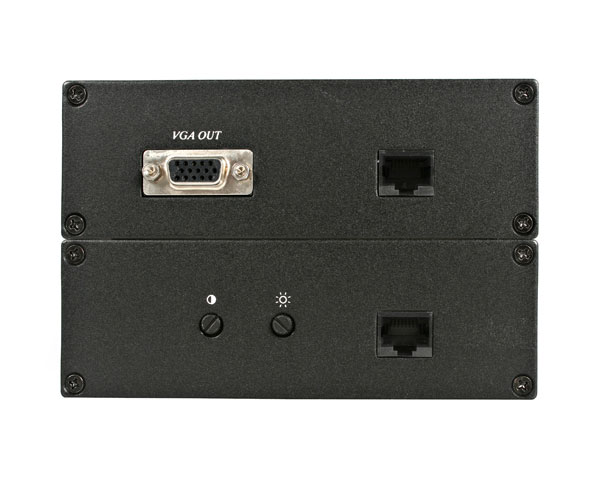

Product Name Converge A/V VGA & RS-232 Cat 5 Extender Product Number ST121UTP23GB UPC 065030831949 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) VGA over Cat 5 Video Extender with RS232 Product Title (Long) VGA over Cat 5 Video Extender with RS232 Title Ingram (Part 1) VGA over Cat 5 Video Extender wi Title Ingram (Part 2) th RS232 Website Product Headline Extend a VGA and RS232 signal to a remote display using Cat5 cabling Bullet 1 Dual output at transmitter: 1 VGA output for local, plus 1 Cat5 RJ45 output for remote side Bullet 2 Each set including transmitter and receiver Bullet 3 Long range transmission up to 300 meters (Max.) Bullet 4 Send VGA and RS232 Data over one CAT5 UTP cable to instead of VGA cable and data cable Bullet 5 Supports up to 1600x1200 @85Hz Marketing Copy Applications - Healthcare(monitor and control medical equipment)
- Ideal for industrial sites with harsh environments
- Ideal for remote display applications in financial, educational, and business sectors
- Security (access keypads, card scanners, home security systems)
- Sending Video images and serial data to a projector and controlling it from your desk
- Traffic Flow Management (air traffic control, expressway flow)
Website Search Keyword - Converge AV
- Extender
- RS-232
- Serial
- VGA
- Video
Accessory Products - M45PATCH100B
- M45PATCH50BL
- M45PATCH75BL
- WIRC5E350CMR
Related Products - RS232EXTC5
- ST121UTP
- ST122UTPA

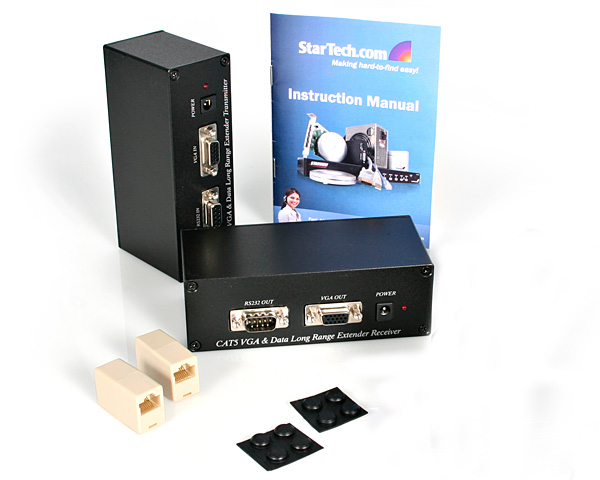

Output Current 1A Output Voltage (V) 5 DC Power Source 2 AC Adapters Included Center Tip Polarity Positive Color Black Humidity 0~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 133 Product Width (mm) 76 Product Height (mm) 44 Product Weight (g) 1400 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Bandwidth 150MHz Max Distance 300m [984ft] Maximum Analog Resolutions 1600x1200 @ 85Hz Cabling Cat 5 UTP Cascadable No Carton Depth (mm) 330 Carton Height (mm) 300 Carton Quantity 1 Carton Weight Gross (g) 22400 Included in Package - 2 - 12V DC, 500mA Power Adapters
- 1 - CAT5 VGA & RS232 Extender Receiver
- 1 - CAT5 VGA & RS232 Transmitter
- 2 - Package of 4 rubber stoppers
- 1 - User Manual
Package Depth (mm) 150 Package Height (mm) 60 Package Width (mm) 240 Package Weight (g) 1060 Packaging Description VGA over Cat 5 Video Extender with RS232 Packaging Description India VGA over Cat 5 Video Extender with RS232 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 DB-9 Serial Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
