ST121UTPDVEU

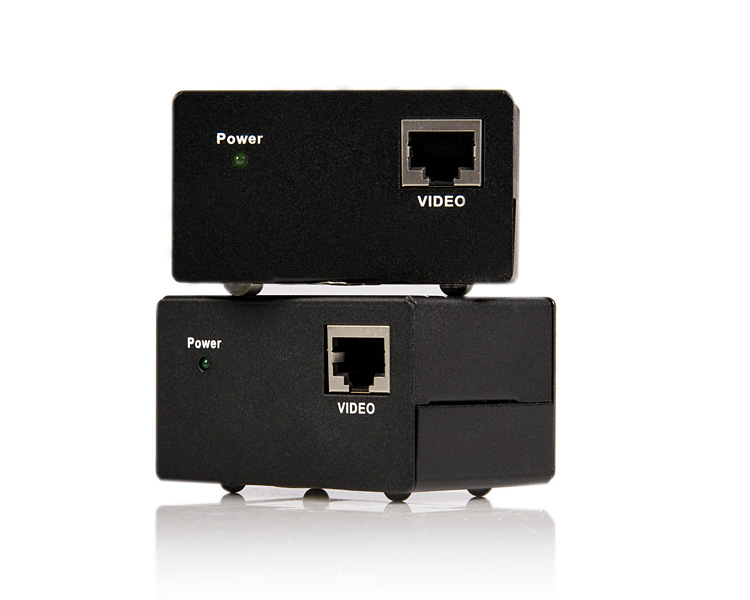

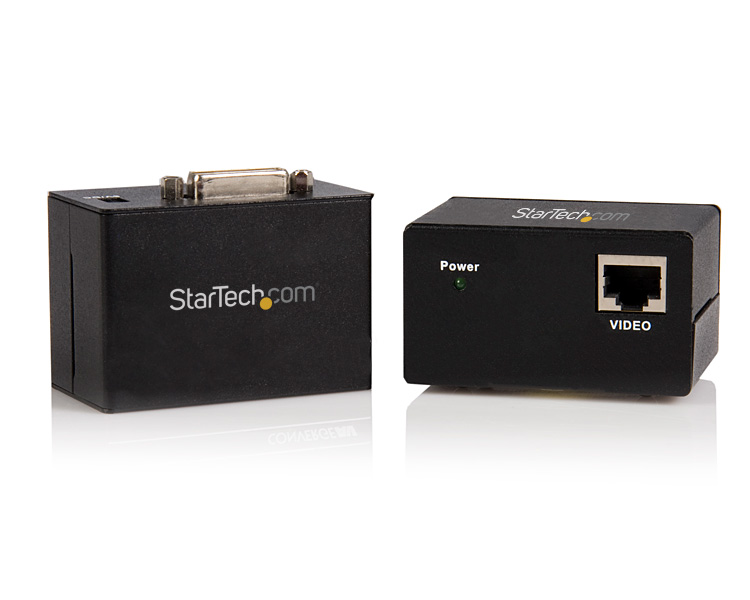

Converge A/V Cat 5 DVI Extender
Extend a single DVI video signal up to 150ft over Cat5 cabling
Main Image
Product Images
Product Images
Product Name Converge A/V Cat 5 DVI Extender Product Number ST121UTPDVEU UPC 065030844017 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) DVI Video Extender over Cat5 UTP Product Title (Standard) StarTech.com DVI Video Extender over Cat 5 UTP Product Title (Long) DVI Video Extender over Cat 5 UTP Product Title (AMZ) DVI Video Extender over Cat 5 UTP (ST121UTPDVEU) Title Ingram (Part 1) DVI Video Extender over Cat5 UTP Website Product Headline Extend a single DVI video signal up to 150ft over Cat5 cabling Bullet 1 Consists of 1 local unit, and 1 remote unit for an all-in-one solution Bullet 2 Extends a DVI video signal over standard Category 5 UTP cable Bullet 3 Supports resolutions up to 1600x1200 @ 60Hz Bullet 4 Supports DVI-D interface Marketing Copy Applications - Place a display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Ideal for digital signage applications in financial, educational, business and retail/POS sectors
Website Search Keyword - DVI Cat 5
- Cat 5 Cat 5
- Digital Signage
Special Notes DVI-A (Analog) signal not supported Accessory Products - M45PATCH50BL
- M45PATCH75BL
- M45PATCH100B
- DVIIDMF6
- DVIIDMF10
- DVIIDMM6
- DVIIDMM10
- ZENDVI2
Related Products - ST121UTP
- ST121UTPHDEU
Input Current 0.2A Input Voltage 240V AC Output Current 1A Output Voltage (V) 5 DC Power Source 2 AC Adapters Included Plug Type H Center Tip Polarity Positive Color Black Product Length (mm) 67 Product Width (mm) 52 Product Height (mm) 38 Product Weight (g) 138 TAA Compliant No Max Distance 45m [148ft] Maximum Digital Resolutions 1600x1200 @ 60Hz Audio No Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 503 Carton Height (mm) 330 Carton Quantity 20 Carton Weight Gross (g) 14400 Included in Package - 1 - DVI Local Unit Extender
- 1 - DVI Remote Unit Extender
- 1 - Instruction Manual
- 2 - Power Adapters

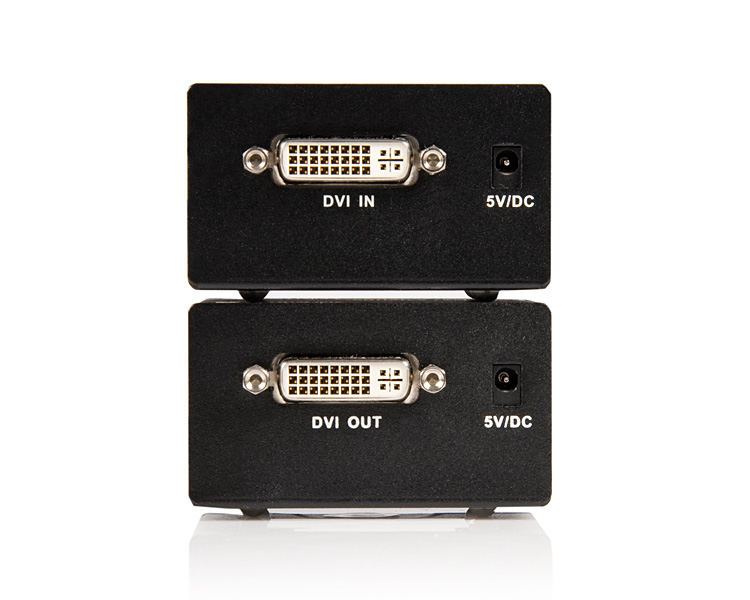

Package Depth (mm) 67 Package Height (mm) 155 Package Width (mm) 244 Package Weight (g) 660 Packaging Description DVI Video Extender over Cat 5 UTP Packaging Description India DVI Video Extender over Cat 5 UTP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
