ST121UTPDVGB
DVI-D over Cat5 / UTP Extender
Extend a single DVI video signal up to 150ft over Cat5 cabling
Main Image
Product Images
Product Images
Product Images
Product Name DVI-D over Cat5 / UTP Extender Product Number ST121UTPDVGB UPC 065030831956 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 DVI Extenders Family DVI Extender Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) DVI Video Extender over Cat5 UTP Product Title (Standard) StarTech.com DVI Video Extender over Cat 5 UTP Product Title (Long) DVI Video Extender over Cat 5 UTP Product Title (AMZ) DVI Video Extender over Cat 5 UTP (Local and Remote unit) - External - Up to 50 m (ST121UTPDVGB) Title Ingram (Part 1) DVI Video Extender over Cat5 UTP Website Product Headline Extend a single DVI video signal up to 150ft over Cat5 cabling Bullet 1 Consists of 1 local unit, and 1 remote unit for an all-in-one solution Bullet 2 Extends video signal over standard Category 5 UTP cable Bullet 3 Supports resolutions up to 1600x1200 @ 60Hz Bullet 4 Supports DVI-D interface Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Ideal for digital signage applications in financial, educational, business and retail/POS sectors
Website Search Keyword - DVI Cat 5
- Cat 5 Cat 5
- Digital Signage
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes DVI-A (Analog) signal not supported Accessory Products - M45PATCH50BL
- M45PATCH75BL
- M45PATCH100B
- DVIIDMF6
- DVIIDMF10
- DVIIDMM6
- DVIIDMM10
- ZENDVI2
- SVA5H2NEUA
Related Products - ST121UTP
- DVIEQ
- ST121HDMIT

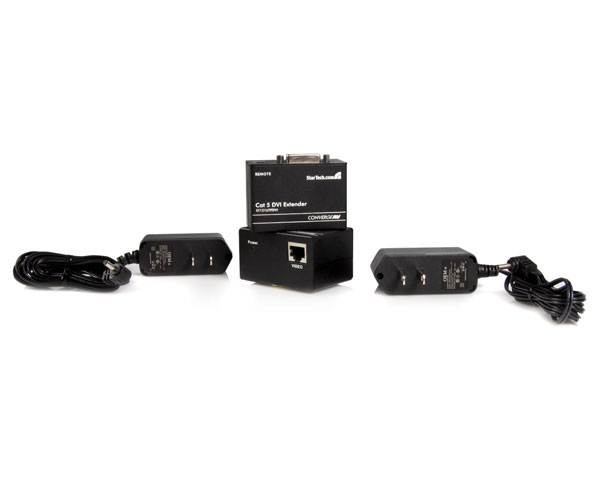

Input Current 0.2A Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source 2 AC Adapters Included Plug Type H Center Tip Polarity Positive Color Black Material Steel Primary Material Steel Product Length (mm) 67.000 Product Width (mm) 52.000 Product Height (mm) 38.000 Product Weight (g) 138.000 TAA Compliant Yes Max Distance 45m [148ft] Maximum Digital Resolutions 1600x1200 @ 60Hz Audio No Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 503 Carton Height (mm) 330 Carton Quantity 20 Carton Weight Gross (g) 14400 Included in Package - 1 - DVI Local Unit Extender
- 1 - DVI Remote Unit Extender
- 1 - Instruction Manual
- 2 - Power Adapters

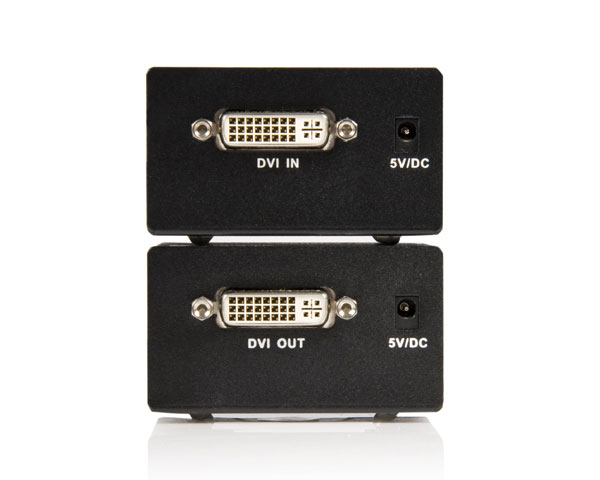

Package Depth (mm) 67 Package Height (mm) 155 Package Width (mm) 244 Package Quantity 1 Package Weight (g) 660 Packaging Description DVI Video Extender over Cat 5 UTP Packaging Description India DVI Video Extender over Cat 5 UTP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Single-Link (23-Pin) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 DVI-I Single-Link (23-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) ES,EU,IE,UK Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
