ST121UTPHD2
HDMI Video Extender over Cat5 RS232 and IR Control
Extend an HDMI® video and audio over standard CAT5e cabling, with support for RS232 Serial and Infrared control
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI Video Extender over Cat5 RS232 and IR Control Product Number ST121UTPHD2 UPC 065030848480 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Ultra-Short) HDMI CAT6 Extender Product Title (Short) HDMI over Cat5e Video Extender w/ RS232 Product Title (Medium) HDMI over CAT5e/CAT6 HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m) Product Title (Standard) HDMI over CAT5e/CAT6 HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m) Product Title (Long) HDMI over CAT5e HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m) - TAA Product Title (AMZ) 330 ft. (100 m) HDMI Over CAT5e / CAT6 HDbaseT Extender - UHD 4K - IR Extension - RS232 Extension - Power Over Ethernet (ST121UTPHD2) Title Ingram (Part 1) HDMI Video Extender over Title Ingram (Part 2) Cat5e RS232 and IR Control Website Product Headline Extend an HDMI® video and audio over standard CAT5e cabling, with support for RS232 Serial and Infrared control Bullet 1 Astonishing picture quality with support for resolutions up to UltraHD 4K (up to 50m) Bullet 2 Hassle-free installation with a single CAT5e or CAT6 cable and built-in mounting hardware Bullet 3 Supports HD video resolutions such as 1920x1200 or 1080p at distances up to 330 ft. (100m) Bullet 4 With HDBaseT extend HDMI, IR, and RS-232 through one CAT5e or CAT6 cable Bullet 5 Supports unidirectional RS232 Bullets (Consolidated) Use this HDBaseT extender to extend your HDMI video and audio over standard CAT5e cabling - Compatible with HDMI video sources and HDMI monitors, televisions and projectors - Support for RS232 Serial and Infrared control - HDBaseT Extender/HDMI Cat5e Extender/HDMI to Cat5e - HDMI over Cat5e/HDMI Extender/HDMI over Ethernet - With HDBaseT extend HDMI, IR, and RS-232 through one CAT5e or CAT6 cable - Ideal for digital signage applications in financial educational medical and business sectors Marketing Copy Marketing Copy (No HTML) Applications - Position a display/monitor in a convenient viewing area while the transmitting content over a CAT5 cable from a cleaner, more secure environment
- Ideal for digital signage applications in financial, educational, medical and business sectors
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at trade-shows and in auditoriums
Website Search Keyword - A/V
- Serial control
- IR extender
- 1080p
- HDMI Extender
- HDMI over Cat5 Video Extender Audio RS232 IR Control Infrared
- Digital Signage
- HDMI over Cat6
- HDMI over Cat 6
- Video / Audio Extender
- Transmitter and Receiver
- Sender and Receiver
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements 1X Standard CAT5 cable</br> 1X HDMI Cable for Remote Unit (Local Cable Included) Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST121UTP232
- HDMIEXT
- ST121HDMR50
- ST121HDMR250
- ST121HDMIT
- DS128
- DSRXL

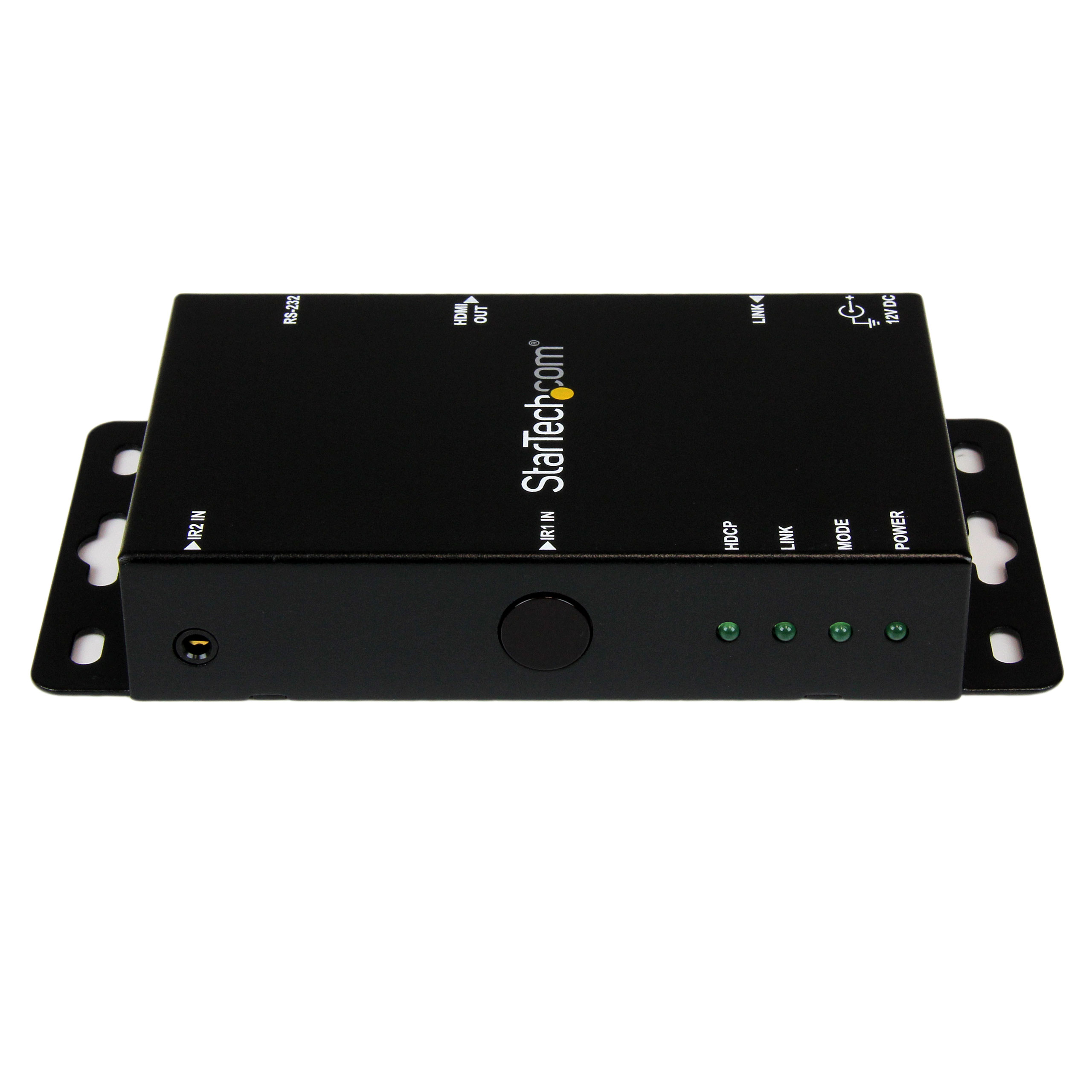

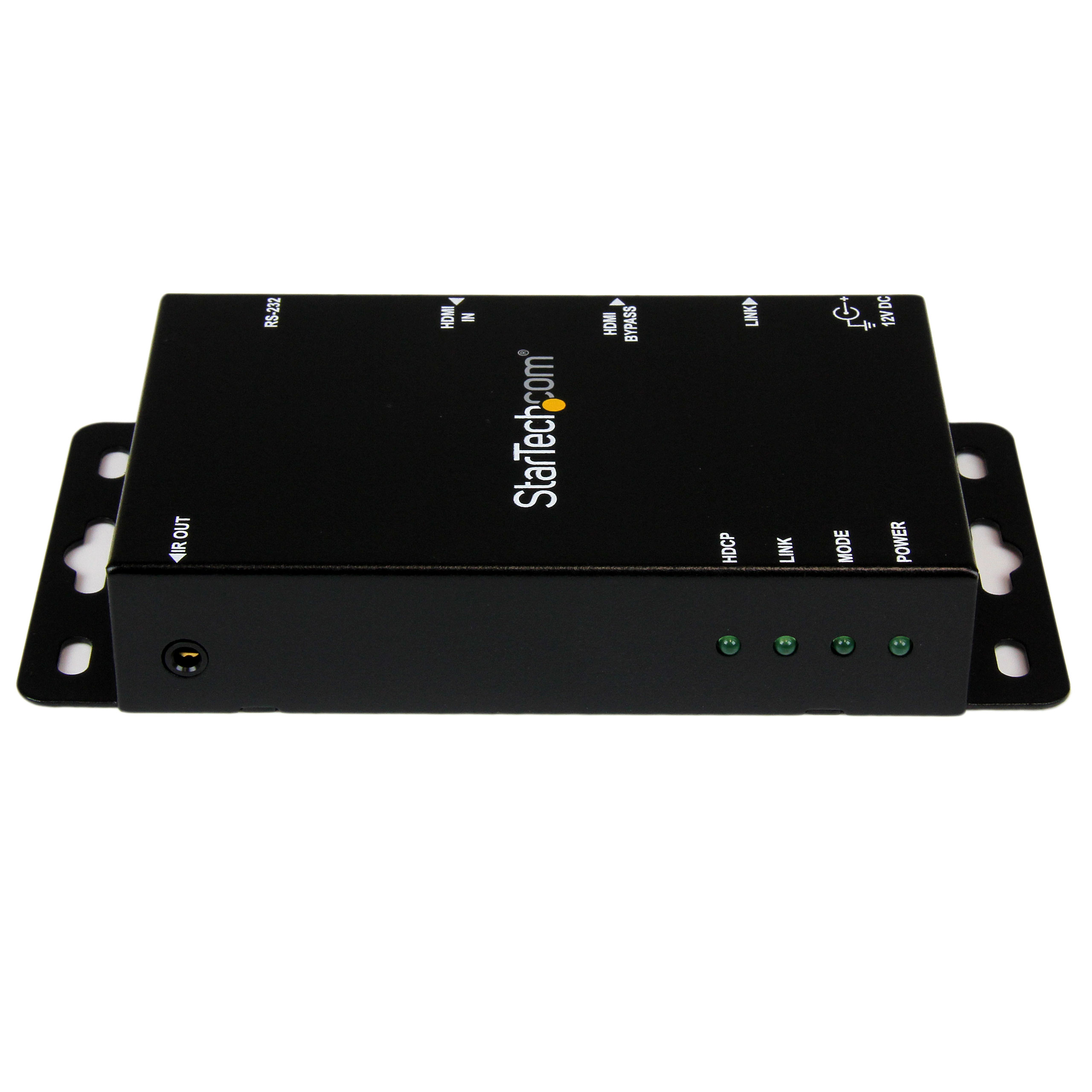

Input Current 0.6 Input Voltage 100 - 240 AC Output Current 1.24A Output Voltage (V) 12V DC Power Consumption (In Watts) 12 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0-95% Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 150.000 Product Width (mm) 80.000 Product Height (mm) 25.000 Product Weight (g) 579.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes General Specifications Max Distance 100m [328ft] Maximum Data Transfer Rate Maximum Digital Resolutions 4K OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better Cascadable No Industry Standards High Speed HDMI® and HDCP compliant LED Indicators - 1 - Power (Green)
- 1 - RJ45 Link (Green)
- 1 - Mode (Green)
- 1 - HDCP (Green)

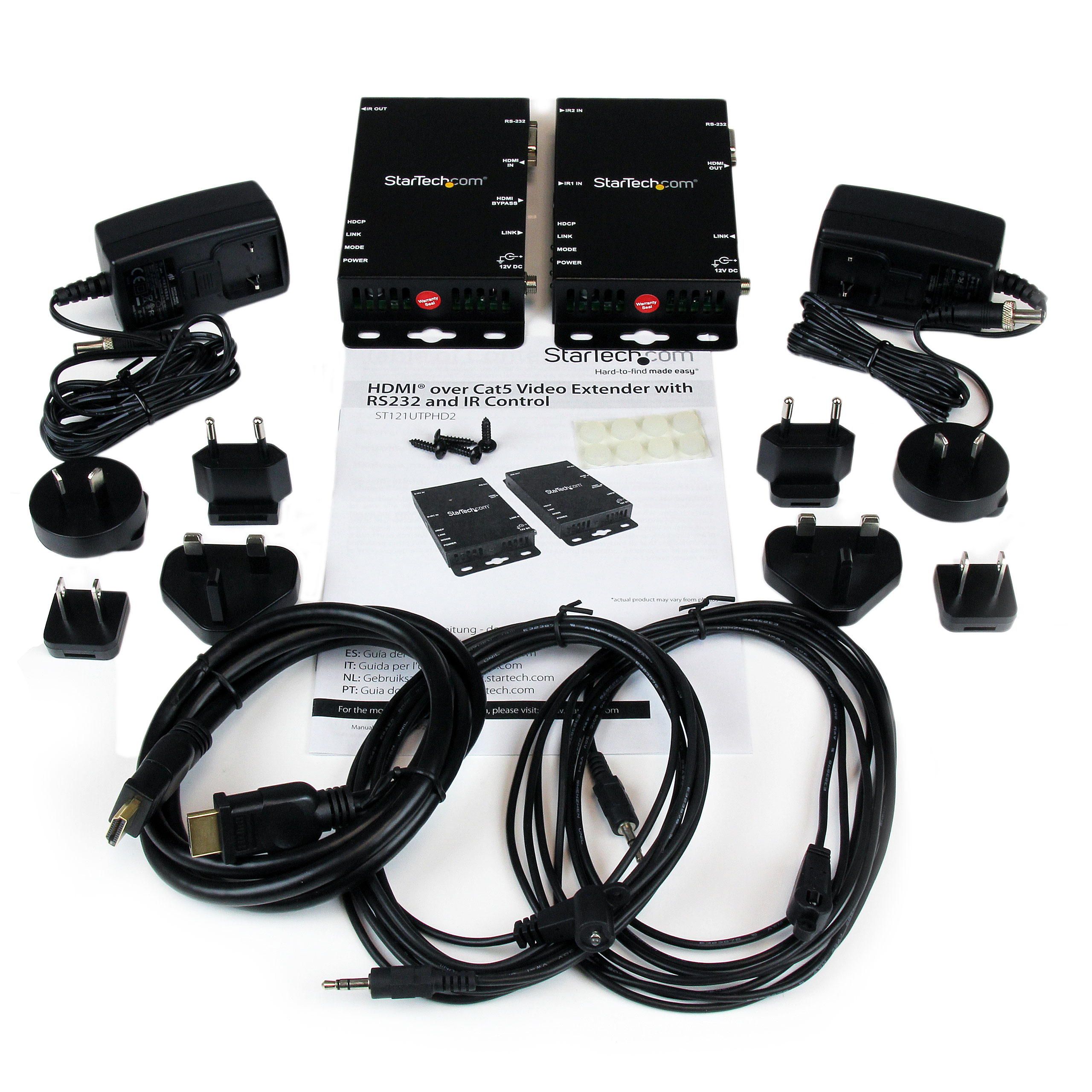

Carton Depth (mm) 331 Carton Height (mm) 291 Carton Quantity 5 Carton Weight Gross (g) 8528 Included in Package - 1 - Local HDMI® Extender Unit
- 1 - Remote HDMI® Receiver Unit
- 2 - Universal Power Adapter NA / UK / EU
- 1 - User Manual
- 1 - HDMI Cable - 4 ft (1.2 Meters)
- 1 - IR Receiver Cable
- 1 - IR Transmitter Cable
Package Depth (mm) 309 Package Height (mm) 67 Package Width (mm) 254 Package Quantity 1 Package Weight (g) 1534 Packaging Description HDMI® over Cat5 Video Extender with RS232 and IR Control Packaging Description India HDMI® over Cat5 Video Extender with RS232 and IR Control Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 Infrared (IrDA) Connector 4 (Quantity) 2 Host Connector 1 HDMI Host Connector 1 (Quantity) 2 Host Connector 2 DB-9 Serial Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Host Connector 4 Infrared (IrDA) Host Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
