ST121UTPHDEU
HDMI Video Extender w/ RS232 & IR over Cat 5
Extend an HDMI® source with audio, RS232 and IR over Cat5 cabling
Main Image
Product Images
Product Images
Product Images
Product Name HDMI Video Extender w/ RS232 & IR over Cat 5 Product Number ST121UTPHDEU UPC 065030842129 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX071X Product Title (Short) HDMI over Cat5 Video Extender with RS232 Product Title (Standard) HDMI over Cat5 Video Extender with Audio - RS232 and IR Control Product Title (Long) HDMI over Cat5 Video Extender with Audio - RS232 and IR Control Product Title (AMZ) HDMI over Cat5 Video Extender with Audio - RS232 and IR Control (ST121UTPHDEU) Title Ingram (Part 1) HDMI over Cat5 Video Extender wi Title Ingram (Part 2) th Audio RS232 & IR Control Website Product Headline Extend an HDMI® source with audio, RS232 and IR over Cat5 cabling Bullet 1 80m (260ft) maximum cat5 (or better) cable distance Bullet 2 Audio transmission supports Dolby TrueHD, DTS-HD MA Bullet 3 Extends HDMI or DVI video with control signal over a single CAT5/5e/6/6a/7 UTP/STP cable Bullet 4 High-Speed HDMI and HDCP compliant Bullet 5 No software or drivers required Marketing Copy Applications - Extend your display across harsh environment industrial sites
- Ideal for digital signage applications in financial, educational, medical and business sectors
- Optimize placement of your demo stations at trade-shows and in auditoriums
- Perfect for video conferencing solutions in boardrooms and office settings
- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Sending Video images and serial data to a projector and controlling it from your desk
Website Search Keyword - 1080p
- A/V
- HDMI Extender
- HDMI over Cat5 Video Extender Audio RS232 IR Control Infrared
- IR extender
- Serial control
Accessory Products - HDMIDVIMM10
- HDMIMM10
- HDMIMM3
- HDMIMM6
- WIRC6PATBLRL
- WIRC6PATGRRL
- SVA5M3NEUA
Related Products - DS128
- DSRXL
- ST121UTPEP
Replacement Product ST121HDBTL Input Voltage 230 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 1200mA (max) Power Source 2 AC Adapters Included Color Black Humidity 0-95% Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 130 Product Width (mm) 88 Product Height (mm) 30 Product Weight (g) 1000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes General Specifications Max Distance 80m [263ft] Maximum Data Transfer Rate Maximum Digital Resolutions 1080p @ 60Hz, 48-bit OS Compatibility OS Independent Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better Cascadable No Industry Standards High Speed HDMI and HDCP compliant LED Indicators - 1 - IR Receive (Blue)
- 1 - IR Transmit (Red)
- 1 - Power (Solid Green when power present)
- 1 - RJ45 Link (Solid Green when link present)

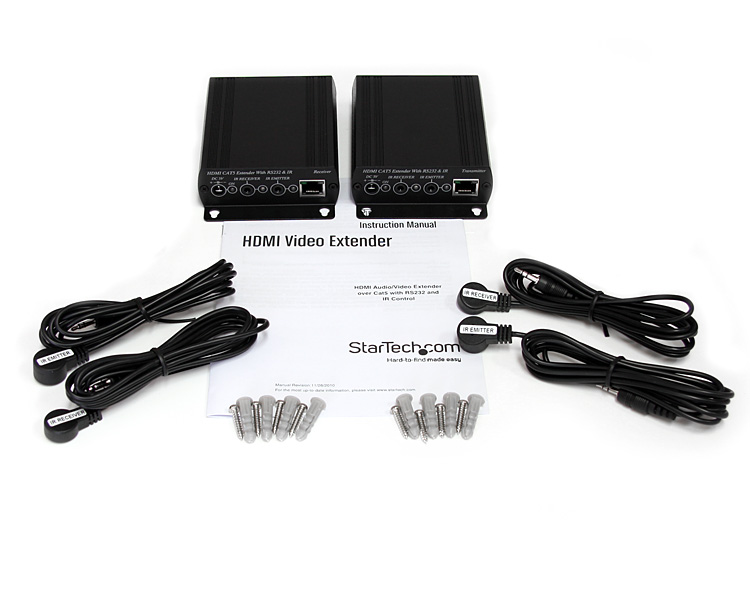

Carton Depth (mm) 235 Carton Height (mm) 380 Carton Quantity 12 Carton Weight Gross (g) 13200 Included in Package - 2 - IR Emitter Cable
- 2 - IR Receiver Cable
- 2 - Power Adapter
- 1 - Receiver Unit
- 1 - Transmitter Unit
- 1 - User Manual
Package Depth (mm) 160 Package Height (mm) 65 Package Width (mm) 320 Package Weight (g) 1100 Packaging Description HDMI over Cat5 Video Extender with RS232 Packaging Description India HDMI over Cat5 Video Extender with RS232 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 DB-9 Serial Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
