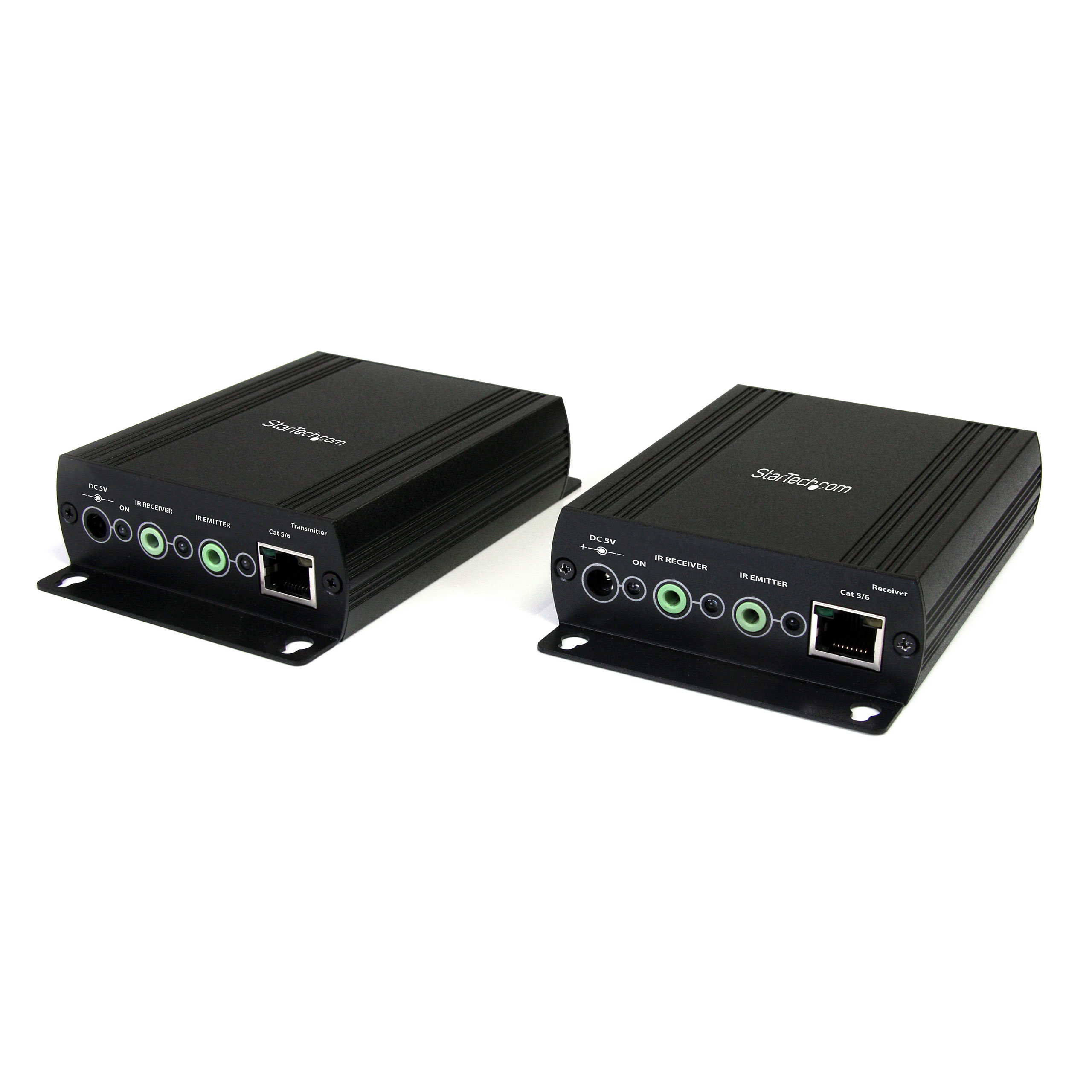

Main Image
ST121UTPHDMI
HDMI Video Extender with RS232 & IR over Cat 5
Extend an HDMI® signal with accompanying audio over standard UTP/STP cabling - Includes RS232 and IR interfaces

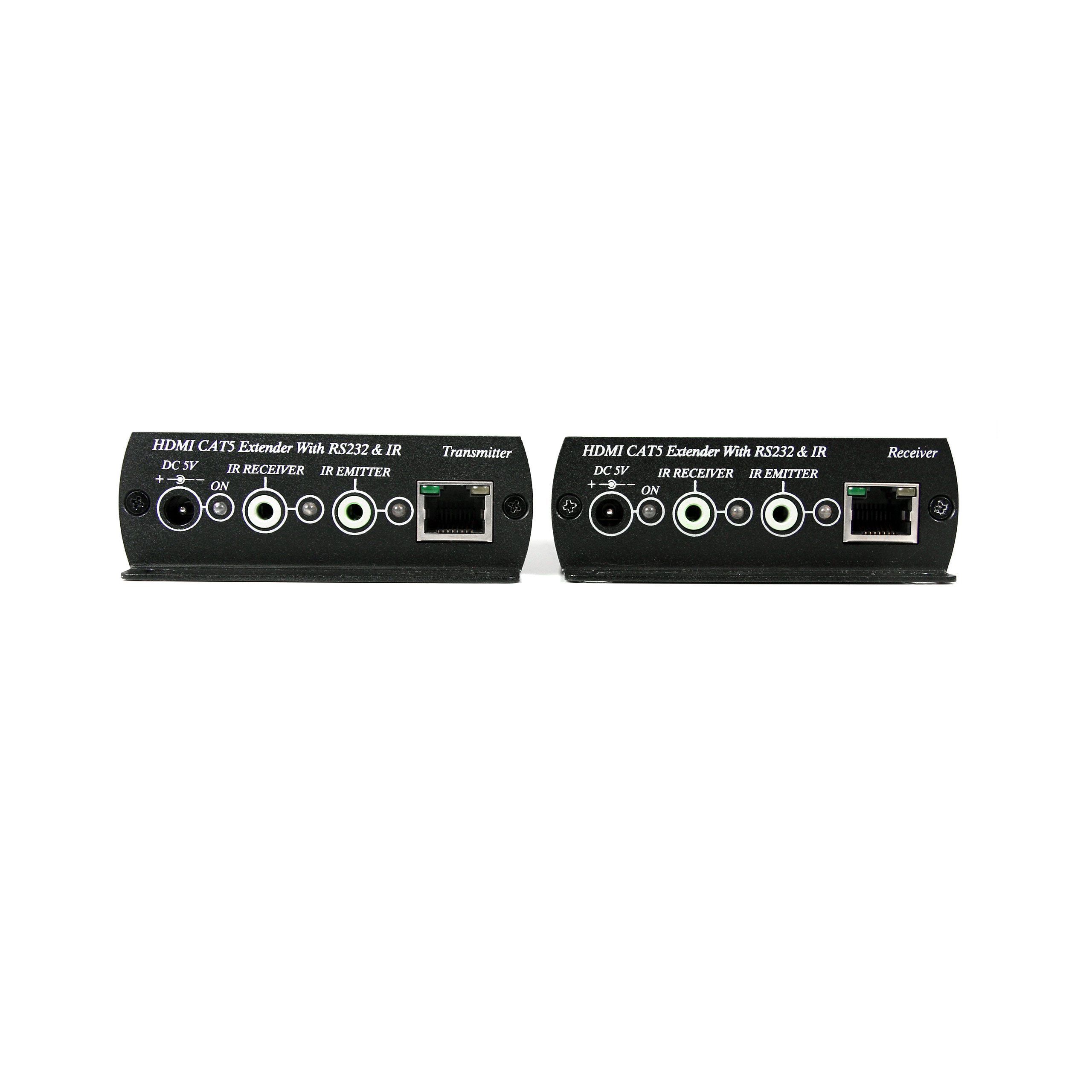

Main Image

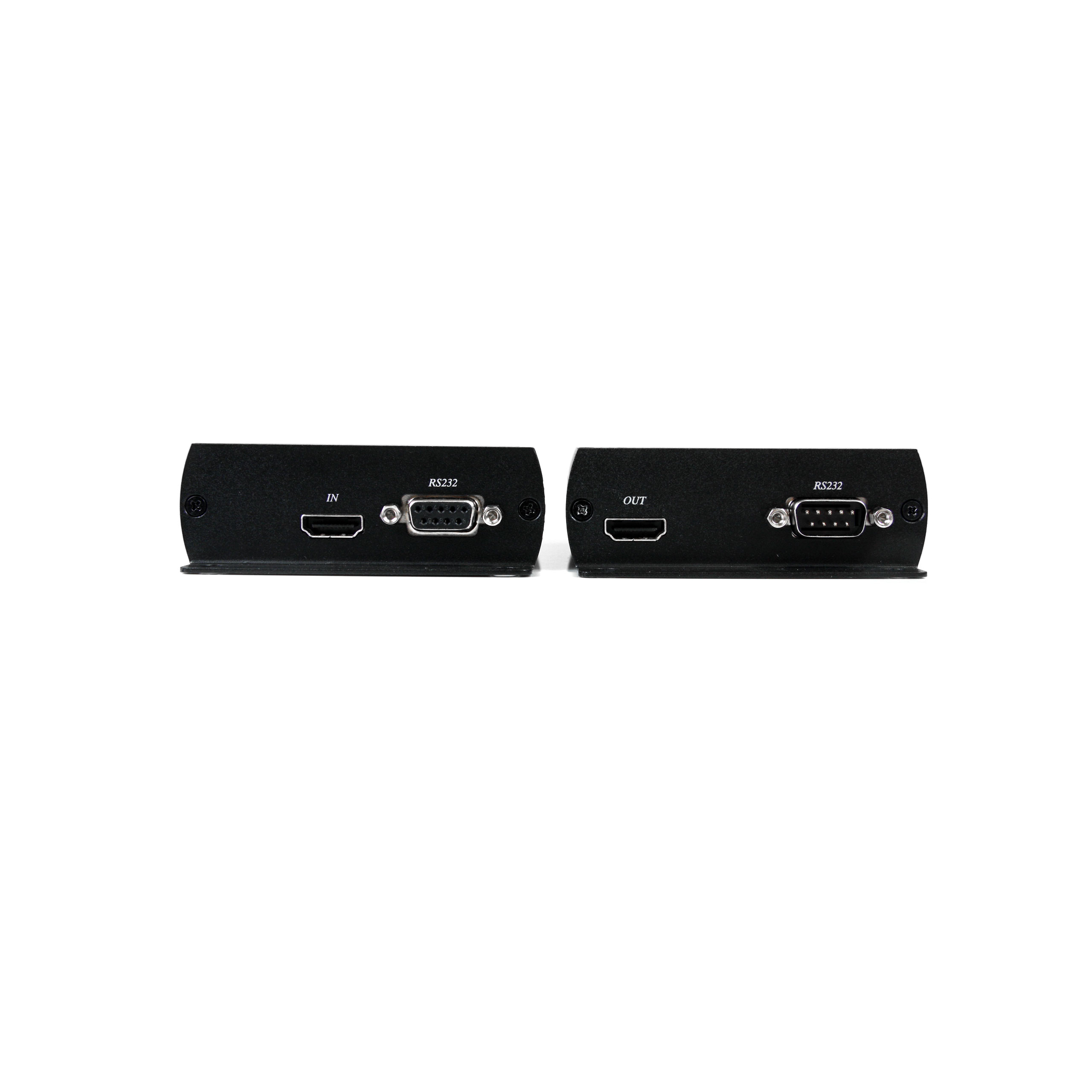

Product Images
Product Images
BOM Image
Product Name HDMI Video Extender with RS232 & IR over Cat 5 Product Number ST121UTPHDMI UPC 065030841887 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX071X Product Title (Short) HDMI over Cat5 Video Extender with RS232 Product Title (Standard) HDMI over Cat5 Video Extender with Audio - RS232 and IR Control Product Title (Long) HDMI over Cat5 Video Extender Kit with Audio - RS232 and IR Control Title Ingram (Part 1) HDMI over Cat5 Video Extender wi Title Ingram (Part 2) th Audio RS232 & IR Control Website Product Headline Extend an HDMI® signal with accompanying audio over standard UTP/STP cabling - Includes RS232 and IR interfaces Bullet 1 Supports video resolutions up to 1080p / 60Hz / 48-bit Bullet 2 80m (260ft) maximum Cat5 (or better) cable distance Bullet 3 Supports bi-directional RS232 and IR communication Bullet 4 Extends HDMI® or DVI video with control signal over a single Cat 5/5e/6/6a/7 UTP/STP cable Bullet 5 High Speed HDMI and HDCP compliant Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a cleaner, more secure environment
- Ideal for digital signage applications in financial, educational, medical and business sectors
- Extend your display across harsh environment industrial sites
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at trade-shows and in auditoriums
- Sending video images and serial data to a projector and controlling it from your desk
Website Search Keyword - A/V
- Serial control
- IR extender
- 1080p
- HDMI Extender
- HDMI over Cat5 Video Extender Audio RS232 IR Control Infrared
- Digital Signage
- HDMI over Cat6
- HDMI over Cat 6
- Video / Audio Extender
- Transmitter and Receiver
- Sender and Receiver
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
Related Products - ST121UTP232
- HDMIEXT
- ST121HDMR50
- ST121HDMR250
- ST121HDMIT
- DS128
- DSRXL
Equivalent Part Number in the EU ST121UTPHDEU Equivalent Part Number in the UK ST121UTPHDGB Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 1200mA (max) Power Source 2 AC Adapters Included Color Black Humidity 0-95% Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 130 Product Width (mm) 88 Product Height (mm) 30 Product Weight (g) 520 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No General Specifications Max Distance 80m [263ft] Maximum Data Transfer Rate Maximum Digital Resolutions 1080p @ 60Hz, 48-bit OS Compatibility OS Independent Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better Cascadable No Industry Standards High Speed HDMI® and HDCP compliant LED Indicators - 1 - Power (Solid Green when power present)
- 1 - RJ45 Link (Solid Green when link present)
- 1 - IR Receive (Blue)
- 1 - IR Transmit (Red)

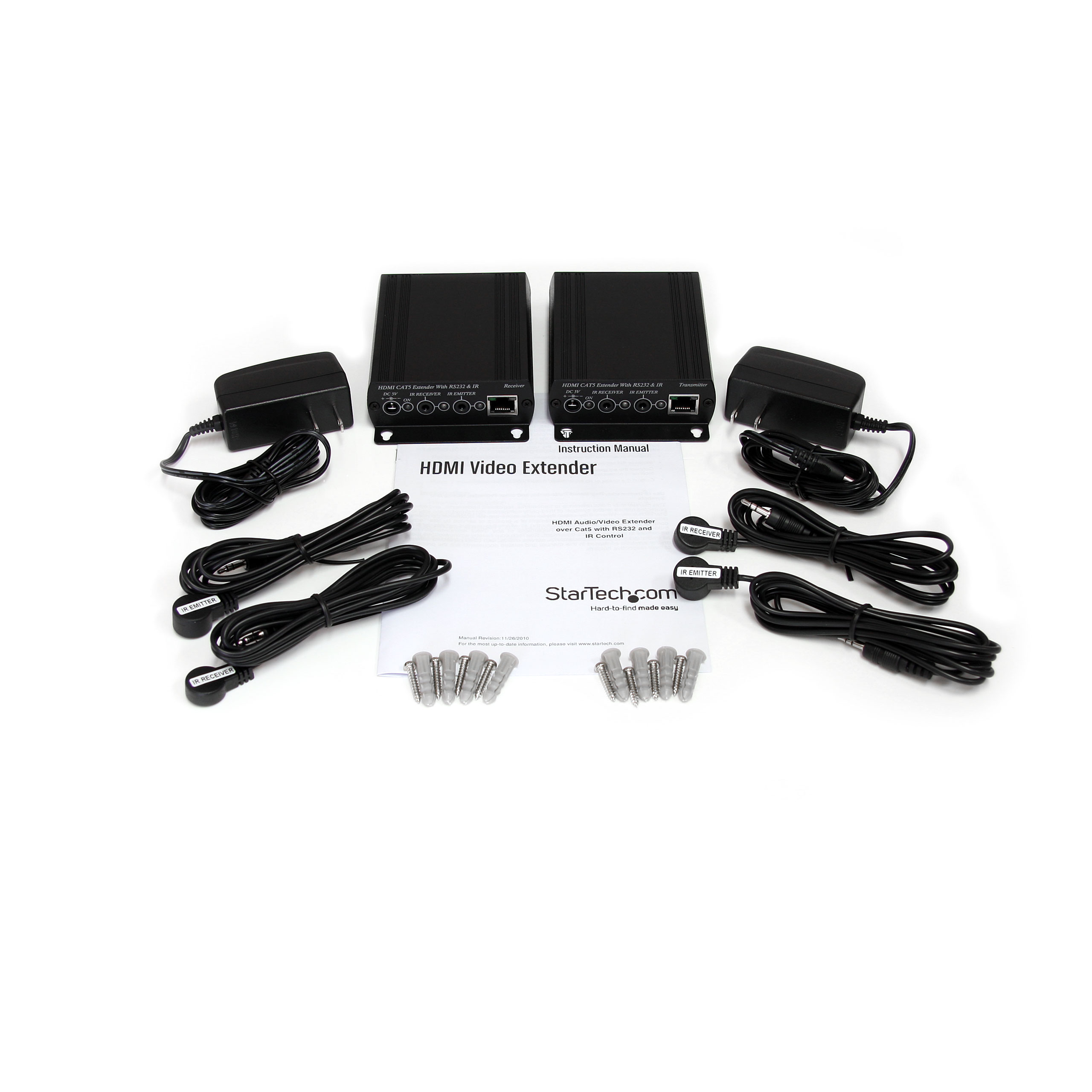

Carton Depth (mm) 355 Carton Height (mm) 380 Carton Quantity 20 Carton Weight Gross (g) 22000 Included in Package - 1 - Transmitter Unit
- 1 - Receiver Unit
- 2 - Power Adapter
- 1 - User Manual
- 2 - IR Emitter Cable
- 2 - IR Receiver Cable
Package Depth (mm) 160 Package Height (mm) 65 Package Width (mm) 320 Package Weight (g) 1048 Packaging Description HDMI® Extender over Cat 5 w/ Audio, RS232 Packaging Description India HDMI® Extender over Cat 5 w/ Audio, RS232 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 DB-9 Serial Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
