ST121UTPMINI
High-Res VGA Super Mini Cat 5 Extender
Extend a VGA signal with audio to a remote display over Cat 5 or better cabling with this small form-factor device
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image

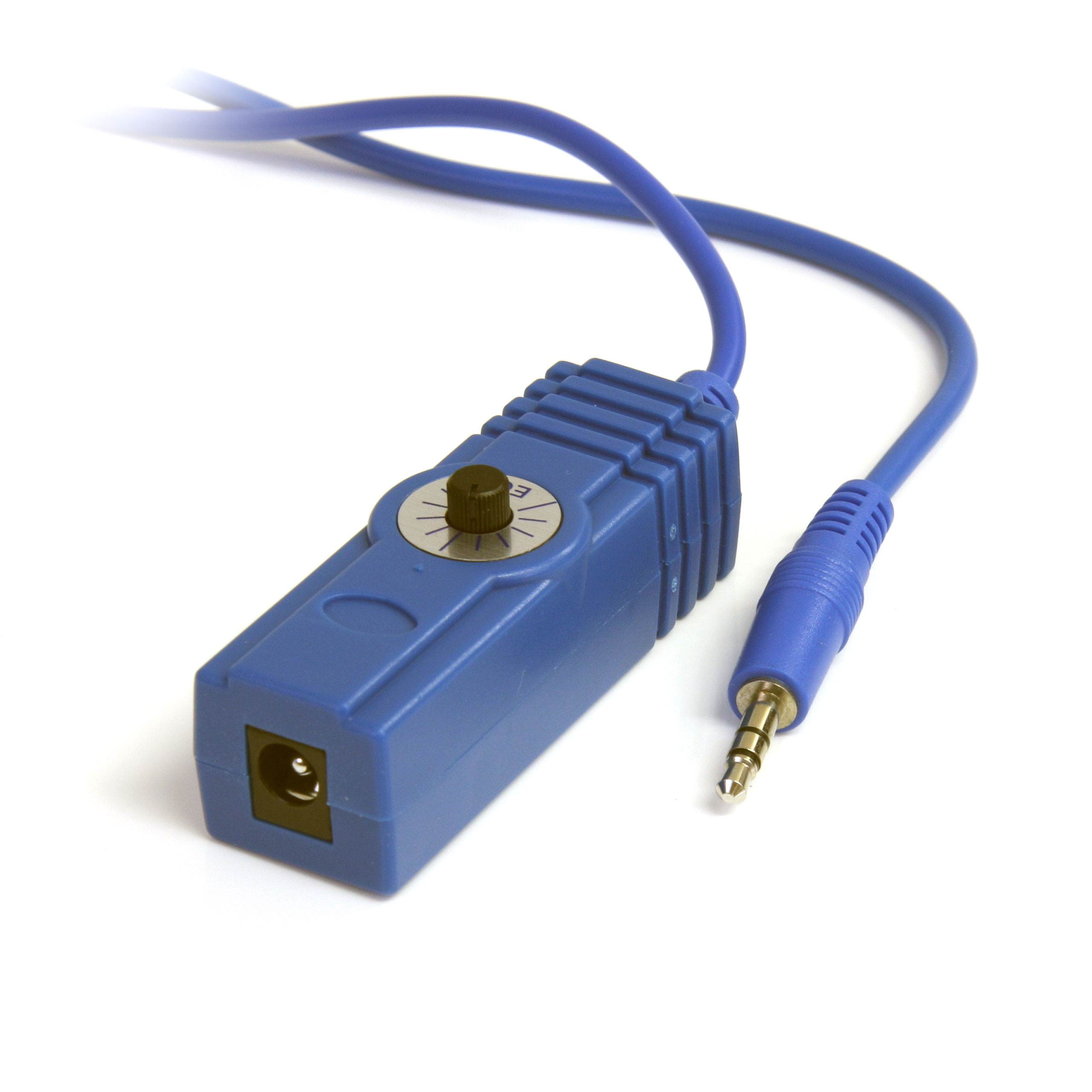

Product Name High-Res VGA Super Mini Cat 5 Extender Product Number ST121UTPMINI UPC 065030832946 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) Mini VGA Video Extender Product Title (Standard) Mini VGA Video and Audio Extender over Cat5 Product Title (Long) Mini VGA Video and Audio Extender over Cat5 Product Title (AMZ) Mini VGA Video and Audio Extender over Cat5 - Mini VGA Extender - VGA over Cat5 Extender - VGA Extender over Cat5 (ST121UTPMINI) Title Ingram (Part 1) Mini VGA Video and Audio Extende Title Ingram (Part 2) r over Cat5 Website Product Headline Extend a VGA signal with audio to a remote display over Cat 5 or better cabling with this small form-factor device Bullet 1 Supports resolutions up to 1920x1200 at 90m / 295ft Bullet 2 USB Powered Local / Transmitter unit – no external AC adapter required Bullet 3 Receiver has a built in equalizer for fine tuning image quality Bullet 4 Transmit VGA Video and Audio through a single Cat 5 or better cable Bullet 5 Pure hardware design, no software or drivers required Marketing Copy Applications - Perfect for tight spaces or when a boxed VGA extender is not convenient for the installation
- Use digital signage to catch the attention of your audience and deliver up to date content the way you want it to be seen and heard

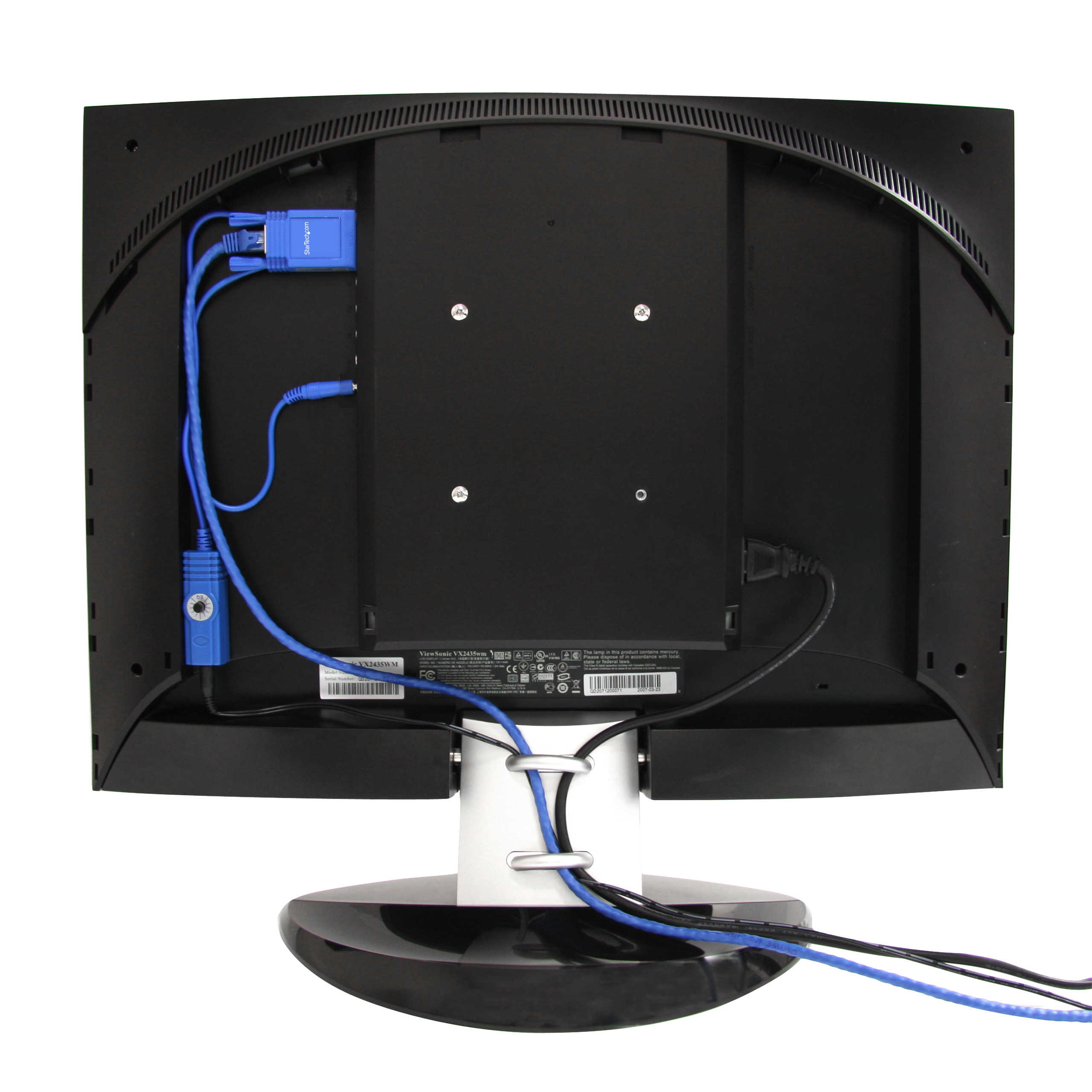

- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Ideal for digital signage applications in educational, corporate, retail, healthcare, and hospitality sectors
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at trade-shows and in auditoriums
Website Search Keyword - Digital Signage
- Video Extension
- VGA cable extender
- VGA to Cat5
- VGA to Cat 5
- VGA over Cat5
- Mini VGA Extender
- Compact VGA Extender
- UTP VGA Video Extender
- VGA Video and Audio Extender

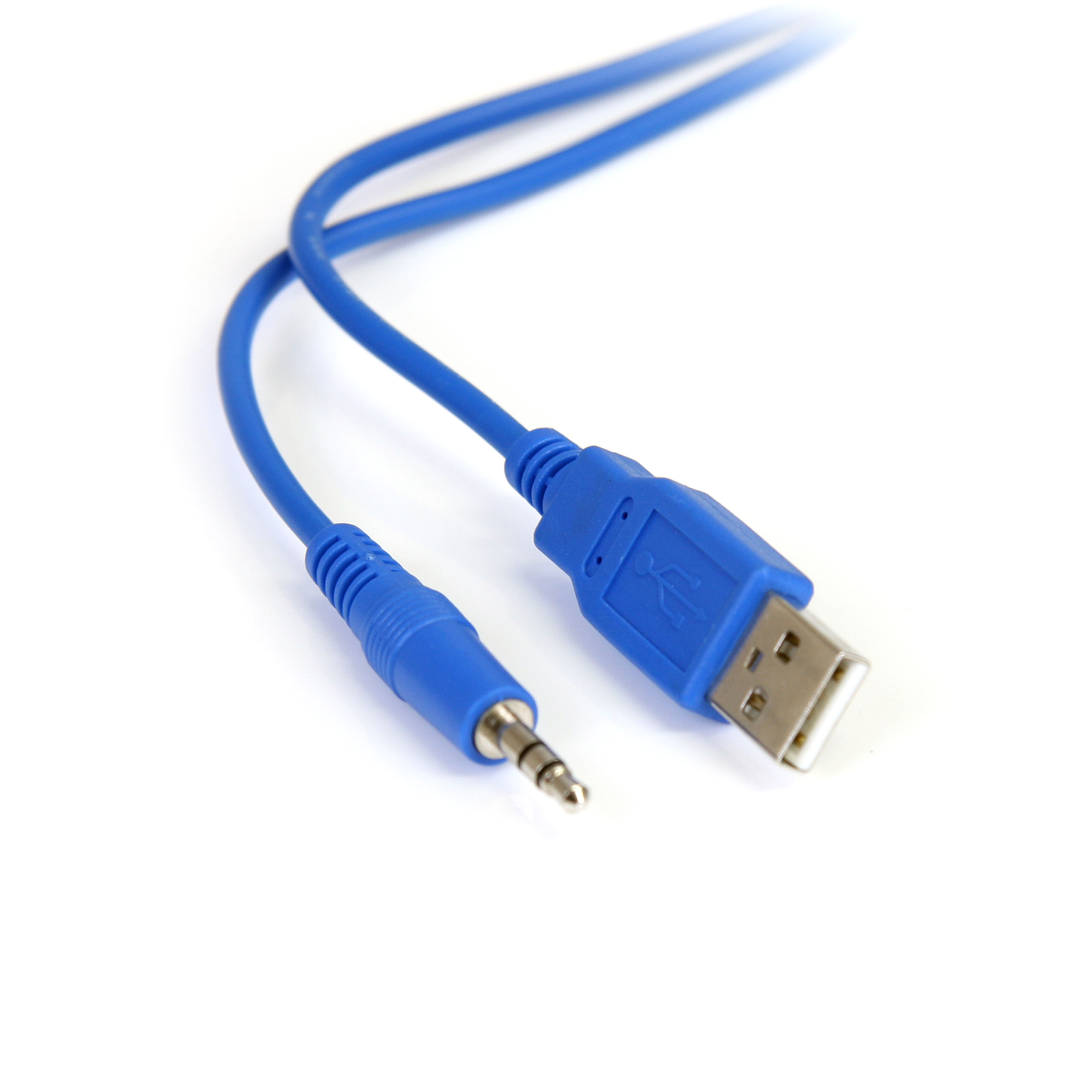

Special Notes This product ships with a single AC adapter to be used on the remote end. The local extender unit is powered by an available USB port. Accessory Products - MXT101HQ
- MXT101MMHQ
- MXT105HQ
- RJ45PATCH100
- RJ45PATCH25
- RJ45PATCH35
- RJ45PATCH50
- RJ45PATCH75
- SVA5M3NEUA

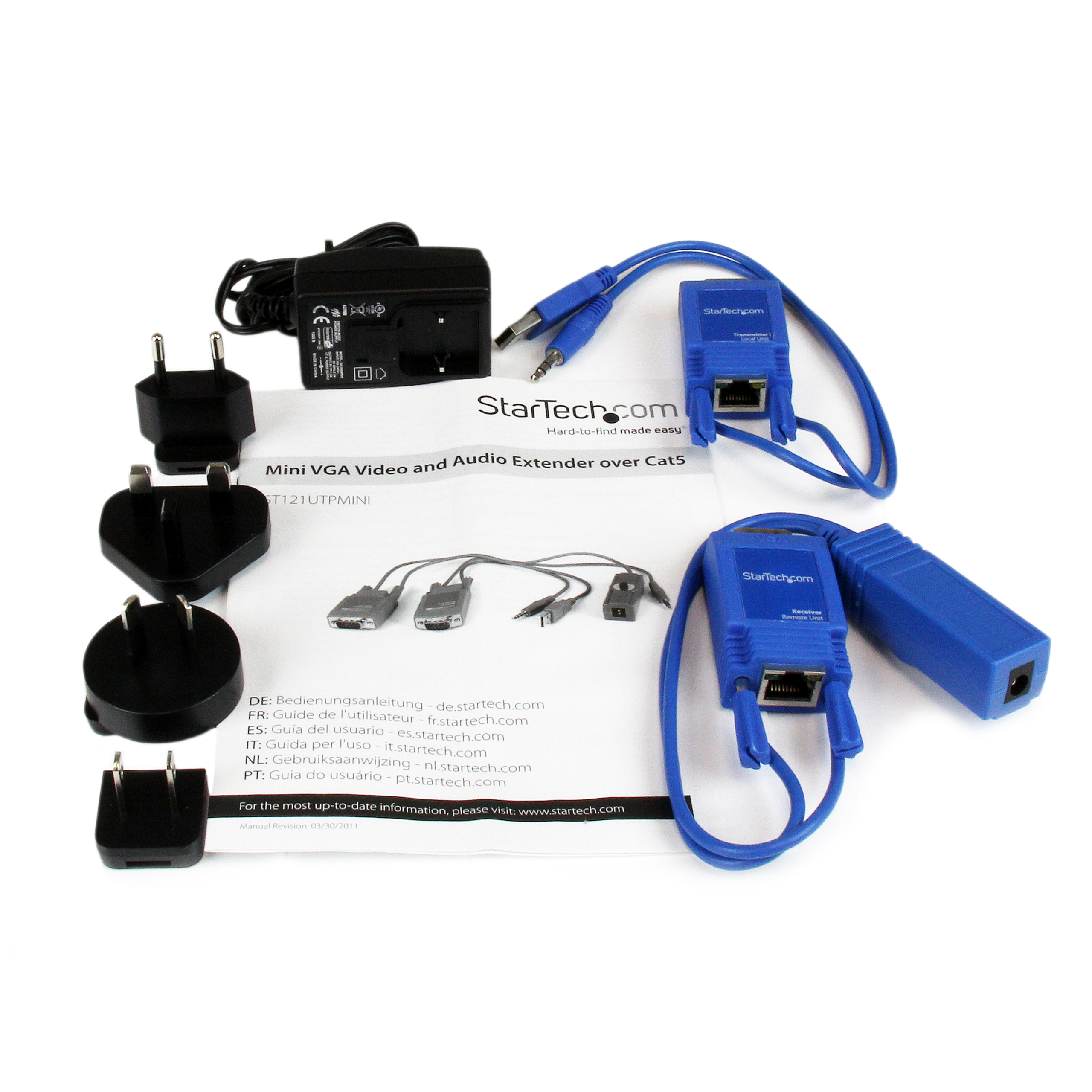

Input Voltage 110V-240V AC Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Blue Material Aluminum Product Length (mm) 340 Product Width (mm) 32 Product Height (mm) 18 Product Weight (g) 84 TAA Compliant No Maximum Analog Resolutions 1920x1200 Maximum Cable Length (mm) 90000 Supported Resolutions 1920x1200 @ 90m(295ft) Audio Yes Cabling Cat 5e UTP or better Cascadable No LED Indicators 1 - Power and Video Status Carton Depth (mm) 450 Carton Height (mm) 410 Carton Quantity 36 Carton Weight Gross (g) 16680 Included in Package - 1 - Universal Power Adapter (US/UK/EU)
- 1 - Instruction Manual

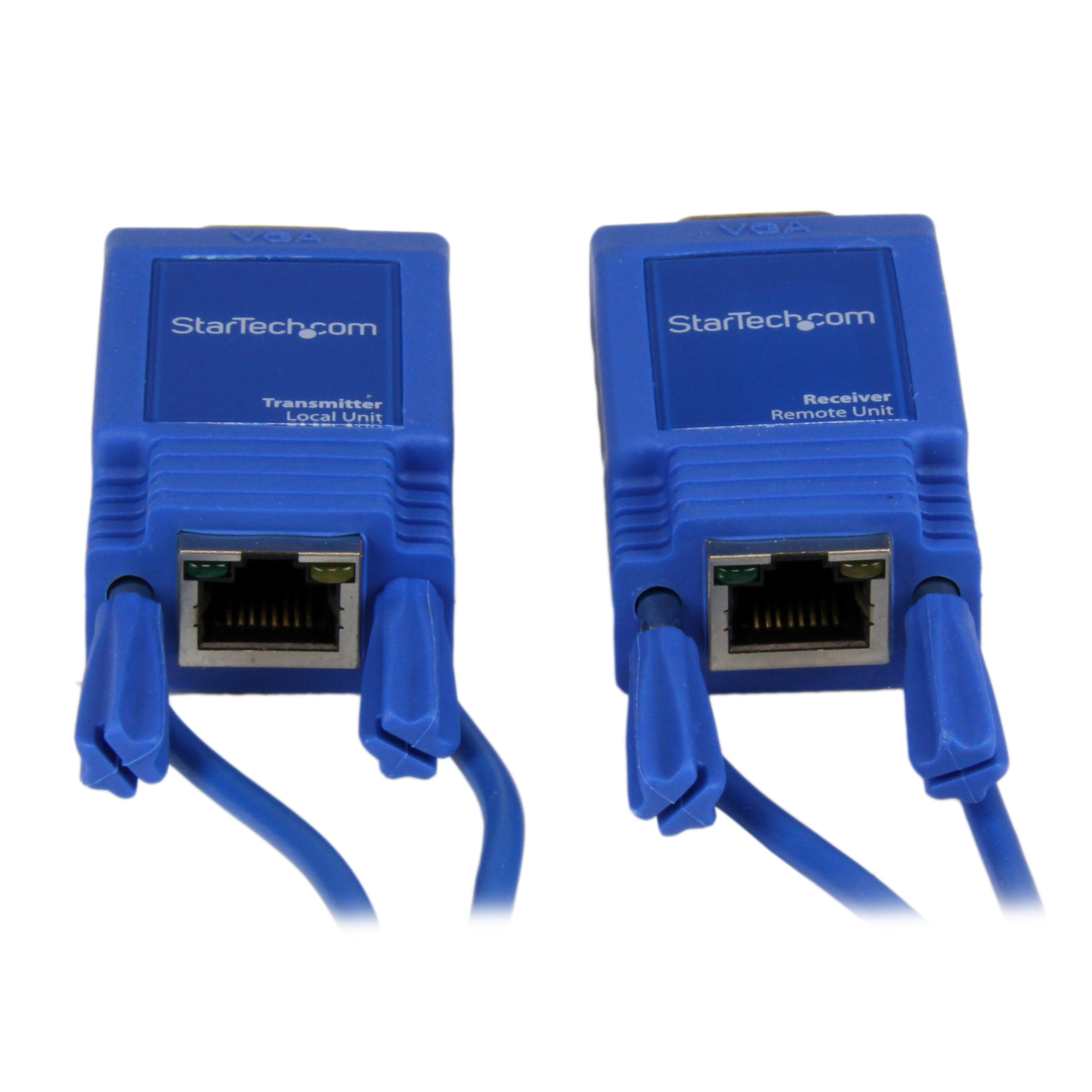

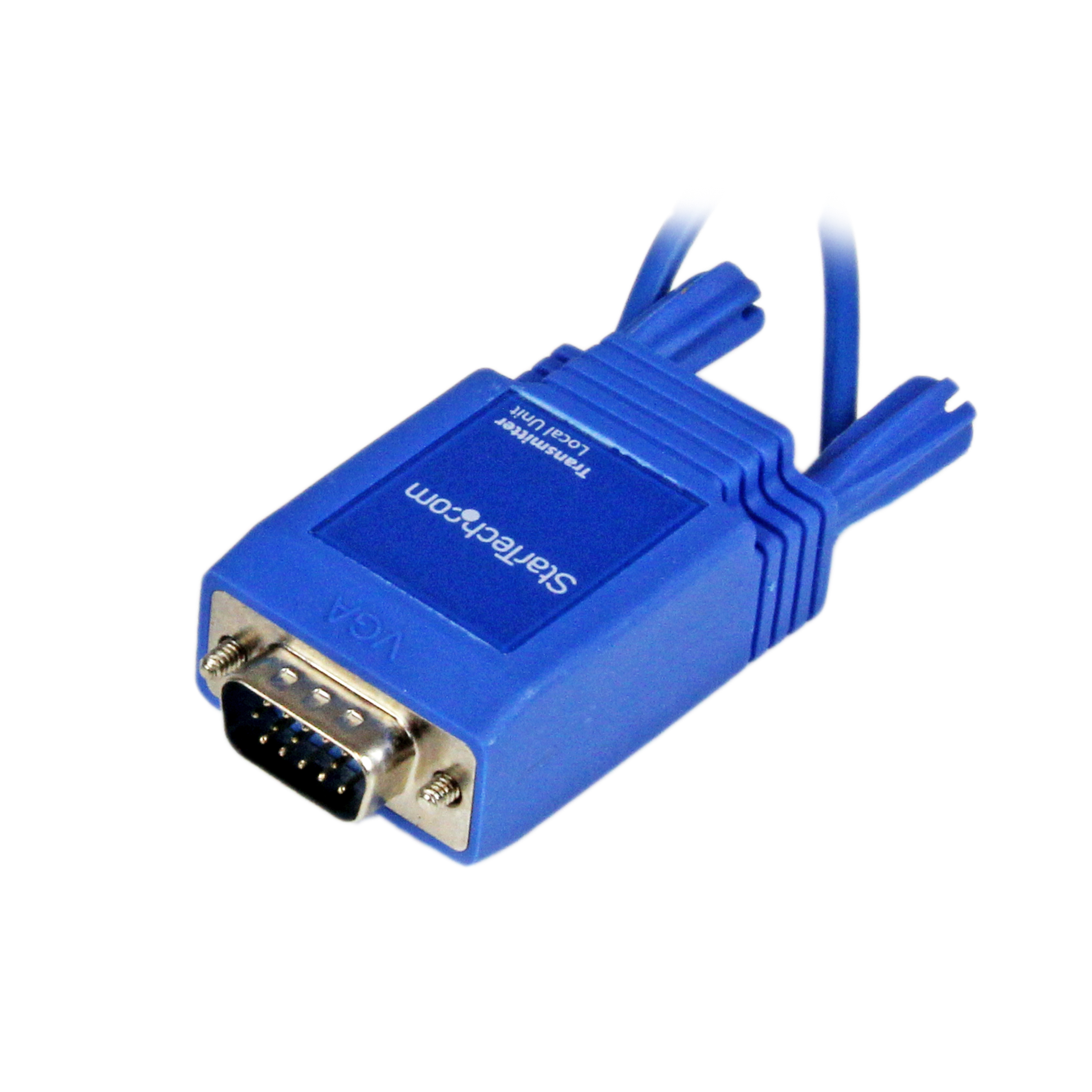

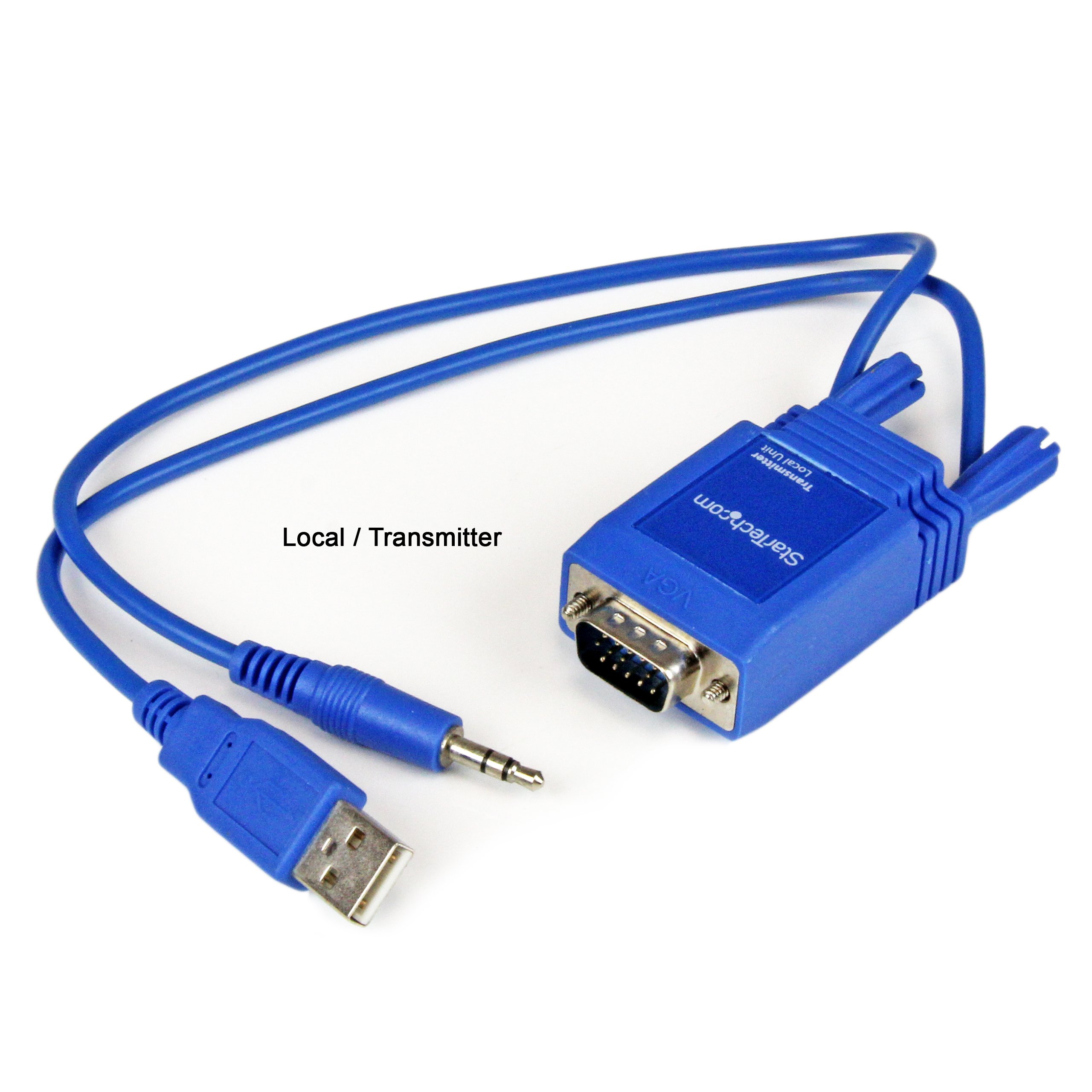

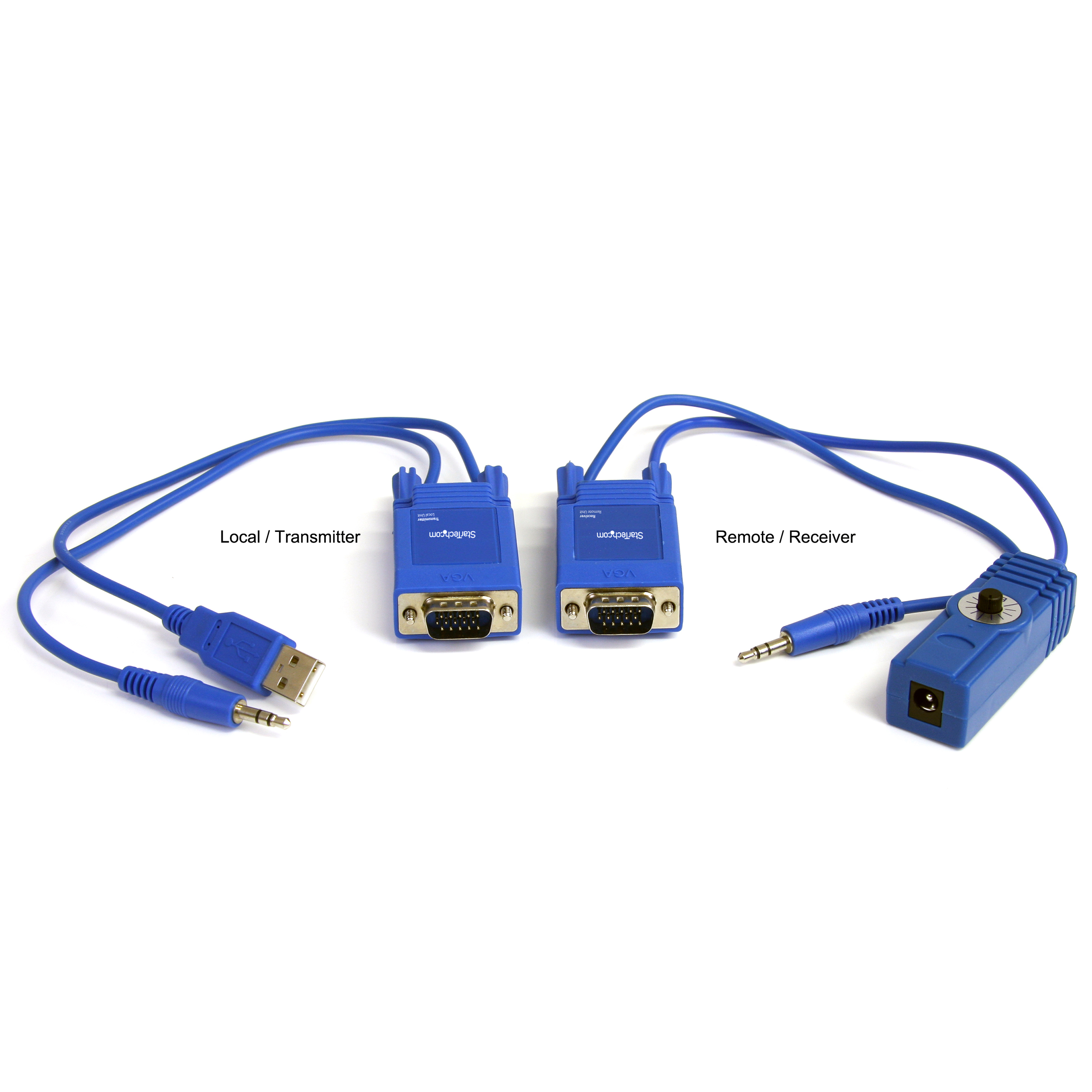

- 1 - VGA over Cat5 Transmitter (Local)

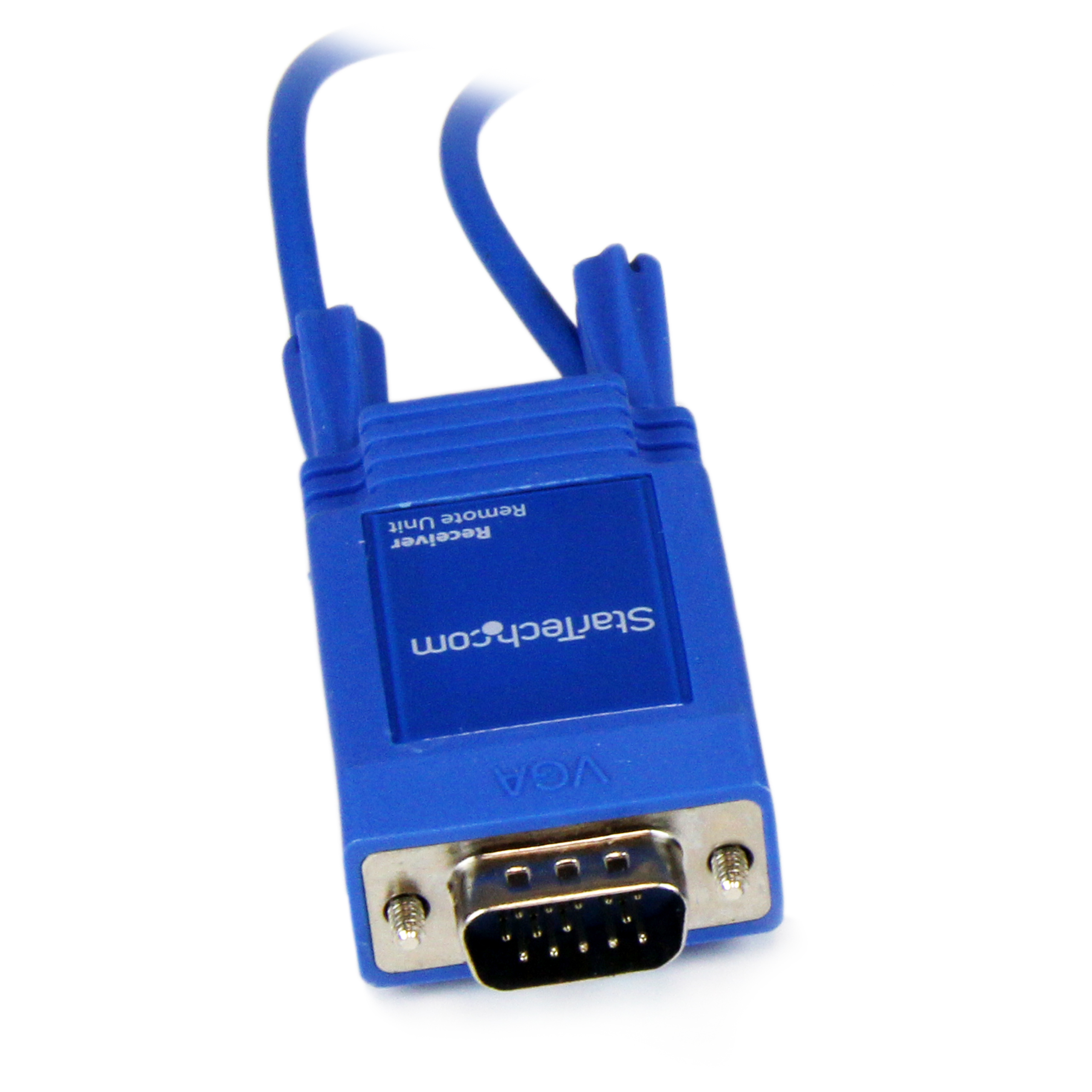

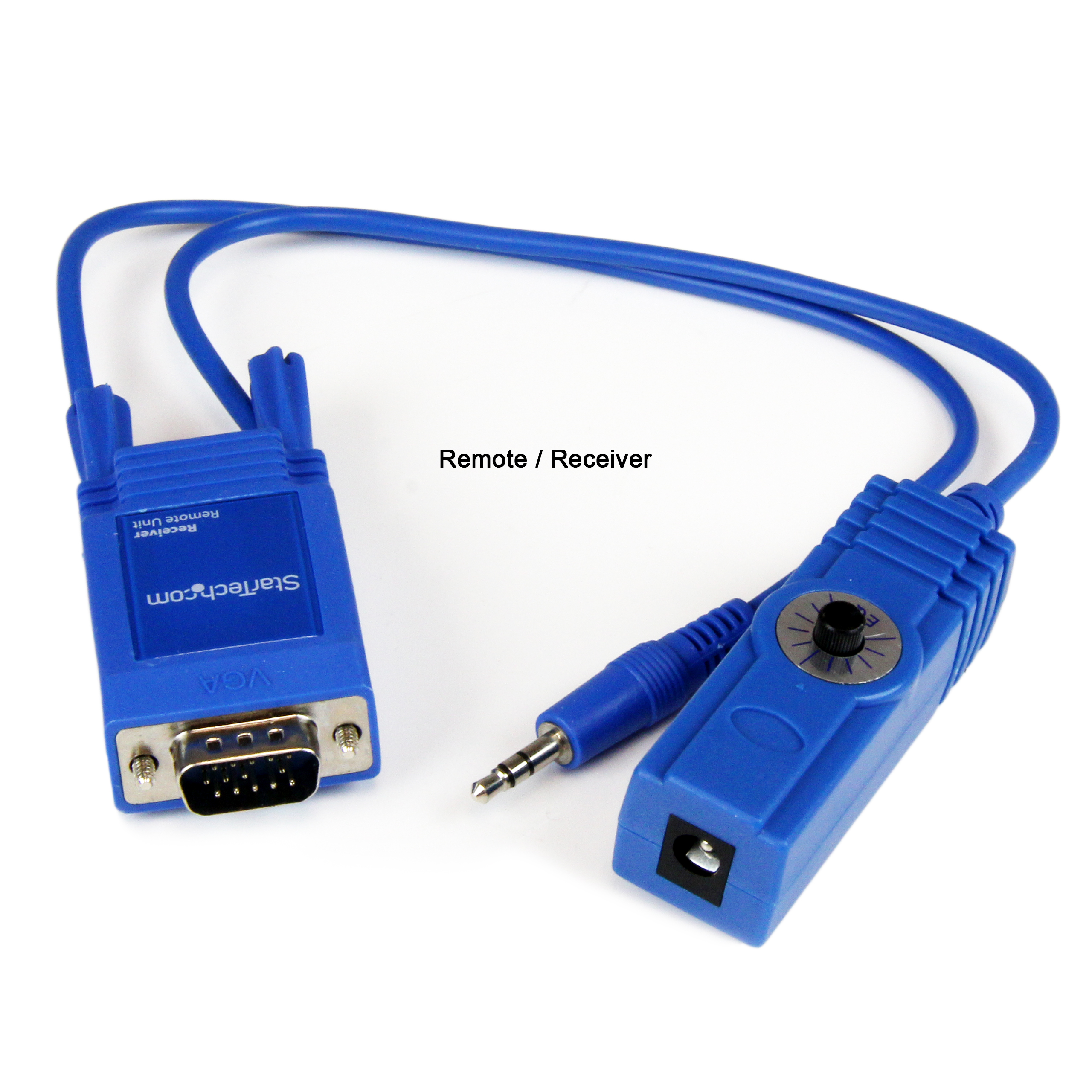

- 1 - VGA over Cat5 Receiver (Remote)
Package Depth (mm) 75 Package Height (mm) 100 Package Width (mm) 212.5 Package Quantity 1 Package Weight (g) 430 Packaging Description Mini VGA Video and Audio Extender over Cat5 Packaging Description India Mini VGA Video and Audio Extender over Cat5 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Host Connector 1 USB-A (480Mbps, 2.5W) Host Connector 1 (Quantity) 2 Host Connector 2 VGA Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
