ST121WHD
Wireless HD Extender
Wirelessly extend a single HD audio/video signal up to 30m (100ft)
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Wireless HD Extender Product Number ST121WHD UPC 065030847506 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 Wireless HDMI Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX068X Product Title (Short) Wireless HDMI Audio/Video Extender Product Title (Standard) Wireless HDMI Extender WHDI - 1080p Wireless High Definition 100 ft / 30m Product Title (Long) Wireless HD Extender WHDI - 1080p Wireless High Definition 100 ft / 30m Product Title (AMZ) Wireless HDMI Extender WHDI - 1080p Wireless High Definition 100 ft / 30m - WHDMI Wireless HD Extender (ST121WHD) Title Ingram (Part 1) WHDI Wireless HDMI Extender 1080 Title Ingram (Part 2) p Wireless High Definition Website Product Headline Wirelessly extend a single HD audio/video signal up to 30m (100ft) Bullet 1 Extend HD video up to 100ft (30m) Bullet 2 Includes WHDI transmitter (local) and WHDI receiver (remote) units Bullet 3 Supports resolutions up to 1080p (1920x1080) Bullet 4 Pure hardware design - no software or drivers required Bullet 5 IR remote control enables you to control your source device remotely through the wireless connection back to the transmitter Bullets (Consolidated) Wirelessly extend a single HD audio/video signal up to 30m 100ft - Wireless HDMI - Wireless HDMI - WHDI - Wireless 1080p - Wireless High Definition - Wireless HDMI Transmitter and Receiver and#8212; Wireless HD Audio Video Kit - Wireless Audio Marketing Copy Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Ideal for digital signage applications in financial, educational, and business sectors
- Extend your display across harsh environments (e.g. industrial sites)
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword - Digital Signage
- HDMI
- Wireless
- extender
- Transmitter and Receiver
- receiver
- local
- remote display
- transmitter
- sender
- WHDI
- 1080p Wireless
- Wireless HD
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
Special Notes The maximum distance between the transmitter and the receiver is 30 meters. If the wireless signal is obstructed by walls, or other interference the signal quality and maximum distance will likely be reduced. The working Frequency band may vary with the relevant laws in different regions. Accessory Products - HDMIMM6
- HDMIMM10
- HDMIMM15
- HDMIMM3
- ST122HDMILE
- SVA5M3NEUA
Related Products - ST121UTPHDMI
- ST121HD25
Replacement Product ST121WHD2 Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% ~ 90% RH Material Plastic Operating Temperature 0~40°C Product Length (mm) 148 Product Width (mm) 97 Product Height (mm) 18 Product Weight (g) 440 Storage Temperature -20~60°C TAA Compliant No Max Distance 30m [98.4ft] Maximum Digital Resolutions 1920x1080 Supported Resolutions Audio Yes Cabling Wireless Ethernet Cascadable No LED Indicators - 1 - Wireless Network Status Indicator
- 2 - Video Status Indicator

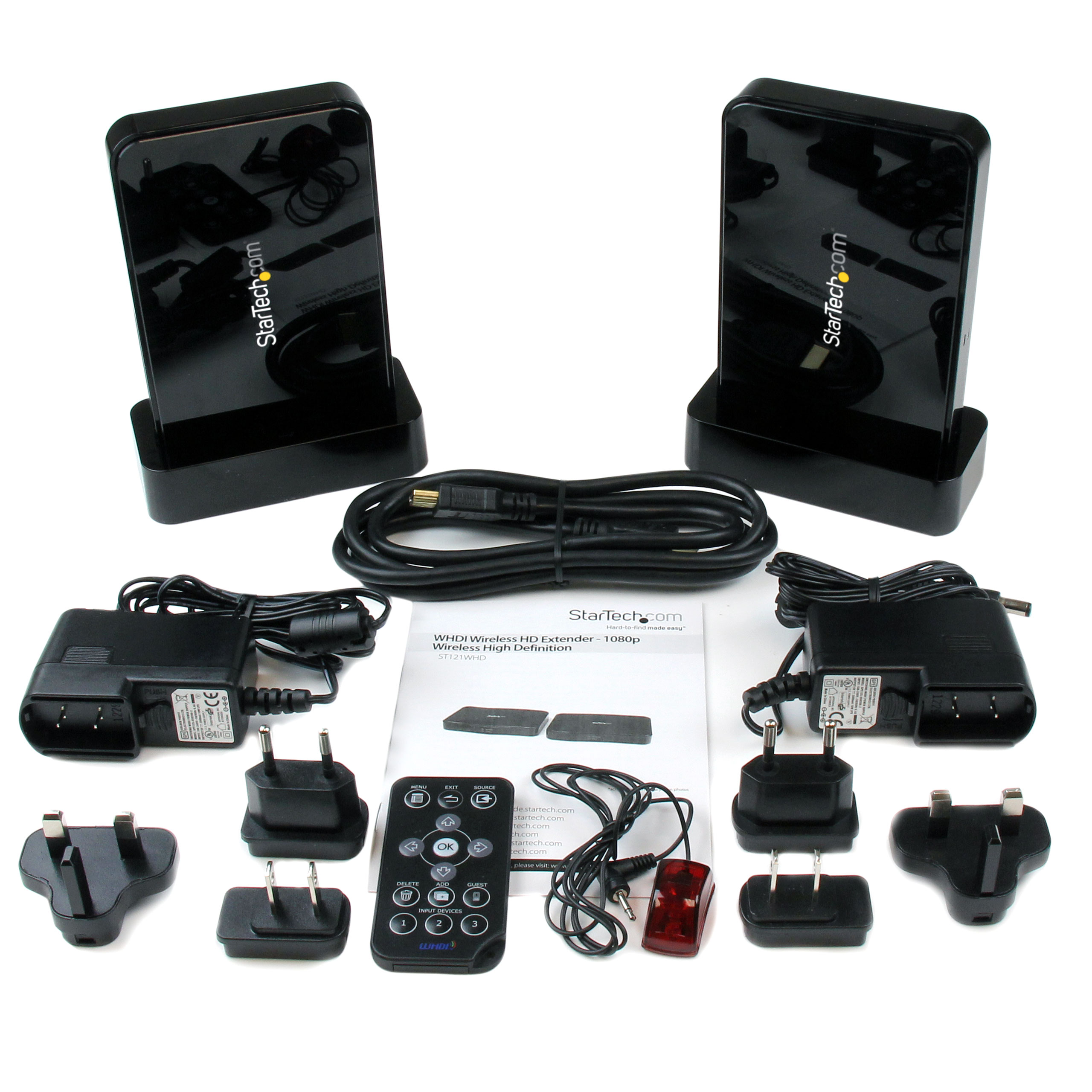

Carton Depth (mm) 435 Carton Height (mm) 288 Carton Quantity 10 Carton Weight Gross (g) 13700 Included in Package - 1 - Wireless HD Transmitter
- 1 - Wireless HD Receiver
- 2 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - Instruction Manual
- 1 - IR Remote Extension Connector
- 2 - Positioning Stand
- 1 - HD Cable
- 1 - IR Remote Control
Package Depth (mm) 200 Package Height (mm) 90 Package Width (mm) 270 Package Quantity 1 Package Weight (g) 1450 Packaging Description Wireless HD Extender Packaging Description India Wireless HD Extender Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
