ST121WHD2
Wireless HDMI Extender
Wirelessly extend an HDMI signal up to 165 ft (50m), with the added benefit of IR extension for remote control of your video source
Main Image
Product Images
Product Images
BOM Image
Product Name Wireless HDMI Extender Product Number ST121WHD2 UPC 065030861496 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 Wireless HDMI Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX068X Product Title (Ultra-Short) HDMI Extender -165ft Product Title (Short) HDMI Extender - 165 ft (50m) Product Title (Medium) HDMI over Wireless Extender - HDMI over Wireless Video - 165 ft (50m) - 1080p Product Title (Standard) HDMI over Wireless Extender - HDMI over Wireless Video - 165 ft (50m) - 1080p Product Title (Long) HDMI over Wireless Extender - 1080p Product Title (AMZ) HDMI Wireless Transceiver Kit - HDMI over Wireless Video - 165ft / 50m - 1080p - HDMI Over Ethernet - HDMI Extender (ST121WHD2) Title Ingram (Part 1) HDMI Extender - HDMI Title Ingram (Part 2) over Wireless - 50m - 1080p Website Product Headline Wirelessly extend an HDMI signal up to 165 ft (50m), with the added benefit of IR extension for remote control of your video source Bullet 1 Hassle-free wireless video with easy setup and no software configuration Bullet 2 Saves time and installation costs, with no cabling infrastructure required Bullet 3 Long-range wireless extension, even through walls, supporting distances up to 165 ft (50m) Bullet 4 Convienient all-in-one solution with both the wireless transmitter and receiver included Bullet 5 Supports resolutions up to 1920x1080 (1080p) Bullets (Compact) Wirelessly extend an HDMI signal up to 165 ft (50m), with the added benefit of IR extension for remote control of your video source - Compatible with HDMI computers such as MacBook Pro and HDMI monitors, TVs and projectors - 1080p resolution support Bullets (Consolidated) Wirelessly extend an HDMI signal up to 165 ft (50m), with the added benefit of IR extension for remote control of your video source - Compatible with HDMI computers such as MacBook Pro and HDMI monitors, TVs and projectors - Wireless Extender/HDMI Extender/HDMI over Wireless - Extends up to 165 ft (50M) - High-definition 1080p - Extend wireless video where cabling or drilling through walls is not an option - Create digital signage display at a hospital, school or shopping center Marketing Copy Marketing Copy (No HTML) Applications - Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Wirelessly connect your digital signage in financial, educational, and business environments
- Extend your display across harsh environments such as industrial sites
- Optimize placement of your demo stations at tradeshows and in auditoriums
- Extend wireless video where cabling or drilling through walls isn't an option
Website Search Keyword - wireless HDMI
- HDMI over wireless
- wireless video extender
- wireless high definition
- hdmi wireless extender
- wireless hdmi transmitter
- wireless video
- wireless hdmi extender
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Accessory Products - SVA5H2NEUA
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- USB2HABM3
- USB2HABM6
- USB2HABM10
- ST122HDMILE
Related Products - ST121UTPHDMI
- ST121HD25
Constrained SKU Alternatives (Limited Stock) ST121WHDLR Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Humidity 5% ~ 90% RH Material Plastic Operating Temperature 0~40°C Product Length (mm) 100.000 Product Width (mm) 58.000 Product Height (mm) 20.000 Product Weight (g) 133.000 Storage Temperature -20~60°C TAA Compliant No Max Distance 50m [164ft] Maximum Digital Resolutions 1920x1080 (60 Hz) OS Compatibility OS Independent Supported Resolutions Audio Yes Cabling Wireless Ethernet Cascadable No LED Indicators - 2 - Video link
- 2 - Network link

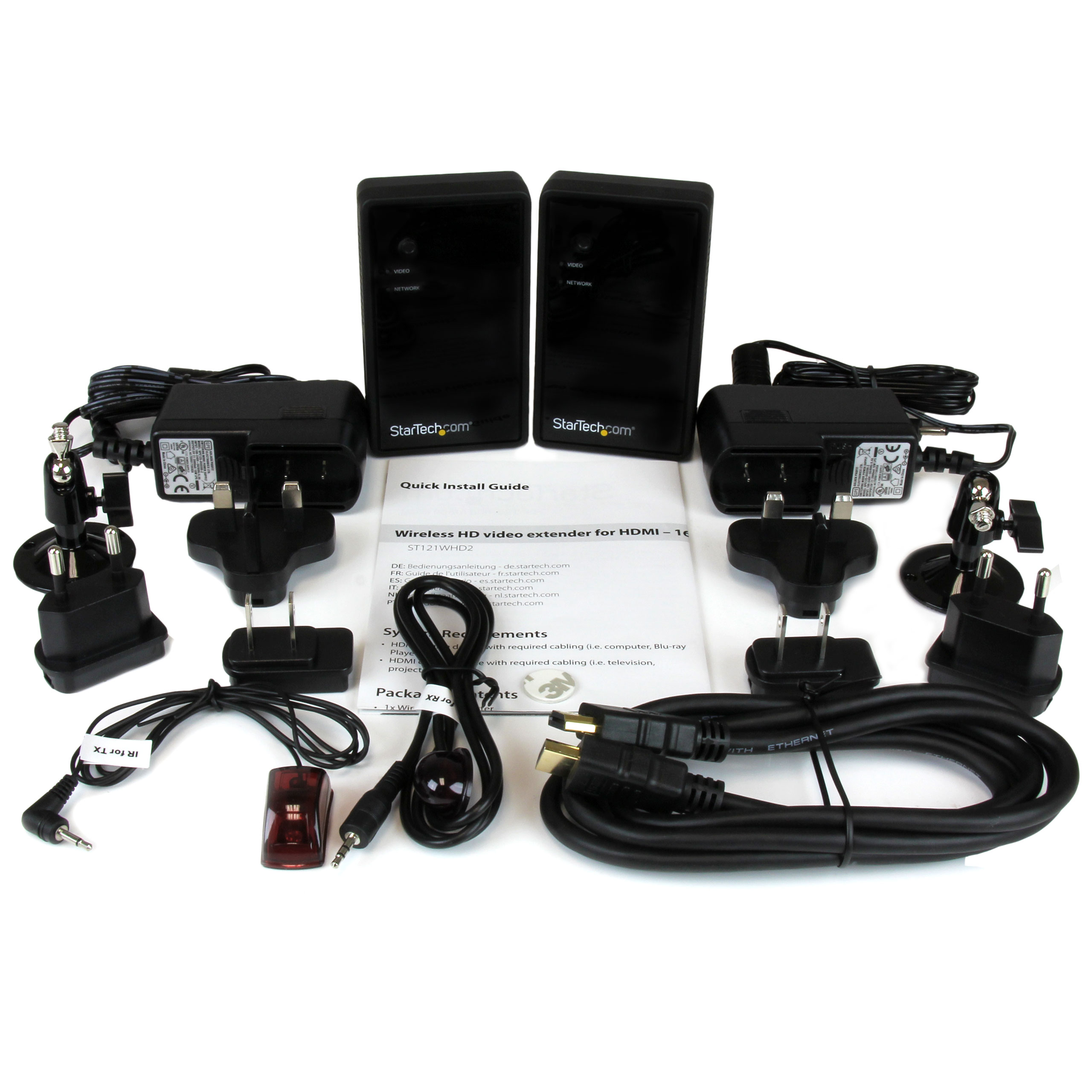

Rack-Mountable Yes Carton Depth (mm) 425 Carton Height (mm) 292 Carton Quantity 10 Carton Weight Gross (g) 9520 Included in Package - 1 - Wireless transmitter
- 1 - Wireless receiver
- 1 - IR blaster
- 1 - IR receiver
- 2 - Universal power adapters (NA/EU/UK)
- 1 - Quick start guide
- 2 - Mounting brackets
- 1 - HDMI cable
Package Depth (mm) 205 Package Height (mm) 90 Package Width (mm) 265 Package Quantity 1 Package Weight (g) 842 Packaging Description Wireless HD Video Extender for HDMI – 165ft (50m) Packaging Description India Wireless HD Video Extender for HDMI – 165ft (50m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 Infrared (IrDA) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 Connector 4 Infrared (IrDA) Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-03-27 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-05-30 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
