ST121WHDS2
HDMI 4k60Hz Wireless Extender Kit 50m 164ft
Wirelessly extend an HDMI signal to a remote display up to 50m (165ft) away, supporting resolutions up to 4K 60Hz
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI 4k60Hz Wireless Extender Kit 50m 164ft Product Number ST121WHDS2 UPC 065030902236 Lifecycle status Active Warranty 2 Years Weighted Opportunity 75560 Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 Wireless HDMI Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX117X Product Title (Ultra-Short) HDMI Over Wireless Product Title (Short) Wireless HDMI Extender, 4K 60Hz, 165ft Product Title (Medium) Wireless HDMI Extender, 4K 60Hz, Transmitter and Receiver Kit, Up to 165ft (50m) Product Title (Standard) Wireless HDMI Extender, 4K 60Hz, Transmitter and Receiver Kit, Up to 165ft (50m), No Line-Of-Sight Required, IR Extension Product Title (Long) Wireless HDMI Extender, 4K 60Hz, Transmitter and Receiver Kit, Up to 165ft (50m), No Line-Of-Sight Required, IR Extension, Includes Mounting Kit Product Title (AMZ) Wireless HDMI Extender, 4K 60Hz, Transmitter and Receiver Kit, Up to 165ft (50m), No Line-Of-Sight Required Title Ingram (Part 1) Wireless HDMI Extender, 50m - Title Ingram (Part 2) 4K 60Hz, Transmitter/Receiver Kit Website Product Headline Wirelessly extend an HDMI signal to a remote display up to 50m (165ft) away, supporting resolutions up to 4K 60Hz Bullet 1 HDMI OVER WIRELESS: Wirelessly transmit 4K 60Hz HDMI signals up to 165ft (50m) in a point-to-point setup; No line of sight required making it ideal for presentations and digital signage in conference centers, houses of worship, and large venues Bullet 2 LOCAL HDMI PASS-THROUGH: Transmitter features an HDMI output (loop-out) to connect a local display; Ideal for presentation centers, boardrooms/meeting rooms, classrooms, trade shows, and conference centers Bullet 3 NO DRIVERS OR SOFTWARE: No IP configuration, software, or drivers are required, ensuring a streamlined cable-free extension; 5GHz point-to-point connection from transmitter to receiver supports channel switching to avoid interference in busy environments Bullet 4 INSTALLATION OPTIONS: Included mounting kit for transmitter/receiver provides versatile installation options; Up to 4 paired extender kits in one local area; IR Blaster/Receiver for IR extension; No cable run ensures a clutter-free, rapid setup Bullet 5 TECHNICAL SPECIFICATIONS: HDMI 2.1 TMDS supporting 18Gbps bandwidth, HDCP 1.4/2.2, 2.1ch audio, and Audio Return Channel (ARC); 5GHz wireless dual-antenna design; 8kV air and 6kV contact level-3 ESD protection Bullets (Compact) Transmit 4K 60Hz HDMI signals up to 165ft (50m) away over a wireless point-to-point signal; No line-of-sight required; Local HDMI output for local display; No IP config/software/drivers required; Includes mounting kit/IR blaster and receiver Bullets (Consolidated) - Transmit 4K 60Hz HDMI signals up to 165 feet (50 meters) away over a wireless 5GHz point-to-point signal; No line-of-sight required - Transmitter features an HDMI output (loop-out) to connect a local display; Ideal for presentation centers/boardrooms/classrooms - No IP configuration or software/drivers required ensuring a streamlined cable-free extension - Includes mounting kit; IR Blaster/Receiver for IR Extension - HDMI 2.1 TMDS; HDCP 1.4/2.2; 2.1ch Audio; 8kV air/6kV contact ESD protection Marketing Copy Marketing Copy (No HTML) Applications - Connect to an HDMI source and display to wirelessly transmit 4K 60Hz HDMI w/2.1ch ARC
- Place the display in a convenient viewing area while the system equipment is located elsewhere in a clean and safe environment
Website Search Keyword - Wireless HDMI
- HDMI Wireless
- Wireless Extender
- Wireless HDMI Cable
- Wireless HDMI Adapter
- Wireless HDMI Transmitter and Receiver
- wireless video
- Wireless HD
- Wireless Video Extender
- Short Range Wireless HDMI Extender
- Short Range wireless video extender
- Wireless extension from computer to projector
- Wireless HDMI Extender
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - IR - Wireless - United States - FCC Part 15, Subpart E
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Special Notes - Transmission distances may vary based on the installation environment.
- Solid structures like walls, bricks, and glass can reduce or completely block signals.
- Up to four Wireless HDMI Extender Kits can be used in a single local area.
- The firmware update port is for manufacturer use only.
Accessory Products - HDMM2MP
- HDMM1MP
- CABSHELFV1U
Related Products - ST121WHDS
- ST121WHDLR
- WIFI2HD2

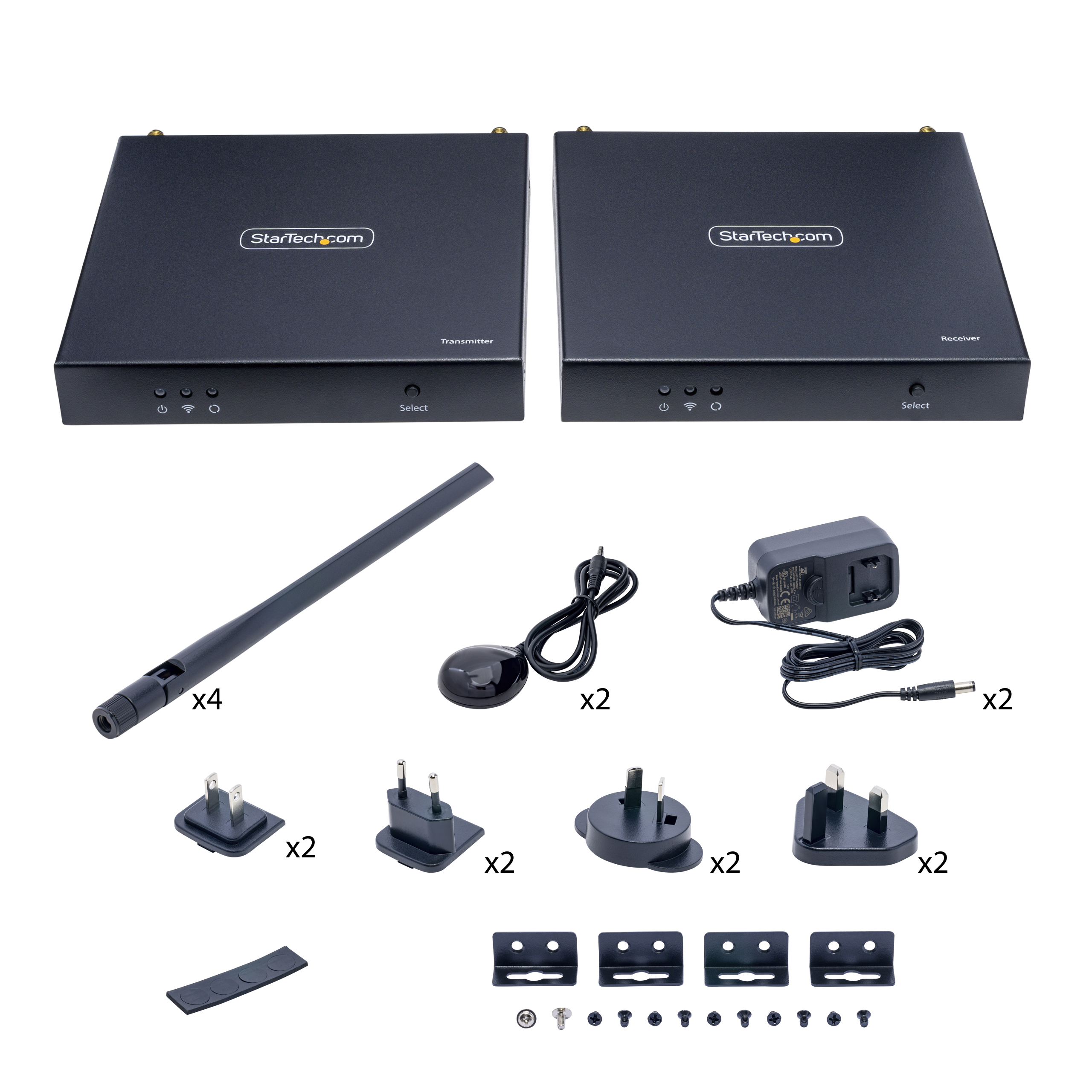

Power Source 2 AC Adapters Included Color Black Humidity 0% - 90% RH (non-condensing) Material Metal Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 125.000 Product Width (mm) 115.000 Product Height (mm) 21.000 Product Weight (g) 346.000 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant No Audio Specifications HDMI - 2 Channel Audio Bandwidth 18Gbps Frequency 5.1 - 5.2 GHz General Specifications HDCP 1.4/HDCP 2.2 Max Distance 50m [164ft] Maximum Digital Resolutions 4K 60Hz OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Wireless Ethernet Industry Standards HDMI 2.1 (TMDS) LED Indicators Rack-Mountable No Carton Depth (mm) 489 Carton Height (mm) 350 Carton Quantity 10 Carton Weight Gross (g) 14452 Included in Package - 1 - Wireless Transmitter
- 1 - Wireless Receiver
- 1 - IR Blaster
- 1 - IR Receiver
- 4 - Wireless Antenna
- 2 - Universal Power Adapter (NA/EU/UK)
- 2 - Mounting Kit
- 1 - Quick-Start Guide
- 1 - Set of Rubber Feet
Package Depth (mm) 358 Package Height (mm) 89 Package Width (mm) 156 Package Weight (g) 1374 Packaging Description HDMI Over Wireless Extender - 4K 60Hz - 50m (165ft) Packaging Description India HDMI Over Wireless Extender - 4K 60Hz - 50m (165ft) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB Micro-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 SMA (50 Ohm) Connector 4 (Quantity) 2 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 HDMI Host Connector 2 (Quantity) 1 Host Connector 3 USB Micro-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 1 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 1 Host Connector 5 SMA (50 Ohm) Host Connector 5 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Artwork Due Date 2023-12-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment This one is 1080p, we target 4K60Hz for the new one. Comparable SKU 2 Comment NA Digital Content Due Date 2024-06-11 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) US Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2023-11-30 Target Production Release 2023-12-07 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
