ST121WHDST
Wireless HDMI Extender Stick

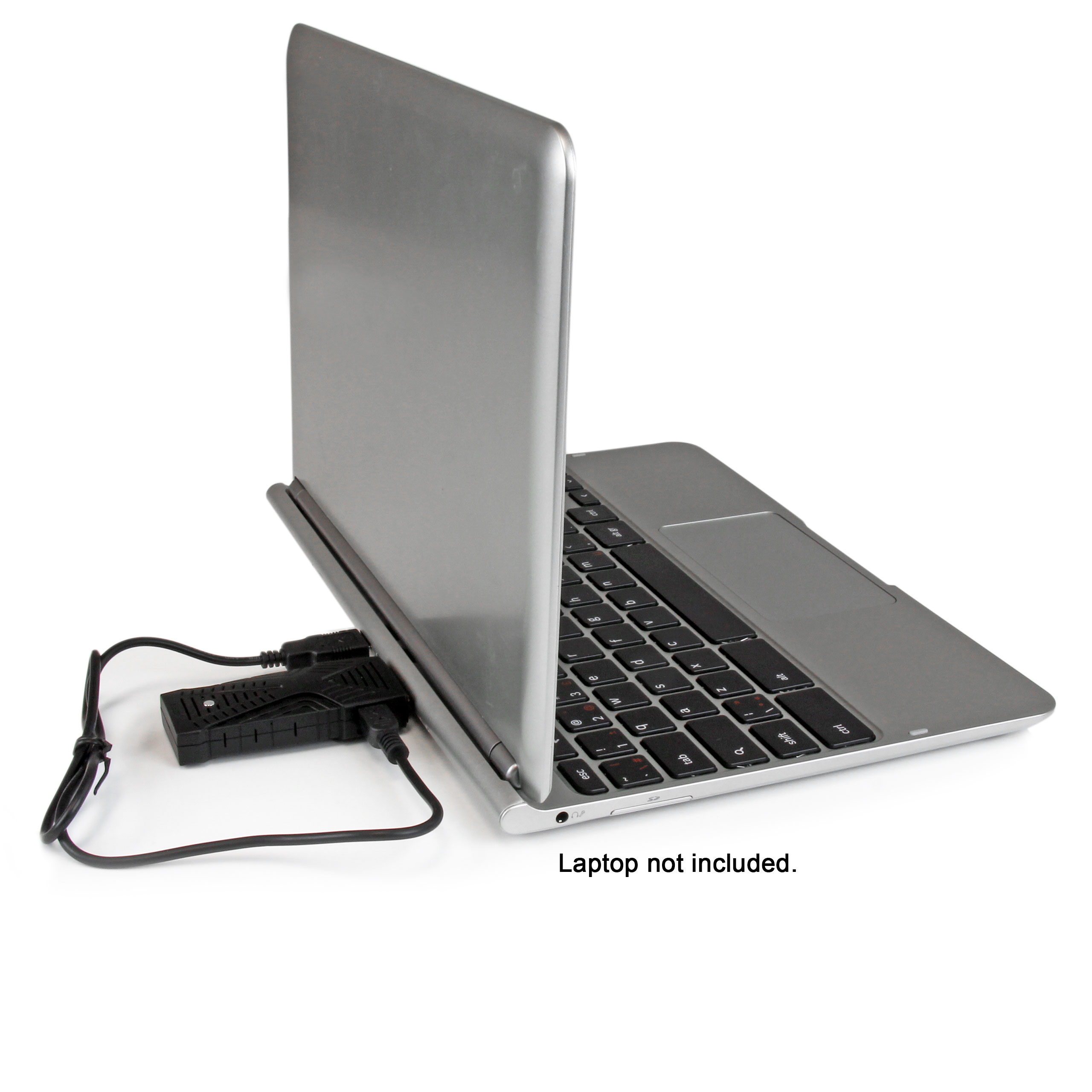

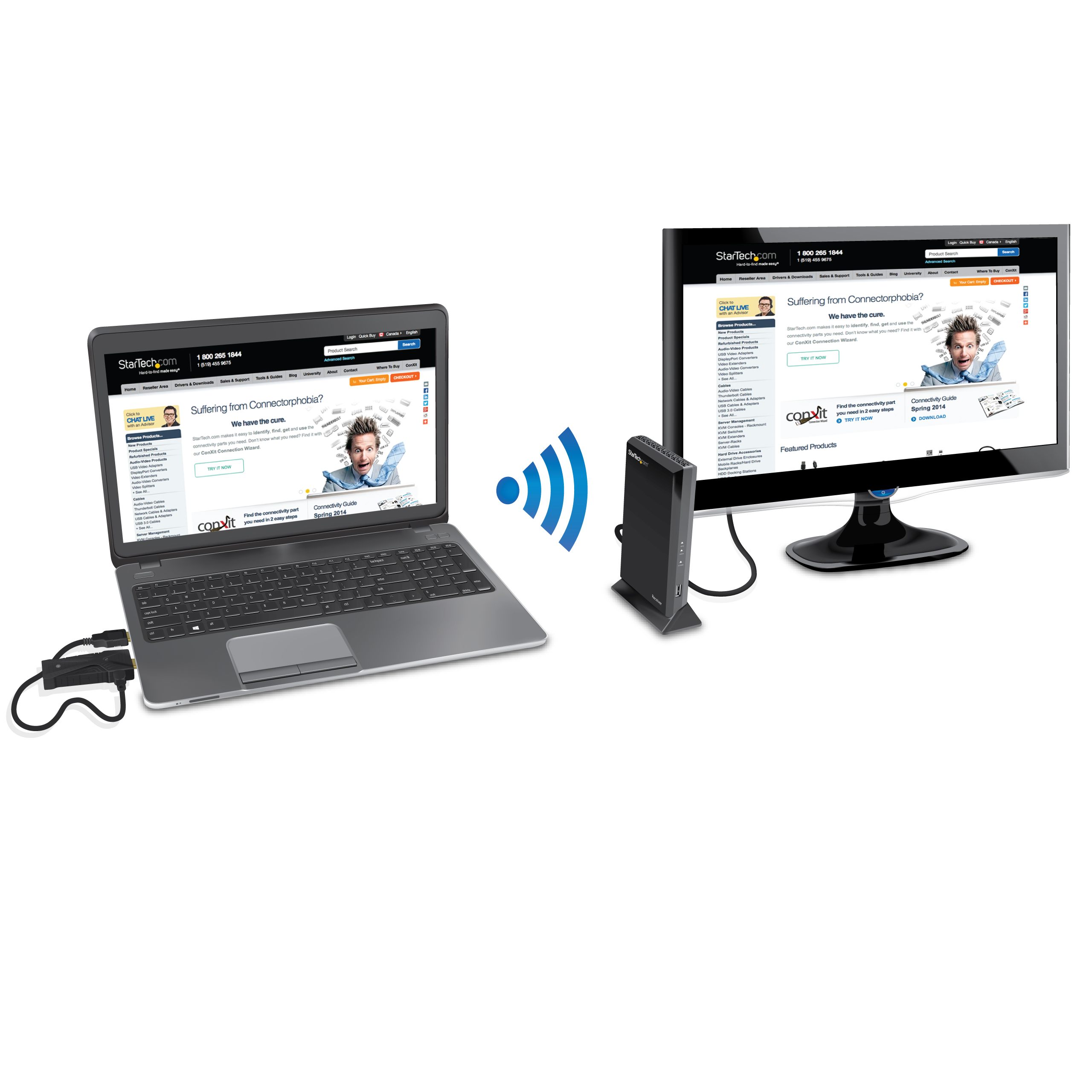

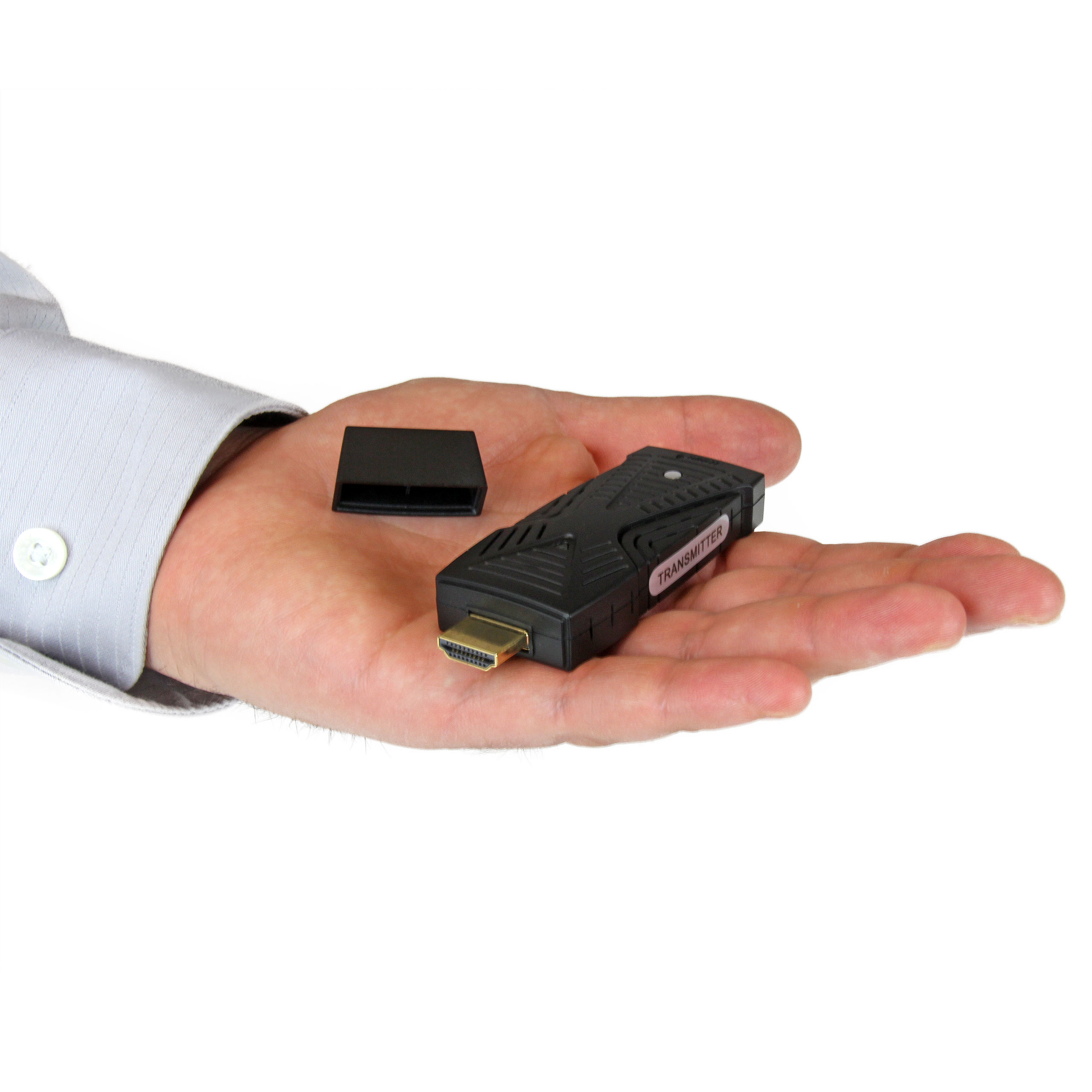

Wirelessly extend an HDMI signal up to 50ft, with a compact transmitter ideal for laptops/ultrabooks
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Wireless HDMI Extender Stick Product Number ST121WHDST UPC 065030852760 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 Wireless HDMI Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) HDMI WHDI Extender Product Title (Short) HDMI Wireless Video Extender Kit Product Title (Medium) HDMI Wireless Video Extender Kit w/ Portable Transmitter – 50ft Product Title (Standard) HDMI Wireless Video Extender Kit w/ Portable Transmitter for Ultrabooks and Laptops – 50ft Product Title (Long) HDMI Wireless Video Extender Kit w/ Portable Transmitter for Ultrabooks and Laptops – 50ft Product Title (AMZ) HDMI Wireless Video Extender Kit w/ Portable Transmitter for Ultrabooks and Laptops – WHDI HDMI Extender over Wireless - 50ft (ST121WHDST) Title Ingram (Part 1) HDMI Wireless Video Extender w/ Title Ingram (Part 2) WHDI Transmitter/Receiver 50ft Website Product Headline Wirelessly extend an HDMI signal up to 50ft, with a compact transmitter ideal for laptops/ultrabooks Bullet 1 Portable Transmitter with small key-style design and USB power Bullet 2 50ft (15m) Wireless video extension Bullet 3 Transmitter and receiver included Bullet 4 No software or drivers required Bullet 5 Supports Video Resolution up to 1080p Bullets (Consolidated) Wirelessly extend an HDMI signal up to 50ft with a compact transmitter ideal for Laptops/Ultrabooks - HDMI Wireless Transmitter - Wireless Video Transmitter Receiver - HDMI Wireless Extender Kit - HDMI WHDI Transmitter Receiver - 1080p - 50 ft Marketing Copy Applications - Connect a laptop directly to a boardroom display or projector without installing video cables, and easily switch from one laptop video source to another
- Extend your display safely across industrial environments without cables
- Optimize placement of your demo stations at tradeshows and in auditoriums
Website Search Keyword - Digital Signage
- HDMI
- Wireless
- extender
- Transmitter and Receiver
- receiver
- local
- remote display
- transmitter
- sender
- WHDI
- 1080p Wireless
- Wireless HDMI
Required Regulatory Compliance Marks ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID Special Notes - The maximum distance between the transmitter and the receiver is 15 meters. If the wireless signal is obstructed by walls, or other interference the signal quality and maximum distance will likely be reduced.
Accessory Products - HDMIMM6
- HDMIMM10
- HDMIMM15
- HDMIMM3
- ST122HDMILE
Related Products - ST121UTPHDMI
- ST121HD25
- ST121WHD
- WIFI2HD2
Input Current 0.3 A Input Voltage 115 ~ 230 Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 148 Product Width (mm) 97 Product Height (mm) 18 Product Weight (g) 440 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant No Frequency 5.1-5.9GHz Max Distance 15m [50ft] Maximum Digital Resolutions 1920x1080 Supported Resolutions Audio Yes Cabling Wireless Ethernet Cascadable No LED Indicators - 1 - Wireless Network Status Indicator
- 2 - Video Status Indicator

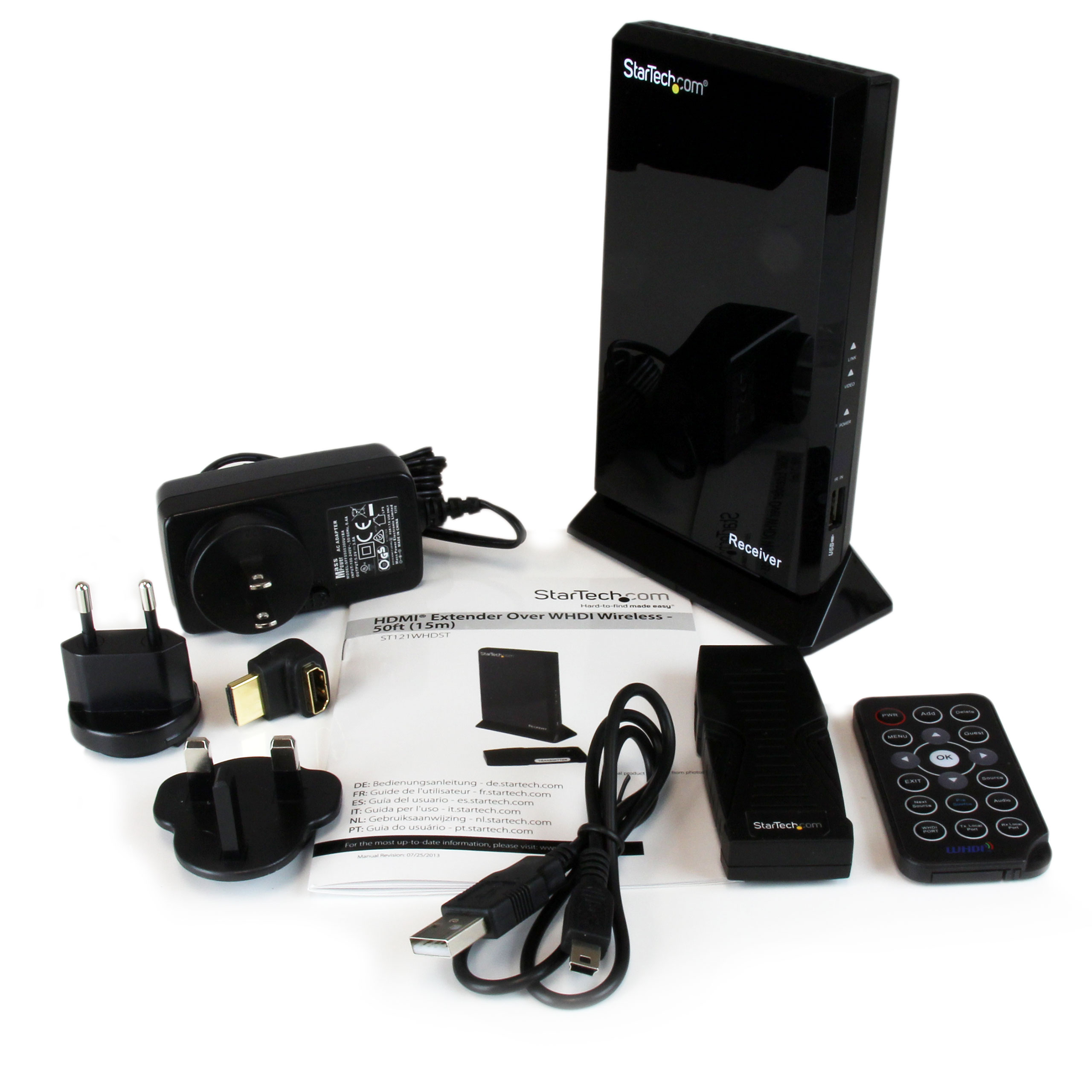

Carton Depth (mm) 399 Carton Height (mm) 399 Carton Quantity 20 Carton Weight Gross (g) 15510 Included in Package - 1 - wireless HDMI transmitter
- 1 - wireless HDMI receiver
- 1 - remote control
- 1 - USB cable (transmitter power)
- 1 - universal power adapter (NA / EU / UK / AU)

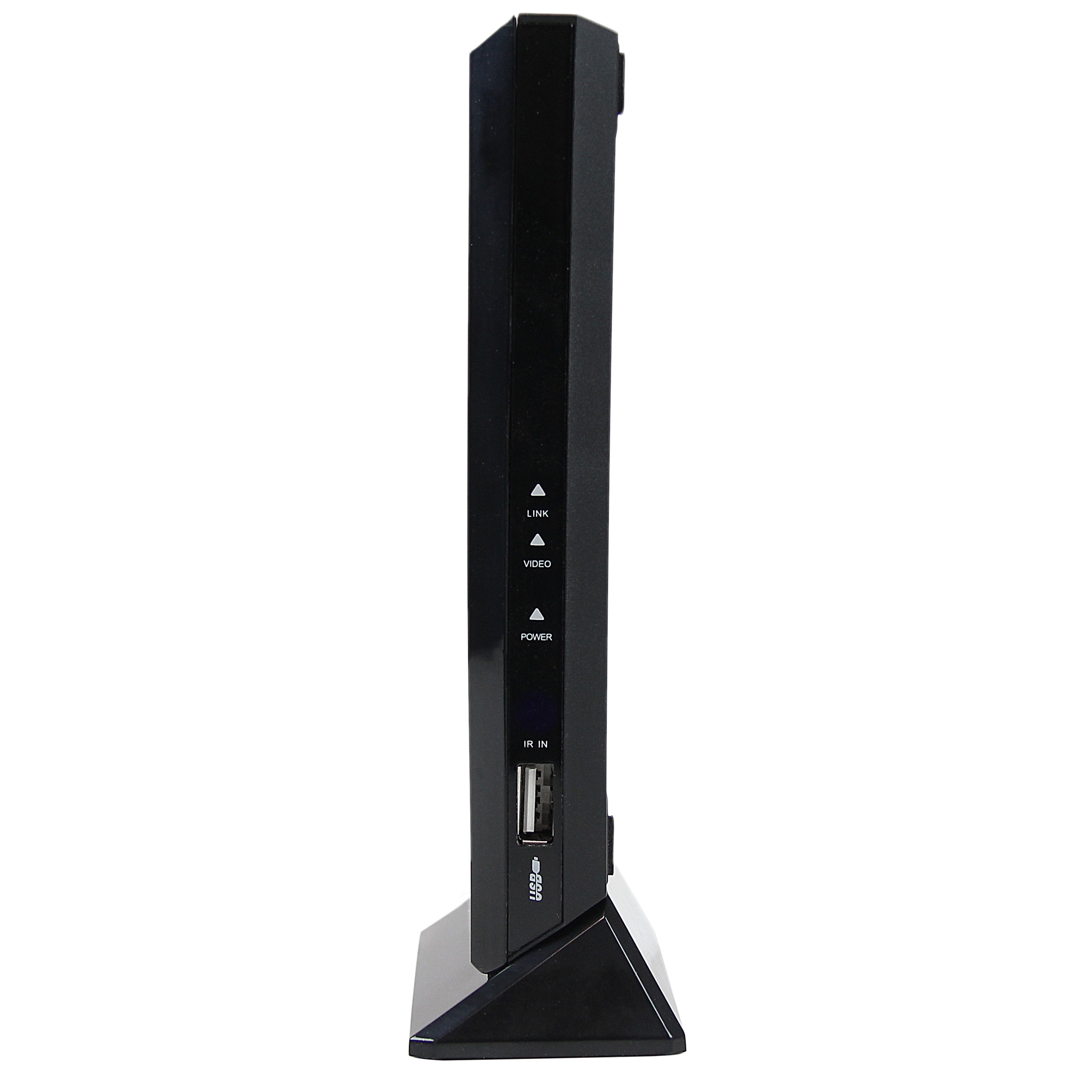

- 1 - stand (for receiver)
- 1 - right angle HDMI adapter (for transmitter)
- 1 - instruction manual
Package Depth (mm) 155 Package Height (mm) 55 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 690 Packaging Description HDMI® Extender Over WHDI Wireless - 50ft (15m) Packaging Description India HDMI® Extender Over WHDI Wireless - 50ft (15m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 USB Mini-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-31 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,ES,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
