Main Image
ST122
Main Image
Product Images
Product Images
Product Images
Product Images

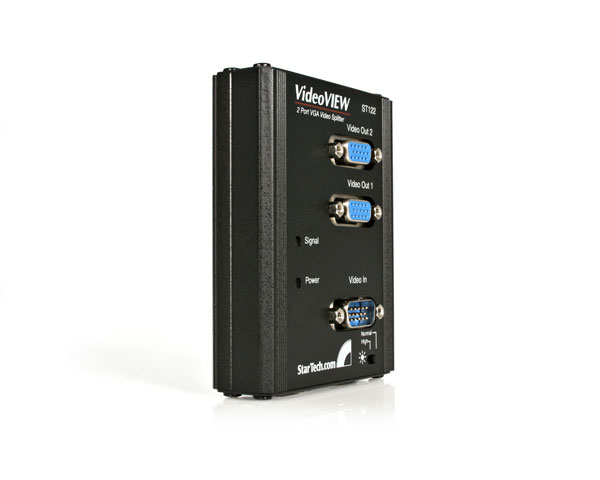

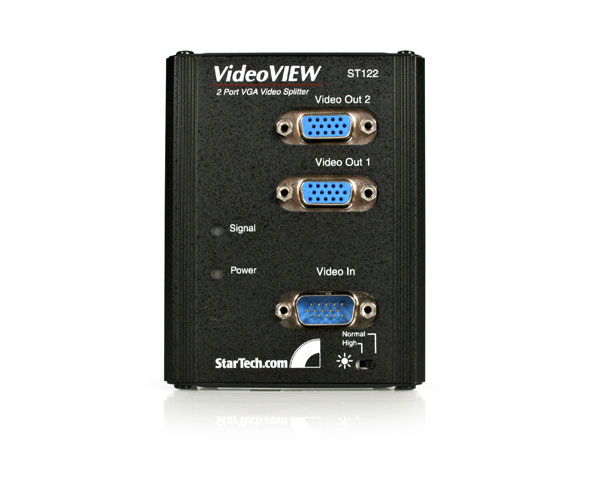

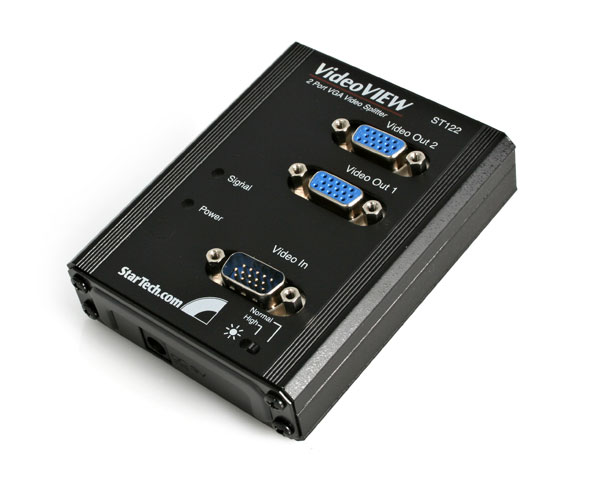

Product Name 2 Port VGA Video Splitter Product Number ST122 UPC 065030776066 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Long) 2 Port 250 MHz VGA Video Splitter / Distribution Amplifier Bullet 1 Compatible with VGA, SVGA and Multisync monitors Bullet 2 250 MHz bandwidth provides brilliant 1600 x 1200 resolution Bullet 3 Daisy chainable for almost unlimited expansion Bullet 4 Includes AC 120V power adapter Bullet 5 Uses standard monitor extension cables (StarTech.com coaxial VGA cables recommended for best picture quality) Marketing Copy Applications - In-store product merchandising
- Information booths/kiosks
- Trade-shows
- Lecture halls and classrooms
- Airports, bus terminals and train stations
Website Search Keyword DA Accessory Products - MXT101HQ
- MXT105HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- ST121UTP
- SVPOWER
Related Products - ST124
- ST128
Input Voltage 9 Output Current 0.3A Power Source AC Adapter Included Color Black Product Length (mm) 104 Product Width (mm) 98 Product Height (mm) 24 TAA Compliant No General Specifications - Signal Type: VGA, SVGA, Multisync Monitor
- Cable Length: 210 feet (65 meters)
- Input Connector: 1 x High Density DB15 Male
- Output Connectors: 2 x High Density DB15 Female
- LEDs: Power, Signal
- Enclosure: Metal

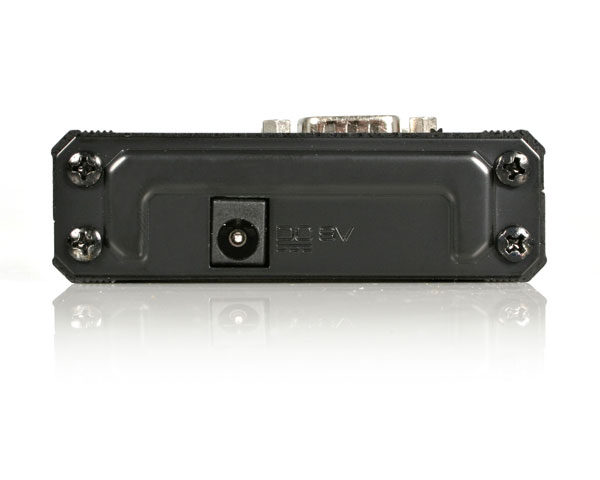

- Power: DC 9V 300mA (max) Adapter included
- Dimensions: 104 x 98 x 24 mm
- Weight: 190g
- VGA Bandwidth (-3dB): 250 MHz
- VGA Resolution (max.): 1600 x 1200 @ 70Hz
- Certifications: Power Adapter - UL/CSA - Splitter - CE/FCC/RoHS

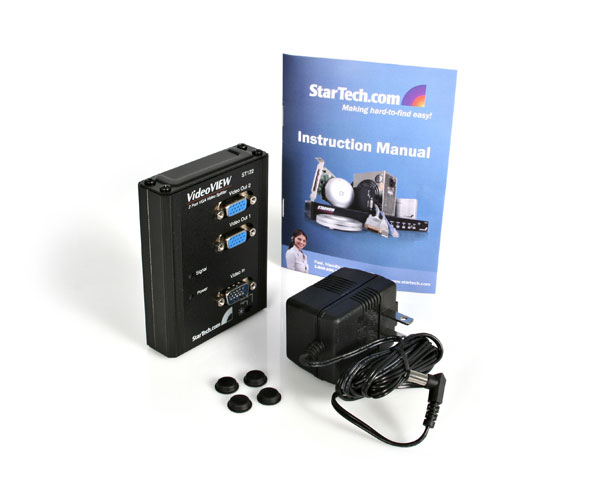

Maximum Analog Resolutions 1600x1200 Carton Depth (mm) 352 Carton Height (mm) 345 Carton Quantity 20 Carton Weight Gross (g) 11800 Included in Package - 1 - STARVIEW SWITCH
- 1 - DC9V 300ma ADAPTOR
- 1 - MANUAL
- 1 - BUTTON SHEET
Package Depth (mm) 60 Package Height (mm) 162 Package Width (mm) 240 Package Weight (g) 530 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
